NanoPi M6 – A Rockchip RK3588S SBC and fanless HMI solution with an integrated 3.5-inch touchscreen display

NanoPi M6 is a Rockchip RK3588S SBC (single board computer) that is also offered as a complete fanless HMI solution with a metal case and a 3.5-inch capacitive touchscreen display with 800×480 resolution.

The M6 is offered with 4GB to 32GB LPDDR5 memory, supports microSD, eMMC flash module, and M.2 NVMe SSD bootable storage, features one HDMI 2.1 port, two MIPI DSI connectors, two MIPI CSI camera connectors, gigabit Ethernet, an M.2 E-Key socket for WiFi and Bluetooth, and a 30-pin GPIO header for expansion among a few other ports and features.

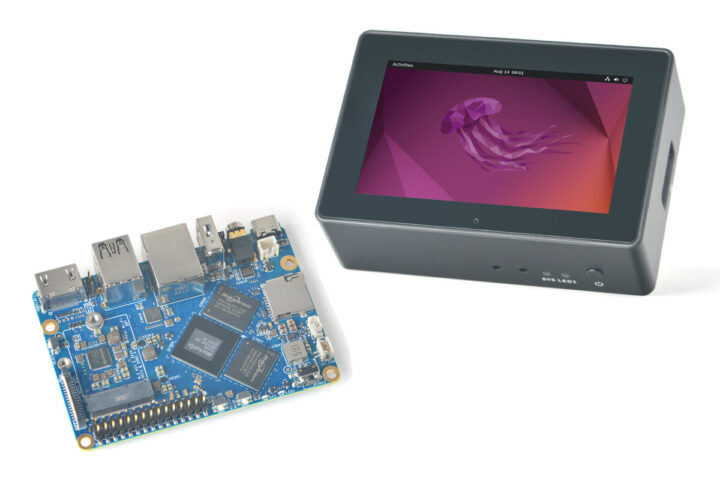

NanoPi-M6 SBC HMI solution

NanoPi M6 specifications:

  • SoC – Rockchip RK3588S
    • CPU – Octa-core processor with 4x Cortex-A76 cores @ up to 2.4 GHz, 4x Cortex-A55 cores @ up to 1.8 GHz
    • GPU – Arm Mali-G610 MP4 GPU compatible with OpenGL ES 3.2, OpenCL 2.2, and Vulkan 1.2 APIs
    • VPU – 8Kp60 video decoder for H.265/AVS2/VP9/H.264/AV1 codecs, 8Kp30 H.265/H.264 video encoder
    • AI accelerator – 6 TOPS NPU
  • System Memory – 4GB, 16GB, or 32GB LPDDR5 at 2400 MHz
  • Storage
    • eMMC module socket supporting HS400 mode
    • MicroSD card slot with SDR104 mode support
    • M.2 M-Key socket with PCIe 2.1 x1 for NVMe SSDs
  • Video output
    • HDMI 2.1 port up to 7680×4320 @ 60Hz; RGB/YUV(up to 10bit) format
    • 2x 4-lane MIPI-DSI connectors
  • Optional Display – 3.5-inch touchscreen LCD with 800×480 resolution and capacitive touchscreen connected to one of the MIPI DSI connectors
  • Camera input
    • 4-lane MIPI-CSI V1.2 connector
    • 4-lane MIPI-CSI D/C PHY connector
  • Audio
    • 3.5mm jack for stereo headphone output
    • 2.0mm PH-2A connector for analog microphone input
  • Networking
    • Gigabit Ethernet RJ45 port
    • Optional WiFi and Bluetooth via M.2 E-key socket with PCIe 2.1 x1 and USB 2.0 host
  • USB
    • 1x USB 3.0 Type-A port
    • 2x USB 2.0 Type-A ports
  • Expansion
    • M.2 Key-M socket for PCIe storage
    • M.2 Key-E socket for WiFi/Bluetooth (PCIe/USB)
    • 30-pin 2.54mm GPIO header with up to 1x SPI, 6x UART, 3x I2C, 1x SPDIF, 4x PWM, 20x GPIO
  • Debugging – 3-pin header for serial console
  • Misc
    • 2x user LEDs
    • 2-pin RTC battery input connector for low-power HYM8563TS RTC IC
    • Buttons – MASK, Reset, Recovery, Power
    • 5V fan connector
  • Power supply – 6V~20V input via USB-C with PD support
  • Dimensions & Weight
    • SBC – 90 x 62 mm (8-layer PCB) | 52 grams
    • Metal case – 94.5 x 68 x 30mm | 252 grams
    • Metal case + LCD – 99 x 68 x 31mm | 275 grams
  • Temperature Range – 0°C to 70°C

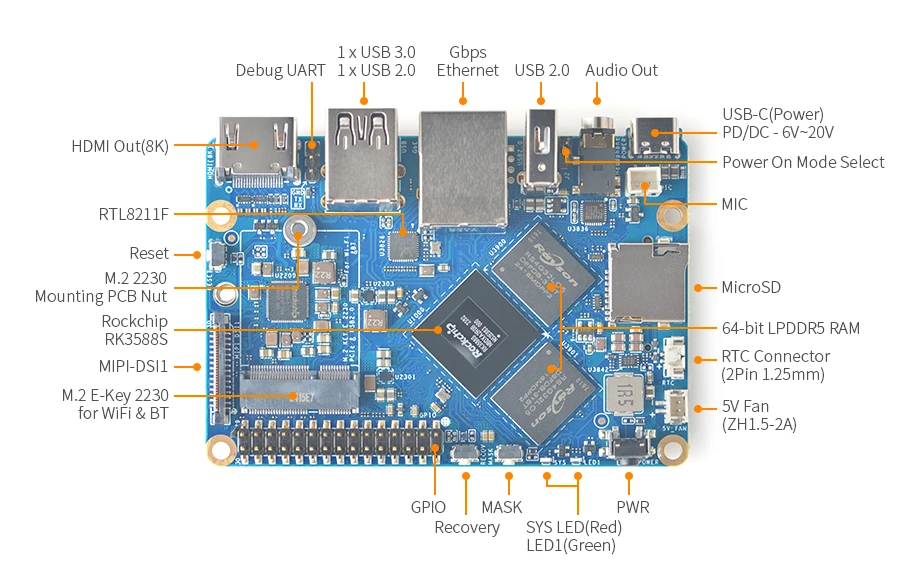

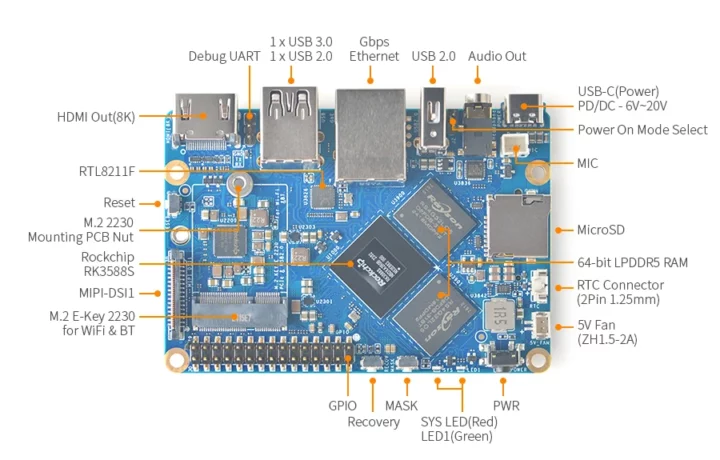

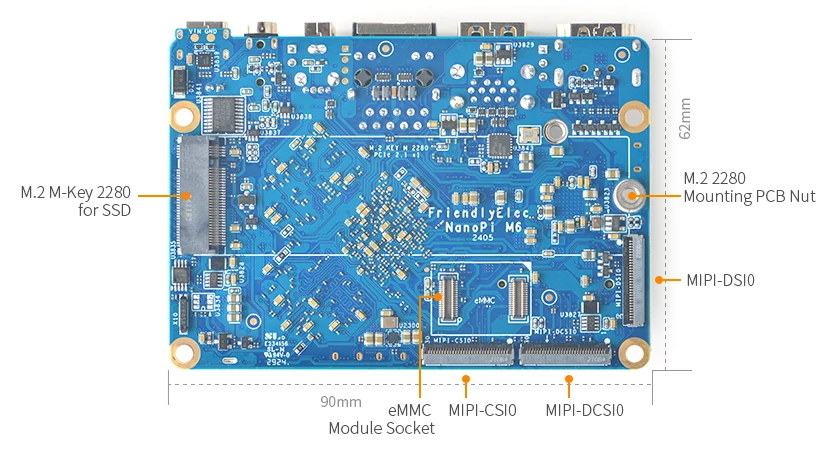

NanoPi M6 RK3588S SBC Rockchip RK3588S board MIPI DSI MIPI CSI

FriendlyELEC provides OS images for Debian 12 Core (headless), Debian 11 Desktop and Minimal, Ubuntu 20.04 Desktop, Ubuntu 22.04 Desktop and Minimal, Xubuntu 22.04, Android 12 TV, Android 12 Tablet, OpenMediaVault, and FriendlyWrt, a fork of OpenWrt. All images are based on Linux 6.1, and Ubuntu 24.04 support is coming soon. You’ll find those and other information in the wiki. I would expect the NanoPi M6 to benefit from the software work done on the earlier NanoPi R6S that we reviewed with Ubuntu 22.04.

The company stress-tested the NanoPi M6 in its metal case with or without display and the maximum CPU temperature was under 70°C, and since the board does not come with WiFi, they also provide a list of supported WiFi dongles. This information can be found on the product page where you can also purchase the NanoPi M6 for $70 and up depending on options. The top model with 32GB RAM,  a 64GB eMMC flash module, a metal case, and a 3.5-inch touchscreen display goes for $205.

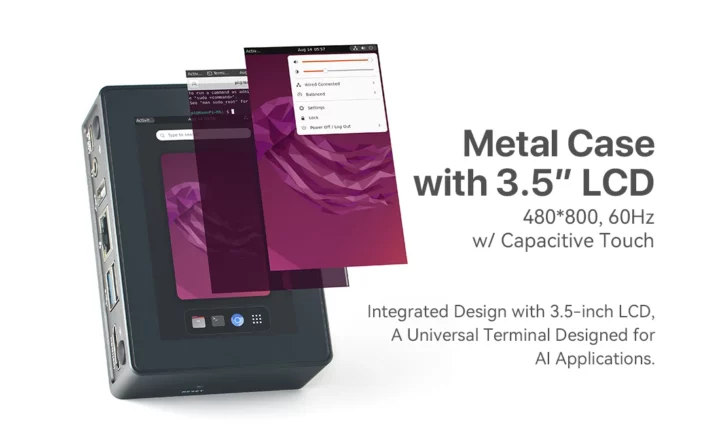

NanoPi M6 3.5-inch touchscreen display

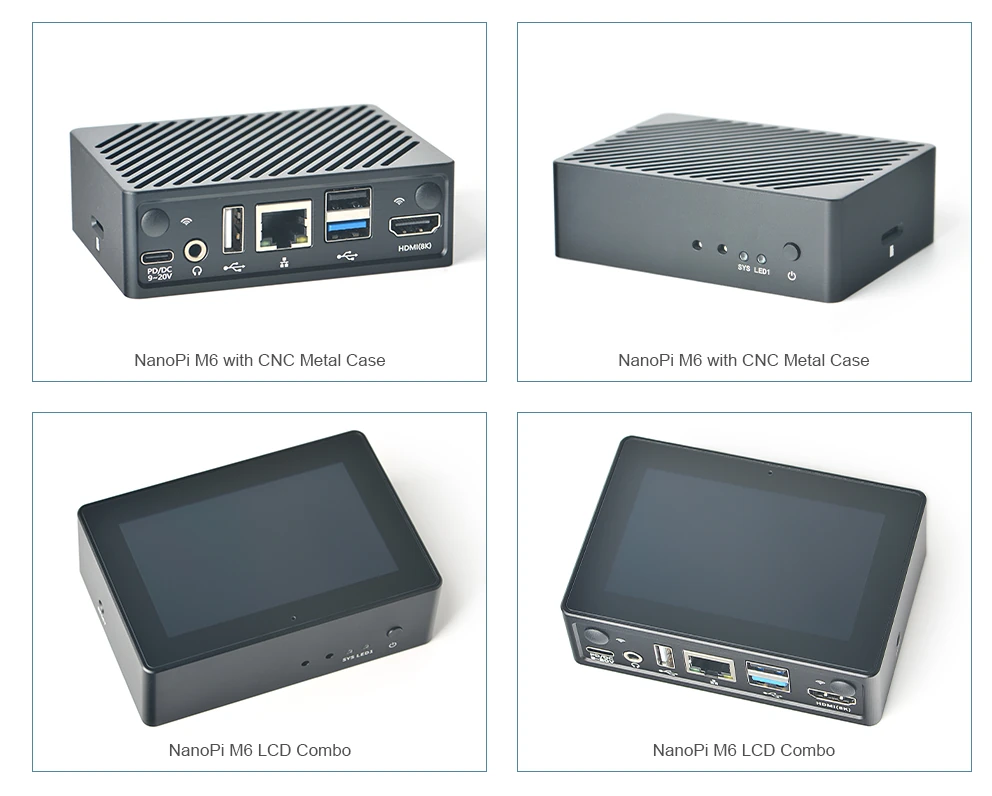

NanoPi M6 metal case with without display
NanoPi M6 housed in a metal case with or without a display
