DeskPi RackMate T1 is a U8 desktop rack designed for Raspberry Pi, NVIDIA Jetson, mini-ITX motherboards, and more

DeskPi RackMate T1 is a U8 desktop rack especially suited to SBC users with support for Raspberry Pi SBCs, NVIDIA Jetson developer kits, Raxa ROCK 5B pico-ITX SBC, mini-ITX motherboards, and more.

The RackMate T1 chassis is made of aluminum alloy and acrylic frame and its 8U form factor (406 (H) x 280 (L) x 200 (W) mm) allows it to be placed either on a desk or a floor of a home lab.

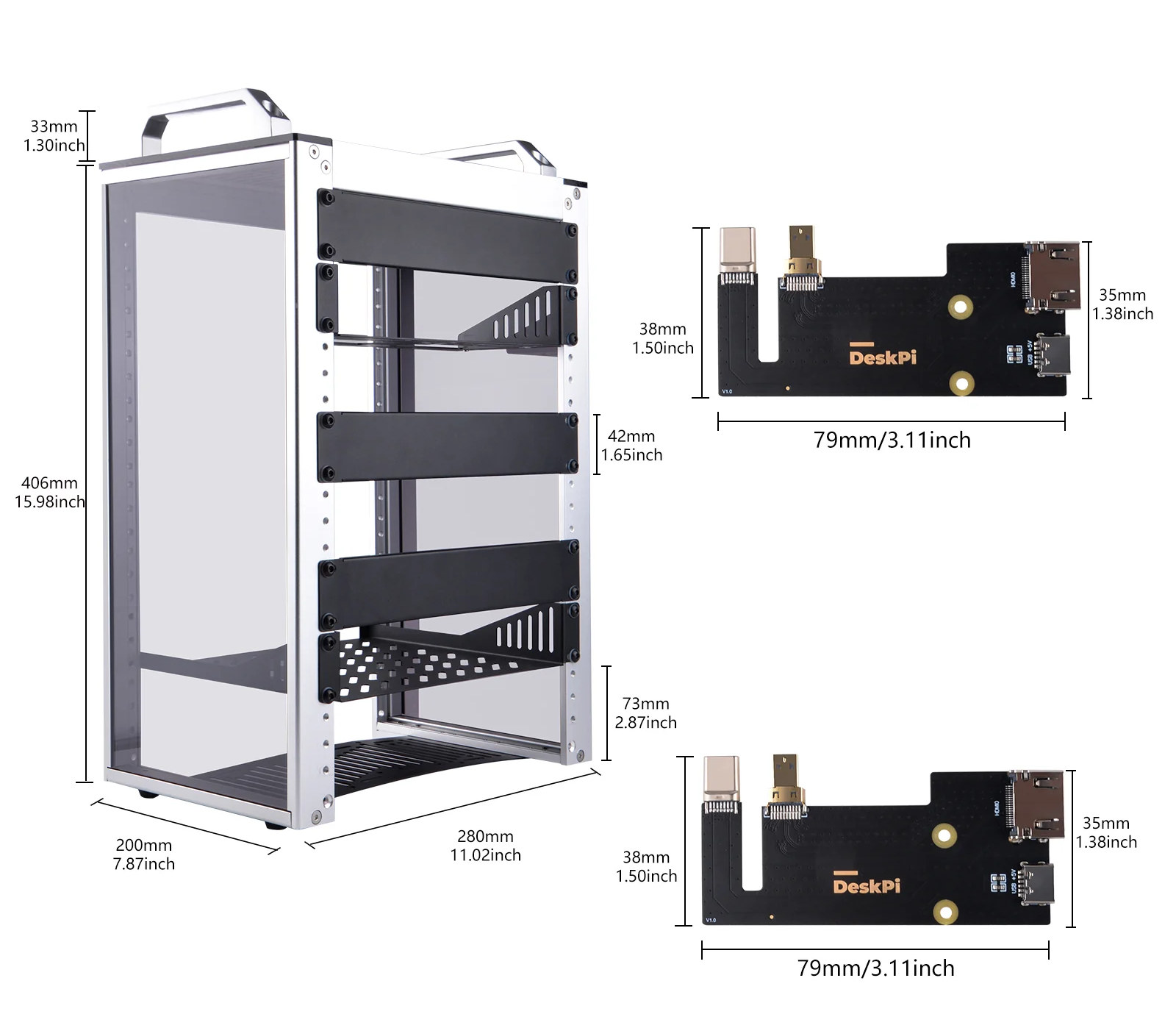

DeskPi RackMate T1

DeskPi RackMat T1 highlights:

  • Mounting holes on all trays
    • Raspberry Pi 3B, 3B, +4B, and DeskPi aux board bring HDMI and USB-C to the front (M2.5 screws) – star holes
    • NVIDIA Jetson Nano developer kit (M2.5 screws) – square holes
    • Radxa ROCK 5B pico-ITX SBC (M3 screws) – round holes
    • 2.5-inch drives
  • Screw kits with M2.5 screws and standoffs, M3 screws, and a screwdriver
  • Dimensions – 406 x 280 x 200 mm (H x L x W)
  • Materials – Aluminum alloy and acrylic frame

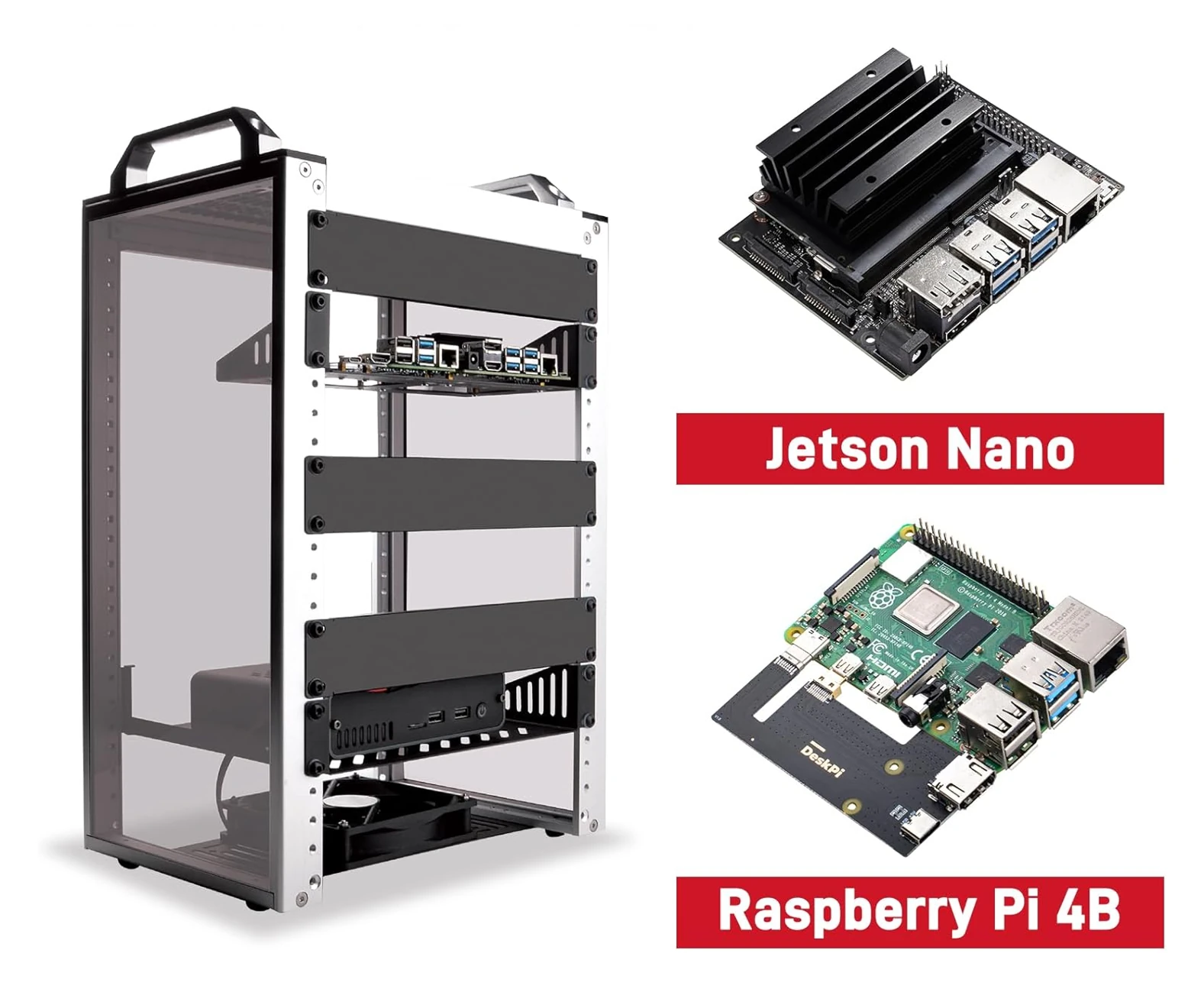

Rackmount for Raspberry Pi 4, Jetson Nano

The documentation is extremely poor with low-resolution images and confusion with “optional accessories” that are shown in all photos as if they were included:

  • Rack shell
  • Blank panel
  • SBC shell
  • Mini-ITX shell
  • 10-inch network switch

For example, I can see at least three blank panels, one rack shell, and one SBC shell in the kit below. One would assume those are included, but it’s hard to tell since the company does not make it specific.

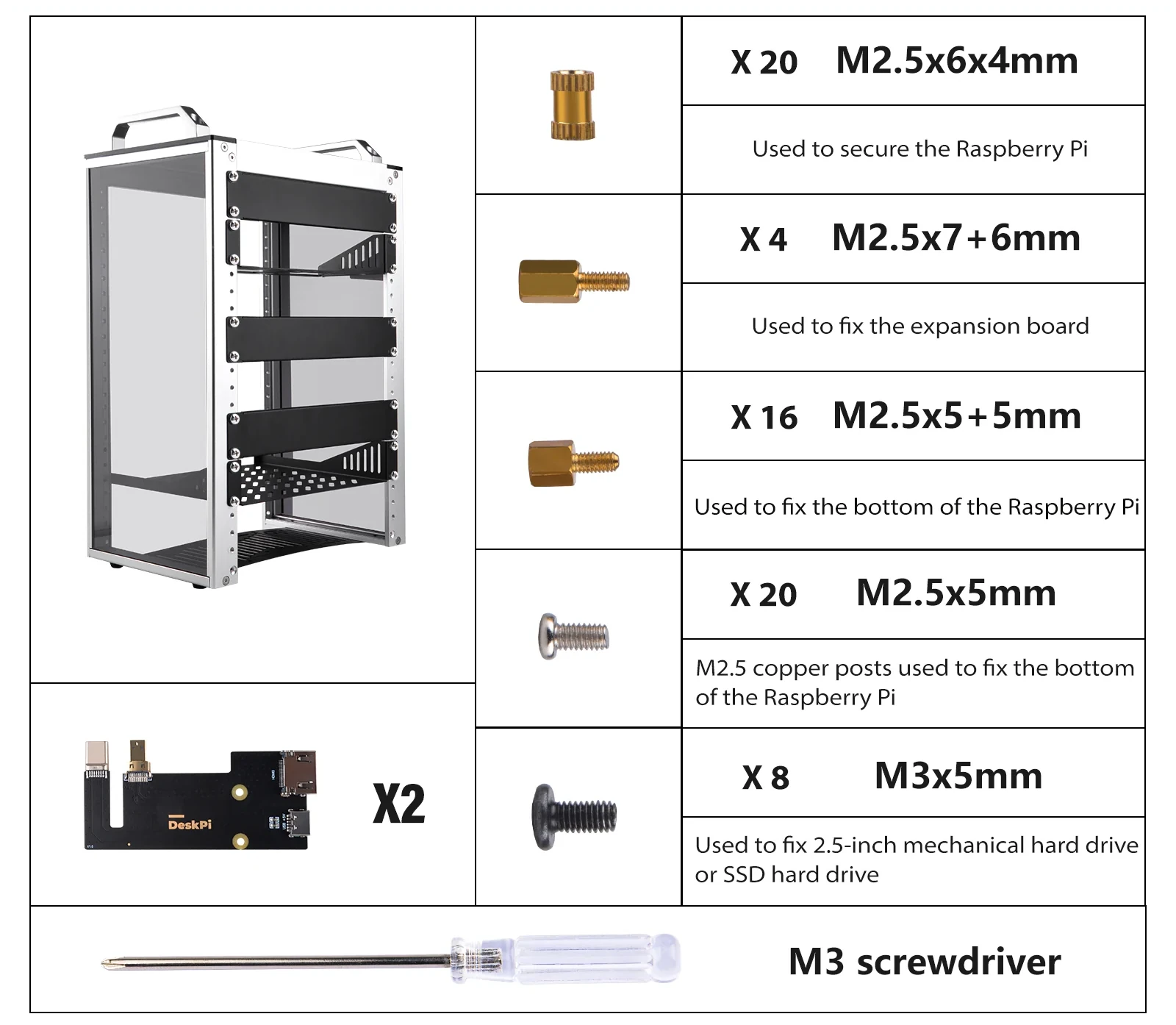

DeskPi RackMate T1 kit accessories

It’s not the first time we have written about rack solutions for Raspberry Pi and other SBCs, and we previously covered a 19-inch rackmount from MyElectronics taking up to 16 Raspberry Pi boards, which may be more cost-effective for European users although you’d need to bring your own rack/chassis.

The DeskPi RackMate T1, also called the “GeeekPi 8U Server Cabinet” can be purchased for $179.99 on Amazon and most users seem happy about it, except one that received a kit with a cracked top acrylic panel. The accessories mentioned above sell for $12 to $36 on Amazon. TheRackMate T1 can also be purchased on the company’s store, but they don’t recommend it due to hefty shipping charges from China…

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
1 Comment
oldest
newest
Ray Knight
Ray Knight
1 month ago

This base unit does come with the following:

  • 1x SBC shelf
  • 1x Rack shelf
  • 3x Blank panels

The bottom panel is designed to accomodate a cooling fan.
