Nuvoton NuMicro MA35D1-powered industrial SoM and dev board features dual GbE ports, cellular connectivity, and more

MYIR has recently introduced MYC-LMA35 industrial SoM and its associated development board built around the Nuvoton NuMicro MA35D1 microprocessor with two Arm Cortex-A35 cores and one Arm Cortex-M4 real-time core for processing. The SoM comes in a BGA package with connectivity options such as dual Gigabit Ethernet, cellular connectivity, Wi-Fi/Bluetooth, and various other interfaces like RS232, RS485, USB, CAN, ADC, GPIO, and more. All these features make this SoM and its associated dev board useful for demanding edge IIoT applications like industrial automation, energy management systems, smart city infrastructure, and remote monitoring solutions.

Previously we have seen MYIR introduce various SoM and development boards like the MYC-LR3568 Edge AI SoM, and the MYC-YF13X SoM and we have also written about similar industrial dev boards such as the Firefly ROC-RK3576-PC, the Nuvoton NuMicro M2L31 development board, and many more. Feel free to check those out if you are interested in the topic.

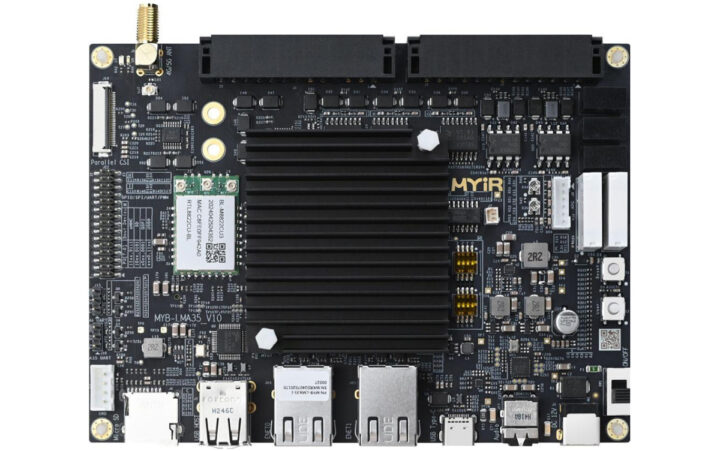

MYD-LMA35 Development Board with Nuvoton Numicro MA35D1 SoM

MYC-LMA35 industrial SoM and MYD-LMA35 development board specifications

  • MYC-LMA35 SoM specifications
    • SoC – Nuvoton NuMicro MA35D16A887C microprocessor
      • 2x Arm Cortex-A35 cores running up to 800 MHz
      • 1x Arm Cortex-M4 processor core running up to 180 MHz
      • 2D Graphic Engine (GFX), LCD controller with a resolution of up to 1080p
      • H.264 Video Decoder and JPEG Image Decoder
    • Memory:
      • On-chip SRAM 384 KB (Cortex-A35 256 KB + Cortex-M4 128 KB)
      • 256MB DDR3L (MCP DDR)
    • Storage
      • 256MB NAND flash
      • 8GB eMMC flash
      • 32KB EEPROM
    • USB – USB 2.0 high-speed host and device
    • Networking – 2x Gigabit Ethernet MAC (GMAC)
    • Other peripherals
      • Peripheral DMA (PDMA)
      • I2C
      •  SDIO3.0
      • JTAG
      • Up to 190x GPIOs
      • Serial – CAN FD, Low-power UART, RS485
      • Audio – I2S
      • Enhanced PWM (EPWM), 32-bit Timer PWM
      • Quadrature Encoder Interface (QEI)
      • Enhanced Capture (ECAP)
      • HMI – KeyPad Interface (KPI), 4/5-Wire Touch
      • Enhanced Analog-to-Digital Converter (EADC), Analog-to-Digital Converter (ADC)
    • Security
      • TrustZone
      • Secure Boot
      • Trusted Secure Island (TSI) – Run-Time Integrity Checker (RTIC)
      • Cryptographic – AES, SHA, ECC, RSA, SM 2/3/4 TRNG
      • KeyStore
      • One-Time-Program (OTP) Memory
      • Tamper Detection Pins
      • CMOS Sensor Interface
    • Misc – Real-Time Clock (RTC)
    • Package – 252-pin LGA expansion interface
    • SoM Dimension – 37 x 39mm
  • MYD-LMA35 dev board specifications
    • Storage – MicroSD card slot
    • Display – RGB display interface (Supports MYIR’s MY-LCD70TP-C LCD Module with Capacitive Touch Screen)
    • Camera – Parallel CSI interface
    • Networking
      • 2x gigabit Ethernet RJ45 ports
      • Wi-Fi/Bluetooth Module
      • M.2 socket and 2x SIM card slots for 4G/5G LTE module (USB-based)
    • USB
      • 2x USB 2.0 host ports
      • 1x USB 2.0 OTG port
    • Serial Interface
      • 6x RS232 (isolated)
      • 6x RS485 (isolated)
      • 4x CAN Interfaces (w/ isolation)
    • Expansion
      • 30-pin GPIO expansion header
      • 2x Digital Input ports, 2x Digital Output ports
      • 1x ADC Interface
    • Debug – 3x Debug Interfaces (one for Cortex-A35 core, one for Cortex-M4 core, one for SWD)
    • Misc – Reset, User, Power buttons
    • Dimensions – 150 x 110mm
  • Power
    • 12V/2A DC (baseboard)
    • 5V/1A DC (SoM)
  • Temperature Range – -40°C to 85°C

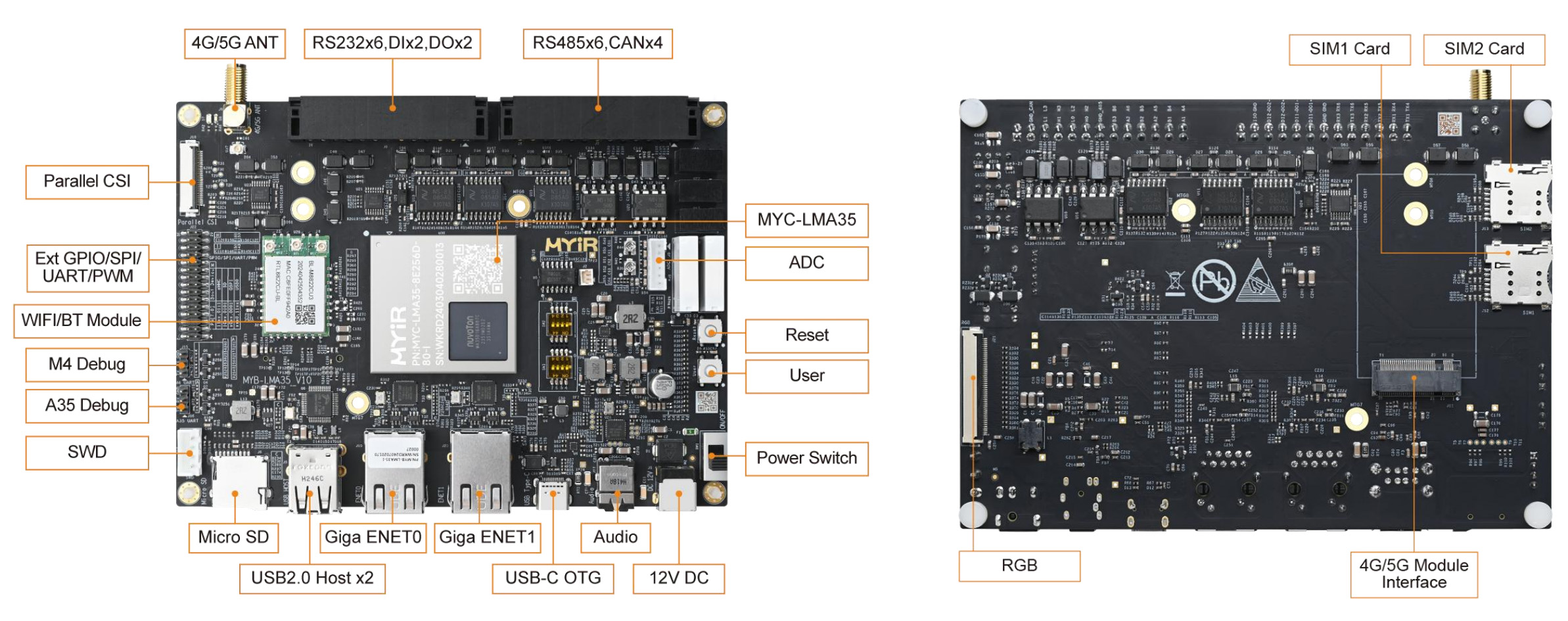

MYD-LMA35 Development Board Top and Bottom
MYD-LMA35 Development Board Top and Bottom

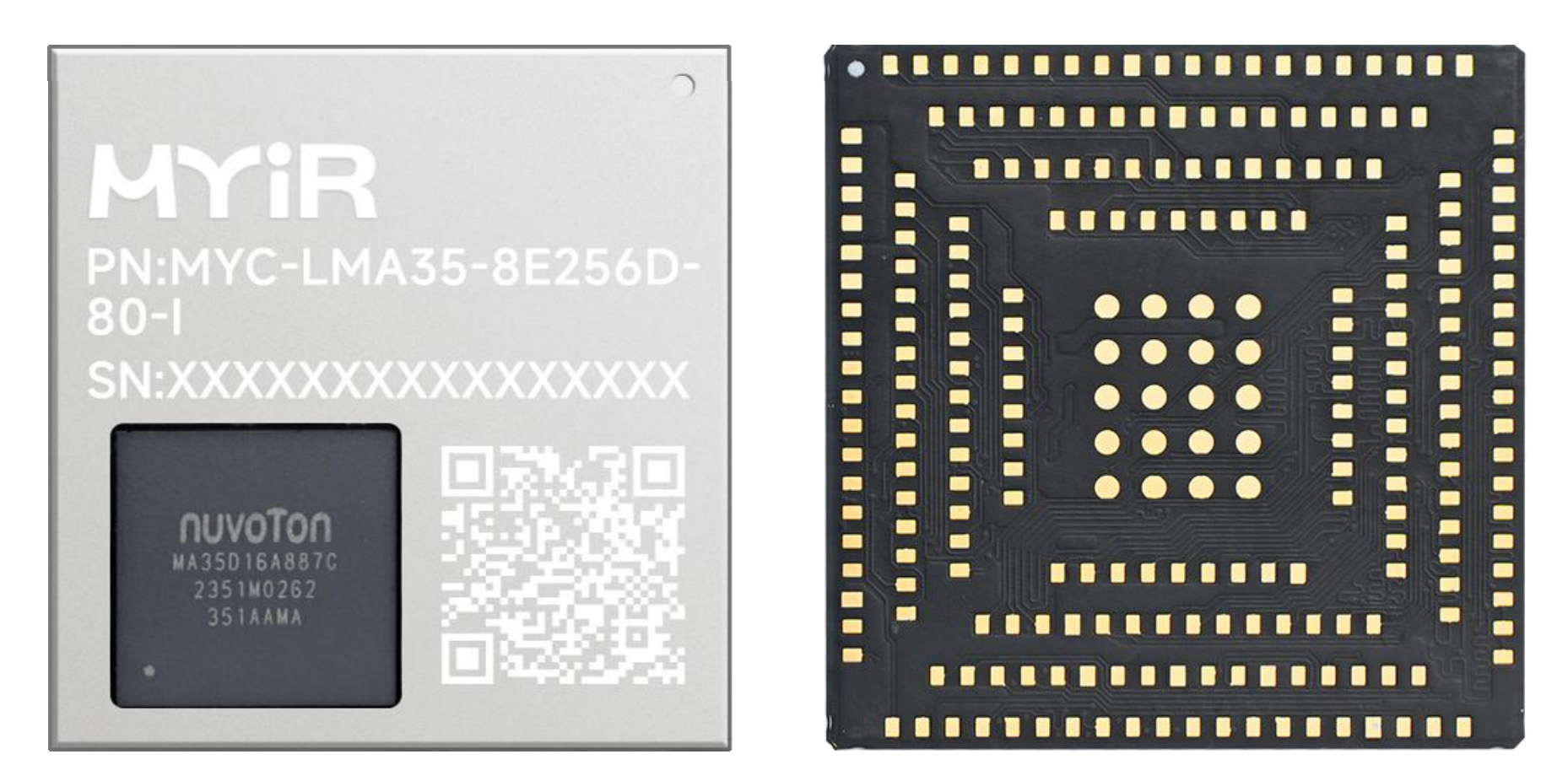

MYC-LMA35 System-On-Module with NuMicro MA35D1 MPU
MYC-LMA35 System-on-Module (Top view and Bottom view)

In terms of software, the company provides SDK featuring Linux 5.10, which includes u-boot, the kernel, and drivers in source code format which makes it easy to develop applications for the dev board. Moreover, the company also mentions there will be support for Debian and OpenWrt in the future. The documentation also includes pinout descriptions, certifications, and 3D STEP files of the MYC-LMA35 industrial SoM.

The Nuvoton NuMicro MA35D1 industrial SoM is available with either 256MB NAND flash for $39.80 or 8GB eMMC for $45.80. The MYD-LMA35 dev board goes for $99.00 with 256 MB NAND flash and $105 with 8GB eMMC flash. You can find more details and purchasing information on the product page.

MYC-LMA35 SoM Functional Block Diagram with Numicro MA35D1 microprocessor
MYC-LMA35 Functional Block Diagram
