Maxtang T0-FP750 review – Part 2: An AMD Ryzen 7 8845HS mini PC tested with Windows 11 Pro

We already listed the specifications and performed an unboxing and a teardown of the Maxtang T0-FP750 mini PC in the first part of the review. We’ve now had time to test the AMD Ryzen 7 8845HS mini PC in more detail with the Windows 11 Pro operating system.

So in the second part of the review, we’ll report our experience with the Maxtang T0-FP750 in Windows 11 Pro with a software overview, features testing, benchmarks, networking and storage performance,  cooling performance, and measurement of fan noise and power consumption.

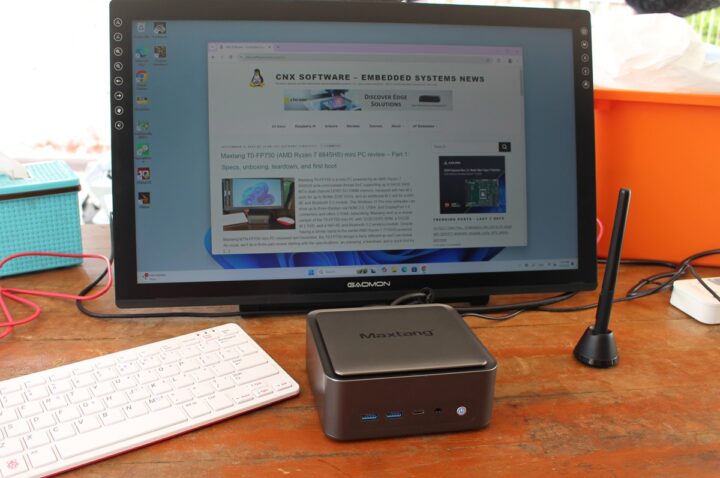

Maxtang T0-FP750 mini PC review windows 11

Software overview and features testing

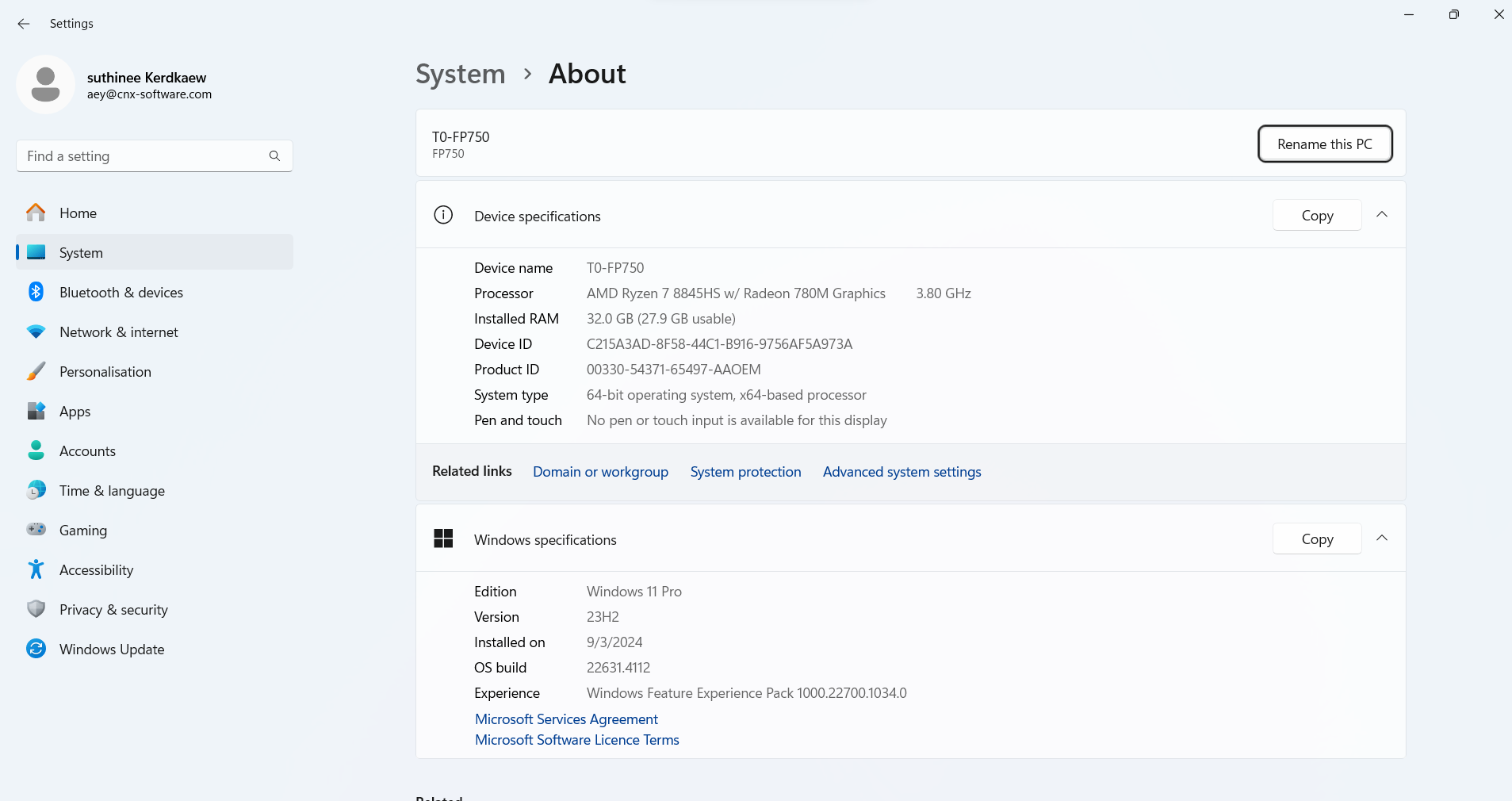

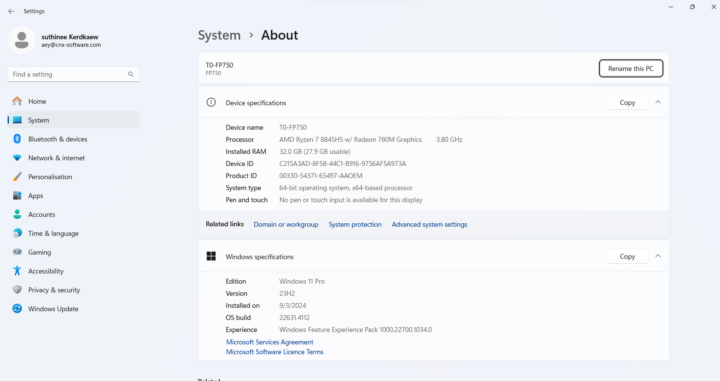

The System->About menu confirms we have an “FP750” Mini PC powered by an AMD Ryzen 7 8845HS processor clocked at 1.80 GHz (base frequency) with Radeon 780M Graphics, equipped with 32 GB RAM, and running Windows 11 Pro 23H2, OS build 22631.4112.

System About T0-FP750 windows 11

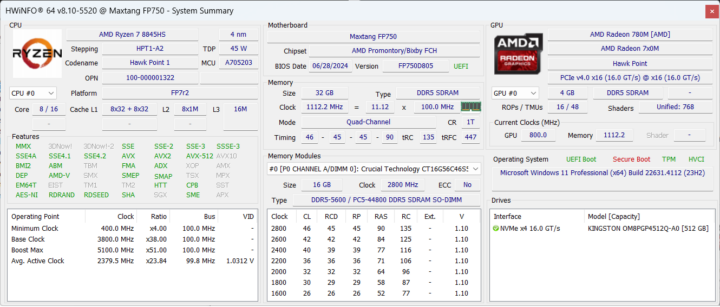

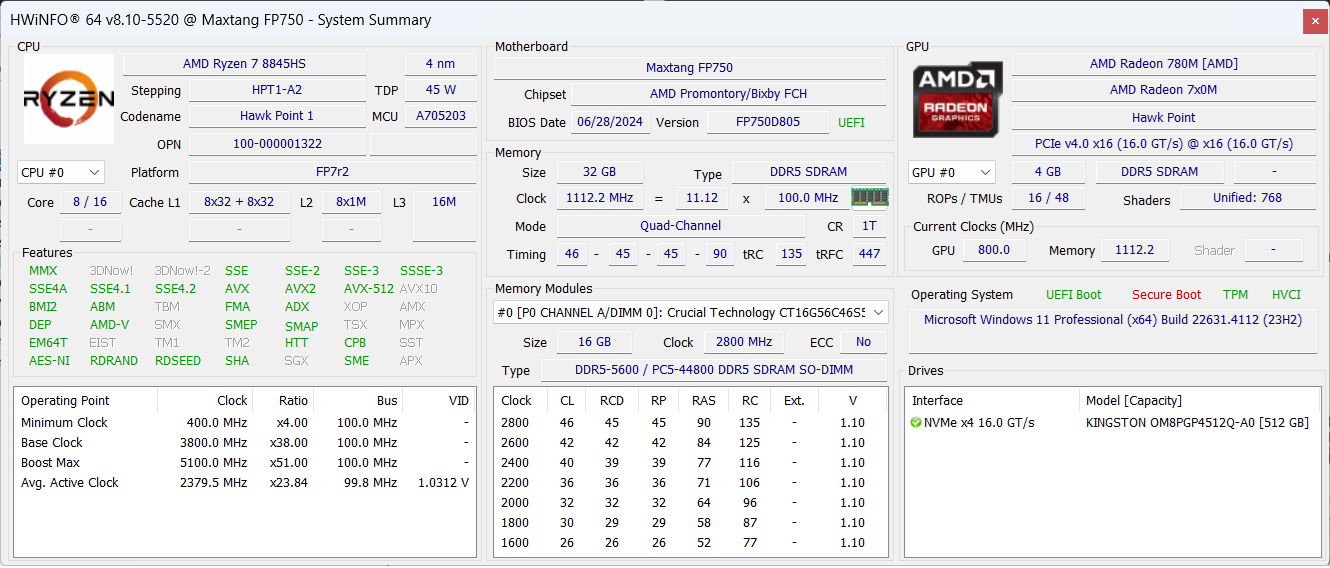

HWiNFO64 provides additional details about the AMD Ryzen 7 8845HS 8-core/16-thread processor, the Maxtang FP750 motherboard, and built-in AMD Radeon 780M Graphics that uses 4GB RAM.

HWiNFO AMD Ryzen 7 8845HS 8 cores 16 Threads

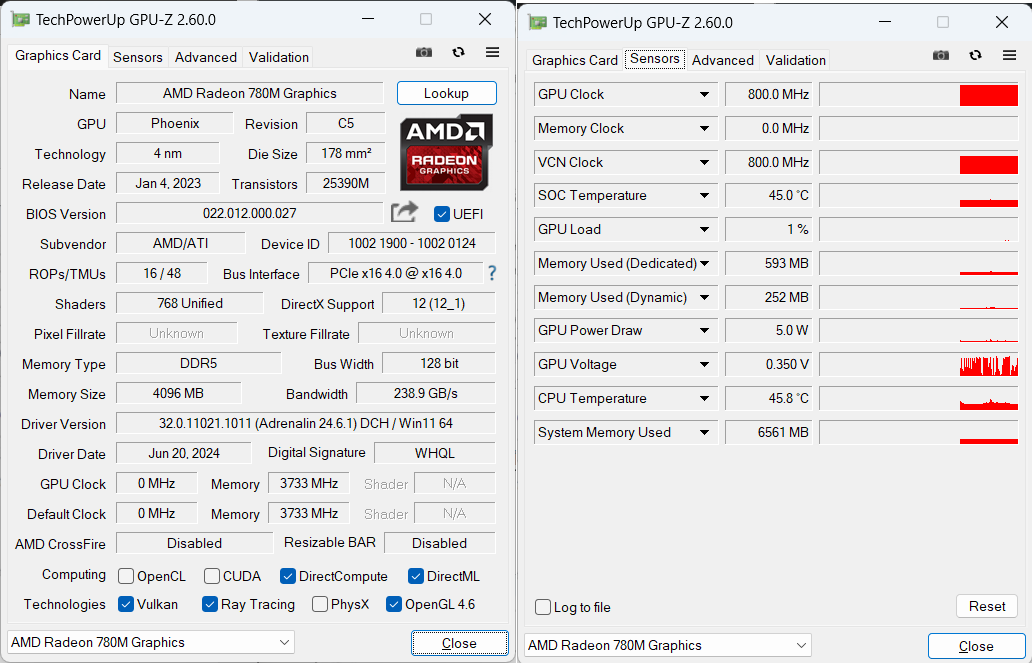

GPU-Z has more details about the AMD GPU and the driver used (Adrenalin 24.6.1).

GPU-Z AMD Radeon 780M Graphics

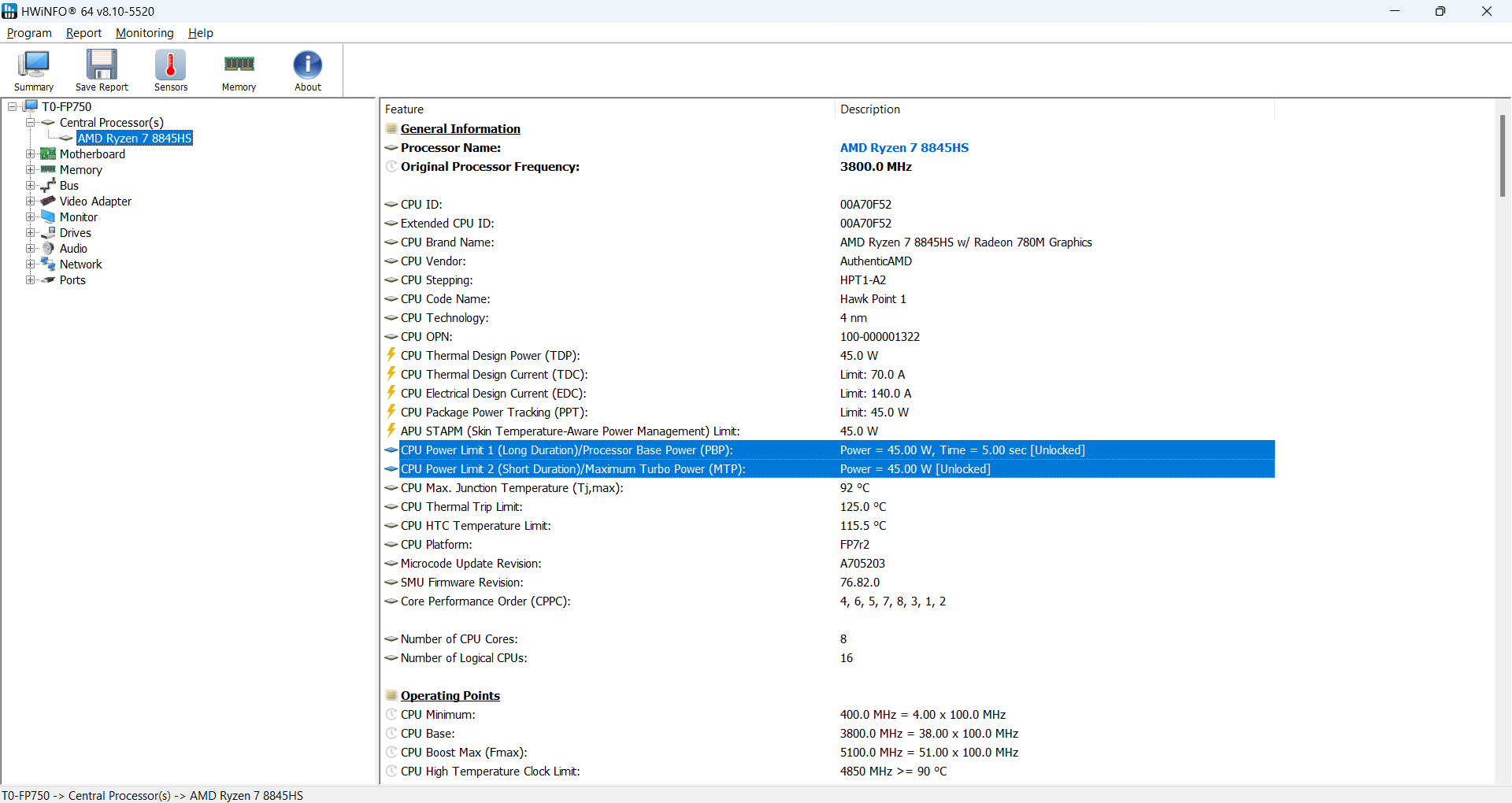

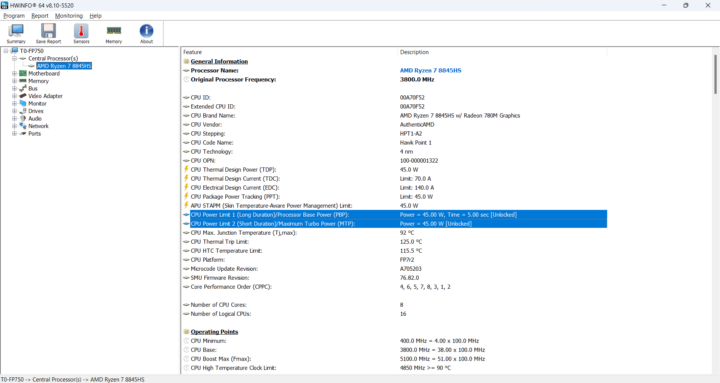

The PL1 and PL2 power limits are both set to 45W which feels odd but follows the 45W TDP from the AMD Ryzen 7 8845HS specifications.

AMD Ryzen 7 8845HS power limits PL1 PL2

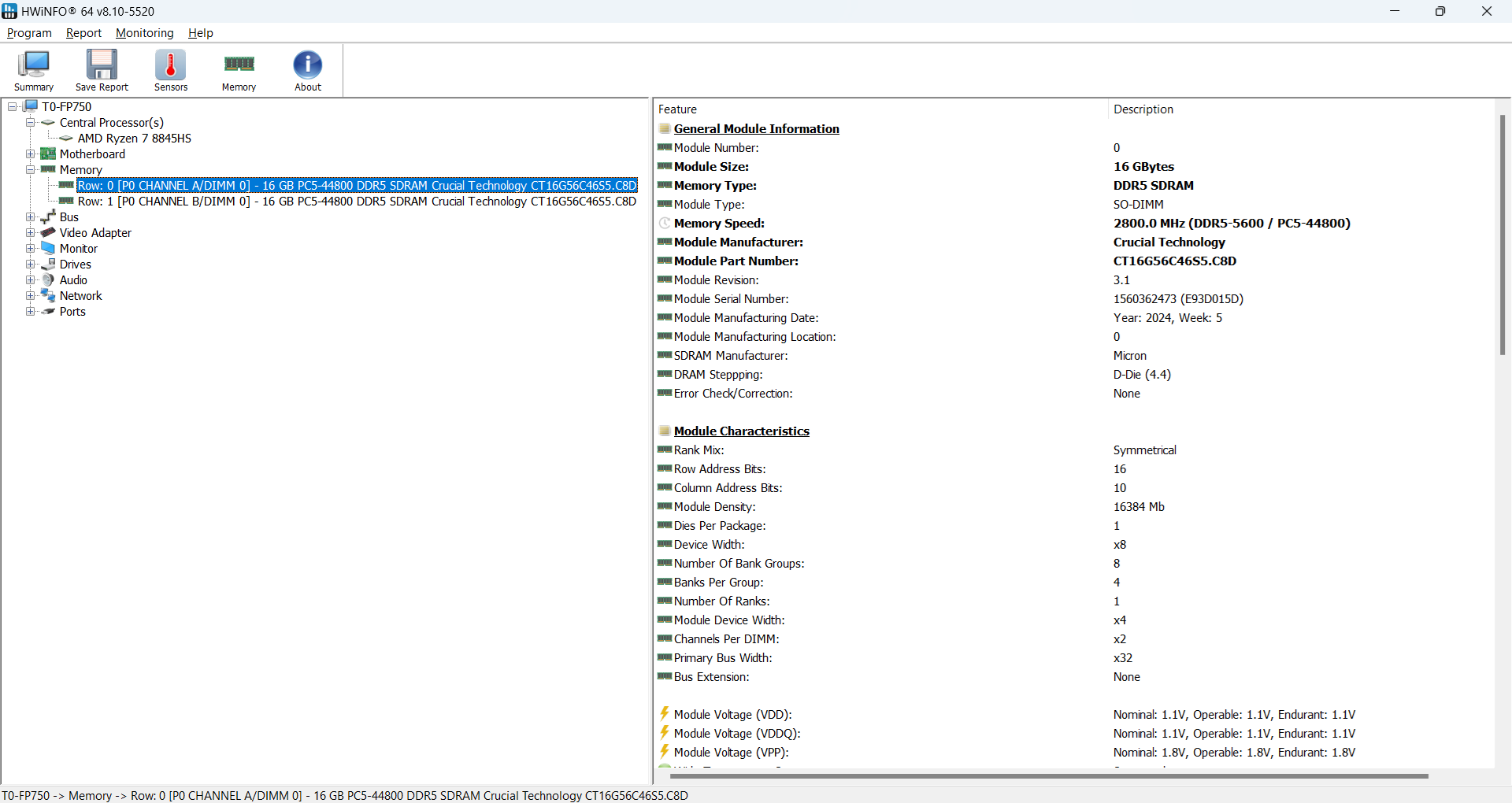

Back to HWiNFO64, we can see two Crucial Technology CT16G56C46S5 16GB DDR5 SDRAM memory modules using Micron chips clocked at 2800MHz (DDR5-5600) for a total capacity of 32GB RAM.
HWiNFO T0-FP750 DDR5 SDRAM

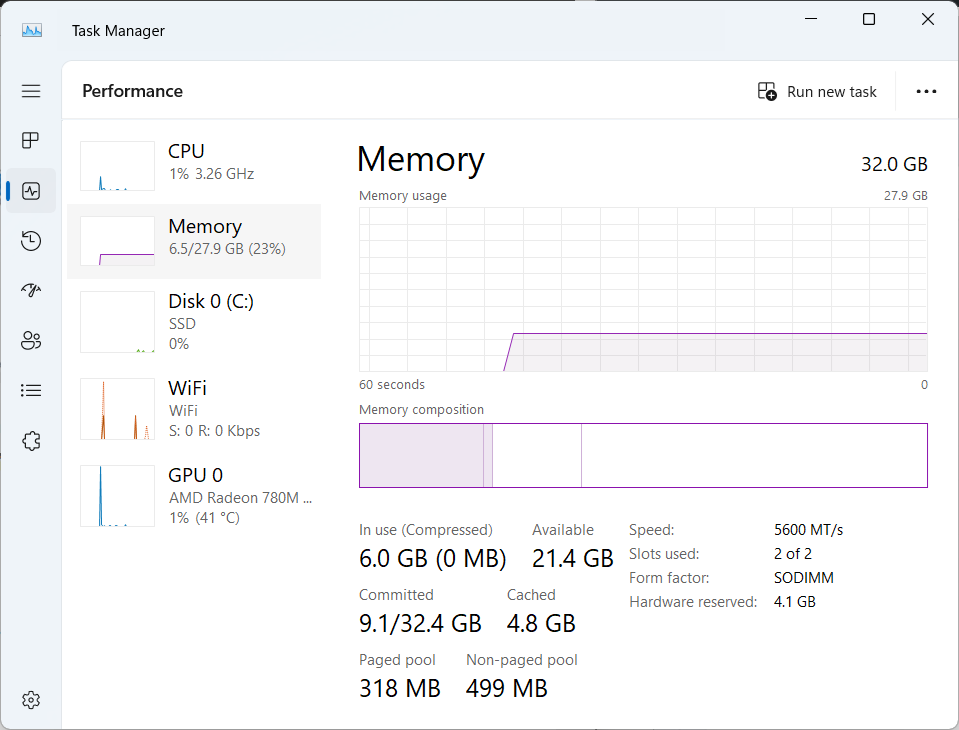

Windows Task Manager also reports 32GB of RAM ( 5,600 MT/) through two SODIMM modules. 4.1GB is reserved for the hardware, most of it for the Radeon 780M GPU.

Task Manager Memory T0-FP750 32GB

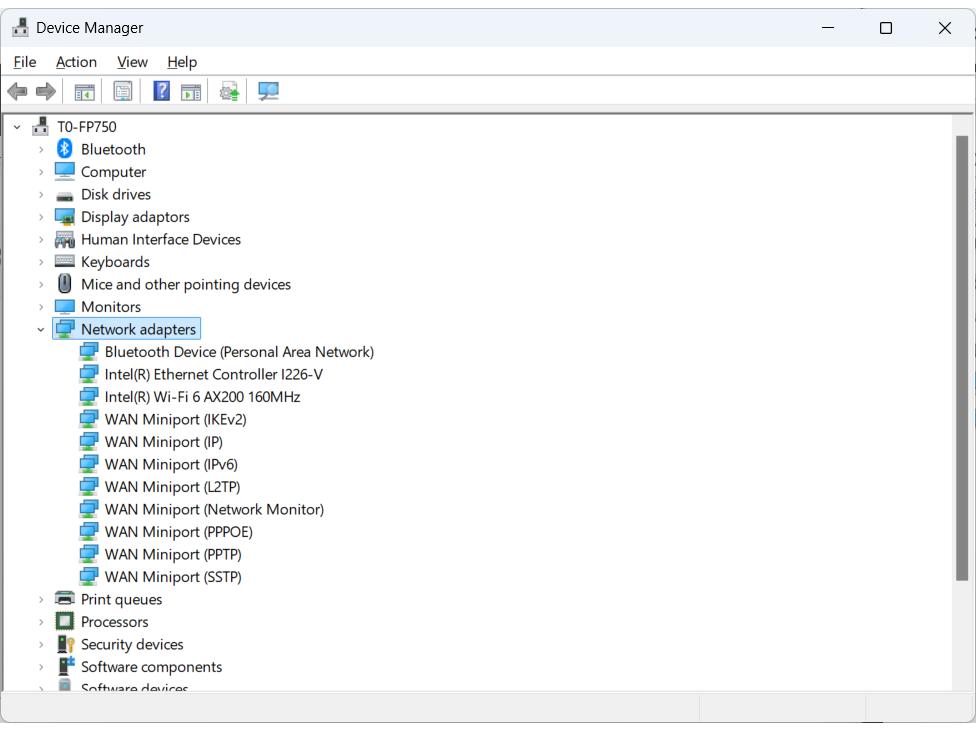

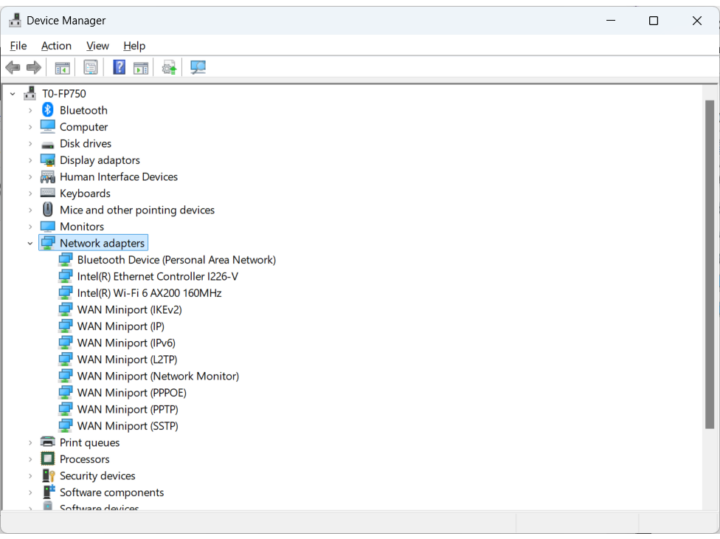

The Network adapters section in Windows Device Manager shows a Bluetooth device, a 2.5GbE Intel Controller I226-V, and a WiFi 6 AX200 module.

Device manager T0-FP750 Network adapters

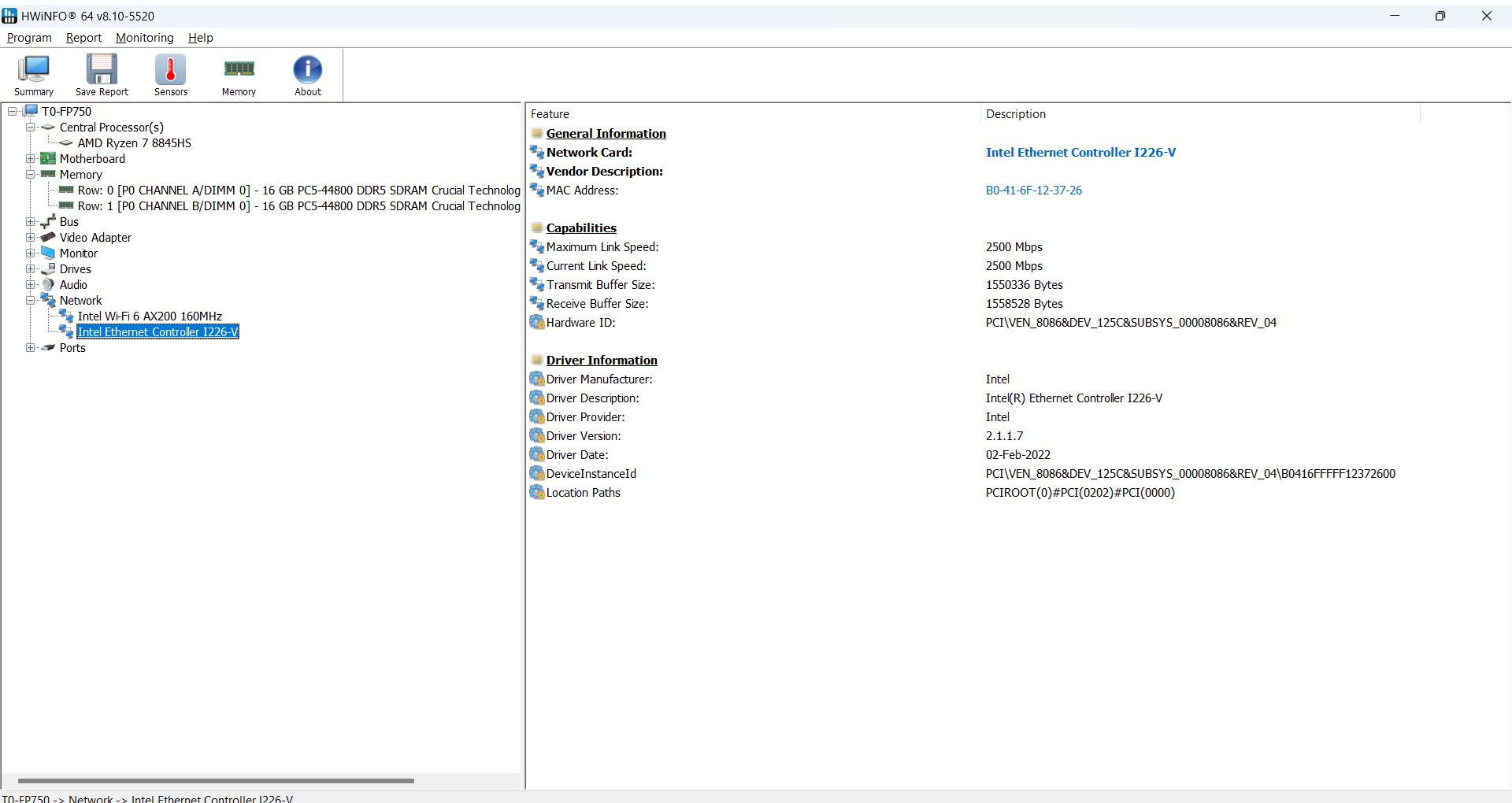

HWInfo64 confirms the Intel Ethernet Controller I226-V with a maximum Link Speed of 2500 Mbps…

Maxtang T0-FP750 Network 2.5GbE
… and the Intel Wi-Fi 6 AX200 160 MHz with a link speed of up to 1201 Mbps.

Maxtang T0-FP750 Network WiFi 6

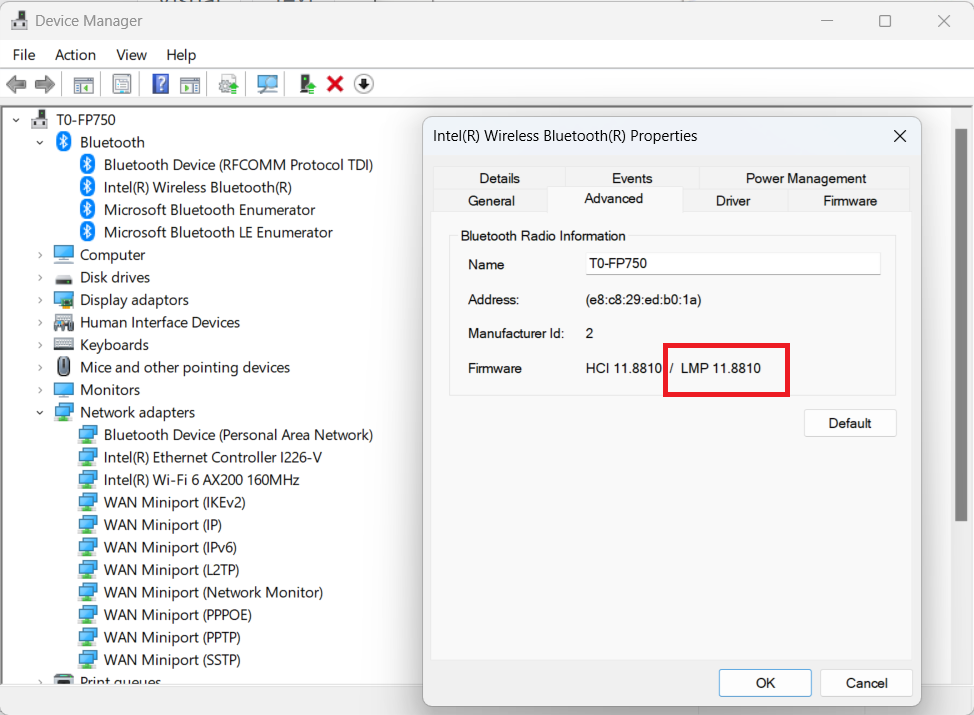

We can check the Bluetooth version by going to Device Manager -> Intel Wireless Bluetooth and selecting the Advanced tab.

Device Manager Intel Wireless Bluetooth 5.2
LMP 11.08810 looks up to Bluetooth 5.2 as advertised. We also tested Bluetooth at this point and successfully transferred a file over Bluetooth using an Android smartphone.

We’ll now check all USB ports of the Maxtang T0-FP750 with an ORICO M234C3-U4 M.2 NVMe SSD enclosure along with HWiNFO64 to check the USB version and speed, and CrystalDiskMark to confirm the file transfer speed. The USB 2.0 was tested with a USB hard drive instead since the ORICO enclosure is incompatible with USB 2.0 interfaces.

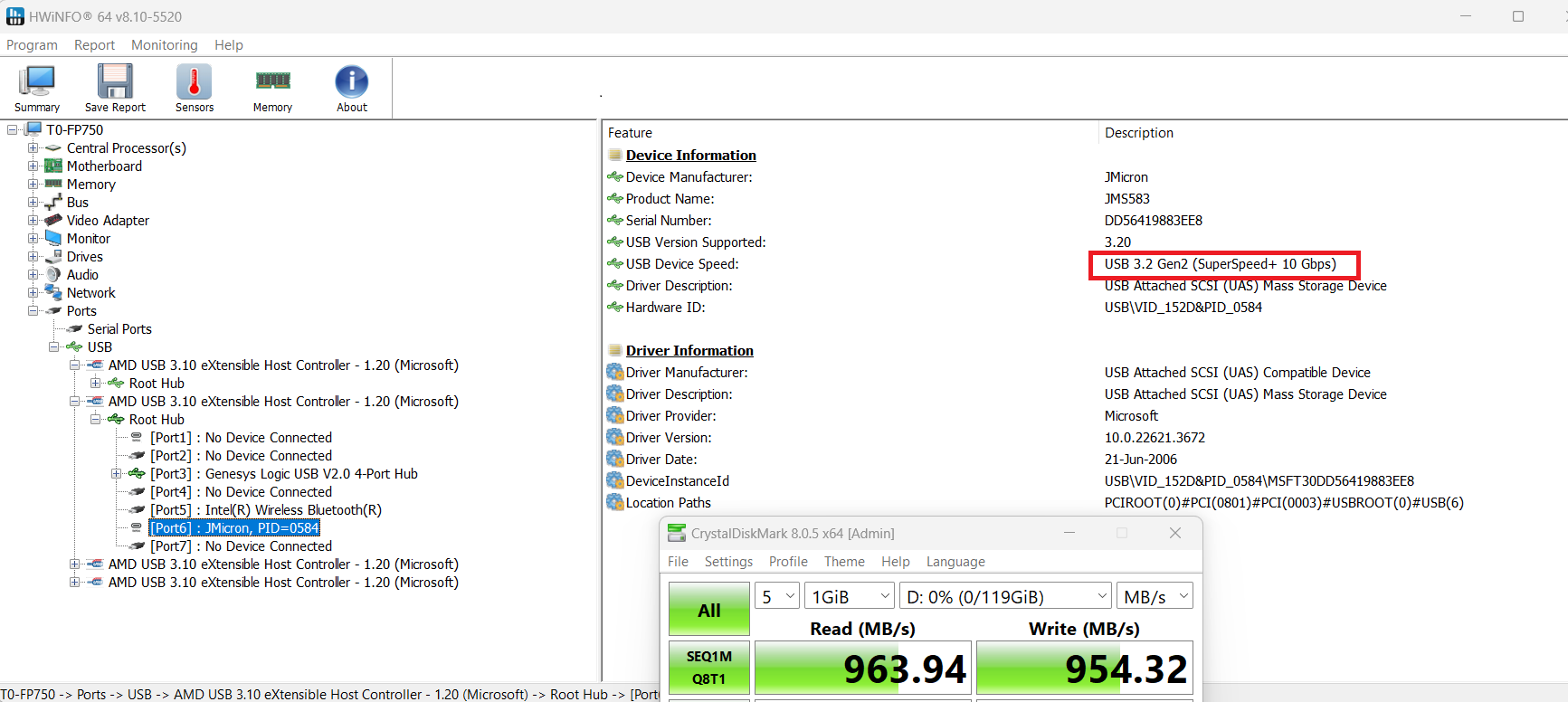

The results for the left USB 3.2 Type-A port on the front panel are shown in the screenshot below.

Maxtang T0-FP7550 USB 3.2 port 1 speed

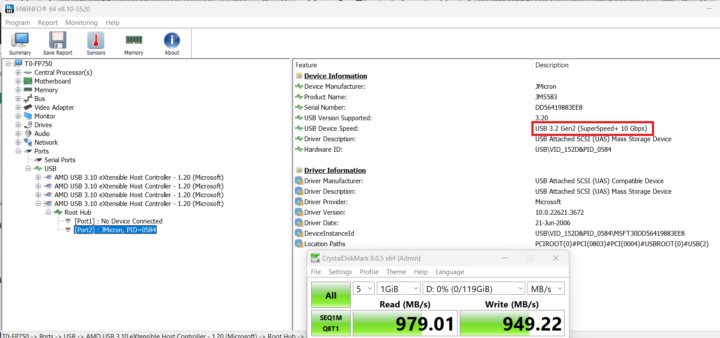

The USB-C port on the front panel is also a 10 Gbps port as advertised…

USB 3.2 Type-C Front speed

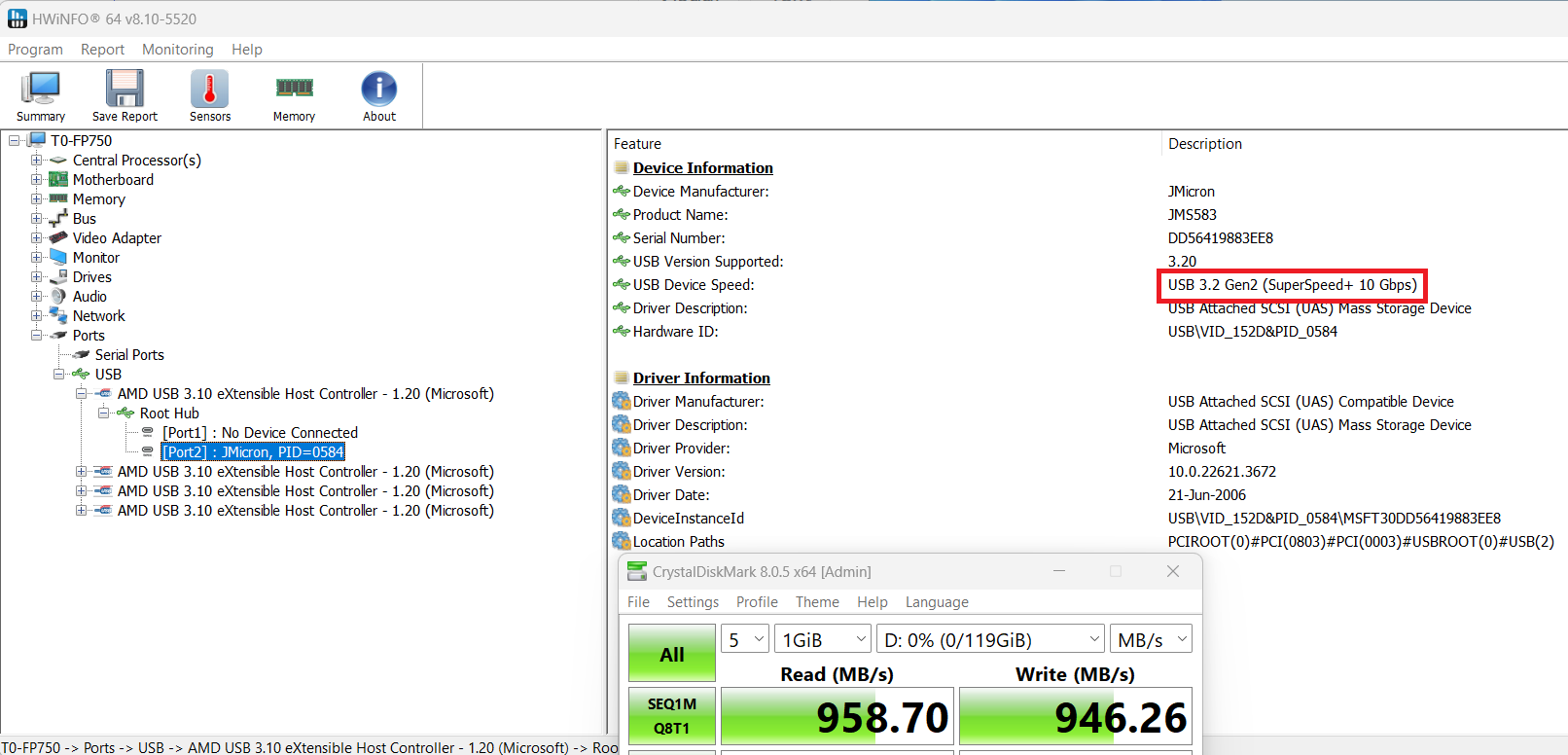

However, the USB-C port on the rear panel, advertised as USB4, only shows as a 10 Gbps USB 3.2 Gen2 port as per our testing.

USB 3.2 Type-C read speed test

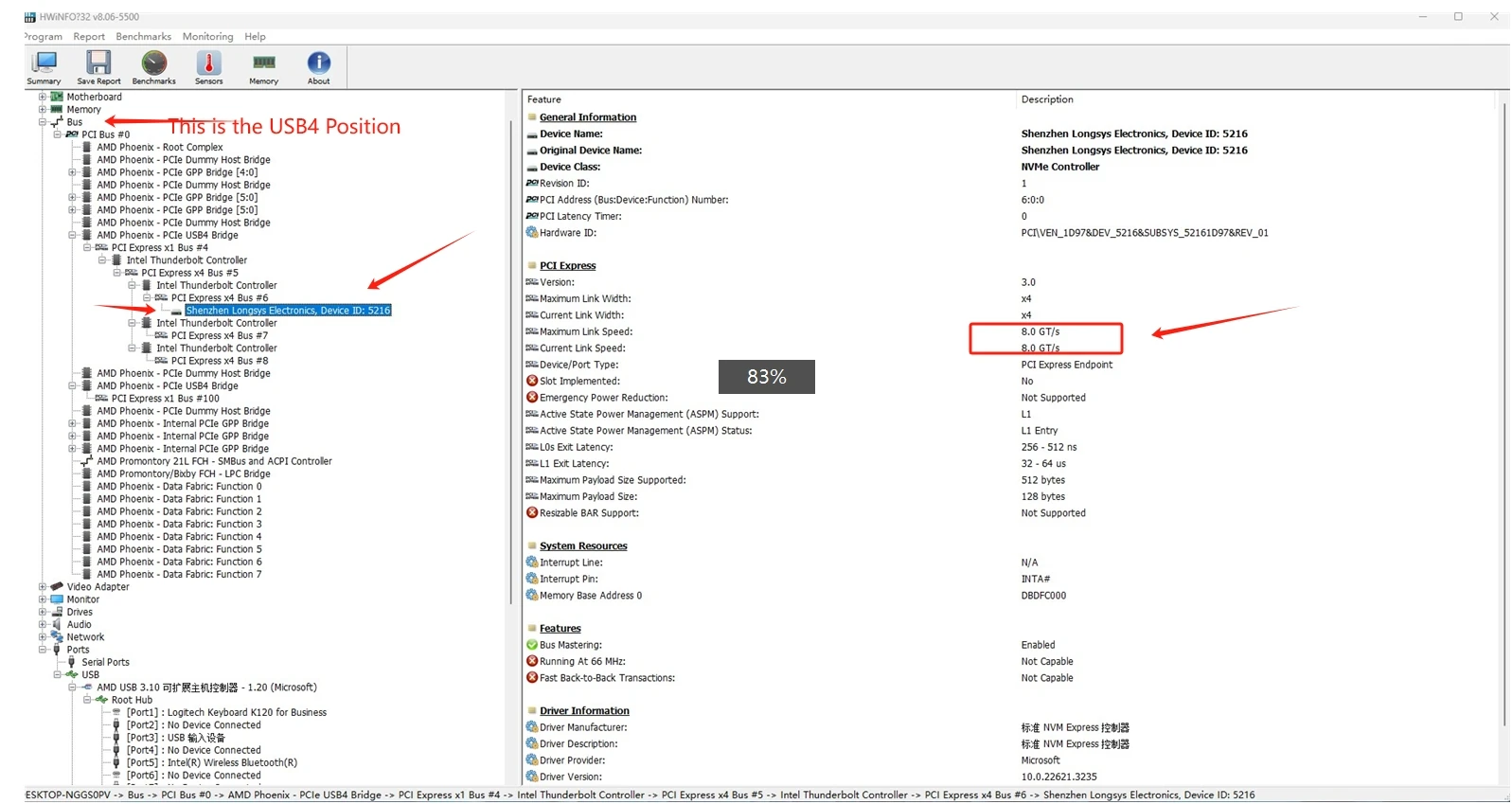

[Update: Maxtang provides a screenshot showing USB4/Thunderbolt is supported on their system. So it may be an interoperability issue with the ORICO enclosure as it is only supporting Thunderbolt 3 whose support is optional in USB4]

Maxtang USB4

]

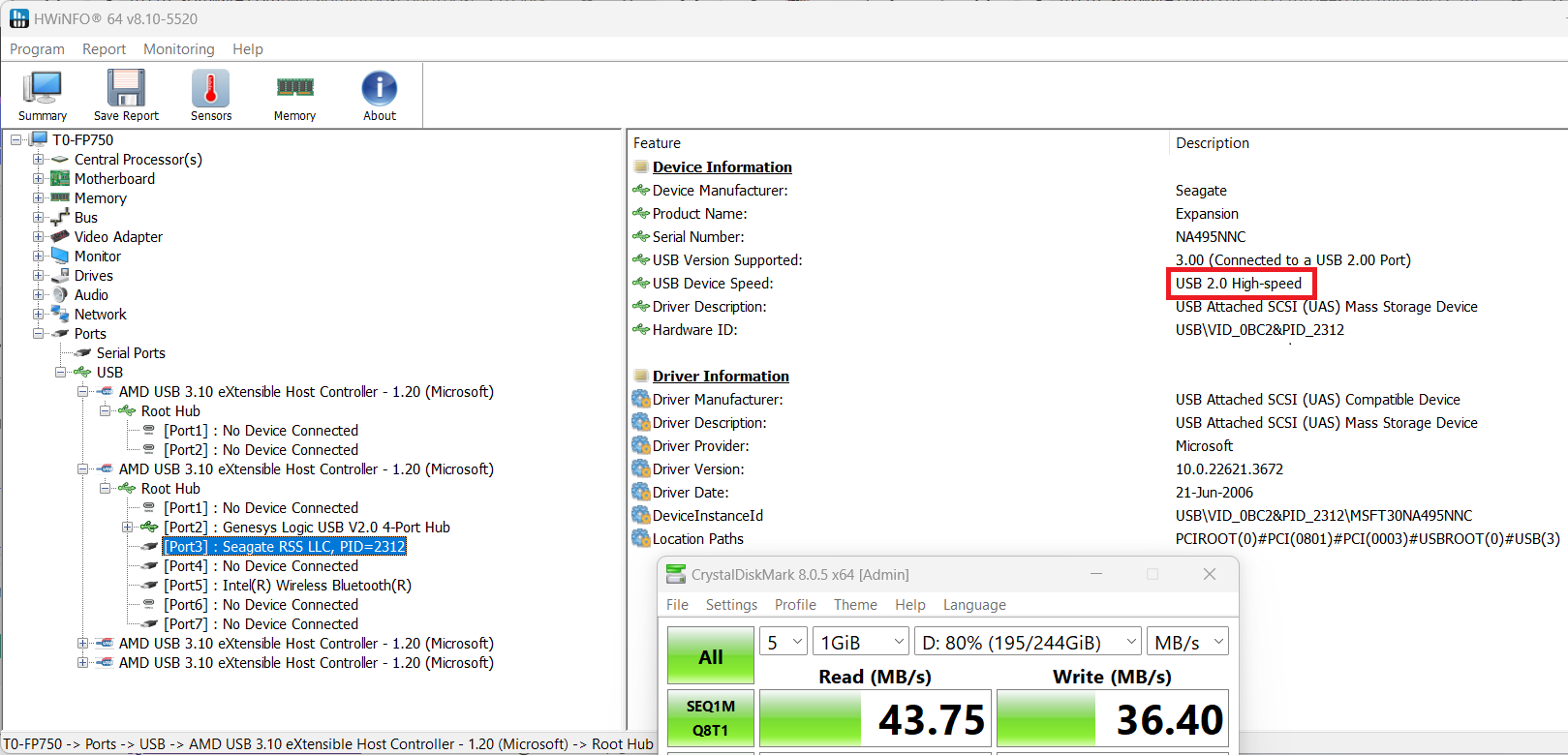

Here are the results for the USB 2.0 port too.
USB 2.0 speed

Summary of results for all the USB ports on the Maxtang T0-FP750 (from left to right)

  • Front panel
    • USB-A #1 – USB 3.2 – USB 3.2 Gen2 SuperSpeedPlus (10 Gbps) – Read speed:  963 MB/s
    • USB-A #2 – USB 3.2 – USB 3.2 Gen2 SuperSpeedPlus (10 Gbps) – Read speed: 965 MB/s
    • USB-C – USB 3.2 – USB 3.2 Gen2 SuperSpeedPlus (10 Gbps) – Read speed: 979 MB/s
  • Rear panel
    • USB-C – USB 3.2 – USB 3.2 Gen2 SuperSpeedPlus (10 Gbps) – Read speed 958 MB/s
    • USB-A – USB 2.0  – USB 2.0 High-Speed (480 Mbps) – Read speed: 43 MB/s

Everything looks fine except for the USB-C port on the rear panel that was only tested at 10 Gbps, instead of the expected 40 Gbps. That’s likely because USB4 does not always support the Thunderbolt 3 interface (optional feature), and it should work with a Thunderbolt 4 device.

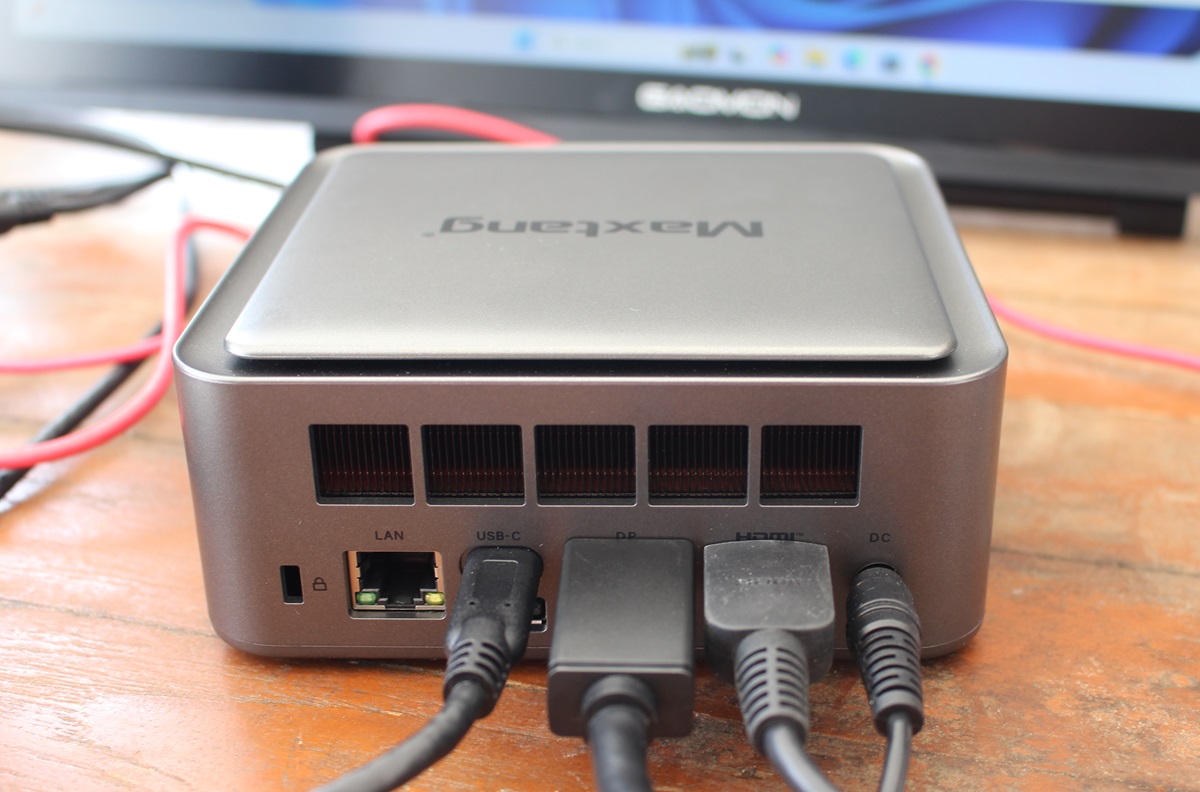

The Maxtang T0-FP750 mini PC supports up to 3 independent displays through its HDMI 2.0, USB-C, and DisplayPort 1.4 connectors.

HDMI 2.0 USB-C DisplayPort 1.4

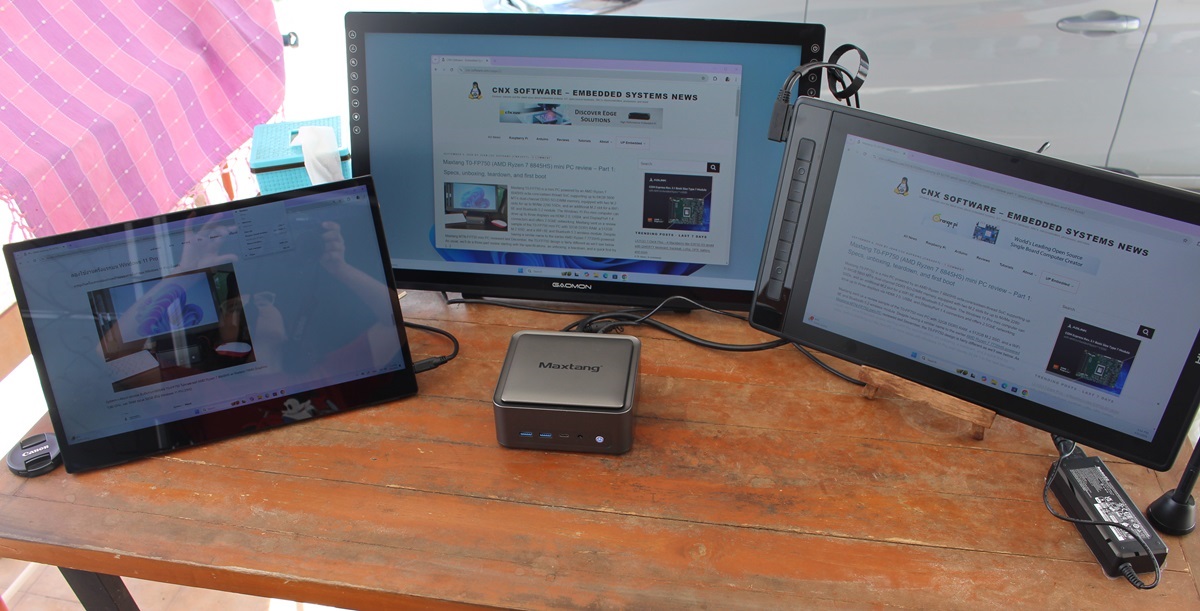

So we tested all three using a 15.6-inch CrowVi portable display connected directly over USB-C, a 21.5-inch GAOMON PD2200 drawing tablet connected over DisplayPort 1.4 (through a DP to HDMI cable), and the HUION Kamvas Pro 16 (2.5K) drawing tablet through HDMI. No problem here.

Maxtang T0-FP750 thee display support

Maxtang T0-FP750 (AMD Ryzen 7 8845HS) benchmarks on Windows 11 Pro

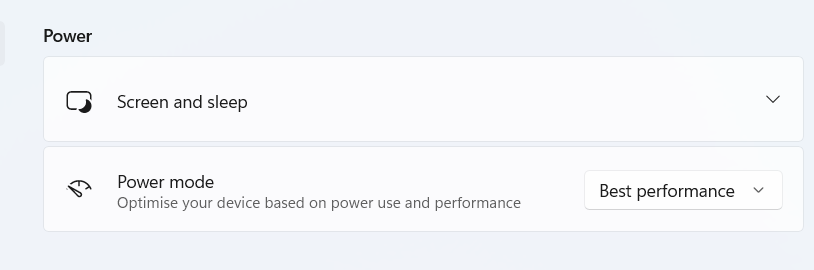

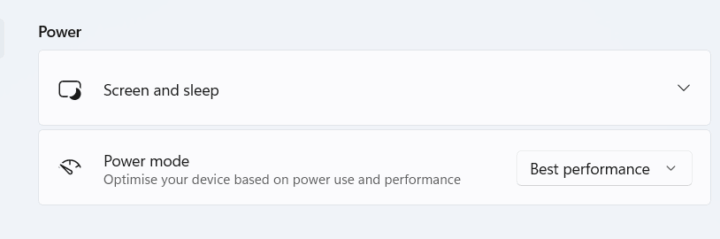

We set the Power mode to “Best performance” before running benchmarks to evaluate the performance of the mini PC on Windows 11 Pro. Note that the ambient temperature was around 28 to 30°C during testing, so your own results or results from other reviews may differ somewhat.

System Power Best performance

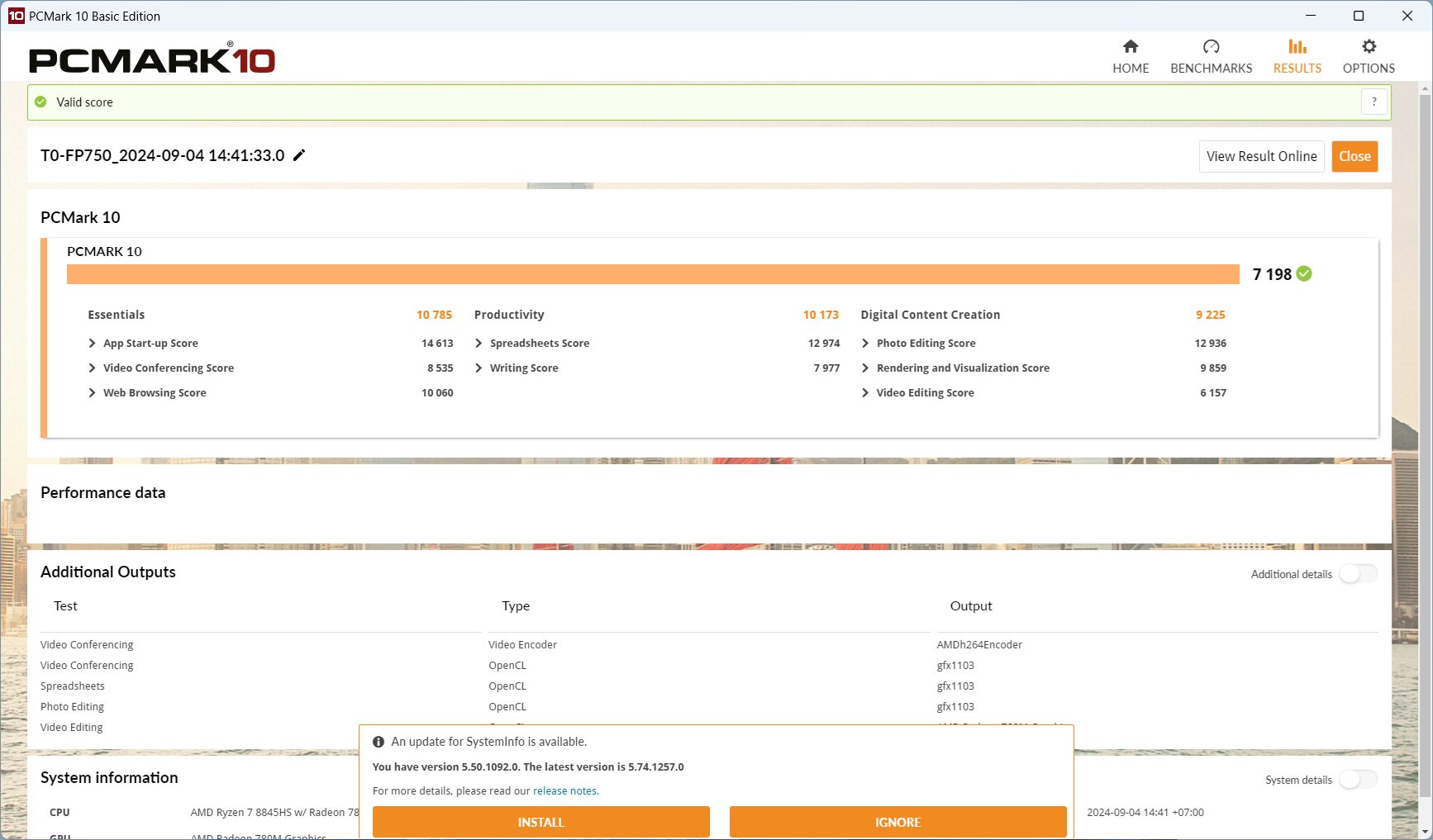

We’ll start with PCMark 10.

Maxtang T0-FP750 PCmark 10
That would be 7,198 points in PCMark 10 for the Maxtang T0-FP750.

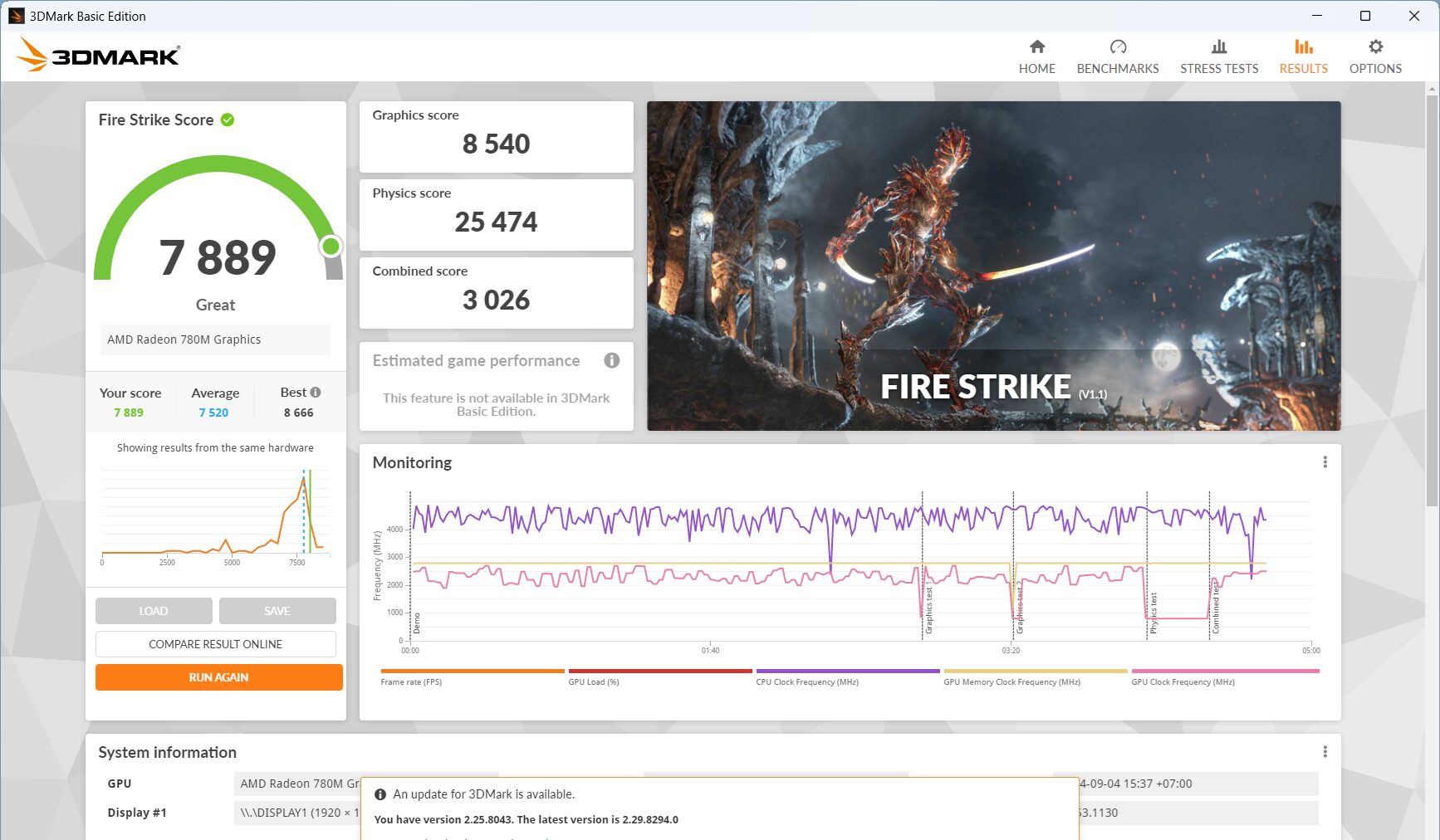

Maxtang T0-FP750 3DMark Fire Strike
The Ryzen 7 8845HS mini PC got 7889 points in the 3DMark Fire Strike benchmark…

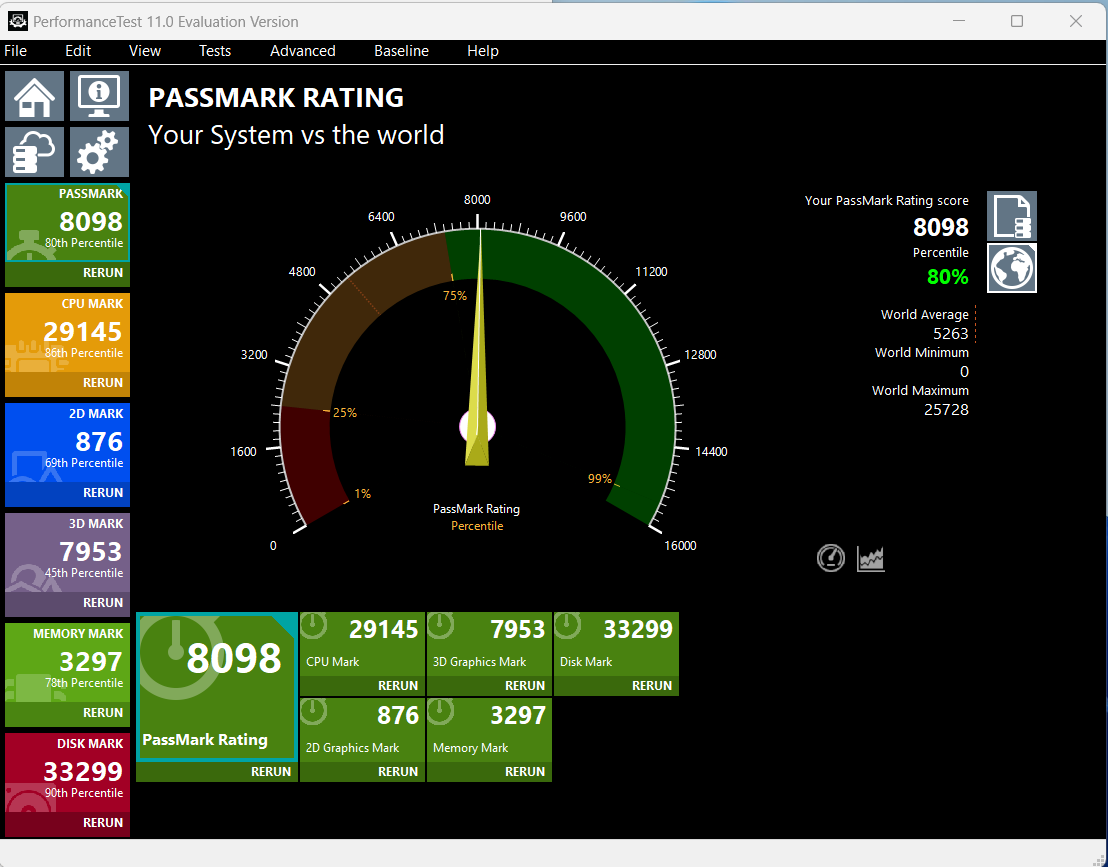

Maxtang T0-FP750 Passmark PerformanceTest 11

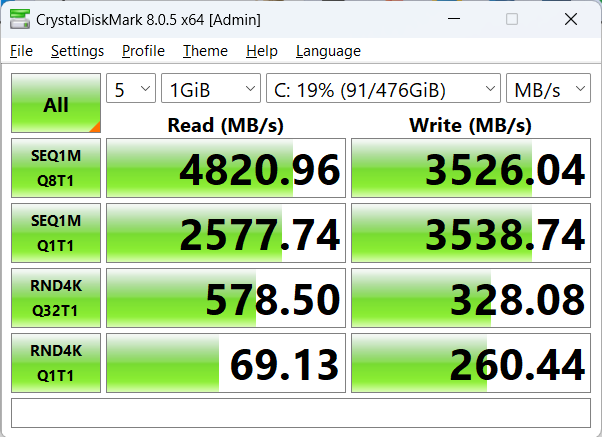

… and 8,098 points in PassMark PerformanceTest 11. The Disk Mark result is not outstanding, but still very good as the score is in the 90th percentile. Let’s check the 512GB Kingston KINGSTON OM8PGP4512Q-A0 SSD performance with CrystalDiskMark. Results: 4,820 MB/s sequential read speed, and 3,526 MB/s sequential write speed. Pretty good.

CrystalDiskMark Maxtang T0-FP750 NVMe SSD

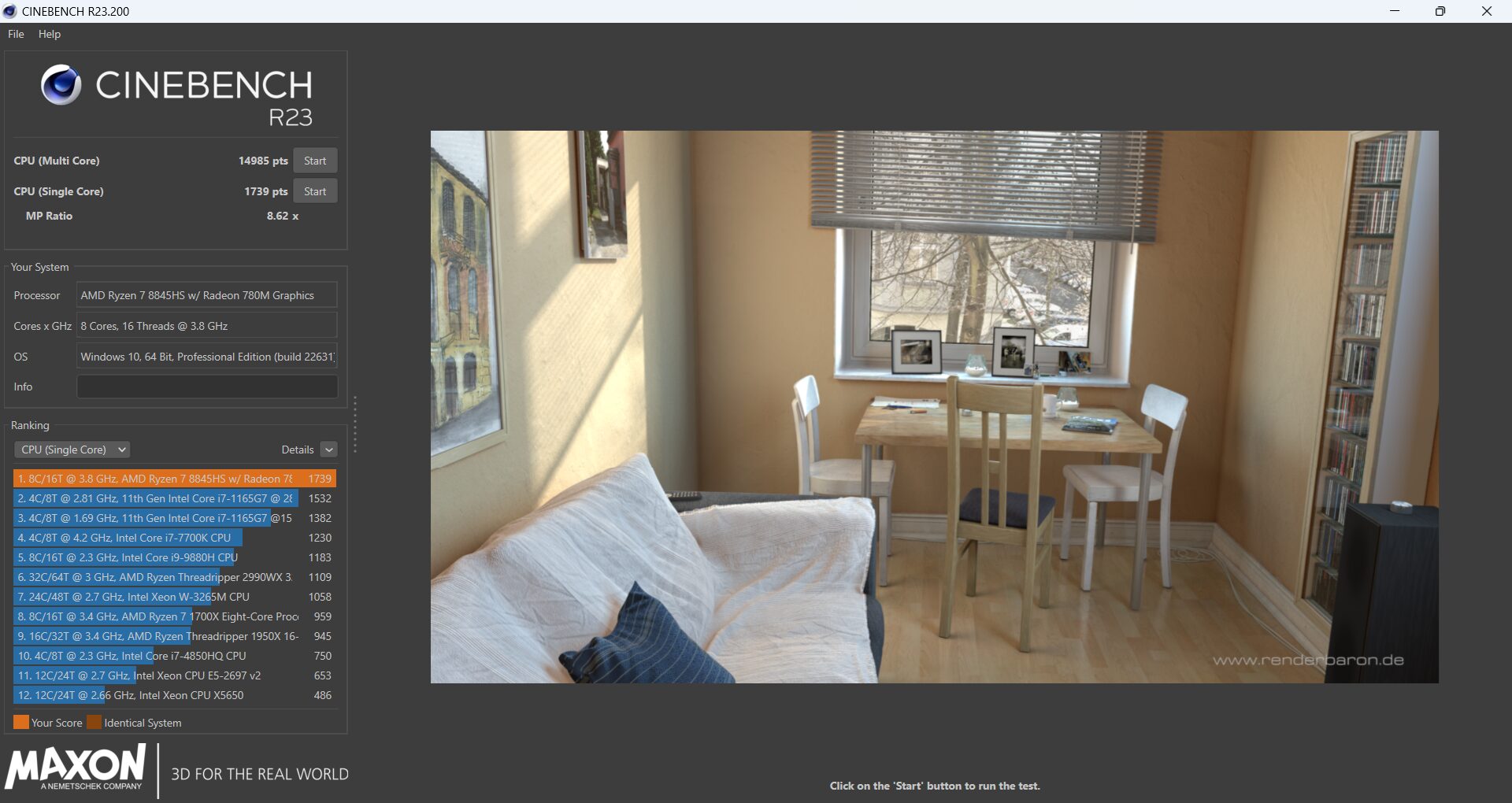

Cinebench R23 can be used to test the single-core and multi-core performance of the AMD Ryzen 7 8845HS CPU and the cooling ability of the mini PC.

AMD Ryzen 7 8845HS Cinebench R23
The multi-core benchmark got 14,985 points and the single-core 1,739 points with an MP ratio of 8.62x for a processor with eight cores and sixteen threads.

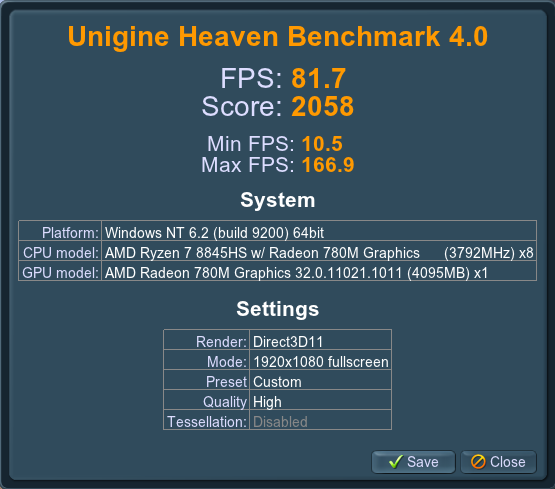

Let’s start GPU testing with Unigine Heaven Benchmark 4.0 where the Maxtang T0-FP750 rendered the scene at 81.7 FPGS with a score of 2,058 at the standard 1920×1080 resolution.

AMD Ryzen 7 8845HS Radeon 780M mini PC Unigine Heaven Benchmark 4.0 Windows 11

The Google Chrome web browser was used to test YouTube 4K and 8K video playback at different frame rates.

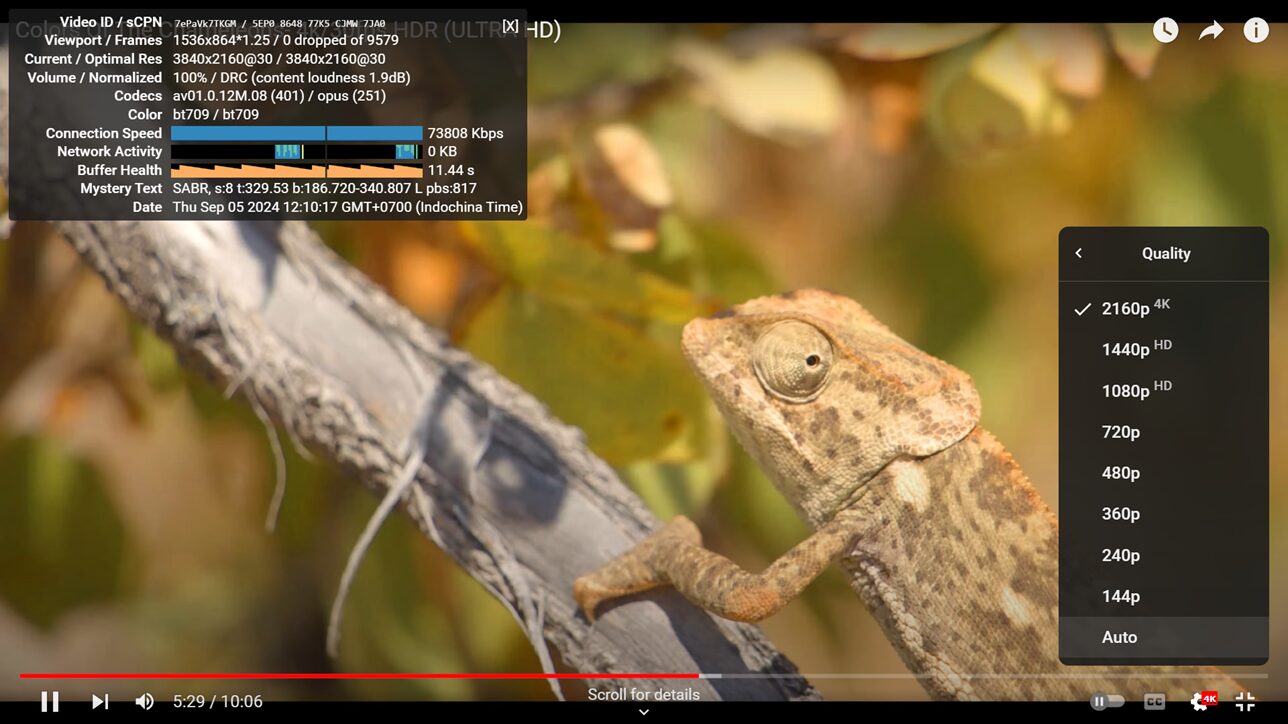

Maxtang T0-FP750 Youtube chrome 4k p30 Windows 11
No problem at all with a 4K 30 fps video played for about 5 minutes with smooth playback and no dropped frames at all.

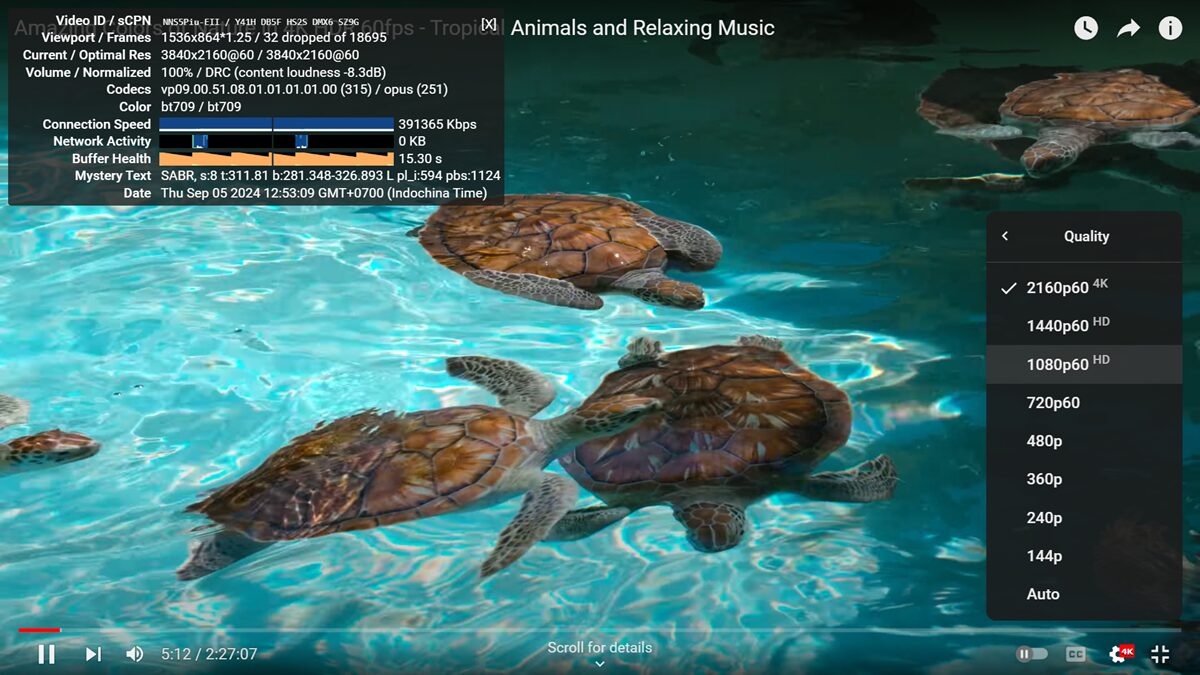

Maxtang T0-FP750 Youtube chrome 4k p60 Windows 11
4Kp60 is also fine, but there were a few dropped frames (32 out of 18,695).

Maxtang T0-FP750 Youtube chrome 8k p30 Windows 11

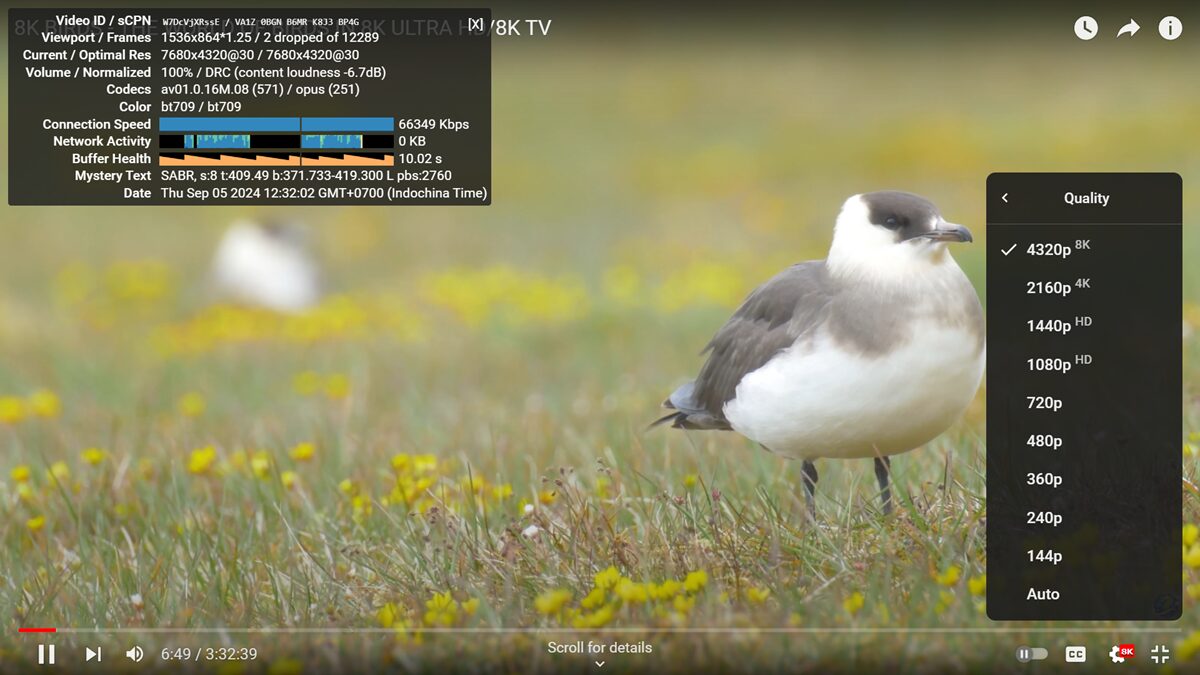

A YouTube 8K 30 fps video could play smoothly with just 2 frames dropped out of 12,289 after playing the video for 6 minutes.

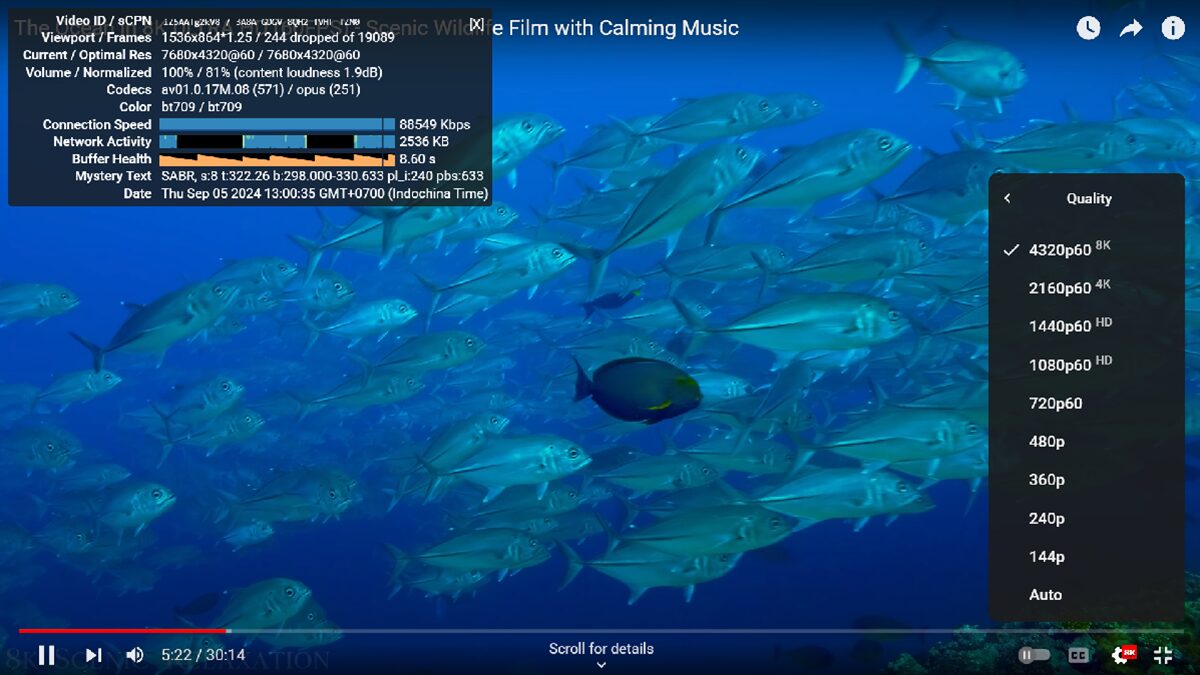

Maxtang T0-FP750 Youtube chrome 8k p60 Windows 11
YouTube videos at 8K and 60 FPS (4320p60) are more challenging, but the video we tested could still play just fine, although a few more dropped frames (244) out of 19,089. Audio output was tested successfully with YouTube using either HDMI or the 3.5mm audio jack.

Comparison of Maxtang T0-FP750 benchmarks results against other Intel/AMD mini PCs running Windows 11.

Now that we have Windows 11 benchmark results for the T0-FP750, let’s compare these against other mid-range mini PCs namely the Maxtang MTN-FP750 (AMD Ryzen 7 7735HS), GEEKOM A5 (AMD Ryzen 7 5800H), and Khadas Mind Premium (Intel Core i7-1360P), as well as a higher-end mini PC powered by an AMD Ryzen 9 8945HS CPU: GEEKOM A8. But first, we’ll look at the basic specifications for the five systems under test.

Maxtang T0-FP750Maxtang MTN-FP750GEEKOM A5Khadas Mind PremiumGEEKOM A8
SoCAMD Ryzen 7 8845HSAMD Ryzen 7 7735HSAMD Ryzen 7 5800HIntel Core i7-1360PAMD Ryzen 9 8945HS
CPU8 cores,16 threads up to 5.1 GHz8 cores, 16 threads up to 4.75 GHz8 cores, 16 threads up to 4.4 GHz12 cores, 16 cores up to 5.0 GHz8 cores, 16 threads up to 5.2 GHz
GPUAMD Radeon 780M GraphicsAMD Radeon 680M GraphicsAMD Radeon Vega 8 Graphics96 EU Intel Iris Xe GraphicsAMD Radeon 780M Graphics
Memory32GB DDR5-560032GB DDR5-480032GB DDR4-320032GB DDR5-520032GB DDR5-5600
Storage512GB NVMe SSD512GB NVMe SSD512GB NVMe SSD1TB NVMe SSD2TB NVMe SSD
Default OSWindows 11 ProWindows 11 ProWindows 11 ProWindows 11 HomeWindows 11 Pro

And now the results…

Maxtang T0-FP750Maxtang MTN-FP750GEEKOM A5Khadas Mind PremiumGEEKOM A8
PCMark 1071986075648559047576
- Essentials107859261110071103811650
- Productivity1017387939850758910510
- Digital content creation92257476682966679639
3DMark (Fire Strike)78896506415754277736
PerformanceTest 11.0809861874526.853788543.4
- CPU Mark2914521879
21493.62178630090.4
- 2D Graphics Mark876760751.7631903.9
- 3D Graphics Mark795360743186.136227984.9
- Memory Mark329727622876.336423308.8
- Disk Mark332992154521094.14239549560.4
Cinebench R23
- Single Core17391416139718781768
- Multi Core149851012910146938415088

As one would have expected the Ryzen 9 mini PC is ahead in most tests. But the Maxtang T0-FP750 did perform quite well, is not too far from the GEEKOM A8 in most benchmarks, and even matched it in the 3DMark Fire Strike 3D graphics benchmark. It’s also quite faster than mini PCs based on earlier generation Ryzen 7 and Core i7 processors in virtually all aspects.

Networking performance  (2.5GbE and WiFi 6)

We’ll test network performance with a recent version of iperf3 using UP Xtreme i11 mini PC’s 2.5GbE port on the other side.

Let’s start with the 2.5GbE port on the Maxtang F0-FP750:

  • Download
  • Upload

All good for wired networking. Let’s switch to WiFi 6 (5GHz) testing adding Xiaomi Mi AX6000 router to the mix:

  • Download
  • Upload

Outstanding WiFi performance thanks to the Intel AX200 module. Note that we’ve recently (starting a few months ago) changed the version of iperf3 for Windows reviews as earlier versions of the utility delivered much lower numbers. That means we can not compare the WiFi 6 performance in Windows 11 unless iperf 3.16 or above is used. You’ll note we’ve used iperf 3.17.1 for this review.

Thermal performance

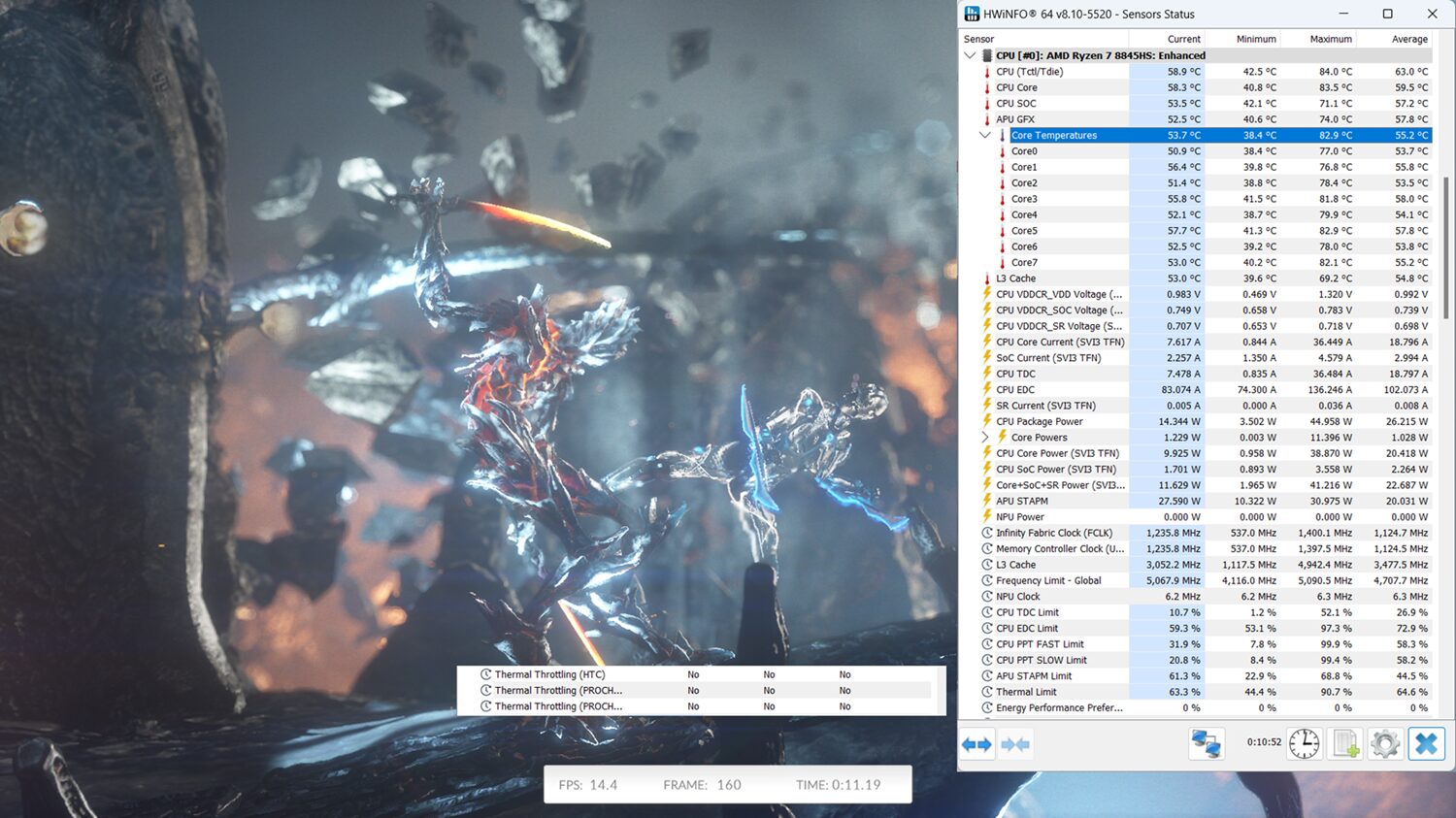

Let’s now test the thermal performance/cooling ability of the Maxtang T0-FP750 by running 3DMark Fire Strike to stress test the CPU and CPU, while monitoring the CPU temperature and thermal throttling with HWiNFO64.

Maxtang T0-FP750 CPU Temperature 3DMark

The CPU only reached up to 84°C under load and no thermal throttling was reported.

Fan noise

The earlier Maxtang MTN-FP750’s fan was a complete disaster when we reviewed it last year, with the fan noise easily out-competing our air conditioner and much noisier than any other mini PC. The noisy fan was also triggered even under light loads. So I’m happy to report the Maxtang T0-FP750 is a massive improvement in that regard. Not that it’s especially quiet, but it more or less matches our experience with other actively-cooled mini PCs.  It’s inaudible at idle and under light loads and only becomes noisy under heavy loads. Here are the results when using a sound level meter placed 5cm from the top of the case:

  • Idle and light load (e.g. web browsing) – 37.8 – 41.0 dBA
  • 3DMark Fire Strike – 53.5 – 54.6 dBA

Note the sound level meter measures 37 – 38 dBA in a quiet room.

Maxtang T0-FP750’s power consumption with Windows 11 Pro

Power consumption was measured with a wall power meter as follows:

  • Power off – 0.9 Watts
  • Idle – 8.4 – 8.9 Watts
  • Video playback – 29.7 to 31.9 Watts (8Kp60 YouTube video in Chrome)
  • Cinebench R23 multi-core – 67.1 to 68.7 Watts

Note: During measurements, the mini PC was connected to WiFi 6, Raspberry Pi USB mouse and keyboard, and GAOMON PD2200 Pen Display through HDMI.

Conclusion

The Maxtang T0-FP750 mini PC works well in Windows 11 Pro with a powerful AMD Ryzen 7 8845HS CPU that almost matches the performance of the AMD Ryzen 9 8945HS we tested in the GEEKOM A8. Everything works to expectations including excellent 2.5GbE and WiFi 6 performance, a relatively fast 512GB NVMe SSD, smooth YouTube 4K and 8K video playback up to 60 FPS, triple display support, and so on.

The main disappointment is the USB4 port which is not working as advertised and only supports USB 3.2 up to 10 Gbps based on your tests with an ORICO enclosure with Thunderbolt 3 support. However, the company also shared a screenshot showing USB4 working on their side using a compatible storage device. The fan has been improved compared to the Maxtang MTN-FP750 mini PC we reviewed last year, and it’s quiet when idle or during light loads, and only becomes noisy under heavy loads, but nothing too bad. We’ll be testing the Maxtang T0-FP750 with Ubuntu 24.04.1 in the last part of the review to evaluate the performance of the AMD Ryzen 7 8845HS mini PC with Linux.

We’d like to thank Maxtang for sending the T0-FP750 mini PC for review with an AMD Ryzen 7 8845HS CPU, 32GB DDR5 RAM, and a 512GB M.2 SSD. It can be ordered on Amazon for $584.10 in this configuration after ticking the 10% off coupon. Alternatively, you can purchase it on the company’s store for $549 when using the coupon code CNX80 for an $80 discount.

CNXSoft: This article is a translation – with some additional insights – of the review on CNX Software Thailand by Suthinee Kerdkaew.
