Jetway MF32 3.5-inch SBC is offered with Intel Core i5-1335UE or Intel Processor U300, four 2.5GbE, M.2 expansion

Jetway MF32 is a 3.5-inch single-board computer (SBC) offered with either an Intel 13th Gen Core i5-1335UE or an Intel Processor U300. It includes four Intel 2.5GbE LAN ports and optional dual PoE with a max output of 40W. The board supports up to 32GB of DDR5 memory, offers various M.2 expansion slots, and comes with a Nano SIM card slot. This board can be used in networking devices, edge computing, IoT projects, digital surveillance, etc…

Jetway offers four variants of their MF32 SBC: The MF32-133E0 and MF32-133E2 models are equipped with the Intel Core i5-1335UE processor, while the MF32-300U0 and MF32-300U2 feature the Intel Processor U300. It’s important to note that the MF32-133E0 and MF32-300U0 do not include TPM 2.0 (dTPM) security features.

Jetway is well known for its SBCs, and we’ve previously covered its products like the JMTX-ADN8, JNUC-ADN1 mini-ITX motherboard, and JF35-ADN1 3.5-inch motherboard, all featuring the Intel N97 CPU. We’ve also written about other SBCs and Mini PCs powered by 13th-gen Raptor Lake SoCs, such as the iBASE IB961, GEEKOM GT13 Pro, Cincoze DV-1100, and the LattePanda Sigma, among others. Be sure to check those out if you’re interested in similar products.

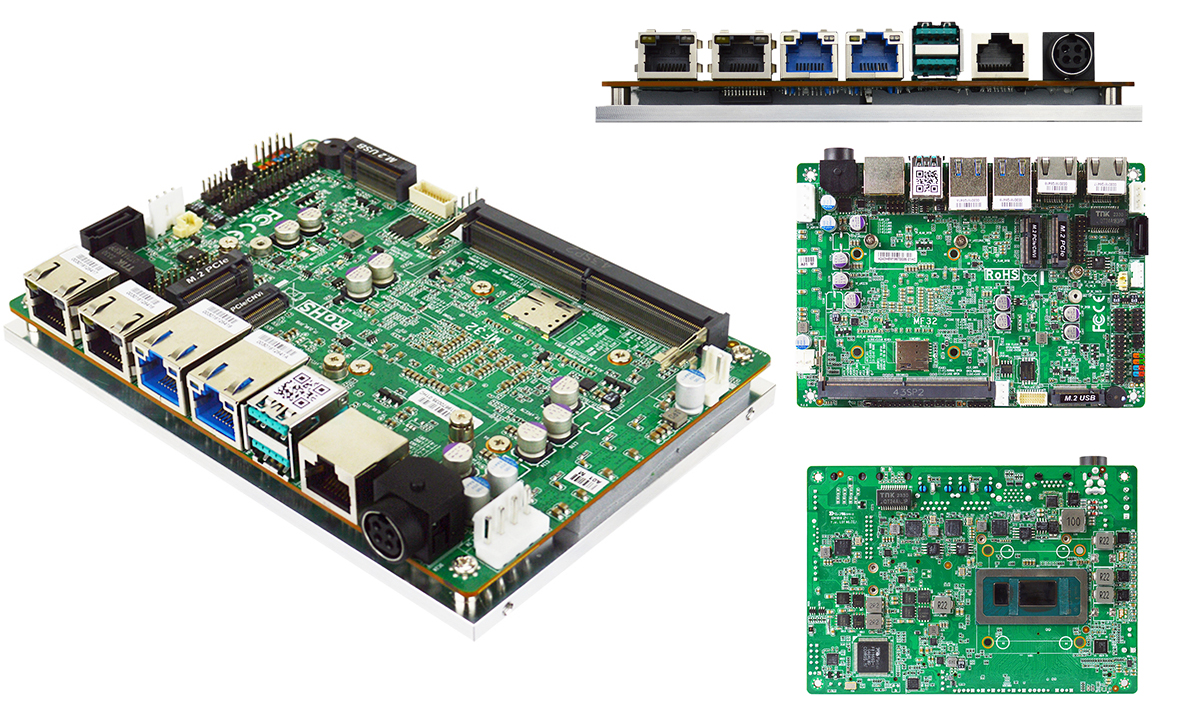

Jetway MF32 SBC

Jetway MF32 SBC specification:

  • SoC
    • Intel Core i5-1335UE 13th Gen Raptor Lake-P processor with 10 cores, 12 threads up to 4.50 GHz, 12MB Smart Cache, PBP: 15W
    • Intel Processor U300 13th Gen Raptor Lake-P processor with 5 cores, 6 threads up to 4.40 GHz, 8MB Smart Cache, PBP: 15W
  • GPU – Intel Iris Xe Graphics
  • System Memory – Up to 32GB DDR5 4800MHz via single channel SO-DIMM socket
  • Storage
    • 1x M.2 M-key type-2242/2280 (PCIe 4.0 x4) sockets for NVMe SSD
    • 1x SATAIII 6Gb/s port
  • Display Interface – 1x Internal HDMI 1.1 header with maximum resolution of 1920 x 1080 @ 60Hz
  • Networking
    • 3x 2.5GbE RJ45 ports via Intel I226V controllers
    • 1x 2.5GbE RJ45 port via Intel I226-LM controllers
    • Optional WiFi and/or 4G LTE/5G via M.2 modules (See Expansion section)
  • USB
    • 2x USB 3.2 Gen 2 port; 10Gbps
    • 4x USB 2.0 header
  • Serial port
  • Expansion
    • 1x M.2 E-Key 2230 (USB 2.0/PCIe 3.0 x1) socket for Wi-Fi / Bluetooth; supports Intel CNVio technology
    • 1x M.2 B-Key 3042/3052 (USB 3.2/PCIe 3.0 x1) socket + Nano SIM card slot; supports 4G/5G/LTE cellular connectivity
  • Misc
    • 8-Bit GPIO header
    • UEFI BIOS with Watchdog Timer (256 levels)
    • SMBUS header
    • PS2 Keyboard & Mouse header
    • 4-pin connector for CPU Fan (PWM Mode)
    • Front panel header for HDD active LED, power LED, power On/Off, and reset
    • CMOS battery connector
    • Chassis Intrusion
  • Security
    • Intel PTT (fTPM)
    • MF32-133E2 and MF32-300U2 additional security – TPM 2.0 (dTPM)
  • Power supply
    • 19V DC-in power jack (120W Power adapter is recommended for stable performance)
    • Power supply type – AT / ATX (Default) Mode
    • Connector – 4-pin Power DIN, Internal 4-pin Header
  • Dimensions – 148.0 (W) x 102.0 (D) mm
  • Temperature and humidity
    • Operating temperature: -20°C ~ 60°C
    • Storage temperature: -40°C ~ 85°C
    • Operating humidity: 10 ~ 90% Relative Humidity, non-condensing
    • Storage humidity: 10 ~ 90% @ 40°C, non-condensing

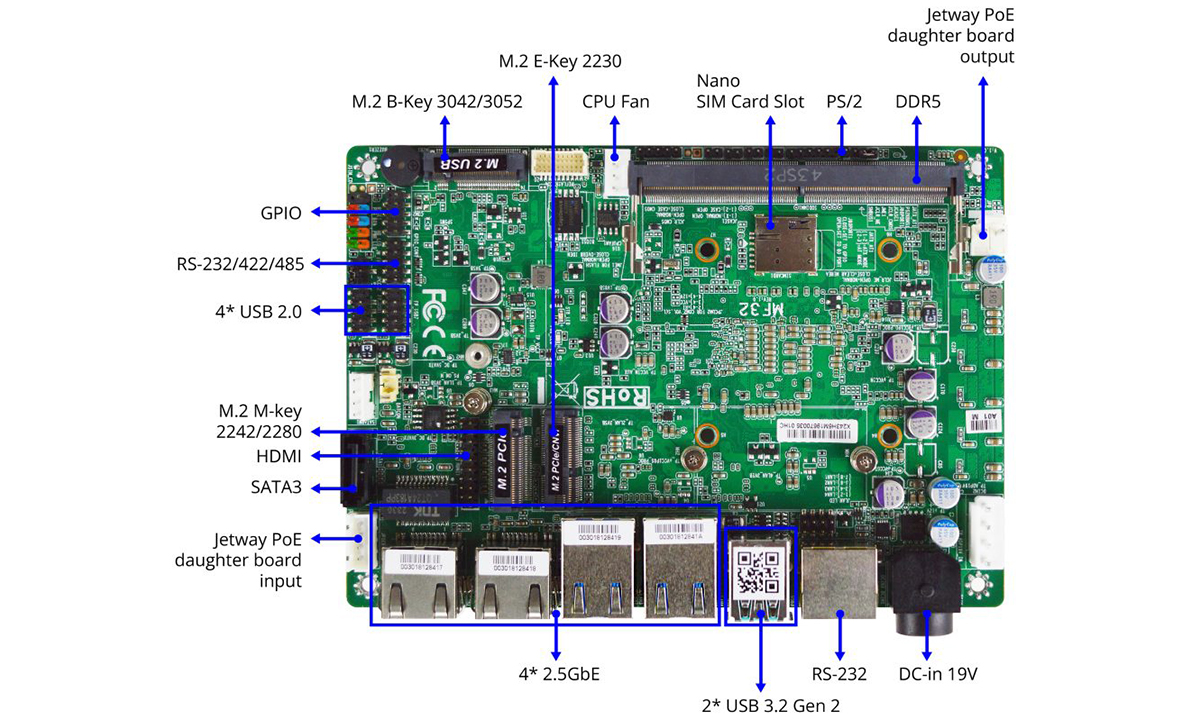

Jetway MF32 specifications
Jetway MF32 specifications

In terms of software, the Jetway MF32 SBC is compatible with Windows 11 (64-bit), Windows 10 (64-bit), and Linux operating systems. In the future, the company will offer relevant drivers in the download section of the product page for easy access and setup.

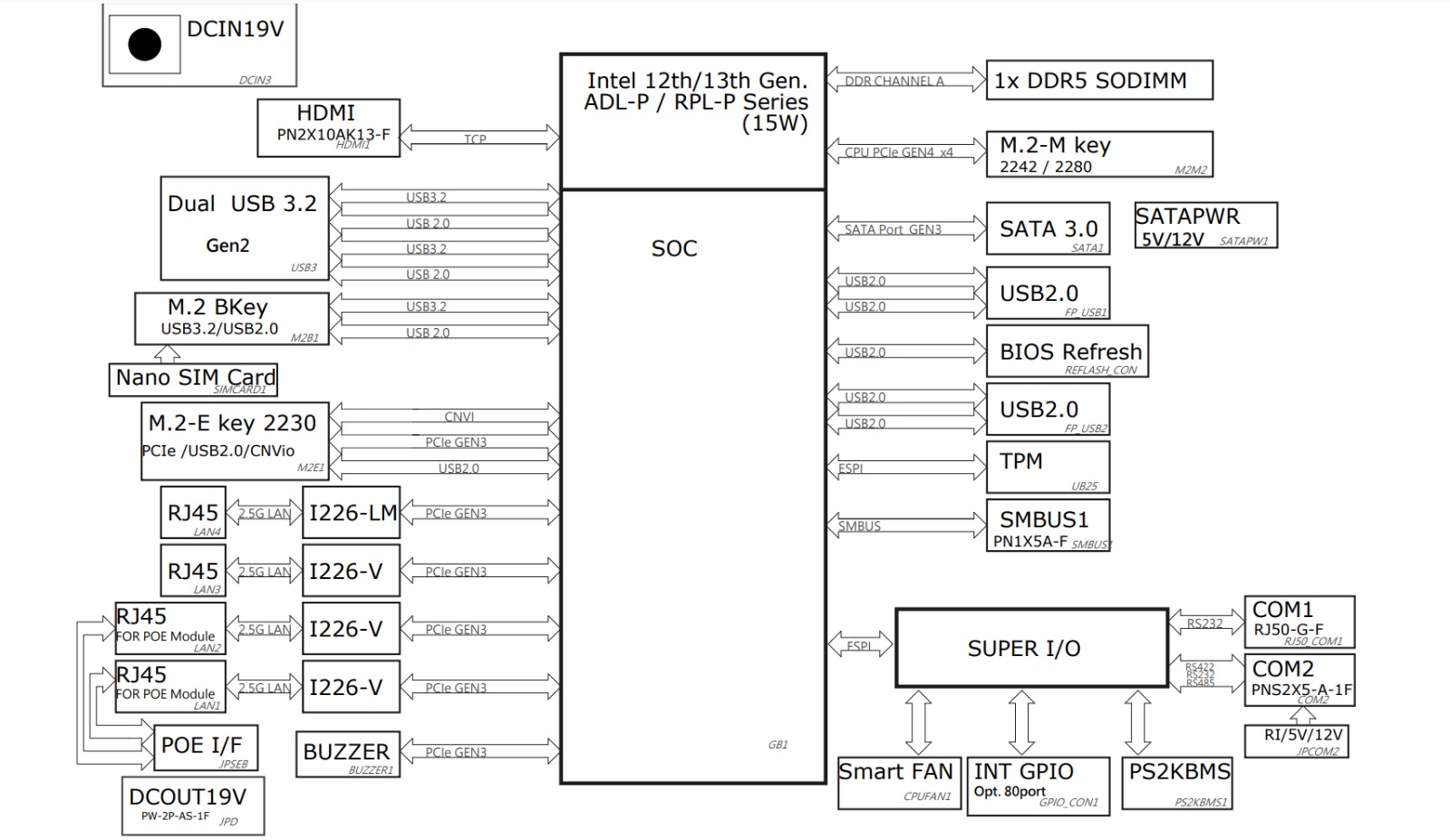

MF32 Block Diagram
Jetway MF32 Block Diagram

The box includes the MF32 motherboard, an HDMI cable (250mm), a COM cable (240mm), a SATA power cable (200mm), a SATA cable (500mm), and a USB cable (280mm), providing all the necessary connections for setup.

At the time of writing the company has not provided any pricing information for the Jetway MF32 SBC. More details can be found on the product page.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
4 Comments
oldest
newest
Joe
Joe
23 days ago

This had the potential to be a fantastic VM workload server (i.e proxmox, or other hypervisor) if it could take max memory. Instead they hobbled it with only 1 SODIMM socket instead of 2. So it’s limited to a single stick of 32GB DDR4 and maybe 48 GB DDR5 if the BIOS will support it. More memory is always good for workloads. Too many 2.5gbe ports for a file server that has no SATA ports. So they would have done better to make it a compute server and dropped 2 of the 2.5gbe and added a 10gbe instead (maybe 2,… Read more »

back2future
back2future
23 days ago

[ “no SATA ports”, but it has ‘2x USB 3.2 Gen 2 port; 10Gbps’, no perfect replacement, but can add USB2SATA adapters for SSDs and suitable (low power on start) HDDs SATA port multipliers (~ Asmedia ASM1061 and Marvell 88SE9215, PCIe to 2-4 sATA ports) can be difficult to implement and not really recommended (reliability, avail. host drivers on Linux systems), but m.2 adapters for multi SATA might be an other option (~$15-$30, up to ~2-6 ports, some for B+M(?) key, not only M-key), maybe even on usb-to-m.2 (pcie protocol, then m.2 to SATA) bridge(?) chip and external power supply,… Read more »

back2future
back2future
23 days ago

[ no hands on experience with this type of port multipliers ‘https://superuser.com/questions/1575509/how-to-make-a-1-to-5-sata-port-multiplier-work-as-standalone’ (host port must be port multiplier/selector mode capable(?)), but there are
“The belowing chipset SATA port can be supported: JMS582 JMB585 ASM1061 ASM1064 ASM1166. JMB575 is a single chip solution. It integrates 5 independent SATA channels and a micro-processor.”

they need external SATA power supply ]

back2future
back2future
23 days ago

[ while usb-to-5GbE are rare (e.g. Qnap), thunderbolt(usb?)-to-10GbE are mostly above $150, and usb-to-2.5GbE start from (seen) ~($15-)$25 being ~reliable quality. ]
