AAEON PICO-ASL4 industrial Pico-ITX SBC ships with Intel Atom x7000RE, up to 16GB DDR5, 2.5GbE LAN

AAEON PICO-ASL4 is a fanless, latency-sensitive Pico-ITX single board computer (SBC) built around the Intel Atom x7000RE-series “Amston Lake” SoCs and configurable with up to 16GB of DDR5 memory.

The SBC supports dual display outputs via HDMI and LVDS/eDP and features four serial ports: two RS232/422/485 and two RS232. For networking, it provides dual Ethernet connectivity with Intel i226 2.5GbE and Realtek RTL8111H 1GbE controllers, both supporting TSN and TCN. Additionally, it offers a variety of expansion options, including a full-sized mSATA/mPCIe slot and an M.2 2230 E-Key socket for WiFi and Bluetooth. For further connectivity, there are four USB 2.0 ports, two USB 3.2 Gen 2 ports, as well as GPIO and SMBus/I2C headers.

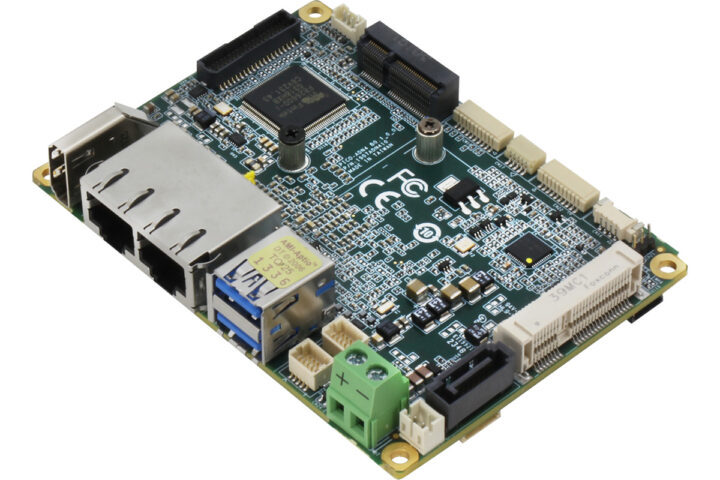

AAEON PICO ASL4 Rev.B Intel Atom x7000RE Pico ITX SBC

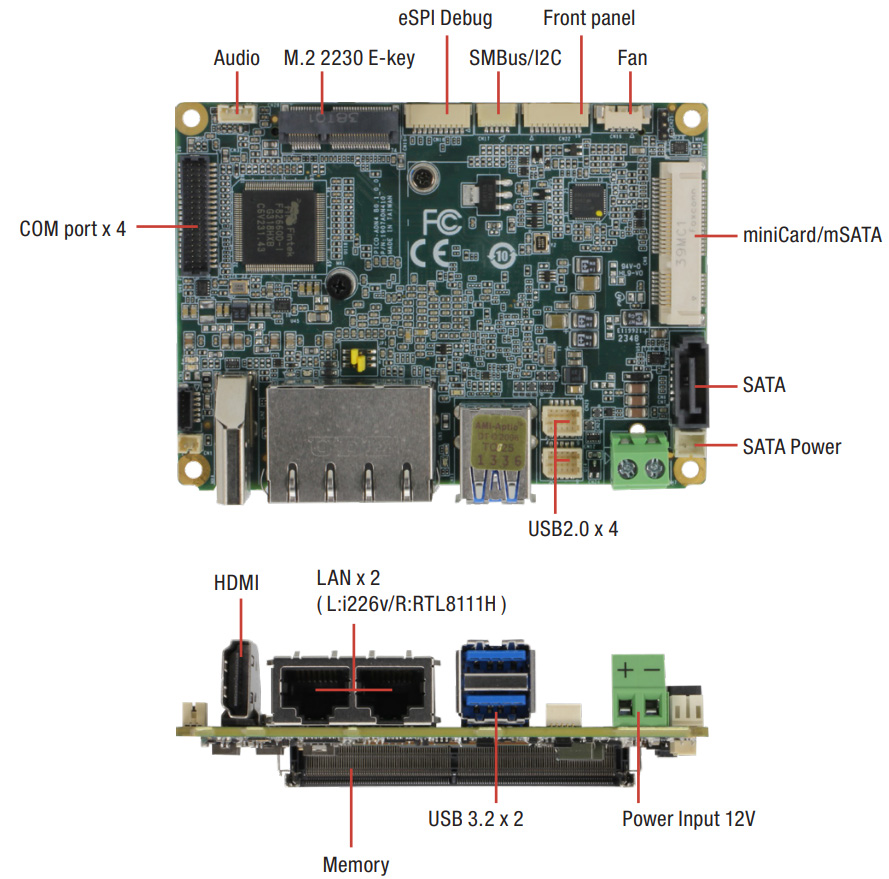

AAEON PICO-ASL4 (Rev.B) specifications

  • SoC – Intel Amston Lake (one or the other)
    • Intel Atom x7433RE, 4 cores, 1.5GHz, 9W TDP
    • Intel Atom x7835RE, 8 cores, 1.3GHz, 12W TDP
  • System Memory – Up to 16GB DDR5 4800 MHz, single channel, SODIMM slot x1, Non-ECC
  • BIOS – UEFI
  • Storage Options
    • 1x Full-Sized mSATA/mPCIe slot
    • 1x SATA 6.0Gbps port
  • Video Output
    • HDMI 1.4, up to 3840×2160 @ 30Hz
    • 18/24bit dual-channel LVDS, up to 1920×1200 @ 60Hz
    • 1x eDP 1.4, up to 3840×2160 @ 60Hz (Optional)
  • Audio – 1x Line-out header with Realtek ALC256 codec (Optional, audio function not available for WiTAS SKU)
  • Networking
    • 2.5GbE RJ45 port with TSN and TCN
    • Gigabit Ethernet RJ45 port with TSN and TCN
    • Optional WiFi and Bluetooth via M.2 2230 E-Key module
  • USB Ports
    • External – 2x USB 3.2 Gen 2 ports
    • Internal – 4x USB 2.0 ports
  • Serial Ports
    • 2x RS-232/422/485 (COM1 and COM2 which supports 5V/12V/RI)
    • 2x RS-232 (COM3 and COM4)
  • Security – TPM 2.0
  • Expansion Options
    • Full-Sized mSATA/mPCIe slot (default – mSATA, selectable with BIOS)
    • 4x GPIO
    • 4-pin Smart fan connector
    • 1x SMBus/I2C (Default: SMBus)
  • Misc
    • Watchdog Timer
    • Wake on LAN
    • 3V/240mAh lithium RTC battery
    • Front panel HDD LED, PWR LED, Power Button, Buzzer, Reset
  • Power Supply
    • +12V DC input (9 ~ 36V, supported by power adapter card)
    • Connector – Phoenix 2-pin Connector (Default) and Lockable DC Jack
    • Power Consumption – 4.21A @ +12V
  • Dimensions – 100 x 72mm (Pico-ITX form factor)
  • Temperature Range
  • Operating Humidity – 0% to 90% relative humidity, non-condensing
  • MTBF – 2,219,397 hours
  • Certifications – CE/FCC Class A
AAAEON PICO-ASL4 Rev.B Intel Atom x7000RE Pico ITX-SBC Top and Bottom

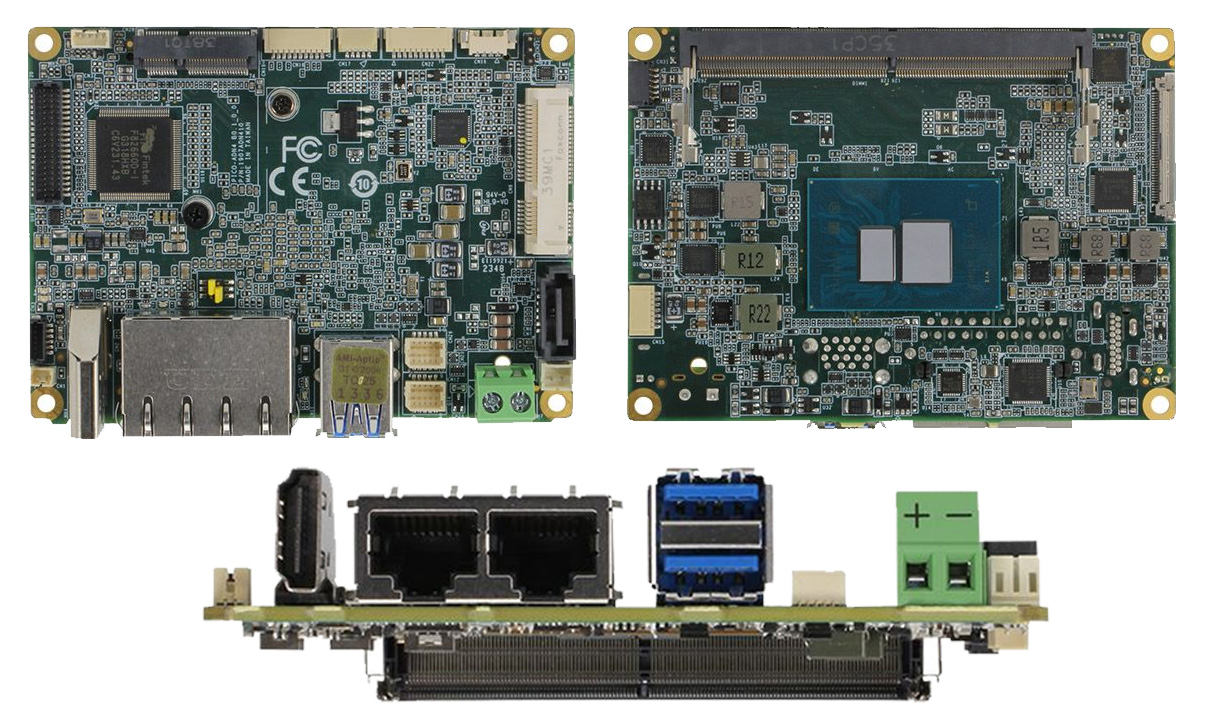

AAEON PICO-ASL4 Pico ITX-SBC top, bottom, and front view

In terms of the design and form factor, the board is pretty similar to that of the Arm-based AAEON PICO-IMX8PL and AAEON RICO-MX8P Pico-ITX SBCs, but there are some additional Programmable LEDs on the PICO-IMX8PL, and other is a DB9 connector on the back of the RICO-MX8P board. AAEON provides support for Windows 10 and Ubuntu 22.04.2 for which you’ll find drivers on the product page along with a datasheet and a user manual.

The PICO-ASL4 Rev.B Pico-ITX SBC comes in two configurations with Intel Atom x7000RE series processors: the entry-level model, with an Atom x7433RE (4 cores, 1.5 GHz) is priced at $333.00, while the higher-end variant with the Atom x7835RE (8 cores, 1.3 GHz) goes for $488.00. Samples of both boards can be purchased through AAEON’s online store.

AAAEON PICO-ASL4 Rev.B Intel Atom x7000RE Pico-ITX SBC Specification

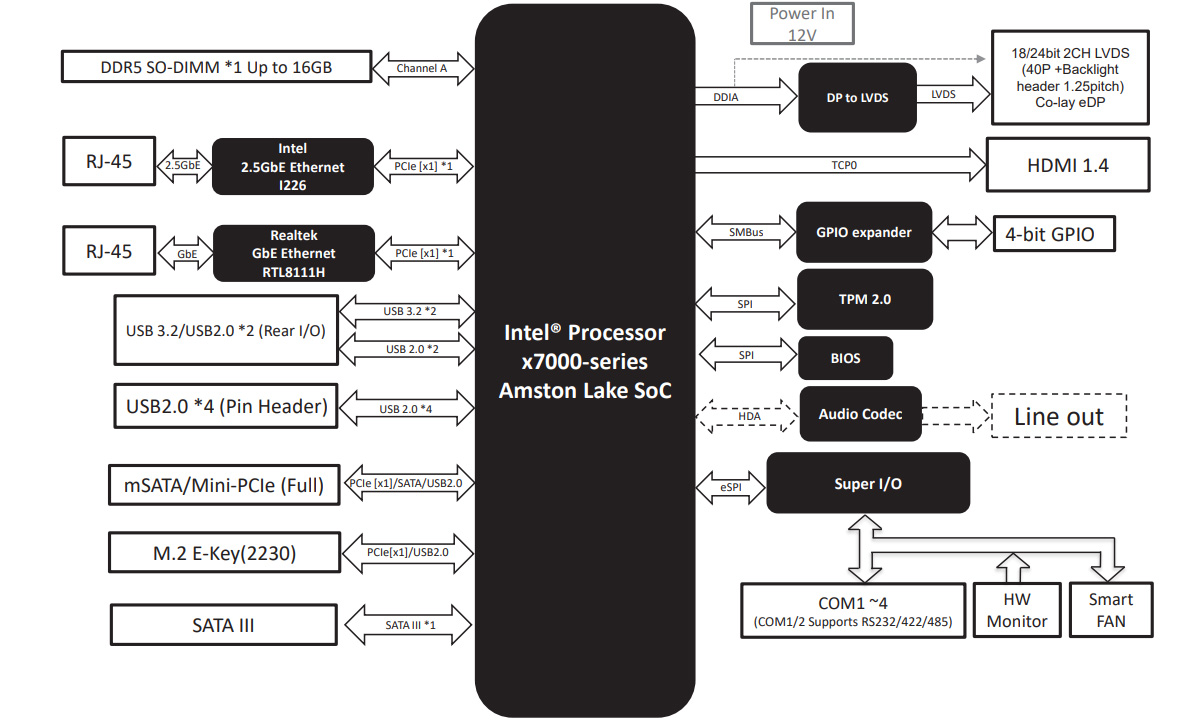

AAAEON PICO-ASL4 Rev.B Intel Atom x7000RE Pico-ITX SBC Block Diagram
Block Diagram
