Intel Processor N50 or N97 touch Panel PCs feature 7-inch or 10-inch TFT color display

AAEON ACP-2106 and ACP-2076 are two fanless touch panel PCs powered by an Intel N50 or N97 Alder Lake-N processor with respectively 10-inch (1280 x 800) and 7-inch (1024×600) color TFT LCD displays with capacitive multi-touch support.

Both models share the same key specifications with support for up to 32GB DDR5 SO-DIMM memory and a mPCIe socket for storage. They feature an HDMI 1.4 for dual display configuration for kiosks or other similar applications, two 2.5GbE ports, M.2 sockets for WiFi and 4G LTE/5G cellular connectivity, and more.

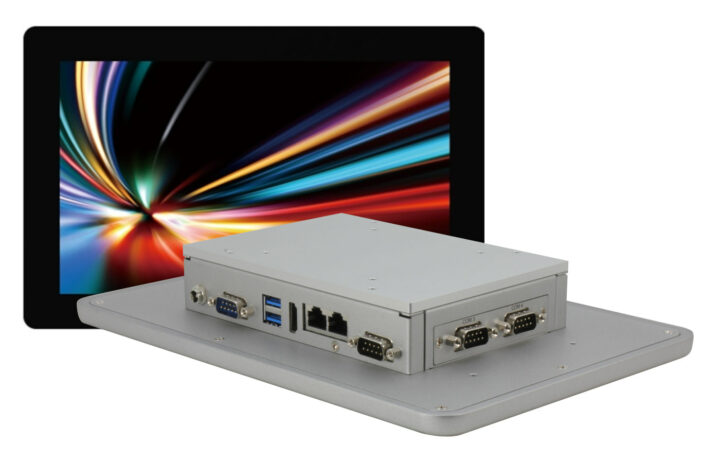

Intel N50 or N97 Panel PC 10-inch display

AAEON ACP-2106 and ACP-2076 specifications:

  • Alder Lake-N SoC (one or the other)
    • Intel Processor N50 dual-core processor up to 3.4 GHz with 6MB cache, 16EU Intel UHD Graphics; TDP: 6W
    • Intel Processor N97 quad-core processor up to 3.6 GHz with 6MB cache, 24EU Intel UHD Graphics; TDP: 12W
    • Note: Turbo Mode is disabled by default. If enabling it, please ensure the system is in a well-ventilated area.
  • System Memory – Up to 32GB DDR5 4800MHz via a single SODIMM socket
  • Storage – Full-size mPCIe (PCIe [x1]/SATA) socket
  • Display
    • ACP-2106
      • 10.1-inch TFT-LCD with 1280 x 800 resolution, up to 262k colors
      • 300 cd/m² luminance
      • Viewing Angle – 170° (H), 170° (V)
      • Back Light – LED with 25,000 Hrs MTBF
      • Projected Capacitive Multi-Touch
      • Light Transmission – 90%
    • ACP-2076
      • 7-inch TFT-LCD with 1024 x 600 resolution, up to 16.7M colors
      • 320 cd/m² luminance
      • Viewing Angle – 145° (H), 150° (V)
      • Back Light – LED with 20,000 Hrs MTBF
      • Projected Capacitive Multi-Touch
      • Light Transmission – 90%
  • Video Output – HDMI 1.4b port
  • Networking
    • 2x 2.5GbE ports via Intel I226 controllers
    • Optional WiFi and Bluetooth via M.2 E-Key socket
    • Optional 4G LTE/5G via M.2 B-key socket and Nano SIM card slot
  • USB
    • 2x USB 3.2 ports
    • 2x USB 2.0 via cables
  • Serial
    • 2x DB-9 for RS-232/422/485 (Set By BIOS)
    • 2x DB-9 for RS-232 (Optional)
  • Expansion
    • M.2 3052 B-Key socket with Nano SIM card slot
    • M.2 2230 E-Key socket
  • Power Supply
    • 12V via DC jack, optional 9~36V DC input support
    • Power on/off Switch with LED Light
    • Aluminum Front Bezel + Metal Chassis
      Mounting
      Panel Mount/VESA Mount (VESA 100)
  • Dimensions and weight
    • ACP-2106 – 266.9 x 184.5 x 43 mm | 1.5 kg (gross)
    • ACP-2076 – 196.5 x 135 x 43mm | 0.95kg (gross)
  • Temperature Range
    • Operating – -5°C ~ 50°C with 0.5 m/s airflow
    • Storage – -20°C ~ 70°C
  • Storage Humidity – 90% @ 40°C; non-condensing
  • Vibration – 1Grm s/5~500Hz/ operation – with mSATA
  • Shock – 15G peak acceleration (11 m sec. duration) with mSATA
  • EMC –  CE/FCC Class A Compatible
  • IP Rating – IP65-compliant aluminum front bezels

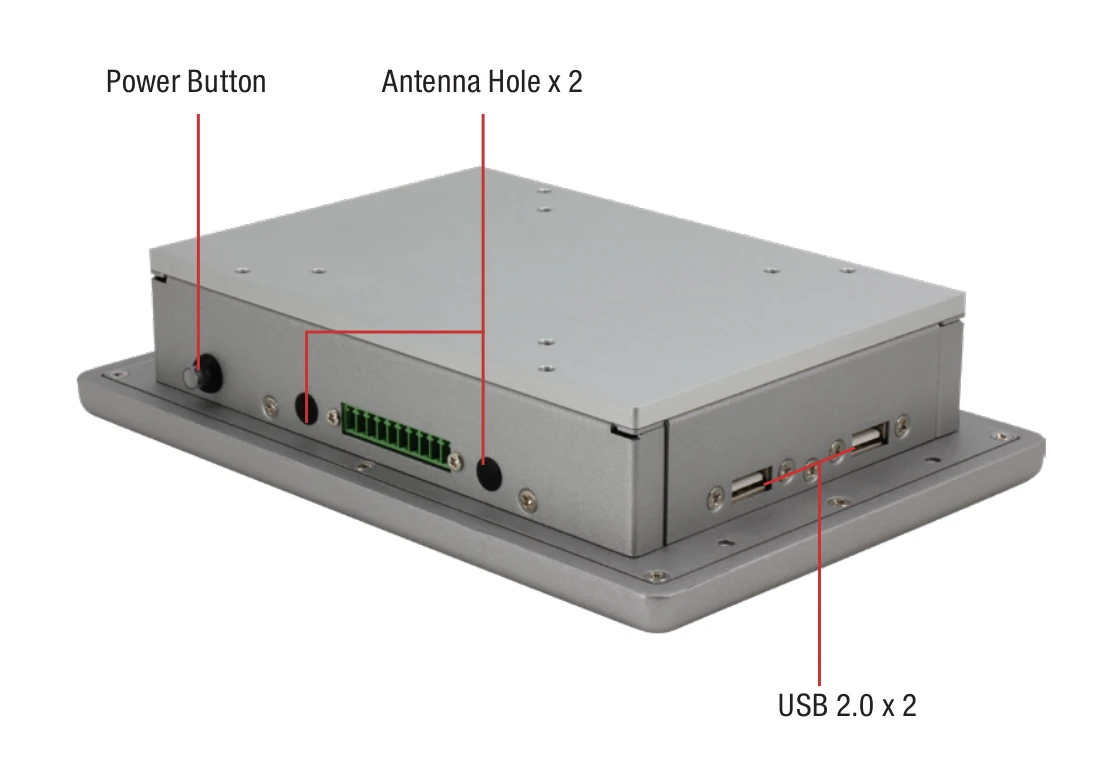

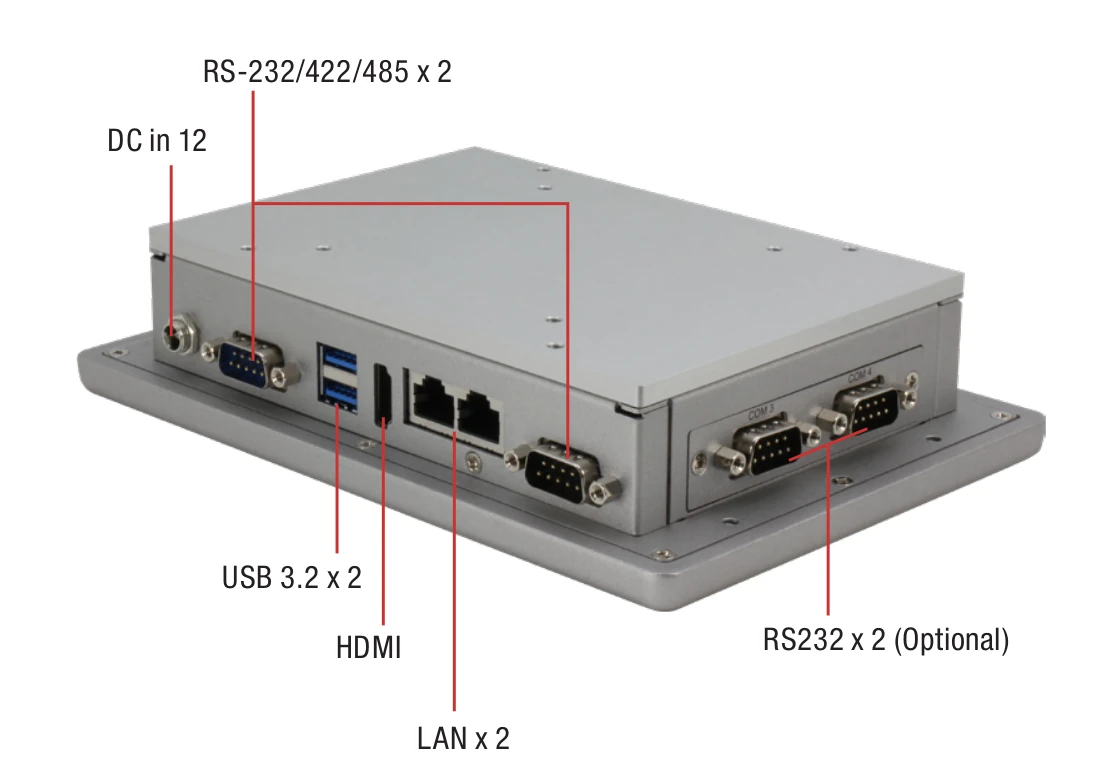

AAEON ACP-2076 Intel N50 or N97 Panel PC with RS232 RS422 RS485

AAEON provides support for Windows 10 IoT Enterprise LTSC 2021 and Windows 10/11. Linux is not mentioned at all. Both are fanless panel PCs and are offered with VESA and panel mounting options.

As a side note, our tests showed the Intel N97 offers some of the best performance/value of the quad-core Alder Lake-N SoC, and we’ve recently seen more and more industrial hardware platforms based on the Processor N97 including GIGAIPC QBiX-ADNAN97-A1 fanless industrial PC and Jetway JPIC-ADN1 pico-ITX SBC among many others.

AAEON expects its Intel N50/N97 touch panel PCs to be mostly used for retail and industrial automation. Additional information may be found on the respective product pages for the ACP-2106 and ACP-2076.
