iKOOLCORE R2 Max 10GbE mini PC review – Part 1: Unboxing, teardown, and first boot

iKOOLCORE R2 Max is an Alder Lake-N mini PC, server, and soft router equipped with two 10GbE and two 2.5GbE ports and offered with either an Intel Processor N100 quad-core CPU, or a more powerful Intel Core i3-N305 octa-core processor.

When iKOOLCORE offered me an R2 Max sample for review, I explained I did not own any 10GbE networking gear. So the company decided to send me two samples for testing 10 Gbps Ethernet networking: a fanless Intel N100 model and an actively-cooled Core i3-N305 model. Since we’ve already gone through the specifications in the first article, I’ll start the iKOOLCORE R2 Max review with an unboxing, a teardown, and a first boot. In the second part of the review, I’ll use Proxmox, OpenWrt, Ubuntu, and/or other operating systems to test the devices using one as a DUT (Device Under Test) and the other as a 10GbE server.

iKOOLCORE R2 Max unboxing

I received two identical packages for the R2 Max with basic specs about the system.

iKOOLCORE R2 Max Package
Top and bottom side of the packages

There’s no obvious way to differentiate between the N100 fanless and Core i3-N305 actively-cooled models but just looking at the package. Let’s select one package to see what’s inside.

iKOOLCORE R2 Max Unboxing

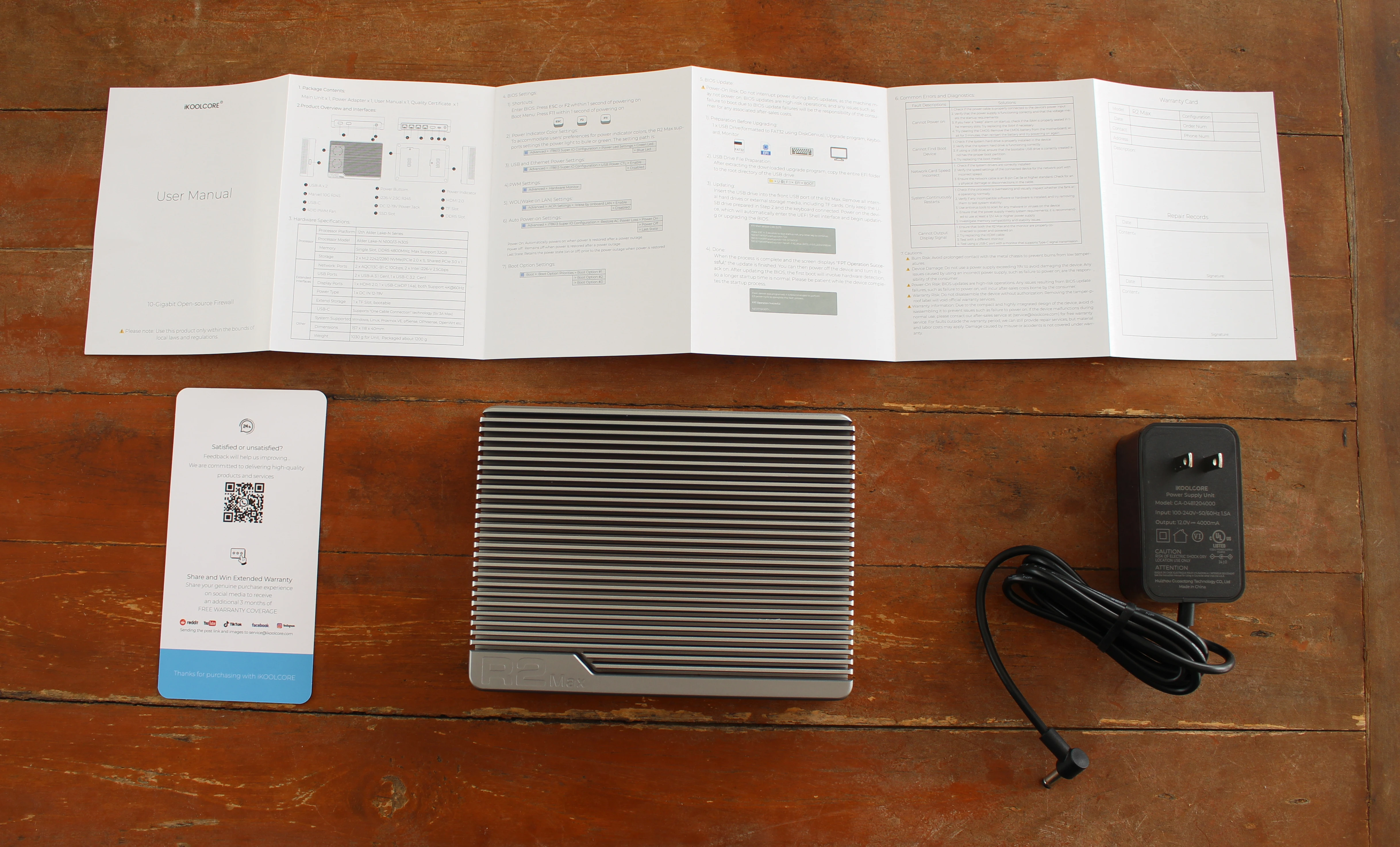

The computer ships with a bi-lingual user manual in English and Chinese, a 12V/4A power adapter, and a card with a QR code pointing to a Whatsapp account for support. I’m not using Whatsapp, so I haven’t tried it.

Fanless Intel N100 mini PC front panel

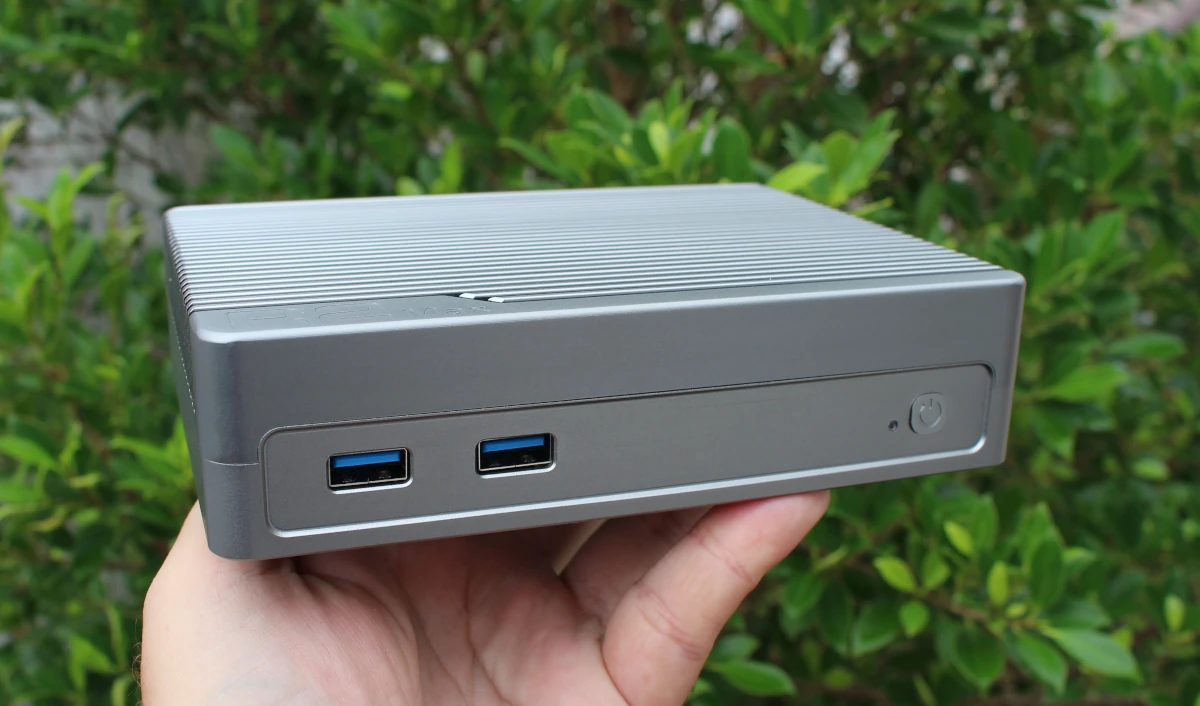

The front panel looks like any mini PC with two USB 3.0 ports and a power button.

Dual 10GbE Dual 2.5GbE Intel N100 mini PC soft router

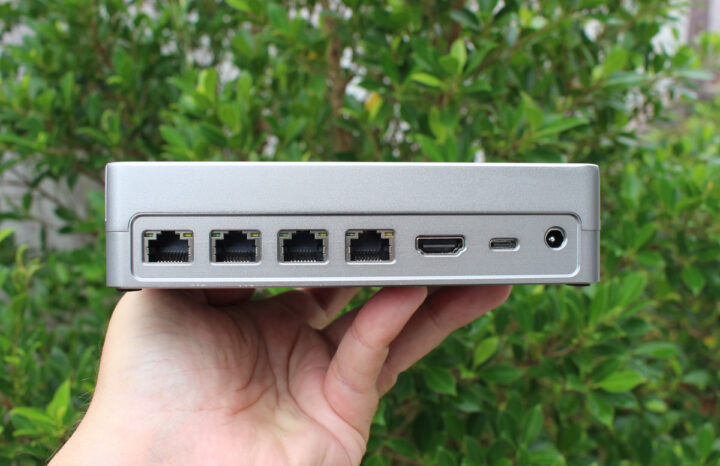

But the rear panel is less usual with four RJ45 ports, an HDMI 2.0 video output, a full-feature USB Type-C port, and a DC jack. Sadly the ports are not markets, but the two 10GbE ports are on the left, and the two 2.5GbE ports are on the right.

Fanless Alder Lake-N mini PC microSD card slot

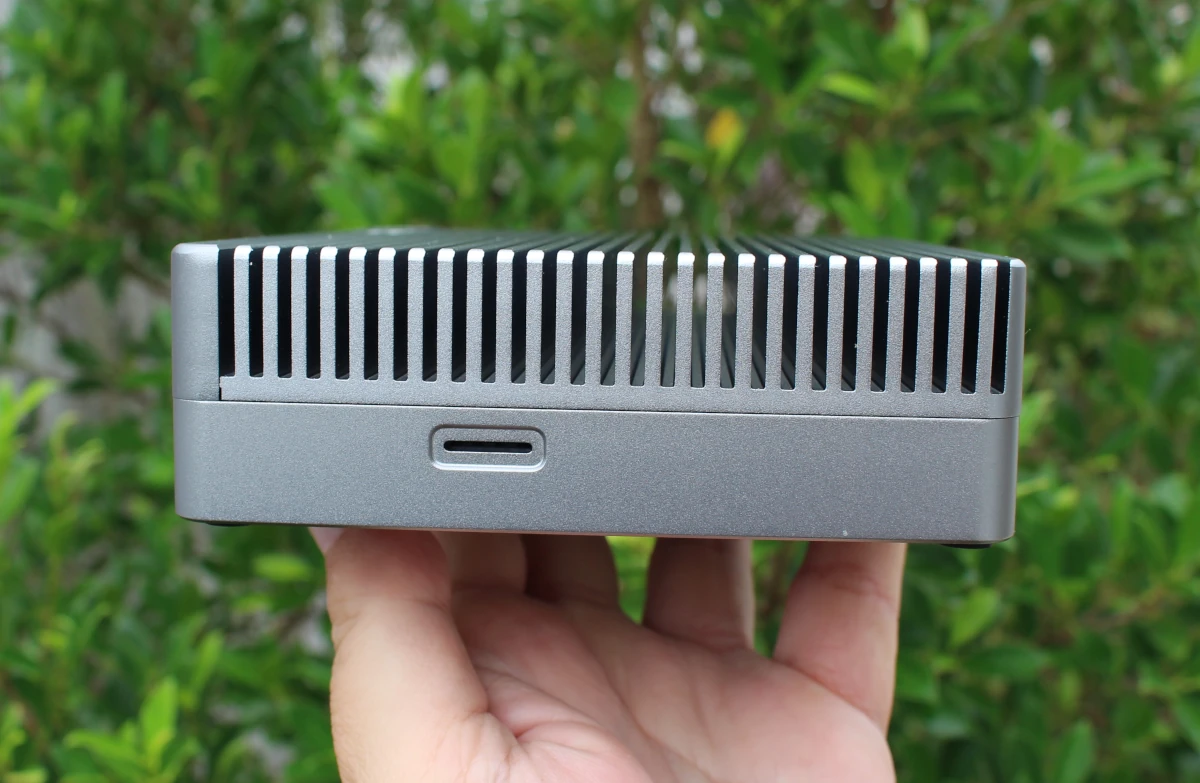

A look at one of the sides reveals a microSD card slot and plenty of fins typical of a fanless design. When I opened the second package, I could not find any differences except when looking at the top of the device, with the second device clearly having two cooling fans. That would be the Core i3-N305 variant…

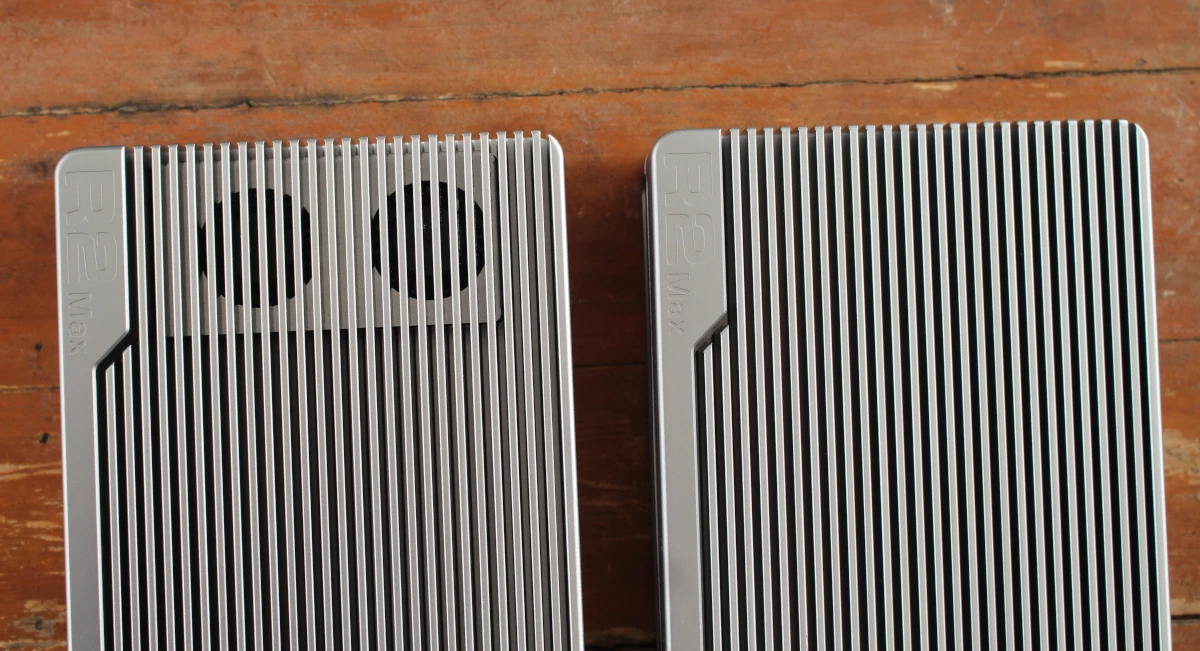

iKOOLCORE R2 Max Core i3-N305 actively cooled vs Intel N100 fanless mini PC

Note that you can select whether you want fans at the time of order, no matter whether you go with the Processor N100 or Core i3-N305 CPU.

iKOOLCORE R2 Max Teardown

The first part of the “teardown” will be more like a “maintenance” section, since the bottom side of the system comes with two covers clearly marked “DDR” and “SSD”.

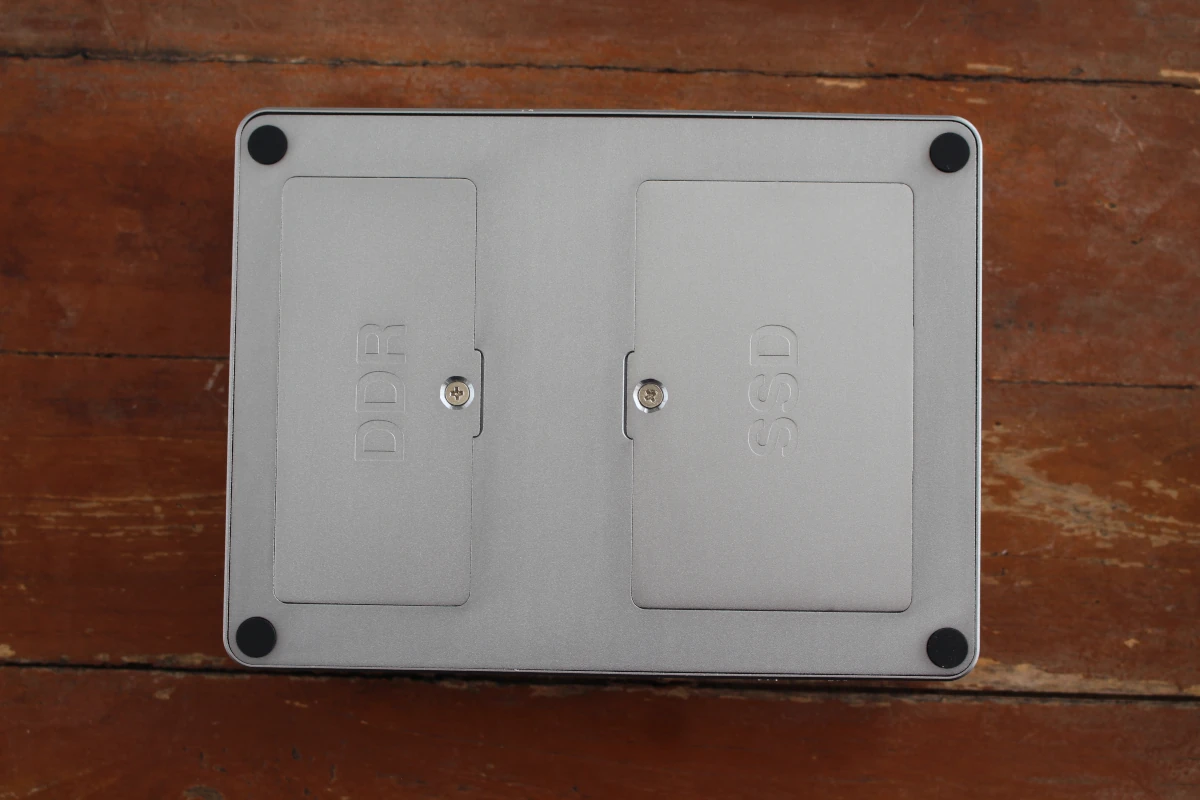

Intel N100 Mini PC DDR SSD covers

Both are easy to open with a traditional Phillips “crosshead” screwdriver. This will reveal a SO-DIMM module in the DDR section, and a short NVMe SSD in the SSD compartment. Note that there’s a second, unpopulated socket for an M.2 2280 NVMe SSD.

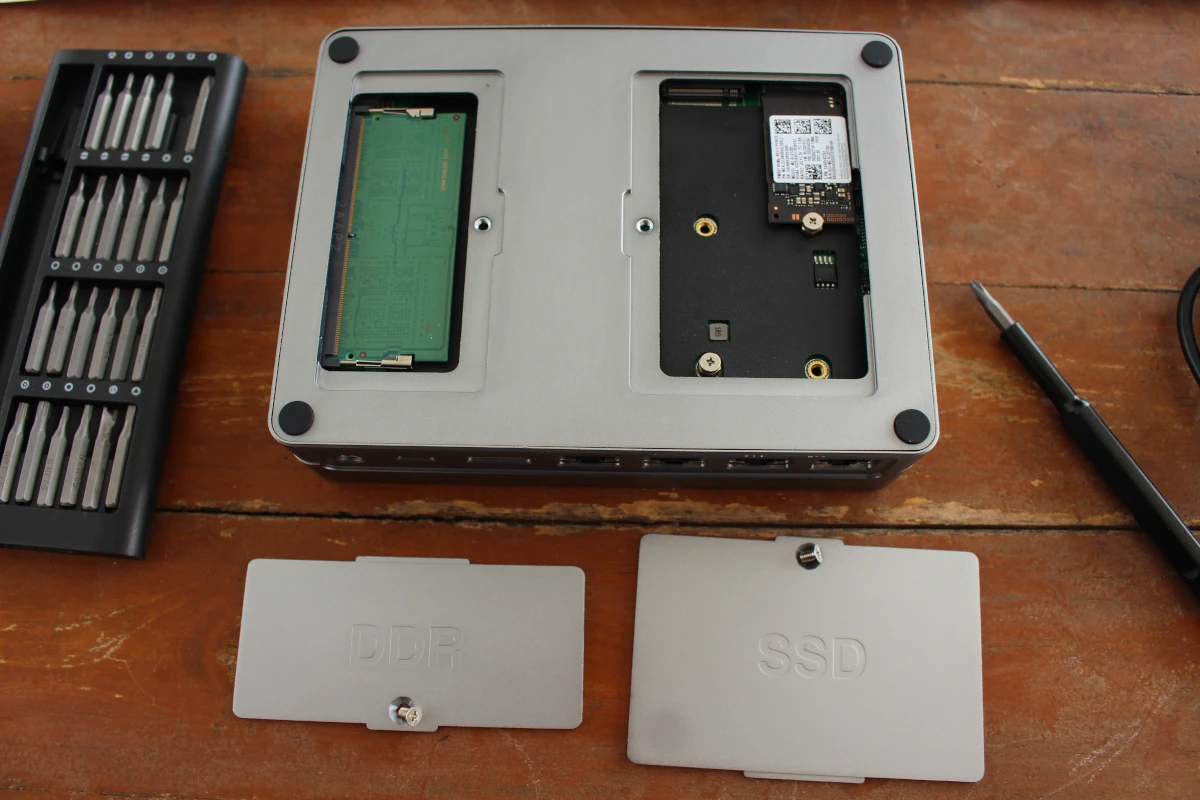

iKOOLCORE R2 Max DDR5 SO-DIMM Dual NVMe SSD

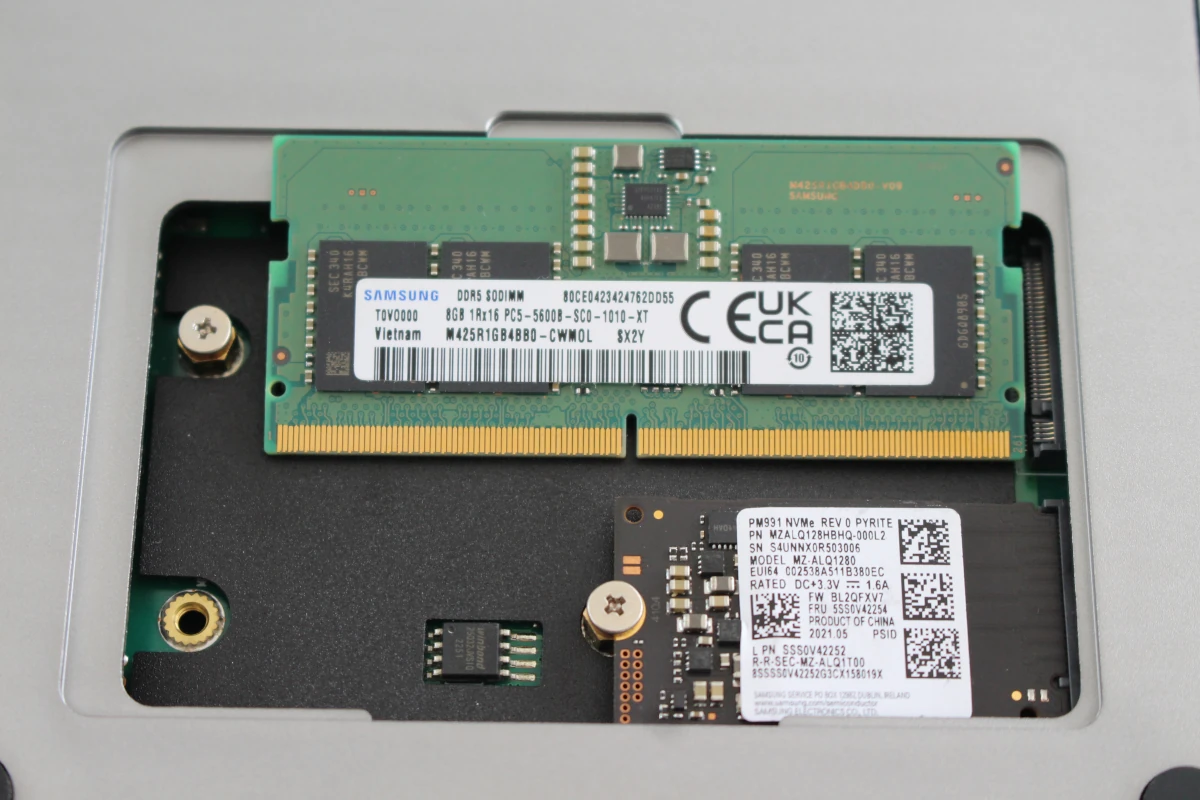

The memory module is an 8GB Samsung M425R1GB4BB0-CWM DDR5-5600 SO-DIMM module, while the storage device is a 128GB Samsung PM991 M.2 2230 NVMe (PCIe Gen3 x4) SSD that was also provided as part of a Radxa X4 kit and offering up to 3100 MB/s read speed, and 1200 MB/s write speed. The Core i3-N305 model also comes with the same memory and storage modules.

Samsung 8GB DDR5-5600 SODIMM PM991 NVMe SSD

We can now start the real part of the teardown. It looks like the company does not want users to open its computer as we’ll find hexagonal screws until the four rubber pads.

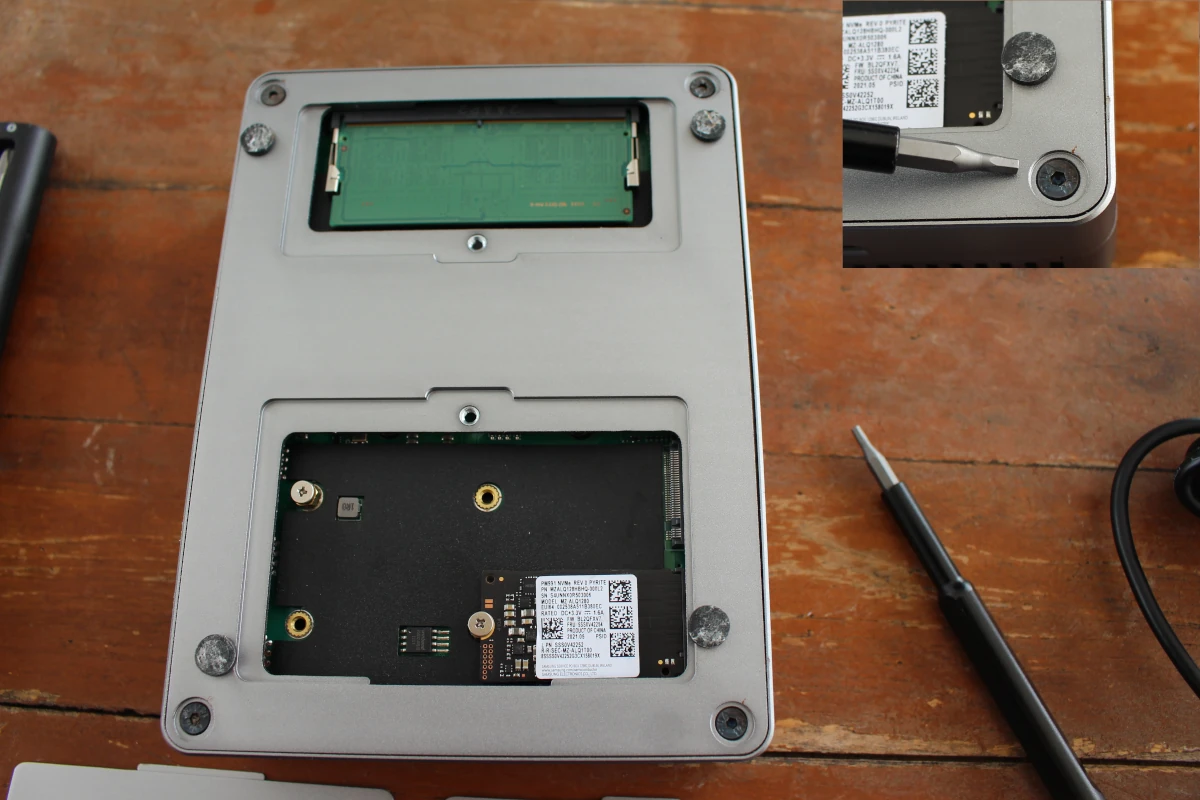

iKOOLCORE R2 Max Teardown Hexagonal Screws

I have such a screwdriver so I managed to open it, but once we can access the motherboard, we’ll find out one of the screws has some glue on it likely to void the warranty if that part is removed…

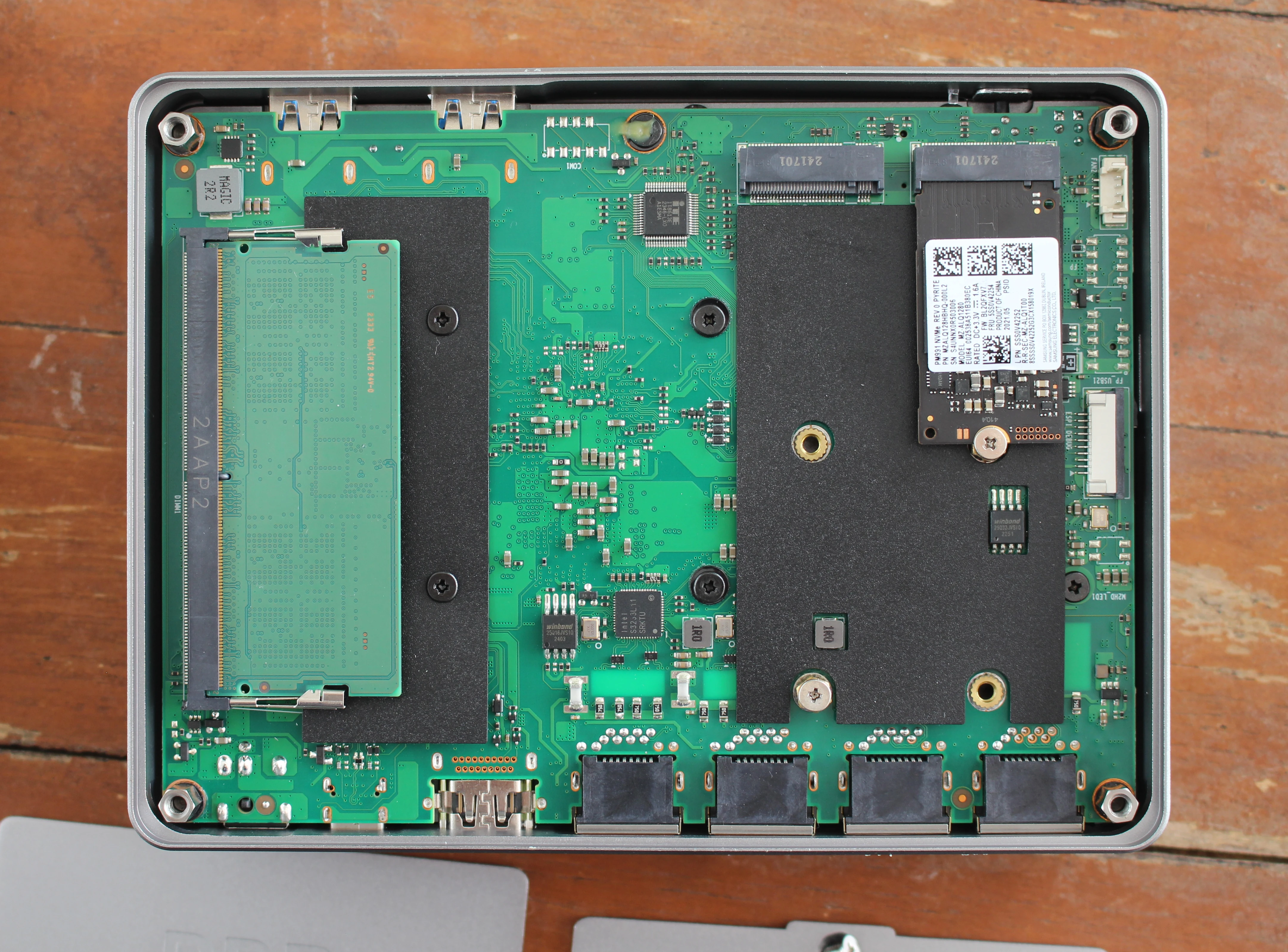

iKOOLCORE R2 Max motherboard

There’s not much to see on that part of the PCB, except three components: ITE IT8613E I/O chipset, an Intel S3233L11 chip (not sure what it is. update: the component silkscreen also reads “SRKTU” which points to Intel i226-V 2.5GbE controller. See comments section for details), and a Winbond 25Q16JVSIQ SPI NOR flash with 16Mbit (2MB) capacity.

iKOOLCORE R2 Max Teardown Failed

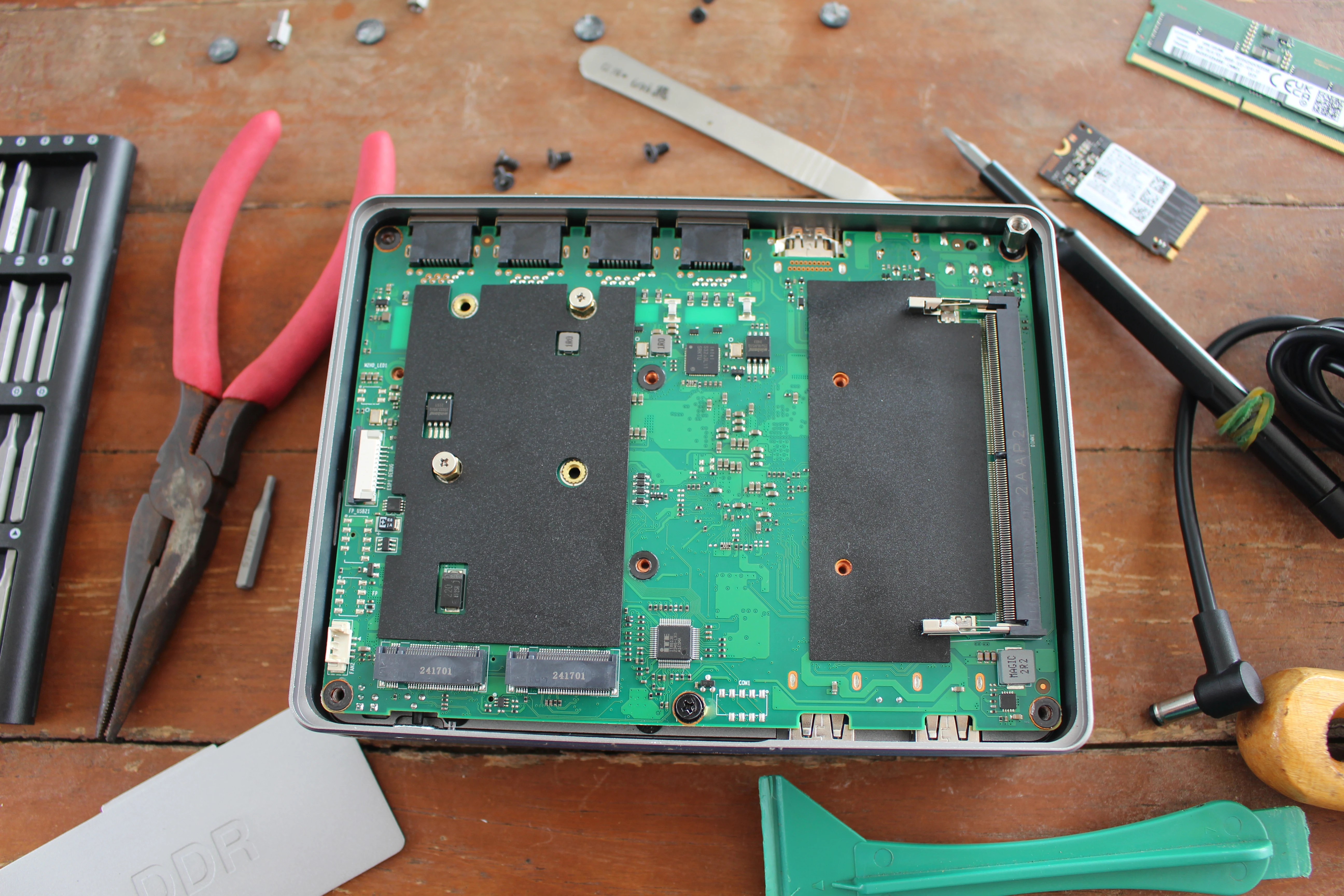

I then removed or loosened all the screws I could find and the four standoffs placed in the four corners, but the board would not come out. I didn’t want to push too hard, since I still need it for the review, so I stopped the teardown here and reassembled the system.

First boot to… the BIOS

I connected the iKOOLCORE R2 Max mini PC to a 2.5GbE switch, a USB-C display, and two RF dongles for a mouse and a keyboard, before connecting the power supply to boot it up.

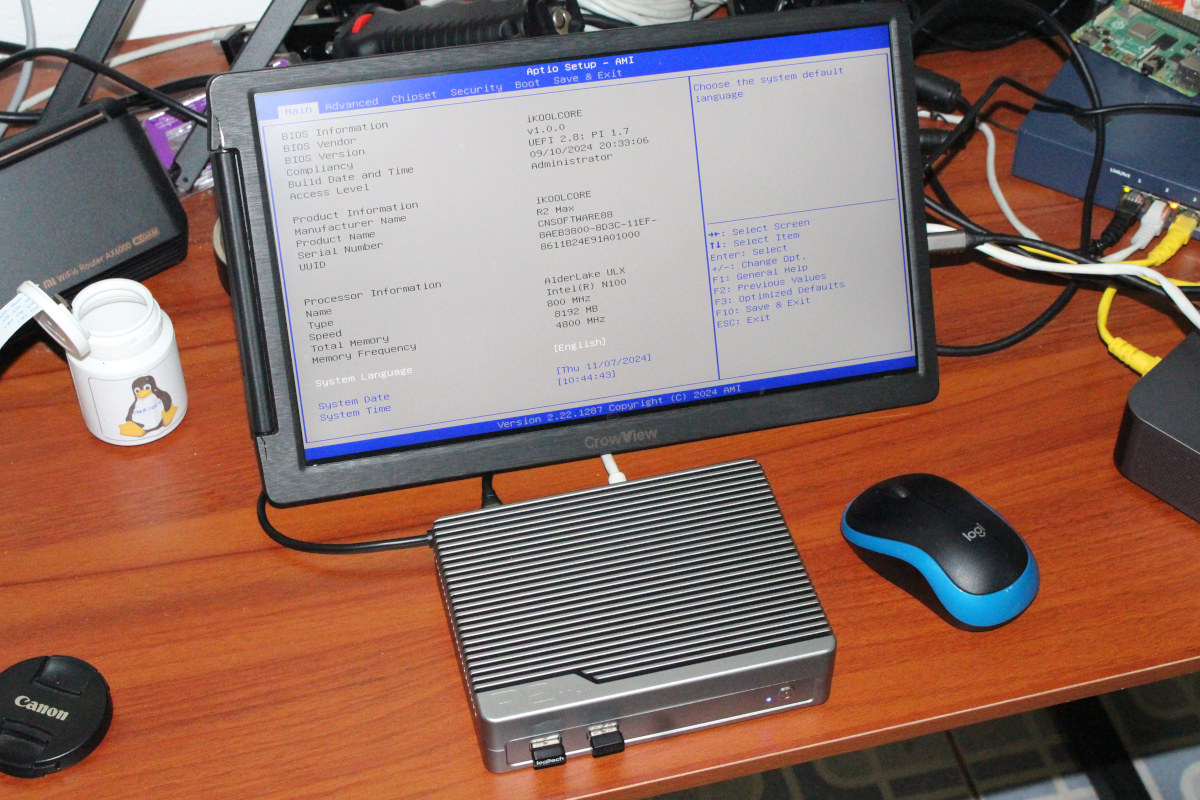

iKOOLCORE R2 Max BIOS Aptio Setup

The system booted to the Aptio Setup aka “BIOS” since no OS is installed as was my experience with the tiny iKOOLCORE R2 model. I plan to install OpenWrt on the fanless Intel N100 mini PC to use it as a server with DHCP, and Proxmox on the Core i3-N305 model for testing with Ubuntu 24.04 and pfSense. I’ll probably need to purchase some Cat 6 cables since those are recommended, even though Cat 5e cables are apparently enough especially for shorter cables.

That will be all for today. I’d like to thank iKOOLCORE for sending the R2 Max for review. The N100 and Core i3-N305 mini PCs sell for respectively $349 and $449 in the review configuration (8GB RAM, 128GB SSD), but you can get a barebone system for as low as $299. You can also get an extra 5% off with the CNXSOFT coupon code
