GenBook RK3588 modular Linux laptop features an octa-core Arm CPU module with 32GB RAM (Crowdfunding)

GenBook RK3588 is a modular Linux (and Android) laptop powered by a Rockchip RK3588 Arm system-on-module (SoM), and easily serviceable by the user who can add M.2 MVMe SSD storage, switch wireless module, and eventually update to a more powerful SoM, or even change the display.

It looks very similar to the Cool Pi Arm Linux laptop, and it’s indeed made by the same company, but a representative told CNX Software that the GenBook RK3588 was an upgrade of the Cool Pi without further details. So let’s have a closer look.

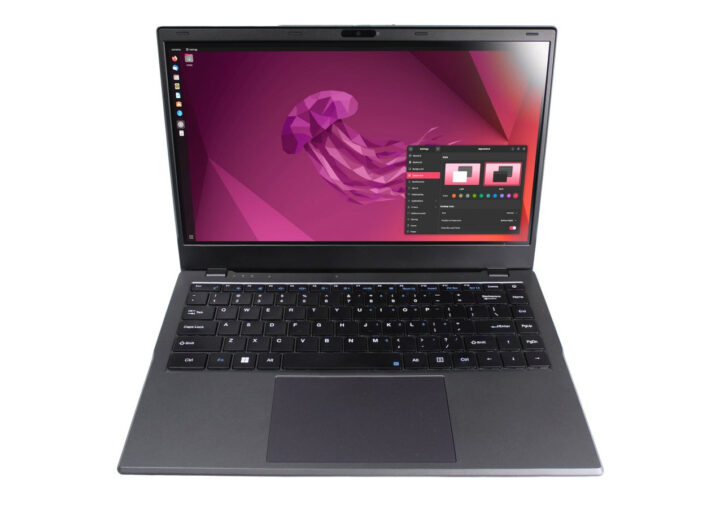

GenBook RK3588 Ubuntu Laptop

GenBook RK3588 laptop specifications:

  • System-on-Module – GenM5 (same as Cool Pi CM5 except for the move from LPDDR4/4X to LPDDR5)
    • SoC – Rockchip RK3588 octa-core processor with
      • 4x CortexA76 cores, 4x CortexA55 cores
      • Arm Mali-G610 MP4 GPU
      • Video decoder – 8Kp60 H.265, VP9, AVS2, 8Kp30 H.264 AVC/MVC, 4Kp60 AV1, 1080p60 MPEG-2/-1, VC-1, VP8
      • Video encoder – 8Kp30 H.265/H.264 video encoder
      • 6 TOPS NPU
    • System Memory – 8GB or 32GB LPDDR5X
    • Storage – 64GB eMMC flash memory
    • Audio – Realtek ES8336 audio codec
    • Networking – RTL8111HS and RTL8211F Gigabit Ethernet chips
    • 314-pin MXM 3.0 edge connector for insertion into a carrier board
    • Supply voltage – 4.2 to 4.8V DC
    • Dimensions – 82 x 60 mm
    • Temperature Range – 0 to 70°C
  • Storage – Optional M.2 2280 NVMe (PCIe Gen3 x4) SSD
  • Display – Replaceable 14.1-inch display with 1920×1080 resolution, 300cd/m2 brightness (model: BOE NV140FHM-N42)
  • Video Output
    • HDMI 2.1 port up to 8Kp60 resolution
    • DisplayPort 1.4 via USB-C port
  • Audio
    • 3.5mm audio jack for headphones or external speakers
    • Stereo 8 Ohms (1.2W) speakers
    • 2x microphones
  • Camera – 2.0 MP webcam
  • Connectivity
    • WiFi 6 2×2 MIMO and Bluetooth 5.2 via Realtek RTL8852BE
    • Optional 4G LTE cellular connectivity via M.2 socket
    • Optional 5G module via FPC connector
  • USB
    • 1x USB 3.2 Gen 1 (5 Gbps) Type-A port
    • 1x USB 3.2 Gen1 (5Gbps) Type-C OTG port with DisplayPort Alt. mode
  • User inputs – QWERTY keyboard and touchpad
  • Sensors – Hall sensor
  • Expansion – 50-pin FPC connector with
    • PCIe 2.0 x1, USB 3.0, or SATA 3.0 (multiplexed)
    • 2x USB 2.0 host interfaces
    • Gigabit Ethernet
    • SDMMC 3.0
    • UART, SPI, I2C, GPIO
  • Misc
    • Charging and Power LEDs
    • Power button
  • Battery
    • 38 Wh (7.6V/5000mAh) capacity
    • 130 hours of standby time
    • 7 hours of video playback
    • 3.5 hours charging time
  • Power Supply
    • 9V to 20V DC input for charging
    • USB PD charging (works only when the laptop is on)
  • Dimensions – 323.4 x 219.9 x 19.9 mm (shell made of plastic)
  • Weight – 1.5 kg

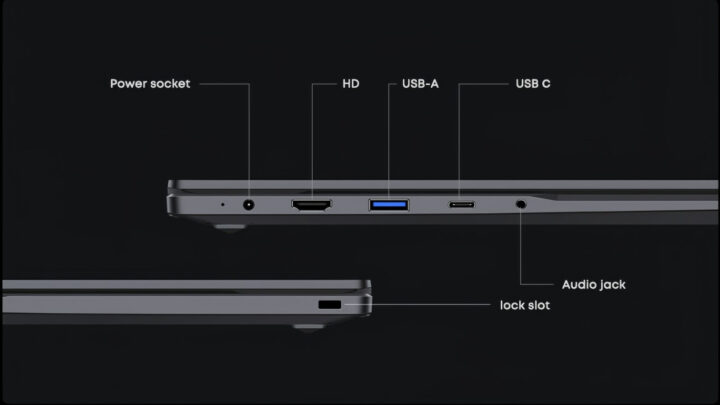

Rockchip RK3588 laptop ports

The main differences against the original Cool Pi laptop are that the system-on-module module now comes with LPDDR5 memory instead of LPDDR4/4X memory, a slightly brighter display is used (300cd/m2 vs 250cd/m2) and there’s a 50-pin FPC connector for expansion such as 5G and other future boards/modules with PCIe, SATA, USB, GbE, and/or other interfaces as listed in the specifications.

The company will provide Debian 11 (default), Ubuntu 20.04/22.04/24.04, Armbian, Android 14, UOS, KylinOS, and Alt-Linux images for the laptop. Cool Pi/Open SBC/Shenzhen Tianmao Technology (three names for the same company) will eventually provide documentation on the wiki including OrCAD and PDF schematics for the mainboard, PDF schematics for the SoM, and OS images. They’ve actually done that on the Crowd Supply, but the OS images are behind an account-protected Onedrive share… You can also get some support on the English/Chinese forums and download the OS images from Baidu (usually slow outside of China).

GenBook RK3588 modular laptop motherboard
GenBook RK3588’s internal design

Shenzhen Tianmao Technology has launched the GenBook RK3588 on Crowd Supply with a $60,000 funding target. They have no backers right now, likely because the value proposition is not amazing with the model with 8GB RAM and a 64GB eMMC flash going for $500, and the 32GB RAM + 1TB SSD for $700 including worldwide shipping. Backers will also need to be patient as the RK3588 laptop is only scheduled to ship by the end of April 2025.
