STMicro releases IO-Link actuator board for industrial monitoring and home appliances

STMicro has announced the EVLIOL4LSV1 IO-Link actuator board, an STM32G071CB Cortex-M0+ MCU-based reference design for commercial manufacturers with a built-in protocol stack and application software.

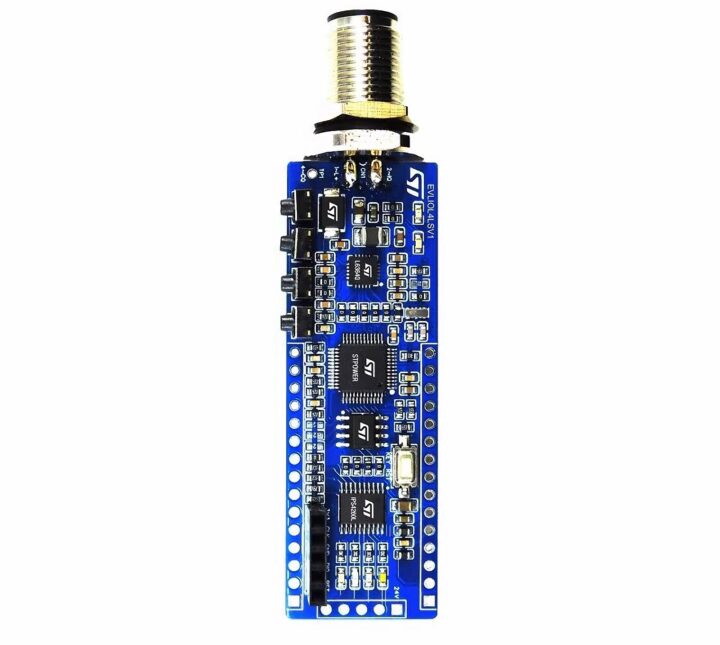

STMicro EVLIOL4LSV1 IO-Link actuator board

Aimed at industrial beacons and home-appliance alarms, the EVLIOL4LSV1 combines the L6364Q dual-channel IO-Link transceiver (communications) and IPS4260L intelligent low-side power switch (for driving industrial loads). The EVLIOL4LSV1 IO-Link actuator board is powered by an STM32G071CB Arm-Cortex-M0+ microcontroller that hosts the proprietary stack and application software and communicates with the transceiver and low-side power switch.

The evaluation board can be used to test the IPS4260 and L6364Q ICs. It features a 4-pin M12 connector for an IO-LINK master and a 5-pin SWD connector for programming. It can also directly interface with signaling systems, ranging from smart tower lights in factory automation to funnel alarms for quantity monitoring.

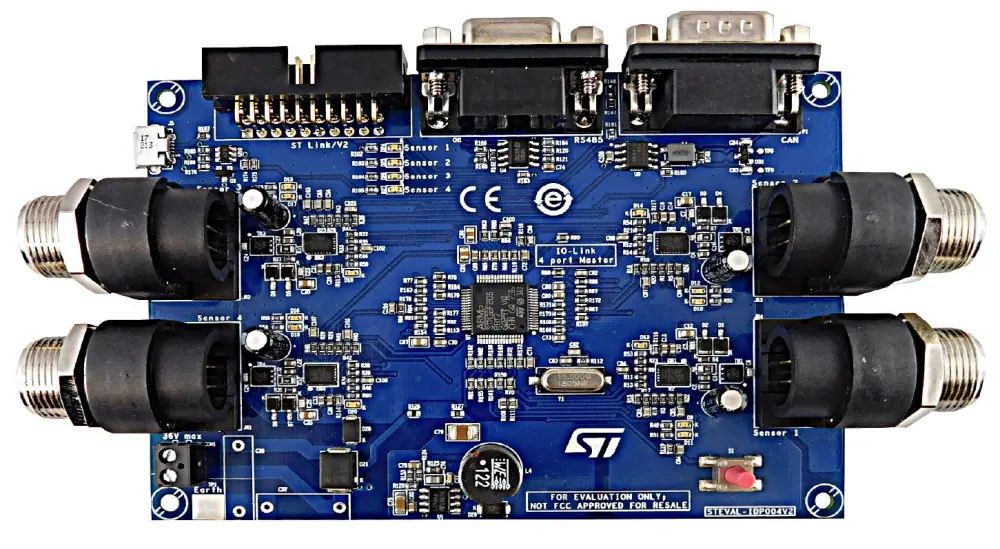

STEVAL-IDP004V2 IO-Link master board
STEVAL-IDP004V2 IO-Link Master board

The onboard transceiver is protected against electromagnetic interference and supports COM2 and COM3 speeds. It offers multiple modes of operation: single-byte, multibyte, and transparent mode, in which the MCU takes control of IO-Link communications via a UART interface.

The IPS4260L low-side power switch features four outputs for driving loads connected to a supply voltage. It supports a wide operating voltage range of 8V to 50V, a programmable current range per output from 0.5A to 3A, and includes built-in protections against overload and overheating for each channel. Additionally, the actuator board incorporates ST’s SMBJ30CA TVS diode to protect the supply rail from surge pulses with 2 coupling.

Renesas had previously released a similar solution with the ZSSC3286 evaluation board for its IO-Link ICs.

EVLIOL4LSV1 specifications:

  • Microcontroller – STMicro STM32G071CBT6 ‘mainstream’ Arm Cortex-M0+ MCU @ 64MHz with 128KB flash, 36KB RAM
  • Peripherals
    • IO-Link Class-A interface based on the L6364Q dual channel IO-Link device transceiver
    • 4x low-side output channels based on the IPS4260L (intelligent low-side power switch)
  • Connectivity – M12 4-pin connector, 5-pin SWD connector
  • Input – 4x buttons used as digital input channel
  • Operating Voltage – 18V to 30V DC

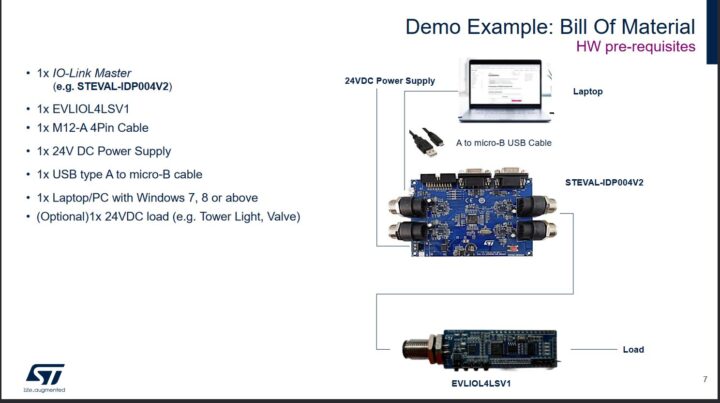

Demo bill of materials for the EVLIOL4LSV1 board
The EVLIOL4LSV1 actuator board can be connected to any IO-Link master board via the M12 4-pin connector such as the STEVAL-IDP004V2 shown above and controlled with TEConcept IO-Link Control Tool GUI software. It is available for $23 from the eStore and ST distributors. More information may be found on the product page and the related community post.

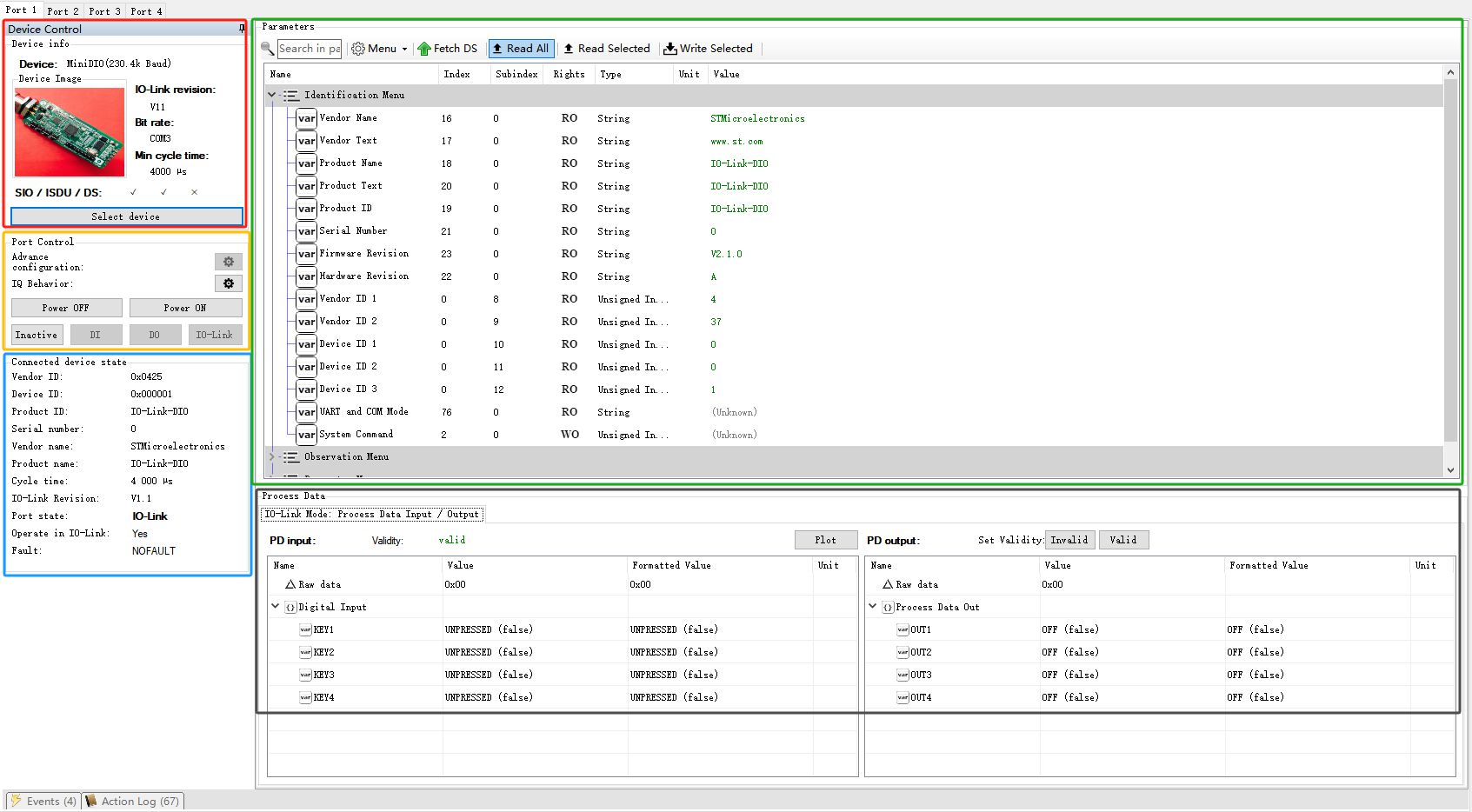

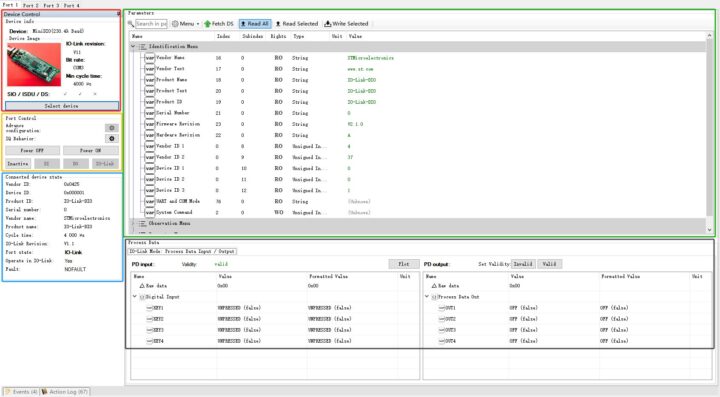

TEConcept IO-Link Control Tool Software
TEConcept IO-Link Control Tool Software
