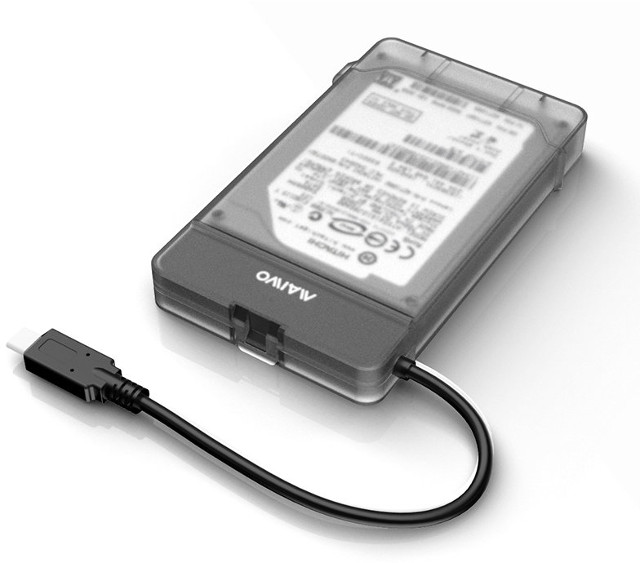

Maiwo K104c is a $9 2.5″ SATA Drive Enclosure with a USB Type C Cable

USB type C receptacles are found in more and more devices, but if you have older accessories or peripherals they likely use micro USB, and USB type A cables or plugs. One way to work around this problem is to get adapter, for example, I purchased a micro USB to USB Type C adapter last year, but this morning I’ve come across a USB type C hard drive enclosure, something I had not seen before, probably because I did not look for it.

Maiwo K104c enclosure specifications:

  • Designed for 2.5″ SATA drives (HDD/SSD) up to 9.5mm thick
  • USB type C to SATA 3.0 interface using JMS567 chipset
  • UASP protocol support (aka USB attached SCSI)
  • OS agnostic so it should work with any operating systems
  • Dimensions – 21.50 x 2.70 x 1.20 cm
  • Weight – 130 x 79 x 17mm

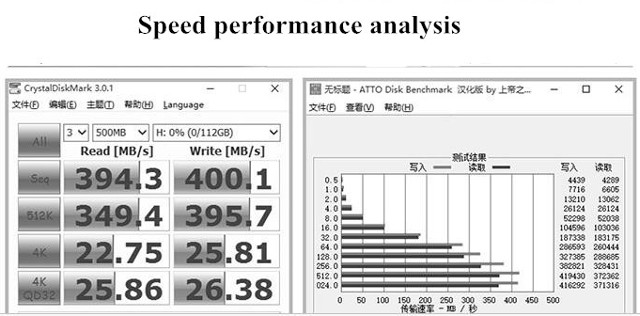

JMicron JMS567 chipset is the same as used in NanoPi NEO NAS Kit v1.2.  Several sites claims it’s a USB 3.1 enclosure, but it’s not since JMS567 is a USB 3.0 to SATA 3 enclosure, which should limit to the speed to 5 Gbps, instead of 10 Gbps for USB 3.1 Gen2), but considering SATA 3.0 is limited to 6Gbps, it should not make that much of a difference, if any. UAS support should help with performance too, and the company claims having achieved around 400MB/s read and write sequential performance with the enclosure.

I first found Maiwo K104C enclosure on GearBest where it is sold for about $9 shipped, but details are incomplete and sometimes incorrect, so I ended using most info from Banggood instead as they also include more photos, price is higher at $11.99. You’ll find many more USB type C HDD enclosure on Aliexpress too.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
9 Comments
oldest
newest
tkaiser
tkaiser
7 years ago

Since it’s USB-C it’s more probably a VIA716 (will show up as ‘2109:0715’ on USB bus since sharing product ID with VIA715 since same chip just with USB-C support). The difference is:

USB Type-C connector support:
– CC1/CC2 cable orientation detection logic
– Two sets of SuperSpeed USB signal pins to enable plug flipping feature

tkaiser
tkaiser
7 years ago

@Jean-Luc Aufranc (CNXSoft) JMS567 would be a bad choice since it would need additional detection logic and given there are single chip solutions already available no one would build products based on this. Good catch: JMS576 seems more probable: ‘USB 3.1 Gen1 to SATA 6Gb/s bridge controller with Integrated USB Type-C Multiplexer & Device CC control logic for USB Type-C storage solution.’ (emphasis by me 😉 ) Would be great if you could get a sample and check the type of bridge chip. We got recently an UASP problem report for VIA716 (nice high performance but USB resets) but since… Read more »

DurandA
DurandA
7 years ago

I ordered one (w. free shipping, will take ~2weeks). I will open it and report back here.

tkaiser
tkaiser
7 years ago

@DurandA
Nice! If you connect it to a Linux box please run

with a disk connected and post output too (connected disk might be important since at least JMS578 can be configured to hide from the USB bus when no SATA device is connected to it)

DurandA
DurandA
6 years ago

@tkaiser
I just received it. It is a HJMicron Technology Corp. / JMicron USA Technology Corp. JMS567 SATA 6Gb/s bridge according to lsusb.

Here is the complete log if you want it. Thank you for sharing the excellent sprunge service; I was unaware of its existence.

ykchavan
ykchavan
6 years ago

@DurandA
I can not find jms567 in your complete log. Only relevant information is kernel log says there is uas driver registered. Am I missing anything?

DurandA
DurandA
6 years ago

@ykchavan
My bad, I posted the wrong log with the drive disconnected. I will post it again.

DurandA
DurandA
6 years ago

Here is the right log.
