Up2Stream Pro HiFi Audio Receiver Board Streams Audio over WiFi, Bluetooth, Ethernet, or USB

Last December, we wrote about Up2Stream WiFi audio module designed for people wanting to build their own DIY wireless speakers. The module is based on  MediaTek MT7688AN MIPS processor with 64MB DDR2 and 16MB flash storage

The module also comes with a small baseboard allowing for an easier connection to speakers. The company has now introduced Up2Stream Pro model based on the same module, but with a baseboard adding more features including Bluetooth, Ethernet, USB, and audio jacks.

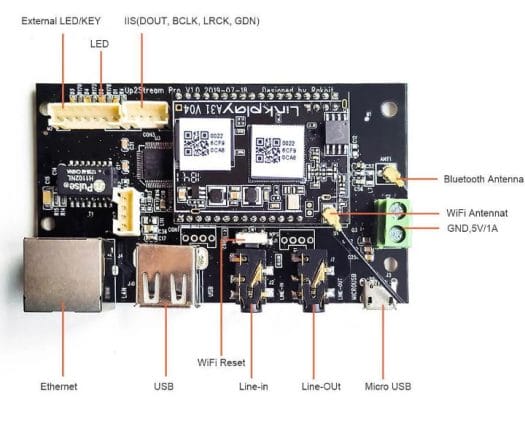

Up2Stream Pro
Click to Enlarge

Up2Stream Pro key features and specifications:

  • Audio
    • Output – 3.5mm AUX jack and I2S header
    • Input –  3.5mm AUX-in
    • SNR: 91db
    • THD: 0.03%
    • Sample rate –  24bit up to 192kHz
    • FLAC, Wav, and APE codec supported, but NOT SBC, APT-X, APT-X HD, or LDAC.
    • Multiroom & Multizone support
    • EQ control
  • Connectivity – Ethernet, WiFi, and Bluetooth 5.0
  • Streaming
    • Protocols – Airplay, DLNA, UPnP, Spotify Connect
    • Compatible Services – Spotify, Deezer, Tidal, Qobuz, Napster, iHeartRadio.
    • Local Streaming from NAS or USB
  • USB – 1x USB 2.0 port, 1x micro USB port
  • Misc – External LED/key header
  • Power supply – 5V/1A via micro USB port or 2-pin terminal block
  • Dimensions – 85 x 50mm
Audio Board connection to Amplifier Board
Example of connection to amplifier board (the lines don’t seem to be placed correctly though…)

As noted last year, this is mostly a DIY hardware convertion kit, and the company does not provide the source code for the firmware because the “multiroom streaming software is quite complicated to implement reliably”. The board can be controlled from 4STREAM app available for Android and iOS, and they also have an API to control the volume.

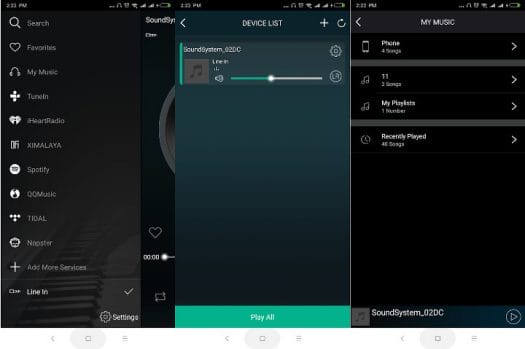

4STREAM Android App
4STREAM Android App Screenshots – Click to Enlarge

The board is available now for $49.99 on Amazon. You may also find additional information on the product page.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
10 Comments
oldest
newest
eFfeM
eFfeM
5 years ago

the company does not provide the source code because the “multiroom streaming software is quite complicated to implement reliably”.

That is by far the most BS argument I heard for not disclosing source code.
If it is just because it is complicated that would be a good reason to publish (so others might learn from it or spot flaws).

This thing also seems overpriced.

Johny007
Johny007
5 years ago

Exactly. Selling dev board without source code, such a clever idea 🙂

Lucas
Lucas
5 years ago

https://www.sonos.com/en-us/shop/port.html
SONOS PORT $399 ,check and compare 🙂

eFfeM
eFfeM
5 years ago

not really a comparison.
Sonos is a device not a board, so it also has a housing, power supply etc etc.
And with Sonos half of your money is just for the brand.

Actually the streaming part could probably done more efficient on even an RPI zero (also more memory and flash, heck 16M flash, 64M ram. The average router has more)
And if you want audio in and out either add a hat for it, or use a usb audio adapter

PS: my expectation of the BOM cost of this Sonos thing would be $ 50 at most.

Lucas
Lucas
5 years ago

Can your system do multiroom control in app ? Do your app support streaming Tidal, Qobuz, Spotify Connect, Tune in, Deezer ? Does your system support all sources, such as line in re stream to all other unit and play in sync ? And Alexa control update soon, amazon music updates soon.?
And API for smart home integration ?

Dan C
Dan C
5 years ago

Yes, can easily run snapcast on a Pi Zero for multiroom audio with AirPlay & Spotify etc.

Paul M
Paul M
5 years ago

as soon as I saw Mediatek, I knew source wouldn’t be included.

ValdikSS
ValdikSS
5 years ago

>FLAC, Wav, and APE codec supported, but NOT SBC, APT-X, APT-X HD, or LDAC.

Eh? What’s Bluetooth there’s for then?

ValdikSS
ValdikSS
5 years ago

SBC is the default Bluetooth A2DP codec. If they don’t have SBC, I suppose they don’t support audio over Bluetooth? Why do they have Bluetooth hardware then?
