Olimex VGA2HDMI is an open hardware board for VGA to HDMI conversion

Olimex VGA2HDMI is an open-source hardware VGA-to-HDMI converter specially designed and tested to work with the CERBERUS 2100, AgonLight 2, and Agon Origins boards. The board has a VGA port as input and an HDMI port as output and a USB-C port is there to provide the external power required for the board.

In one of our previous posts, we wrote about the NovaVGA Shield, which adds VGA output to your Arduino UNO. Now, with the help of this board, that capability can be extended to HDMI. There are also extenders that carry VGA signals over Ethernet cables, a topic we have covered in another post. With this new board, you can convert that VGA signal to HDMI.

It’s not like there aren’t other VGA to HDMI converters on the market; a quick Amazon search gave me the VENTION VGA to HDMI Adapter, but among them, most were HDMI to VGA converters, not the other way around.

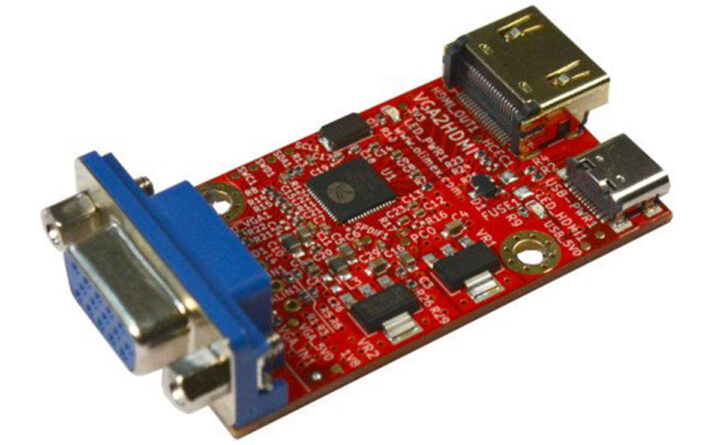

Olimex VGA2HDMI: open-source VGA-HDMI converter for CERBERUS 2100, AGONLIGHT 2, AGON ORIGINS. VGA input, HDMI output, USB-C for power.

Olimex VGA2HDMI Converter Specification:

    • Chipav CV8986 VGA to HDMI converter
    • VGA connector
    • HDMI connector
    • USB-C power connector
    • Dimensions – 55 x 31 mm

Unlike the product on Amazon, this device is built around the CV8986 VGA to HDMI converter that supports 1080p video, a capability we can confirm by looking at the datasheet of the IC. The datasheet also suggests that this IC supports 24-bit audio ADC, meaning that if the board was designed correctly, the HDMI output could include audio over HDMI as well. However, I can’t find the reason for not including a 3.5 mm jack on the board. This 56-pin, 7mm x 7mm IC operates within a temperature range of -30 to 85 degrees Celsius and features a 32-bit Cortex M0+ core. It supports HDCP 1.3 and CEC 1.3, including the CEC function and hot plug.

As the board is open-sourced the company provides schematics and other KiCad source files on its product page itself, more information and resources can be found on its GitHub Page under the reciprocal GNU General Public License 3.

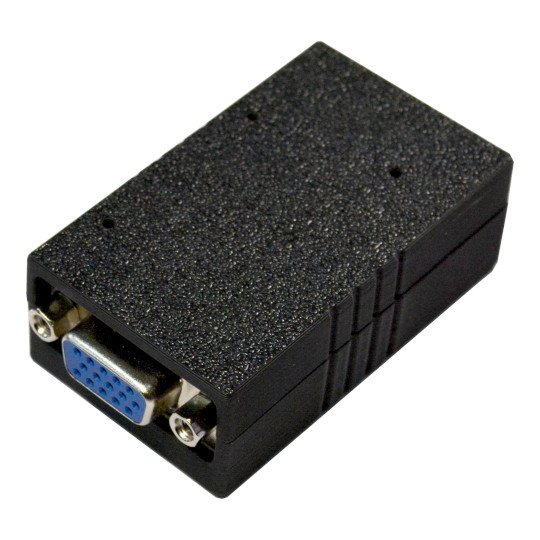

VGA2HDMI B1w
Olimex VGA2HDMI with enclosure

The company said that the Olimex VGA2HDMI board will be compatible with boards with any VGA input and HDMI output. Currently, it’s on sale through the Olimex online store, priced at €15 or €17 (approximately $16 to $18.50), and there’s an option to purchase it with a plastic case.
