EDATEC launches 7-inch, 10.1-inch and 15.6-inch Industrial HMI displays powered by Raspberry Pi CM5

EDATEC ED-HMI3120 series is a family of Raspberry Pi CM5-powered industrial Human-Machine Interface (HMI) displays available in 7-inch (ED-HMI3120-070C), 10.1-inch (ED-HMI3120-101C), and 15.6-inch (ED-HMI3120-156C) variants.

Like the Chipsee 7-inch/10.1-inch Raspberry Pi CM5 industrial panel PCs, the EDATEC HMI displays are designed for factory automation, process control, and IoT applications. All models offer Gigabit Ethernet, 100Mbps Ethernet, isolated RS485/RS232 ports, and wireless options like WiFi and 4G LTE.

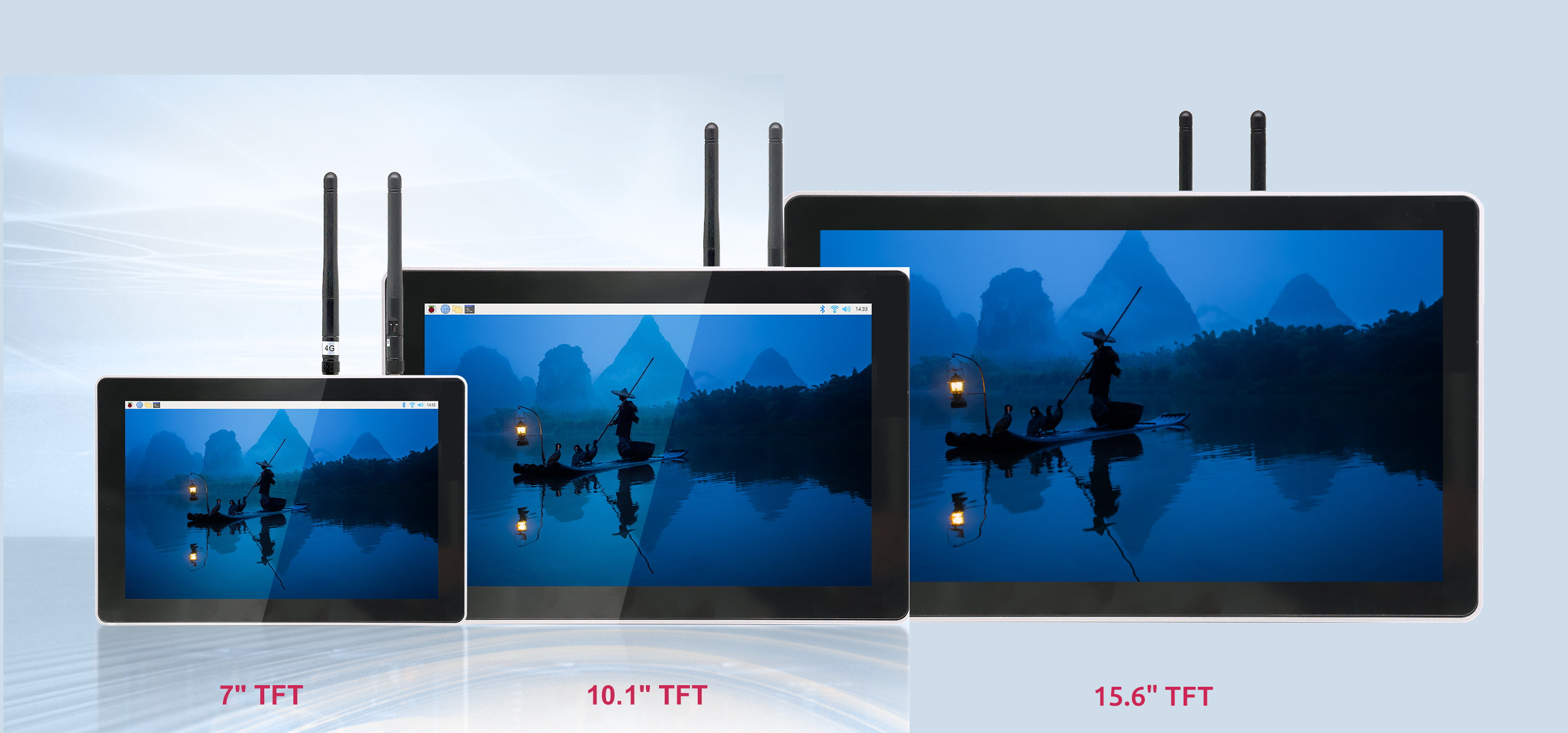

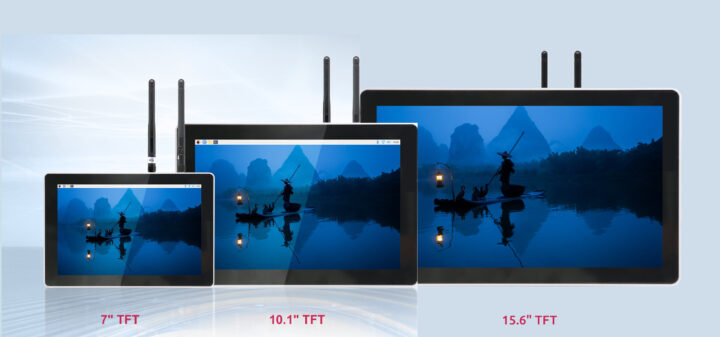

EDATEC ED-HMI3120 industrial Human Machine Interface HMI displays

EDATEC ED-HMI3120 specifications

  • SoM – Raspberry Pi CM5 with Broadcom BCM2712 quad-core Cortex-A76 SoC, 2GB, 4GB or 8GB RAM, and 16GB, 32GB, or 64GB eMMC flash
  • Storage
    • MicroSD card slot
    • M.2 B-Key socket for 2230/2242 NVMe SSD
    • 4KB EEPROM
  • Display
    • HMI3120-070C – 7-inch TFT display with 1024×600 resolution, 16.7M colors, 400 cd/m² luminance, 80°/80° H/V viewing angles, and 10-point capacitive touch
    • HMI3120-101C – 10.1-inch TFT display with 1280×800 resolution, 16.7M colors, 250 cd/m² luminance, 80°/80° H/V viewing angles, and 10-point capacitive touch
    • HMI3120-156C – 15.6-inch TFT display with 1920×1080 resolution, 16.7M colors, 450 cd/m² luminance, 89°/89° H/V viewing angles, and 10-point capacitive touch
  • Video Output – HDMI 2.0 port up to 4Kp60
  • Audio
    • 3.5mm stereo audio jack
    • Built-in 4Ω 3W speaker
    • Buzzer
  • Networking
    • Gigabit Ethernet RJ45 port
    • 100Mbps Ethernet RJ45 port
    • Optional dual-band 802.11 a/b/g/n/ac Wi-Fi (2.4GHz/5GHz) and Bluetooth 5.2 (on CM5)
    • Optional 4G LTE via Mini PCIe socket and Nano SIM slot; Tested with Quectel EC20/EC25 modules
  • USB – 2x USB 2.0 Type-A ports
  • Serial
    • 2x isolated RS485 via 6-pin 3.5mm Phoenix terminal blocks with ESD/surge protection
    • 2x isolated RS232 via 6-pin 3.5mm Phoenix terminal blocks with ESD/surge protection
  • Misc
    • Reset button
    • Power LED (red), 4G LED (green), ACT LED (green), USER LED (green), COM1 to COM4 LEDs (4x green)
    • RTC with 1F SuperCAP backup (optional CR1220 battery)
    • Cryptographic chip
    • Hardware watchdog (software support in development)
  • Power Supply – 9V-36V DC via terminal block, max 35W
  • Dimensions and Weight (Aluminum + sheet metal enclosure)
    • HMI3120-070C – 188 x 123 x 43.5 mm | 1 kg
    • HMI3120-101C – 258 x 172 x 42 mm | 1.2 kg
    • HMI3120-156C – 388.3 x 238.3 x 45.5mm | 2.4 kg
  • Temperature Range – Operating: -20°C to 50°C; storge: -20°C to 60°C or -25°C to 60°C depending on model
  • Humidity – 5% to 95% (non-condensing)
  • Certifications – CE/FCC

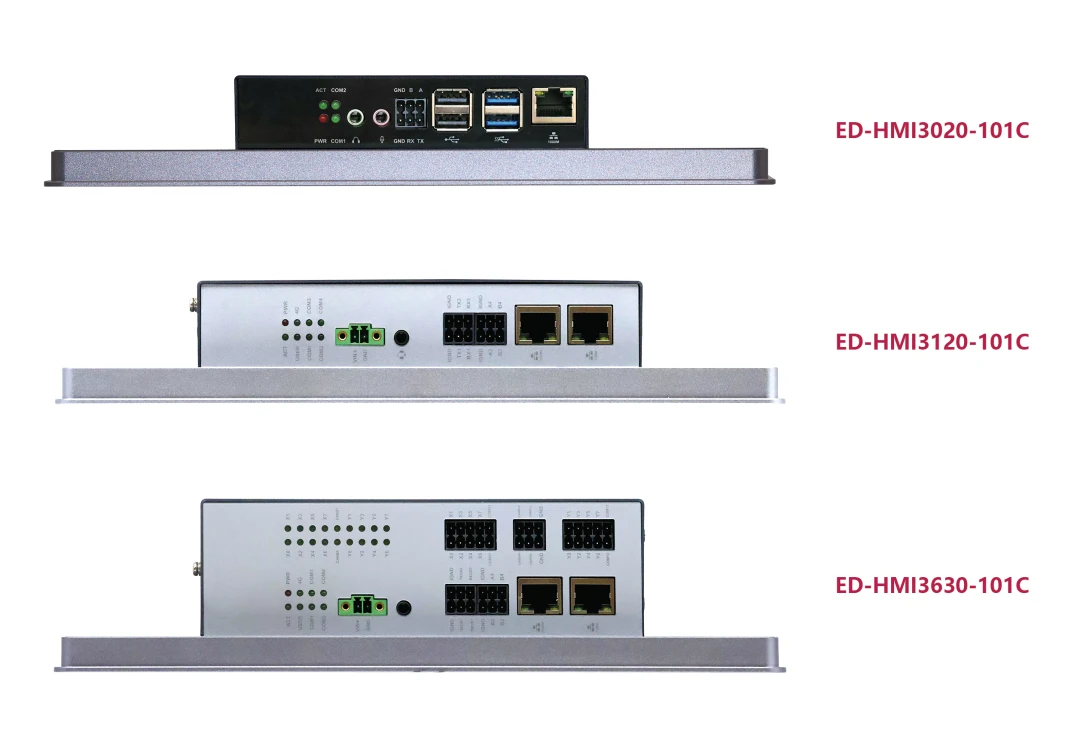

Raspberry PI CM5 HMI displays ports
Comparison against other 10.1-inch models: ED-HMI3020 (RaspberryPi 5 based) and ED-HMI3630 (CM5 industrial “tablet”)

The ED-HMI3120 family runs Raspberry Pi OS (Desktop/Lite) 32-bit or 64-bit. However, the company also highlights CODESYS runtime integration for PLC applications, like they did for the EDATEC ED-PLC2010 industrial controller powered by a Raspberry Pi CM4.

The PLC+HMI combination is especially suitable for factory automation (conveyor systems), process monitoring (temperature control), and IoT gateways, for example, for remote data logging over 4G LTE cellular connectivity.

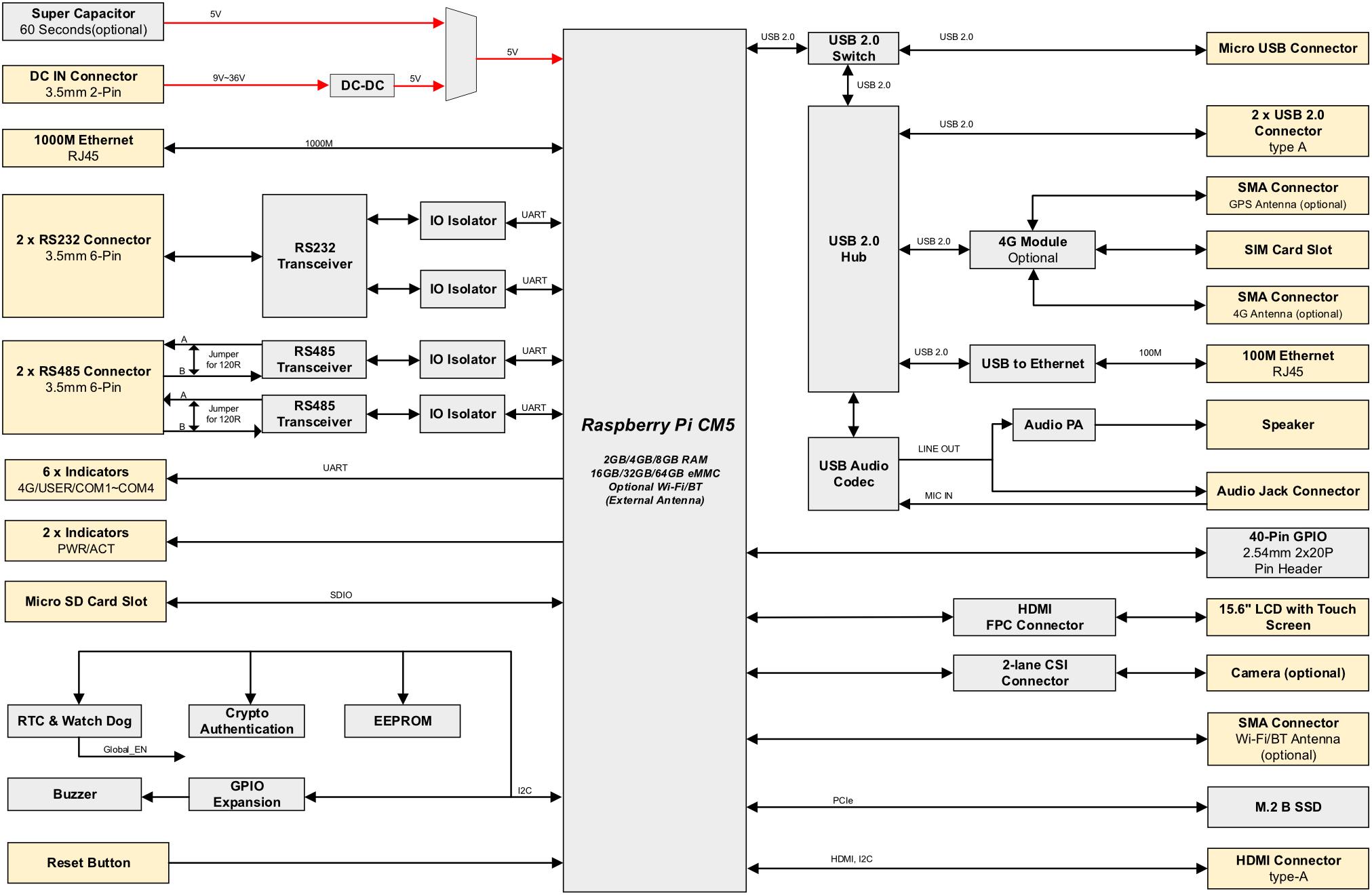

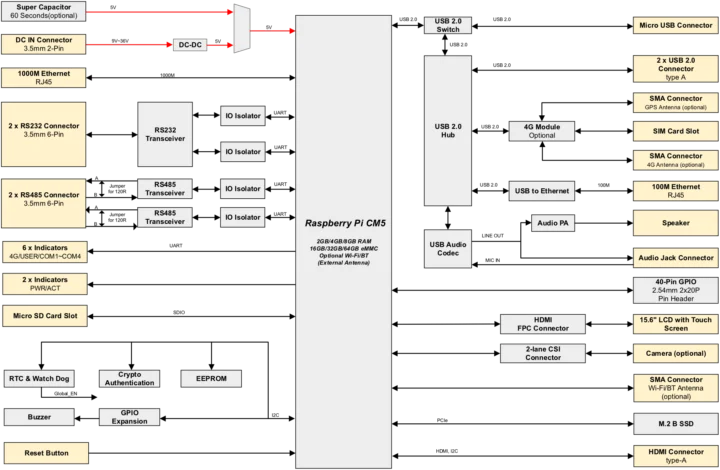

ED-HMI3120-156C block diagram
ED-HMI3120-156C block diagram

All three variants are listed on Digikey, but right now, only the ED-HMI3120-070C-10432-S is in stock, priced at $353. That’s the 10.1-inch HMI display with a Raspberry Pi CM5 equipped with 4GB RAM, 32GB eMMC flash, and WiFi 5 and Bluetooth 5.2. It also comes with a super capacitor module for the RTC. More details may be found on the product page.

ED-HMI3120 nomenclature
ED-HMI3120 nomenclature
