Pironman 5-Max tower PC case for the Raspberry Pi 5 gets dual M.2 PCIe sockets, programmable RGB LEDs, new black design

Pironman 5-Max is an update of the Pironman 5 tower PC case for the Raspberry Pi 5 with a new sleeker design made of black aluminum and semi-transparent black acrylic panels.

Other improvements include a new dual NVMe PiP expansion board for two M.2 NVMe SSDs in RAID 0/1 configuration, or one NVMe SSD and one AI accelerator module, a Tap-to-Wake feature for the OLED information display, and programmable RGB LEDs for the two fans.

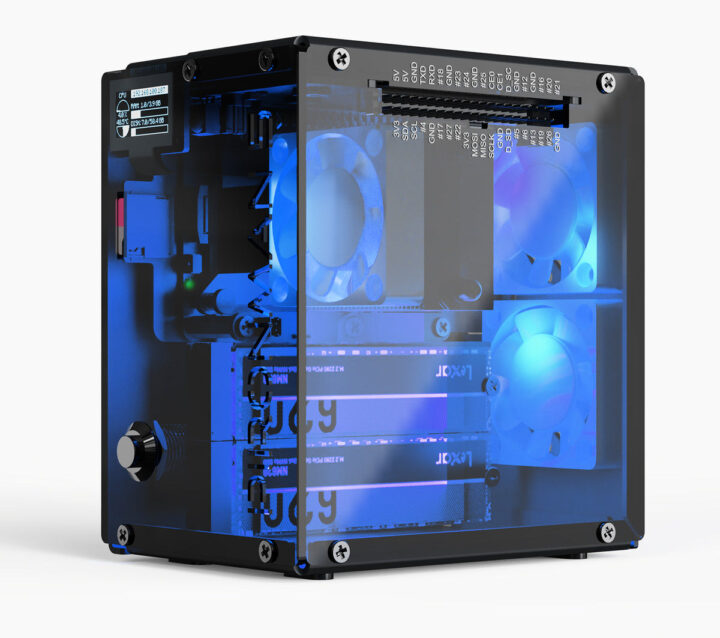

Pironman 5-Max

Pironman 5-Max specifications:

  • Designed for the Raspberry Pi 5 and compatible SBCs
  • Storage
    • Pironman 5  Dual NVMe PiP supporting 2x M.2 2230, 2242, 2260, or 2280 NVMe SSDs at up to PCIe 2.0 x1 speeds due to switch used; RAID 0/1 support
    • MicroSD card slot equipped with a spring-loaded socket for easy card removal
  • Video Output – 2x full-size HDMI ports
  • Display – 0.96-inch OLED Display showing Raspberry Pi’s CPU usage, temperature, disk usage, IP address, RAM usage, etc…  Wake on tap design as opposed to always on
  • Networking – Gigabit Ethernet RJ45 port, WiFi 5, and Bluetooth 5 from the Raspberry Pi 5
  • USB – 2x USB 2.0 and 2x USB 3.0 ports from the Raspberry Pi 5
  • Cooling
    • 2x programmable RGB LED fans
    • Tower cooler with a PWM fan controlled by the system
  • Expansion
    • External 40-pin GPIO extender with pin labels for easy access
    • 2x M.2 PCIe 2.0 x1 sockets for SSDs and/or AI accelerators
  • Misc
    • 4x WS2812 addressable RGB LEDs
    • IR Receiver for multi-media centers like Kodi or Volumio
    • Power button for safe shutdown
    • Opening for one camera’s FPC cable
  • Power Supply – 5V DC/5A via USB-C power adapter
  • Black aluminum main body with black acrylic side panels

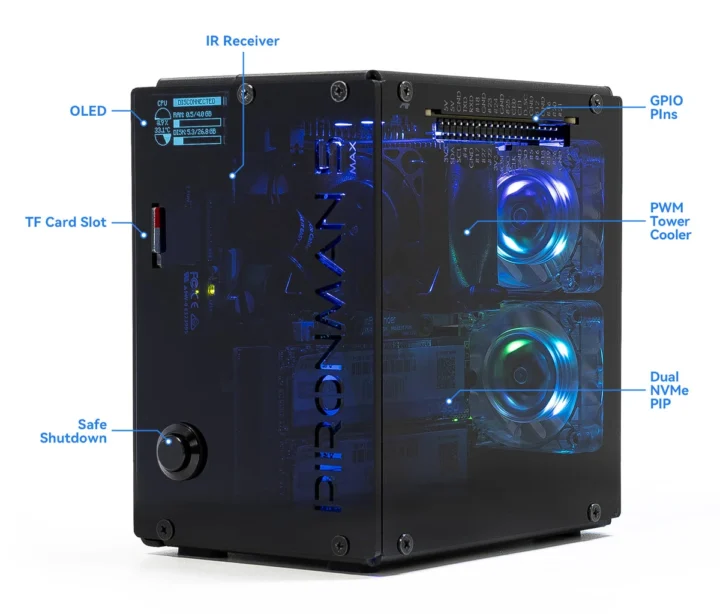

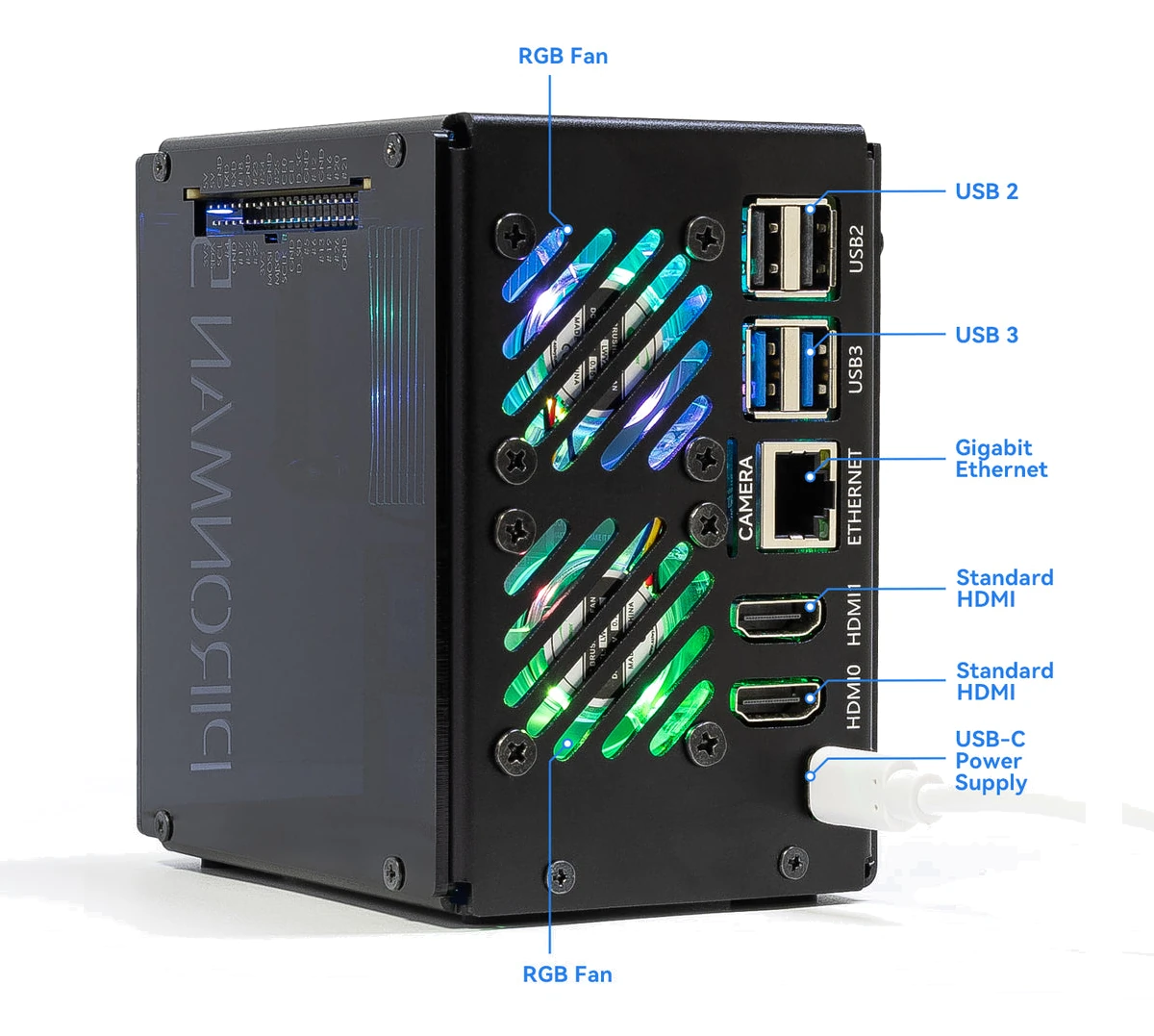

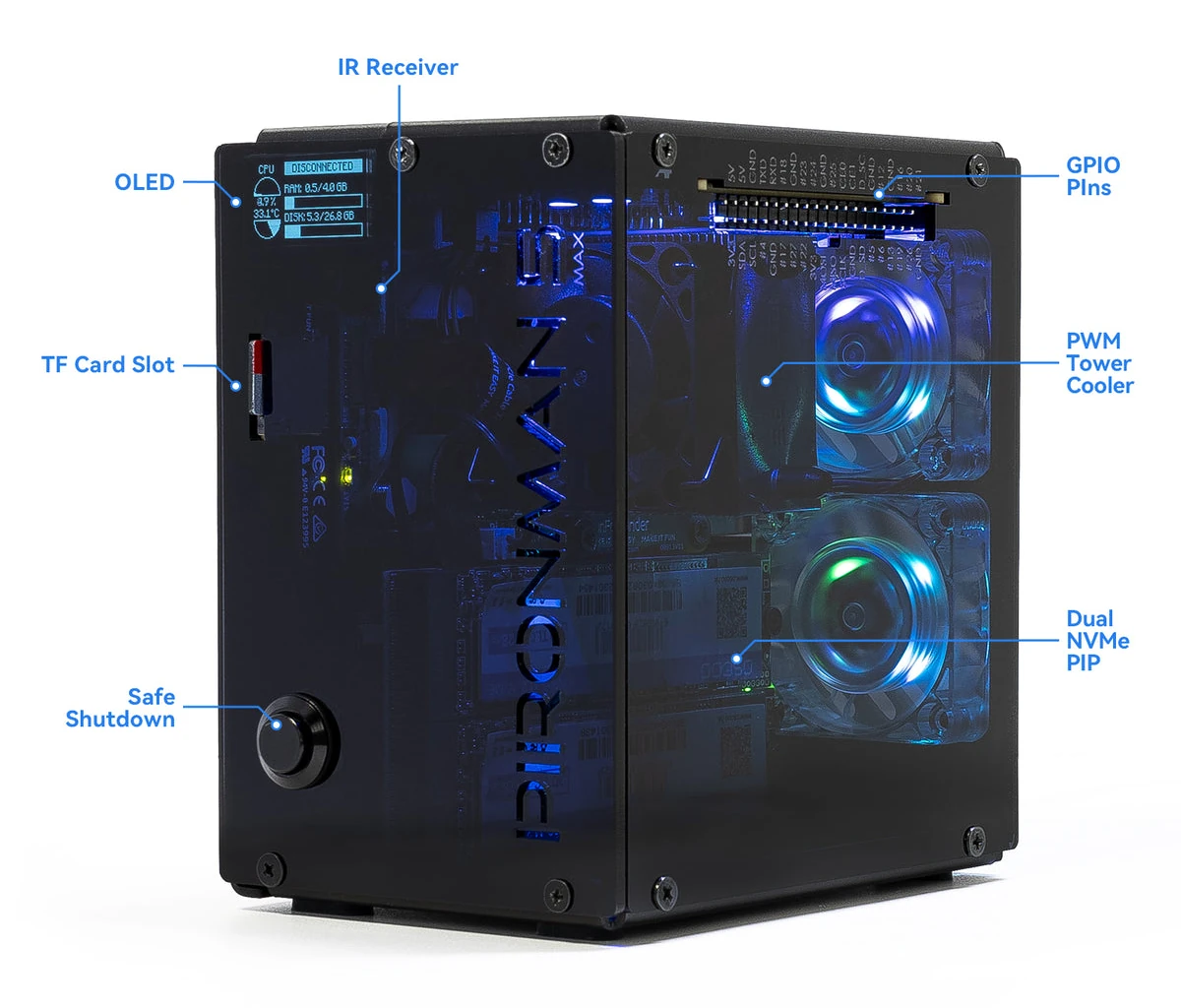

Raspberry Pi 5 Tower PC Case fans OLED IR receiver Pironman 5 Max specifications

The documentation for the Pironman 5-Max is not up yet, but it should be very similar to the one for Pironman 5, since there aren’t that many changes. As I noted in my review of the Pironman 5, this type of Raspberry Pi 5 enclosure is over-engineered, but it looks really nice, and since cooling is more than adequate, the Raspberry Pi 5 works great under all conditions and workloads.

I tested it with Raspberry Pi OS, but it will work fine with Ubuntu Desktop/Server 24.04 and Home Assistant. Other Linux distributions may not be fully compatible because the OLED screen, RGB LEDs, and RGB fans need a script that may or may not be compatible.

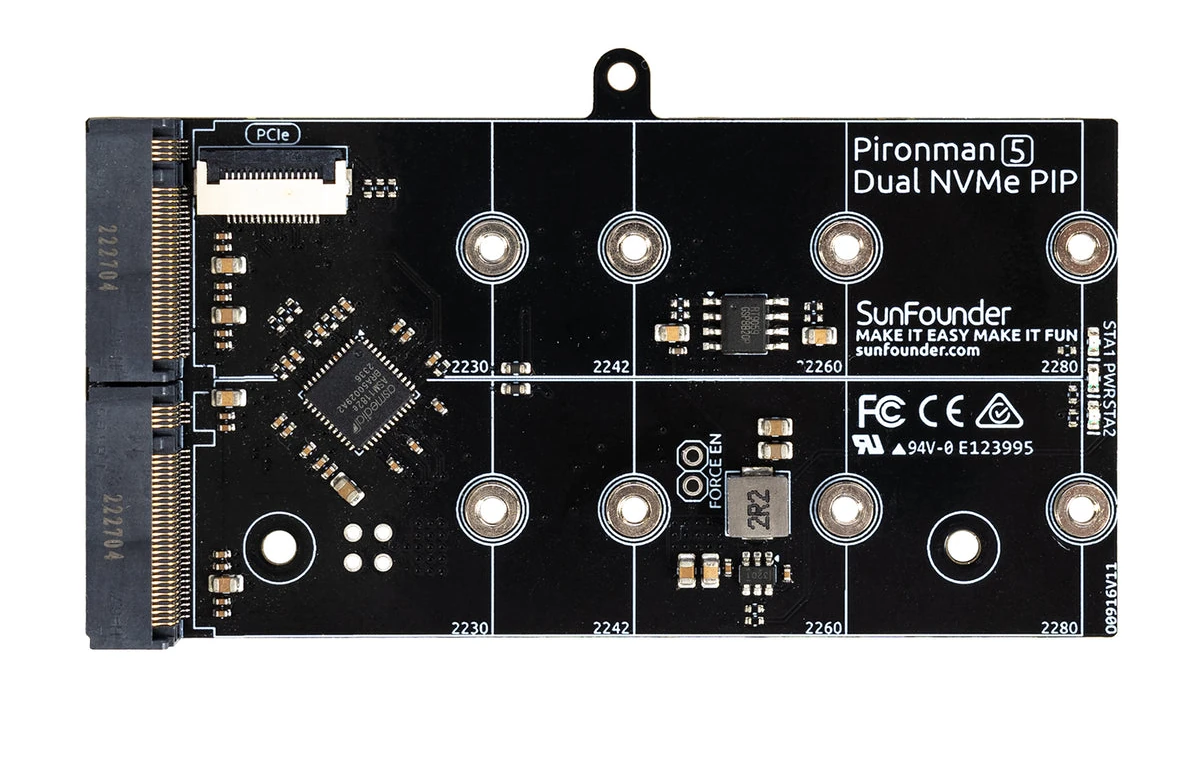

Pironman 5 Dual NVME PiP
Pironman 5 Dual NVME PiP

SunFounder has started taking pre-orders for $71.24 for the Pironmax 5-MAX case, or a 25% discount over the regular $94.99 price tag. The company also has AliExpress and Amazon stores, but the new case is not offered there yet. As a side note, SunFounder plans to offer a free Raspberry Pi 5 16GB on Facebook for each 100 cases sold.
