Cypress EZ-PD CCG6DF & CCG6SF are USB4-Ready USB-C PD Controllers for PCs and Notebooks

CCG6DF & CCF6SGF USB4 Controllers

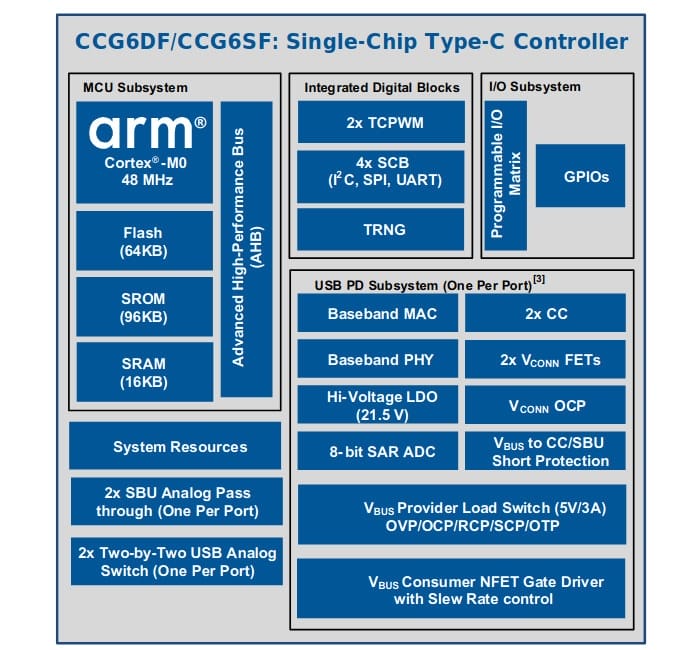

The USB4 specification was published in September 2019 with promises of up to 40 Gbps data transfer rate over a Thunderbolt physical layer, and last December, we reported about an MCCI USB4 switch designed to test and design USB4 products. Cypress Semiconductor EZ-PD CCG6DF and CCG6SF dual-port and single-port USB-C and USB PD 3.0 controllers designed for PCs and notebooks that will be compatible with USB4 standard. EZ-PD CCG6DF and CCG6SF key features: MCU Subsystem – Arm Cortex-M0 core @ 48 MHz with 64KB flash, 96KB SROM, 16KB SRAM USB Type-C and Power Delivery 3.0 supporting USB3 and USB4, Thunderbolt, DisplayPort Alternate Mode platforms Digital I/Os Two timers, counters, PWMs, and up to 23 GPIOs Four SCBs (Serial Communication Blocks) for configurable master/slave I2C, SPI or UART Analog Blocks VBUS Provider Load switch (5V/3A) Slew rate controlled turn-on on VBUS path UAB PD 3.0 Fast Role Swap support Integrated high-voltage 20V-regulator SBU Pass through, USB analog mux VBUS-to-CC short protection, […]

Wi-Fi Certified 6 Program Available for Products based on Broadcom, Cypress, Intel, Marvell, and Qualcomm 802.11ax Chips

WiFi 6 Certified

Last year the WiFi alliance introduces a new naming scheme for WiFi using numbers instead of IEEE standards so that WiFI 4 is 802.11n, WiFi 5 is 802.11ac, and WiFi 6 is the latest 802.11ax standard with data throughput up to 10 Gbps, and a better ability to manage high-density scenarios. Shortly after (November 2018) we also got news of the first WiFi 6 routers from ASUS and NETGEAR, but the WiFi alliance only just announced the launch of their Wi-Fi Certified 6 program that promises optimal interoperability and security. The program will make sure the following features are properly implemented: WPA3 WiFi security Orthogonal frequency division multiple access (OFDMA): effectively shares channels to increase network efficiency and lower latency for both uplink and downlink traffic in high demand environments Multi-user multiple input multiple output (MU-MIMO): allows more downlink data to be transferred at once and enables an access point to transmit data to a larger number of devices concurrently […]

Cypress PSoC 64 Microcontrollers Target Secure IoT Applications

PSoC 64 Secure MCU

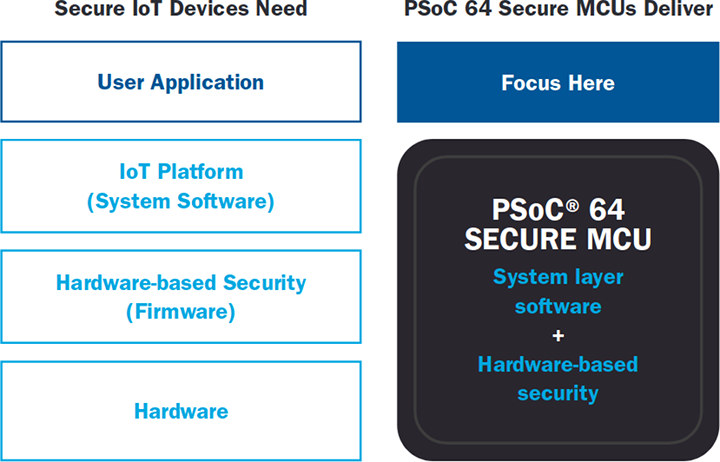

If you are like me, you probably don’t remember, but back in 2017 Arm announced the Platform Security Architecture (PSA) that defines a set of requirements to secure low cost Internet of Things devices. There’s now at least on PSA compliant microcontroller, as Cypress Semiconductor introduced their PSoC 64 Secure MCU at Embedded World 2019 last month. The press release claims that PSoC 64 MCU family is one of “the first Arm Cortex-M processors to be certified as Level 1 compliant within the Arm Platform Security Architecture (PSA) certification scheme, PSA Certified, utilizing a secure Trusted Firmware-M (TF-M) implementation integrated into the Arm Mbed OS open-source embedded operating system”. PSoC 64 secure MCU key features and specifications: Arm Cortex-M4F core with 22‑µA/MHz active power consumption Optional Arm Cortex-M0+ core with 15‑µA/MHz power consumption System Memory – 160KB to 1MB SRAM Storage – 512KB to 2MB flash Security HW Cryptography – Symmetric: AES, 3DES; Asymmetric: RSA, ECC; Hashing: SHA-256, SHA-512;True Random […]

Cypress Introduces PSoC 4 L-Series ARM Cortex-M0 MCU and Development Kit

Cypress Semiconductor has recently unveiled PSoC 4 L-Series micro-controller family based on ARM Cortex M0 core with more programmable analog and digital blocks, expanded memory, new peripherals and higher number of I/Os, as well as the corresponding Arduino compatible CY8CKIT-046 PSoC 4 L-Series Pioneer Kit to evaluate their latest solution. Key features of PSoC 4 L-Series MCU ARM Cortex-M0 CPU @ 48-MHz with DMA controller, up to 256KB flash, up to 32KB SRAM and  up to 98 GPIOs CapSense with SmartSense auto-tunning – 2x Cypress Capacitive Sigma-Delta (CSD) blocks Programmable analog 4x configurable opamps 4x current DACs (IDACs) 2x low-power comparators (CMP) One 12-bit, 1-Msps SAR ADC Programmable digital 8x Universal Digital Blocks (UDBs) 8x configurable 16-bit TCPWM 4x independent serial communication blocks (SCBs) Full-Speed USB 2.0 controller 2x CAN Controllers Segment LCD Drive support up to a maximum of 64 output (commons or segments) Power 1.71 to 5.5 V Operation 20-nA Stop Mode with GPIO pin wakeup Hibernate and […]

Cypress Unveils a $49 Solar Powered IoT Development Kit with Bluetooth LE Connectivity

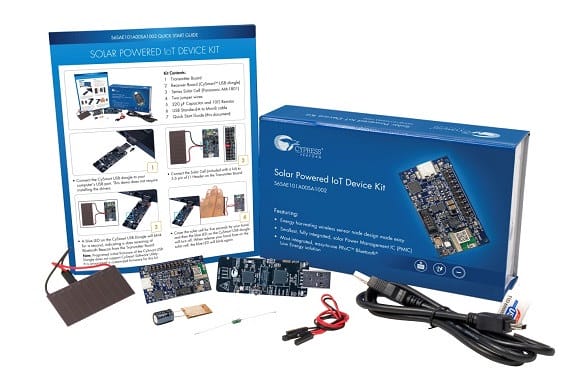

Cypress Semiconductors has recently launched a Solar powered IoT device kit, with the easy-to-remember codename S6SAE101A00SA1002, featuring the company’s CYBLE-022001-00 Bluetooth Smart module, and S6AE101A energy harvesting power management IC (PMIC) on the main board, as well as all accessories such as a small solar panel, a BLE-USB bridge, and all necessary components and cables. Target applications include battery-less wireless sensor node (WSN), IoT device that monitors various sensors, BLE Beacon, wearable device, building energy management system (BEMS), Home EMS, Factory EMSystem, wireless lighting control,wireless HVAC sensor and security system. The main features of the Energy harvesting motherboard include: Cypress CYBLE-022001-00 Bluetooth Smart module with ARM Cortex-M0 @ 48MHz, 128 KB flash, 16KB SRAM Cypress S6AE101A energy harvesting PMIC Sensor – Temperature & humidity sensor USB – 1x USB port for programming and debugging Debugging – SWD (serial Wire Debug) connector, JTAG header for USB-BLE Expansion – Sensor expansion connector with I2C/UART/SPI/GPIO signals Misc – LEDs for USB power and […]

Ascella USB 3.0 Camera Reference Design Kit Supports 4K Recording at 30 fps

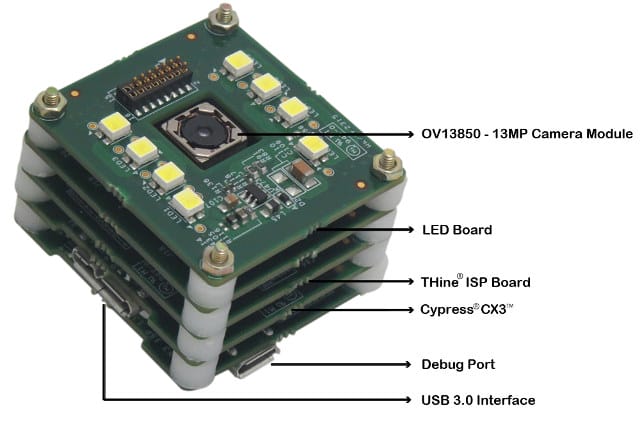

Cypress Semiconductor and THine Electronics have recently introduced Ascella USB 3.0 camera reference design kit based on Cypress EZ-USB CX3 USB 3.0 camera controller and THIne THP7312 ISP that supports 13-megapixel resolution at 21 frames per second, and 3840x2160p recording at 30 fps using MJPEG compression. The kit is composed of 5 boards with an OV13850 13MP camera board, an LED board, the ISP board, Cypress CX3 board, and a debug board with USB 3.0 and a debug interfaces. Main specifications and features:   Cypress EZ-USB CX3 ARM9 based Programmable MIPI CSI-2 to USB 3.0 Camera Controller THine THP7312 image signal processor based on a 32-bit RISC CPU OmniVision OV13850 Image sensor interfaced through a four-lane MIPI CSI-2 interface High Intensity LED Board for Low light environment SPI Flash for firmware storage Supports auto-focus, auto-exposure, auto-white-balance and the ability to select from 20 picture resolutions Support for streaming of live video at 4K with 30 fps and 1080p with 60 […]

Cypress PSoC 4100/4200 (ARM Cortex M0) Prototyping Kits Sell for $4

I just wrote about Cypress Semiconductor PSoC 4 ARM Cortex M0 MCUs last week, as well as their $25 PSoC 4 pioneer development board. I’ve just found out there are cheaper, albeit very basic, evaluation boards called PSoC 4100 Prototyping Kit (CY8CKIT-049-41xx) and PSoC 4200 Prototyping Kit (CY8CKIT-049-42xx) that sell for only $4. PSoC 4×000 boards specifications: MCU PSoC 4100 ARM Cortex M0 MCU @ 24 MHz with up to 32 kB of flash, Up to 4 kB of SRAM PSoC 4200 ARM Cortex M0 MCU @ 48 MHz with up to 32 kB of flash, Up to 4 kB of SRAM USB – USB port using CY7C65211 USB-serial controller for PC connectivity and serial interfaces such as USB-UART, USB-I2C, USB-SPI, and USB-GPIO Onboard CMOD capacitors to enable CapSense development A bypass capacitor to ensure the high quality ADC conversions Prototyping – Breadboard compatible through holes for access to power, GPIOs, UART, USB etc… Misc – User and power LEDs, push button to provide a simple user input and trigger […]

Get Cypress PSoC 4 MCUs for $1 Delivered to Your Door by Fedex

How many times have you found a low cost MCU, or a development kit, ready to order, until shipping fees, sometimes several times the price of the item, curbed your enthusiasm, to the point you just decided to cancel your purchase? It happened to me several times, so I was pleased to find out Cypress Semiconductor will ship their PSoC 4 MCUs via Fedex anywhere in the world without actually charging for shipping. PSoC 4 are ARM Cortex M0 MCUs with up to 32 kB Flash, up to 4 kB SRAM, and analog and digital I/Os. CY8CKIT-042 PSoC 4 Pionner Kit is the corresponding kit development kit, which happened to be voted product of the year 2013 on Element14 community beating the BeagleBone Black, Freescale SABRELite, and PiFace Digital for the Raspberry Pi. Development can be performed using PSoC Creator, and there seems to be a developer community active enough to provide 100 projects in 100 days. So I’ve given a quick try at Cypress shop to double check […]
