Pycom Pygate is a 50 Euros 8-channel LoRa Gateway Board

Pycom Pygate

Semtech SX1308 digital baseband Chip for indoor LoRaWAN pico gateways was announced a few years ago, but it took a while before multi-channel gateways integrated the new low cost chip, and 2019 appears to be the year where pico LoRa gateway will be launched. We covered the $69 The Things Indoor Gateway a few weeks ago, but there will be soon another option, although geared towards developers, with Pycom Pygate low-cost 8-channel gateway board that connects to LoRa or the company’s Pymesh network. Pycom Pygate gateway board preliminary features and specifications: Dual SX1257 transceivers for a total of 8 channels support Frequencies – 863-870 MHz and 902-928 MHz Baseband processor: Semtech SX1308 Ultra-low power standby mode Ethernet with PoE via the optional daughter board Powered via USB, LiPo Battery and Ethernet via the optional daughter board LiPo battery charging via the USB port USB to serial connection for the Pycom module with auto-programming features Same form factor as the Expansion […]

PyGo Wearable Devices Create LoRa Mesh Networks (Crowdfunding)

Pygo Lora Mesh Network

Pycom has made some interesting IoT boards running MicroPython in the past starting with WiFi capable WiPy in 2015, and followed by various others supporting various wireless standard including Bluetooth, LoRa, Sigfox, and NB-IoT with LoPy and Fipy. The company launched all their boards via crowdfunding campaigns, and they are now back on Kickstarter for their PyGo plug-n-play wearable devices creating PyMesh networks with up to 12km range between nodes, and managed using Pylife mobile app. Typical use cases include basic connectivity (e.g. messaging) in remote areas without cellular access,  and assets / pets / kids location tracking, There are two version of PyGo: PyGo1 with mesh networking only, and PyGo2 that adds cellular network access. Pygo hardware specifications: SoC – Espressif Systems ESP32 dual core WiFi 4 + BLE SoC System Memory – 64 Mbit (8MB) RAM Storage – 8MB flash Display – 128×36 OLED display Connectivity PyMesh up to 200 devices LoRa including auto-connect to the Things Networks, […]

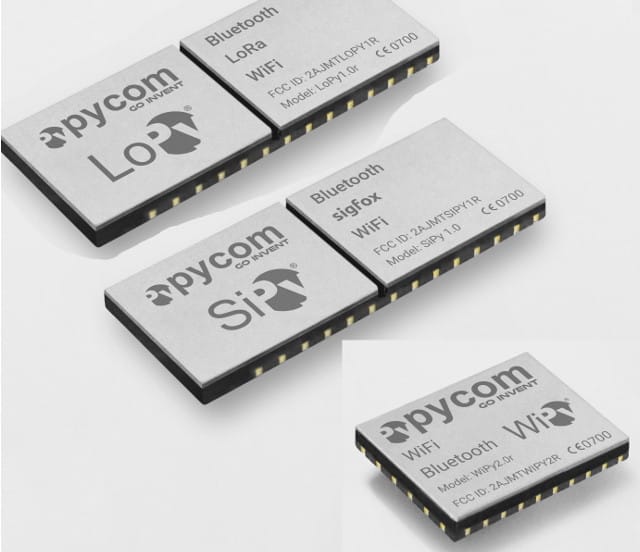

Pycom To Sell WiFi, BLE, LoRa and Sigfox OEM Modules for Your Own Hardware Projects

Pycom is the company making some relatively popular IoT boards programmable with Python such as WiPy, LoPy, SiPy, and soon FiPy, supporting respectively WiFi+BLE, LoRa+WiFi+BLE, Sigfox+WiFi+BLE, and for the latter all four plus LTE CAT M1/NB1. Those little boards are great for personal projects and/or to experiment, but for those of you who would like to integrated IoT connectivity into your own hardware projects, Pycom will soon launch three OEM module for corresponding to WiPy, SiPy and LoPy connectivity featues with respectively W01, S01 and L01 modules. Key features: W01 WipY 2.0 OEM Module – Dual network BLE and WiFi – 7.95 Euros L01 LoPy OEM module – LoRa, WiFi and Bluetooth – 14.95 Euros S01 SiPy OEM module – Sigfox, WiFi and Bluetooth; Available in both 14dB (for Europe) and 22dB (outside Europe) version for respectively 14.95 and 19.95 Euros All three models have basically the same functionality as the full board, but there are missing the voltage regulator, […]

39 Euros FiPy Board Supports Sigfox, LoRa, LTE Cat M1/NB1, Bluetooth 4.2, and WiFi (Crowdfunding)

Long range LPWAN solutions have just started to hit the market, and there are so many standards such as Sigfox and LoRa that it’s difficult to know who will eventually be the winner, or if different standards will co-exist over the long term, and in a general sense it might not be so easy to decide which one is best suited to your project without experimenting first. Pycom has a solution to this problem, as they’ve made a board similar to LoPy with WiFi, Bluetooth, and LoRa, but instead included 5 long and short range IoT protocols: Sigfox, LoRa, LTE Cat M1 & Cat NB1, Bluetooth, and WiFi. Pycom FiPy board specifications: SoC – Espressif ESP32 dual core Tensilica L108 processors @ up to 160 MHz with BT 4.2 and WiFi System Memory – 4MB RAM Storage – 8MB flash memory Connectivity WiFi 802.11 b/g/n @ 16 Mbps up to 1 km range & Bluetooth 4.2 with common u.FL antenna […]

ESP32 Updates – ESP32-S Module Replaces ESP3212, ESP32 DevBoards for Sale, Arduino & NodeMCU Support

There have been some developments with regards to Espressif ESP32 in the last month since my post about upcoming ESP32 development boards. First ESP3212 module is no more, and has been replaced with ESP32-S module with about the same features, but it’s not pin-to-pin compatible, so the new module won’t work with older breakout boards made for ESP3212. ESP32-S is now out of stock on Seeed Studio, but you’ll find it on IC Station, Banggood, and others shops. One good news is that it’s now easier to buy – or at least pre-order – ESP32 development boards, although stock may still be an issue, as the platform is very popular. If you live in the US, you can now backorder “Sparkfun ESP32 Thing” for $19.95. ESP32 board can be powered by either a micro USB power supply or a LiPo battery, and exposes close to 30 I/O pins. ESP32 developer board is still listed on Adafruit for $15, but you […]

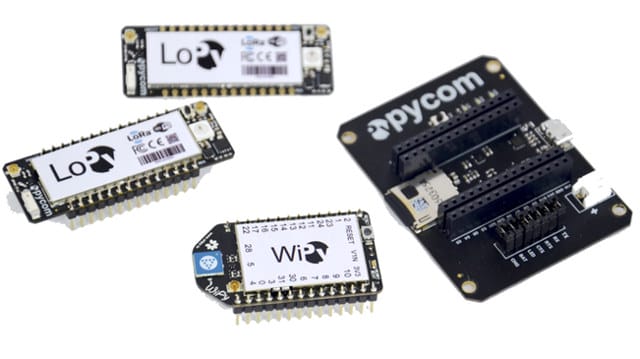

LoPy Tiny IoT Developer Board Runs MicroPython, Supports LoRa, WiFi and Bluetooth (Crowdfunding)

Pycom launched WiPy last year, a WiFi IoT board based on Texas Instruments CC3200 ARM Cortex M4 SoC, and a few months after sending rewards to their Kickstarter backers, they are back on the crowdfunding platform to launch LoPy, another IoT development board that runs MicroPython and offers LoRa, WiFi and Bluetooth LE connectivity. LoPy board hardware specifications: SoC – Dual processor @ 160 MHz with WiFi & BLE radio with 400 kB RAM, 1MB flash External Storage – 4MB flash Connectivity 802. 11b/g/n @ 16Mbps with WEP, WPA/WPA2 WiFi security; SSL/TLS support; AES encryption engine. Bluetooth Classic and Low Energy LoRaWAN Semtech LoRa transceiver SX1272 @ 868 MHz (Europe) or 915 MHz (North America). Range – Node: Up to 40km; Nano-Gateway: Up to 5 km Nano Gateway Capacity – Up to 100 nodes. Internal chip antenna and u.fl connectors for external antennas Headers – 2x 14-pin headers for: Up to 24 GPIOs (3.3V tolerant) 2x UART, SPI, I2C DMA, […]
