QNAP preps Rockchip RK3588 AI NAS and Intel NAS with hot-swappable E1.S SSDs

QNAP RK3588 NAS E1.S SSD

QNAP has been teasing two potentially interesting NAS coming up soon: the TS-AI642 AI NAS leveraging the 6 TOPS NPU in Rockchip RK3588 Arm processor for image and facial recognition, and the TBS-574X NAS powered by an Intel Core i3-1220P Alder Lake CPU and taking up to five hot-swappable E1.S NVMe PCIe SSDs. Details are limited since neither device is available yet, but both NAS are equipped with relatively powerful Arm and Intel processors and offer some innovative features. QNAP TBS-574X NAS with Rockchip RK3588 Preliminary specifications: SoC – Rockchip RK3588 octa-core 64-bit Arm processor with 4x Cortex-A76 cores @ 2.2 GHz, 4x Cortex-A55 cores @ 1.8 GHz, 6 TOPS NPU Storage – 6x SATA III bays Video Output – 2x HDMI 2.1 ports Networking – Built-in 2.5GbE, PCIe Gen 3 slot for 10GbE module The main highlight is the 6 TOPS AI accelerator that boosts the performance of the […]

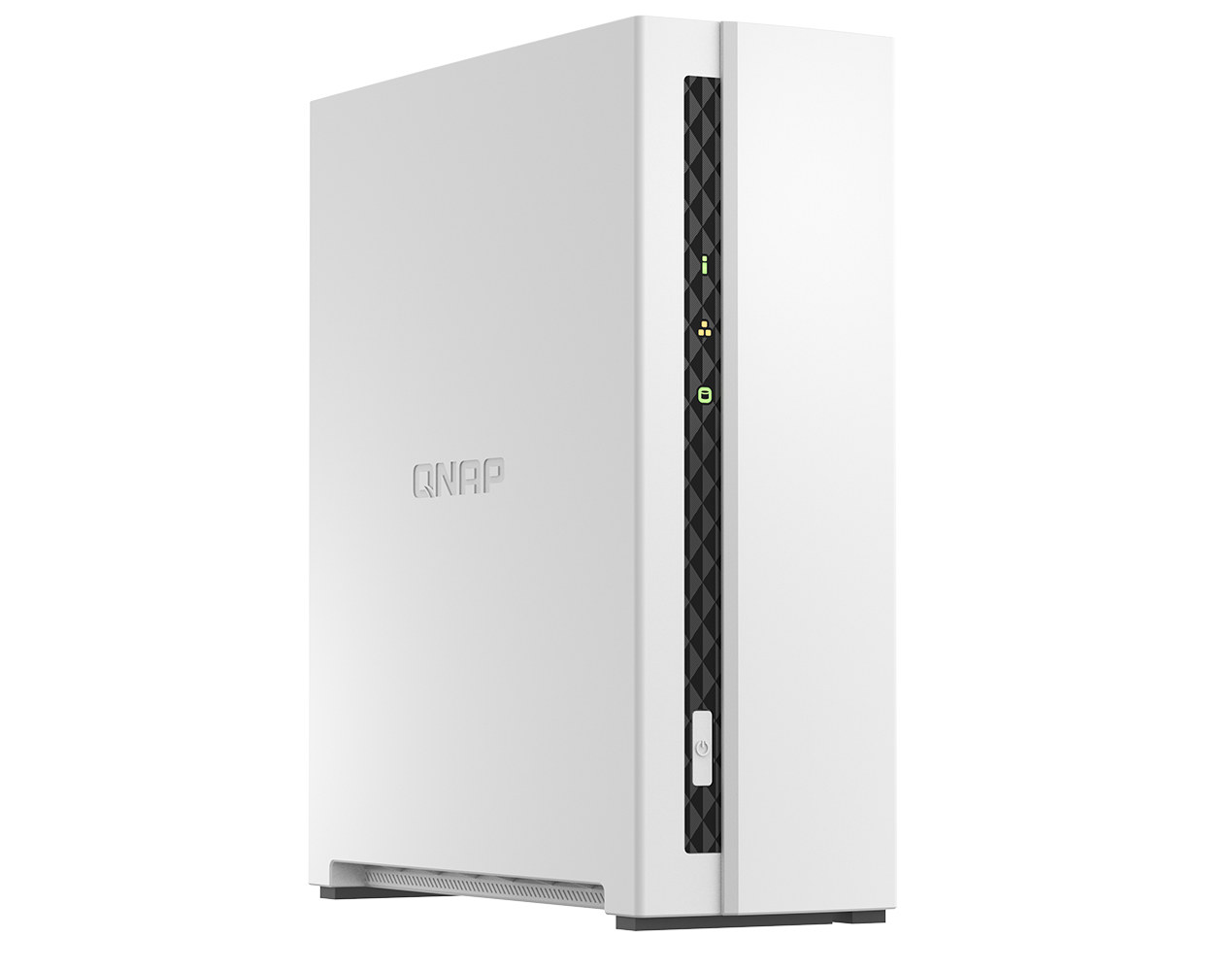

QNAP TS-133 1-bay NAS leverages Rockchip RK3566 AI capabilities for object and face recognition

QNAP TS-133

We’ve seen several hardware devices based on Rockchip RK3566 AIoT SoC that do not make use of the key features of the processor. But QNAP TS-133 1-bay NAS is different, since it relies on the native SATA and Gigabit Ethernet interfaces for network storage, and the built-in NPU is leveraged to accelerate object and face recognition by up to 6 times. The NAS comes with 2GB of RAM, 4GB of storage for QTS 5.0 Linux operating system, USB 3.0 and USB 2.0 ports, and the company promotes it as a “personal private cloud & home multimedia center”. QNAP TS-133 specifications: SoC – Rockchip RK3566 quad-core Cortex-A55 processor @ 1.8 GHz with Arm Mali-G52 EE GPU, 0.8 TOPS NPU/AI accelerator System Memory – 2GB DDR4 Storage 4GB eMMC flash  (Dual boot OS protection) 1x SATA 3.0 bay for 2.5-inch and 3.5-inch HDD or SSD Networking Gigabit Ethernet R45 port with Wake-on-LAN […]

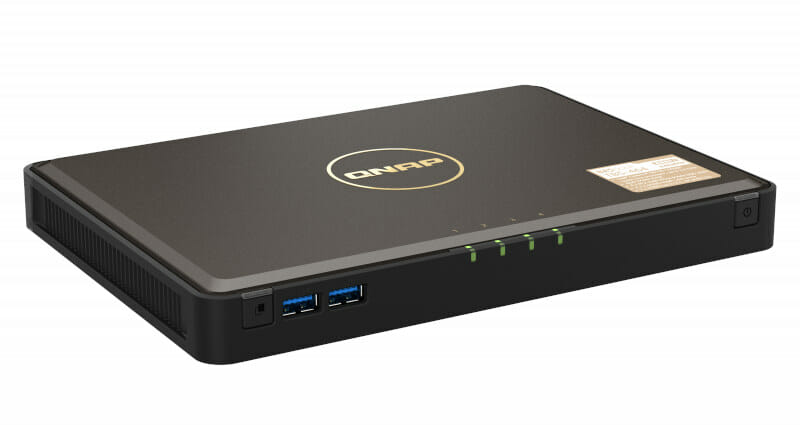

QNAP TBS-464 ultra-thin NAS supports 4 M.2 NVMe SSDs, 2.5GbE networking

QNAP TBS-464 ultra-thin NAS

Most NAS are large boxes that take several 3.5-inch SATA drives, but QNAP TBS-464 NASbook is a different beast with an ultra-thin design enabled by four M.2 PCIe slots for NVMe SSDs, plus two 2.5 GbE ports to match the higher data transfer speed allowed by the SSDs. The NAS is equipped with a recent Intel Celeron N5105/N5095 Jasper Lake quad-core processor coupled with 8GB DDR4 memory, and also offers USB 3.0 ports, as well as two HDMI 2.0 video outputs and an IR receiver that would make it suitable as a NAS & HTPC combo, for example, running Plex. QNAP TBS-464 NASbook specifications: SoC – Intel Celeron N5105/N5095 quad-core processor @ 2.0 / GHz with Intel UHD graphics; TDP: 10 or 15W TDP System Memory – 8 GB DDR4 soldered on board Storage 4GB flash for OS with dual boot OS protection 4 x M.2 2280 NVMe Gen3 x2 […]

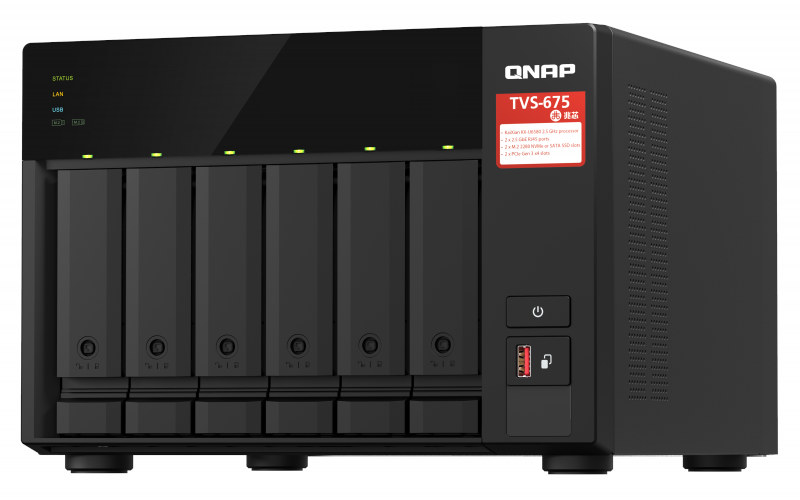

QNAP TVS-675 NAS features Zhaoxin KaiXian KX-U6580 x86 processor

QNAP TVS-675 NAS

QNAP has been trying something different in several in their new NAS recently. Last month, we covered QMiroPlus-201W that combines an Arm router and Intel NAS into one device, and now the company has announced another x86 NAS, but not based on Intel or AMD processor, but instead Zhaoxin’s 2.5 GHz eight-core KaiXian KX-U6580 processor. QNAP TVS-675 NAS comes with 8GB RAM by default, six drive bays for hard drives or SSD’s, two M.2 2280 slots for SATA or NVMe storage, as well as two PCIe 3.0 x4 slots for networking, storage, or other expansion cards. The NAS also features 2.5GbE wired connectivity and an HDMI 2.0 to connect a display. QNAP TVS-675 specifications: SoC – Zhaoxin KX-U6580 8-core/-thread 64-bit x86 processor @ 2.5GHz with FPU, AES-NI accelerator, 8MB L2 cache, ZhaoXin C-960 Graphics; 16nm process System Memory – 8 GB DDR4 single-channel; upgradable to up to 64GB dual-channel memory […]

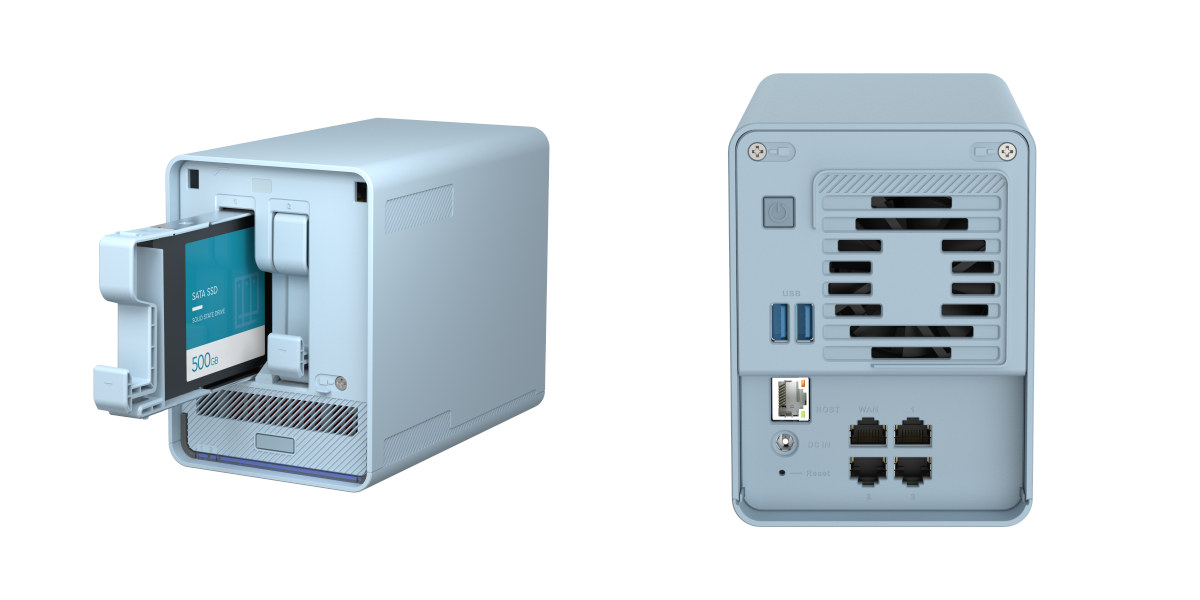

QMiroPlus-201W – Arm router and Intel NAS in one device with Qualcomm IPQ4019 & Celeron J4125

QNAP QMiroPlus-201W

QNAP QMiroPlus-201W is an unusual networked storage device that’s acting both as a 2.5GbE & WiFI 6 router and NAS combining Qualcomm IPQ4019 Arm SoC for the router functions, and an Intel Celeron J4125 quad-core Gemini Lake processor for the NAS functions. Usually, you’d get the choice of either an Arm or Intel processor, but here QNAP decided to use both to keep the same performance as having separate Arm-based router and Intel-based NAS, but in a much more compact form factor. QNAP QMiroPlus-201W hardware specifications: SoC/memory/internal storage For router SoC – Qualcomm IPQ4019 quad-core Arm Cortex A7 @ 716.8MHz Memory – 512MB DDR3 Internal Storage – 4MB SPI NOR Flash & 4GB eMMC flash For NAS SoC – Intel Celeron J4125 quad-core Gemini Lake processor @2.0 GHz Memory – 4GB DDR4 Internal Storage – 4GB eMMC flash Data Storage – 2x 2.5-inch SATA 3Gb/s (Compatible with 6Gb/s SSD/HDD) bay Networking […]

QNAP QSW-1105-5T 2.5 Gbps Ethernet Switch Targets Home Users

QNAP QSW-1105-5T 2.5Gbps Ethernet Switch

While Gigabit Ethernet has reigned supreme in the home over the years, 2.5 Gbps, 5 Gbps, or even 10 Gbps Ethernet has been used for a while in the enterprise. But if you intended to upgrade your home network to 2.5 Gbps Ethernet (aka 2.5GbE) possibly with an ODROID-H2+ single board computer in the mix, you may have found 2.5GbE switches are pretty expensive going for several hundred dollars. But QNAP has just launched its first 2.5Gbps Ethernet switch specifically designed for home users with a price in the $100 range, and available in Amazon UK for 108 GBP or in Taiwan for 2,999 NTD. QNAP QSW-1105-5T 2.5 Gbps Ethernet Switch specifications: Ethernet 5x 2.5GbE NBASE-T RJ45 ports (unmanaged) with link/activity LED’s 16K MAC address table Switching capacity – 25Gbps Jumbo Frames – 9K Supported Standards IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5GBase-T IEEE 802.3x […]

QNAP TS-251D 2-Bay NAS Comes with an Intel Celeron J4005 SoC, HDMI, PCIe Expandability

QNAP TS-251D

QNAP has introduced a 2-bay NAS powered by an Intel Celeron J4005 Gemini Lake SoC coupled with  4 GB SO-DIMM DDR4 memory. QNAP TS-251D also offers the option of getting an extra 5 or 10 Gigabit Ethernet port via PCIe card and supports video playback and output thanks to an HDMI 2.0 port. QNAP TS-251D specifications: SoC – Intel Celeron J4005 dual-core Gemini Lake processor @ 2.0 GHz / 2.7 GHz (Burst) with Intel UHD Graphics 600 System Memory – 2x SO-DIMM DDR4 memory slots (8GB max) fitted with 2GB RAM for TS-251D-2G model 4GB RAM for TS-251D-4G model Storage 4GB flash memory with dual boot OS protection Drive Bay – 2x 3.5-inch SATA 6Gb/s slot compatible with both 2.5″ and 3.5″ drives; hot-swappable M.2 SSD slot available via optional QM2 PCIe adapter for SSD cache acceleration Connectivity 1x Gigabit Ethernet Port (RJ45) Optional PCIe adapter with 5-Gbps or 10-Gbps […]

QNAP HS-453DX Fanless NAS Features Gemini Lake Processor, 10GbE, HDMI 2.0

QNAP HS-453DX

Intel Gemini Lake processors are usually found in consumer products such as motherboards, mini PCs, tablets, and laptops, but QNAP has just announced a fanless NAS – QNAP HS-453DX – targeting home users,  and equipped with an Intel Celeron J4105 Gemini Lake processor, the same chip as found in the recently launched ODROID-H2 SBC. The NAS comes with 4 to 8GB RAM, supports two 3.5″ hard drives, two M.2 SSD, and includes interfaces like HDMI 2.0 outputs and 10Gb Ethernet, making it not only suitable as a high-speed NAS,  but also as a 4K media player. Two versions of the NAS are available: QNAP HS-453DX-4G and HS-453DX-8GB only differing by the amount of RAM. Specifications: SoC – Intel Celeron J4105 quad-core processor @  1.5 GHz / 2.5 GHz with Intel UHD Graphics 600 System Memory – 4 or 8GB via 2x SO-DIMM DDR4 sockets Storage 4GB eMMC flash for firmware […]
