QNAP preps Rockchip RK3588 AI NAS and Intel NAS with hot-swappable E1.S SSDs

QNAP has been teasing two potentially interesting NAS coming up soon: the TS-AI642 AI NAS leveraging the 6 TOPS NPU in Rockchip RK3588 Arm processor for image and facial recognition, and the TBS-574X NAS powered by an Intel Core i3-1220P Alder Lake CPU and taking up to five hot-swappable E1.S NVMe PCIe SSDs.

Details are limited since neither device is available yet, but both NAS are equipped with relatively powerful Arm and Intel processors and offer some innovative features.

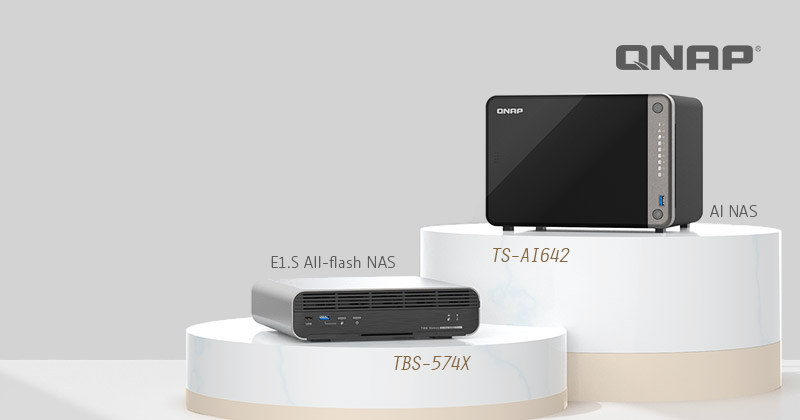

QNAP RK3588 NAS E1.S SSD

QNAP TBS-574X NAS with Rockchip RK3588

Preliminary specifications:

  • SoC – Rockchip RK3588 octa-core 64-bit Arm processor with 4x Cortex-A76 cores @ 2.2 GHz, 4x Cortex-A55 cores @ 1.8 GHz, 6 TOPS NPU
  • Storage – 6x SATA III bays
  • Video Output – 2x HDMI 2.1 ports
  • Networking – Built-in 2.5GbE, PCIe Gen 3 slot for 10GbE module

The main highlight is the 6 TOPS AI accelerator that boosts the performance of the QNAP AI Core engine notably in “QVR Face” facial recognition solution, “QVR Smart Search” surveillance event search, and “QuMagie” AI photo albums. This can be used to search your photos more easily, as well as for video surveillance applications that can benefit from the two HDMI output ports.

Last year, QNAP introduced the TS-133 1-bay NAS making use of the Rockchip RK3566 AI capabilities for object and face recognition, but it comes only with a 0.8 TOPS NPU, so the Rockchip RK3588 model should offer much faster image recognition.

TBS-574X NAS with E1.S SSD

When I wrote about the QNAP TBS-464 NAS taking up to four M.2 NVMe SSDs in October 2021, I noted the ultra-thin design, but I did not realize it would remove one important feature of network attached storage devices: the ability to hot-swap drives. You’d need to turn off the device, insert the M.2 SSD, and tighten the screw whenever you wanted to add or replace a drive.

It turns out the industry has come up with the EDSFF form factor, mostly designed for data centers, that enables hot-swapping SSD drives among other things. There are three form factors: E1.L (EDSFF 1U Long) that’s  318.75mm long and designed for server racks, the more compact E1.S (EDSFF 1U Short) measuring 111.49 x 31.5mm and with a 5.9mm to 25mm thickness that depends of the use and type of enclosure, and the larger E3.L and E3.S for higher capacities and with a power envelope of up to 70W.

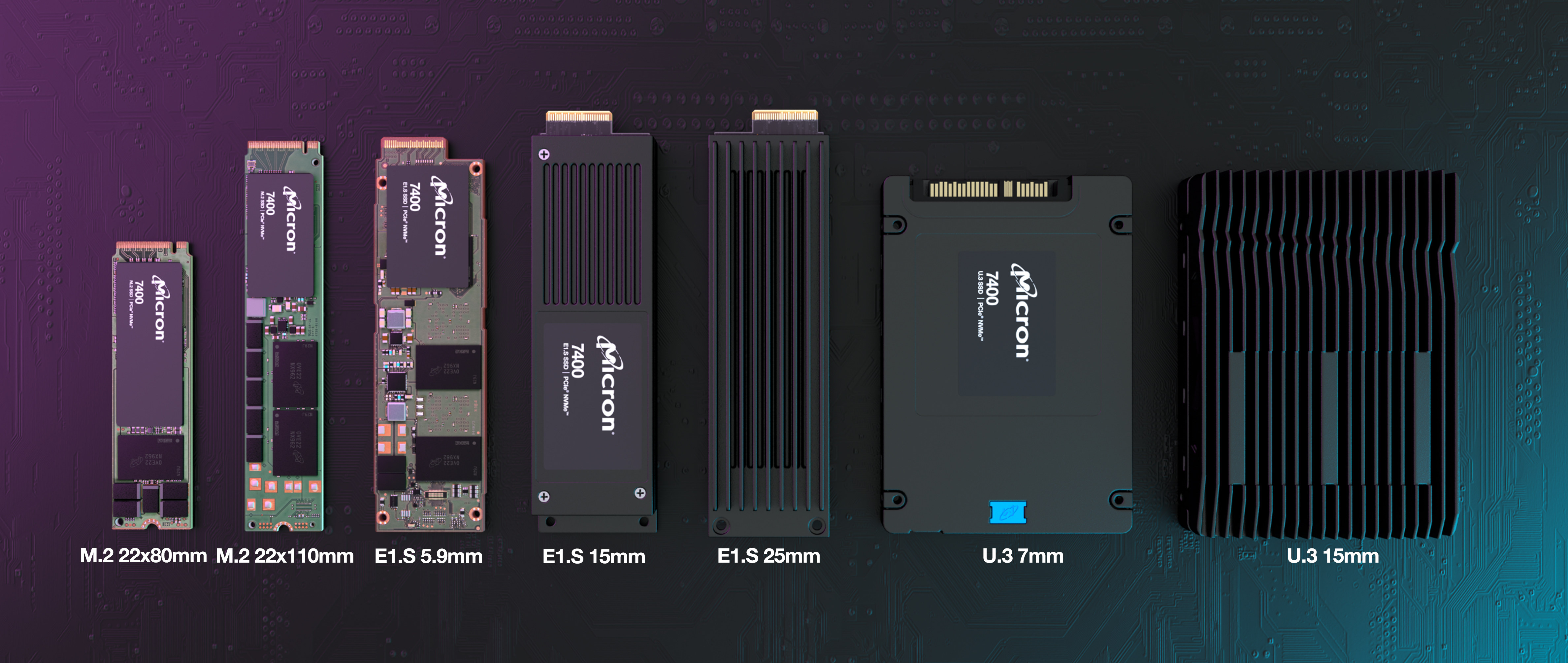

M.2 vs EDSFF E1.S SSD
M.2 SSD drives compared to Micron 7400 E1.S and U.3 SSDs

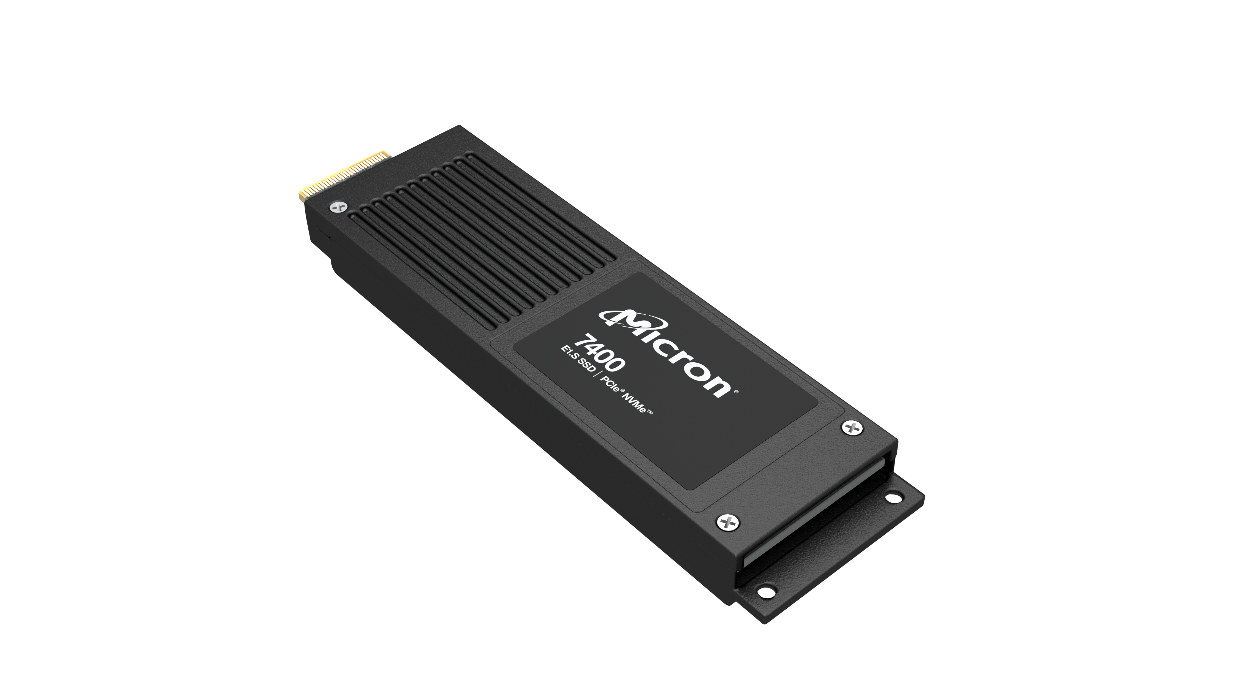

Micron 7400 E1.S SSD
Micron 7400 E1.S 15mm SSD

QNAP addresses the lack of support for host-swappable SSDs in the TBS-464 by taking up to five E1.S SSDs in the new TBS-574X NAS model.

QNAP TBS-574X preliminary specifications:

  • SoC – Intel Core i3-1220P 10-core/12-thread Alder Lake-P processor with 2 P-cores @ up to 4.40 GHz and 8 E-cores, 64EU Intel Xe graphics suitable for transcoding and editing 4K videos; PBP: 28W
  • System Memory – 16GB RAM
  • Storage – 5x bays for E1.S SSDs up to 15mm thick each with E1.S to M.2 2280 NVMe SSD adapter in each bay; up to 30TB using 7.68TB drives
  • Video Output – HDMI port up to 4K resolution
  • Networking – 2.5GbE and 10GB
  • USB – 2x USB4 ports up to 40 Gbps
Type Width Length Thickness
E1.S 5.9mm 31.5mm 111.49mm 5.9mm
E1.S 8mm heat spreader 31.5mm 111.49mm 8.01mm
E1.S Symmetric Enclosure 33.75mm 118.75mm 9.5mm
E1.S Asymmetric Enclosure 33.75mm 118.75mm 15mm
E1.S Asymmetric Enclosure 33.75mm 118.75mm 25mm

The table above shows the various dimensions for E1.S SSDs, and that means most E1.S should work in the NAS, except for the thicker 25mm drive. The model with an asymmetric enclosure will probably be recommended for better cooling. QNAP says the TBS-574X is also suitable for 2K/4 video transcoding, real-time 4K video production, and business IT applications.

QNAP will officially launch the two NAS later this year, and we’ll know pricing at the time of launch. E1.S SSDs still appear to be hard to find, and for instance, nothing shows up on Amazon, except some PCIe to E1.S adapters. I also had a look at the Micron 7400 E1.S SSD, and searching for a particular model include looking in the product brief to come up with a part number such as MTFDKBZ1T9TDZ that is a 1,920 GB E1.S Pro bare SSD with 5.9mm thickness and sold on Newark for about $550, but out of stock.

More details may be found in QNAP’s announcement. Thanks to TLS for the tip.

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard

15 Replies to “QNAP preps Rockchip RK3588 AI NAS and Intel NAS with hot-swappable E1.S SSDs”

  1. Curious how networking on the TBS-574X is implemented. The CPU’s 20 PCIe lanes are obviously dedicated to the 5 NVMe slots…

    Is the NBase-T network chip internally attached via Thunderbolt or USB?

      1. Well, I was thinking first “Why this rather beefy CPU?”, then checked count of PCIe lanes and compared with count of SSD slots. 2 lanes per SSD are perfectly fine when bottlenecked by network anyway. But why has this thing not more than 5 slots then?

        Talking about their older TBS-464 mentioned by Jean-Luc: Jasper Lake SoCs with 8 Gen3 lanes max: so x2 per SSD ‘by design’. But how is networking implemented there w/o PCI lanes left? PCIe switch? USB3/RTL81256?

        1. Intel CPUs has a native interface for Ethernet, unlike AMD that relies on PCIe.
          As such, one port is always doable without losing PCIe lanes.

          1. The TBS-464 has 2 x 2.5GbE and ARK and all Linuxium Jasper Lake reviews here on cnx-software agree, that there’s no internal MAC/PHY in these processors and the NICs found in those PCs are all PCIe attached 🙂

          2. I only just now saw your edit, that’s an entirely different class of CPU/SoC that’s not in the device the news post is about.
            QNAP has also been known to use a single lane of PCIe for NVMe in some devices.

          3. Yeah, not sure what’s going on there, as they claim 4x PCIe 3.0 x2 for the SSDs. Had a look over at Nascompares, they don’t go into the specifics of the Ethernet controllers and the pictures aren’t clear enough to see a model name, but it’s Realtek chips.

            Edit: Ok, it uses a pair of RTL8156B controllers. Some Japansese site had them listed.

          4. > TBS-464 … uses a pair of RTL8156B controllers

            Thanks for confirming. What a journey RealTek made… from the NICs every average user hated decades ago to NICs (even/especially USB3 attached) that simply work or even outperform the competition today 🙂

          5. Well, I wouldn’t go that far. I’m having an Odroid-H3 with a pair of RTL8125 running th mainline 5.15 kernel and r8169 driver. I noticed the performance was barely average when serving NFS over TCP. Having a closer look I noticed that one performane-critical feature (scatter-gather) was disabled, causing TSO etc to be disabled. I re-enabled it, and found the machine wouldn’t talk to the network a few hours later. I tried to change the parameter, unload/reload the module, still no communication. After a reboot still nothing. Power cycling fixed the problem, so it was not just a driver issue. So I concluded that realtek mostly managed to make us trust their products more than before, but they’re still far from outperforming competition if their chips still can’t stand basic scatter-gather without hanging till a power cycle. I’ll have to try the out-of-tree r8125 driver that rock5b is using, to see if it improves the situation.

  2. What should the ‘industry’ deliver/advertise given TrueNAS/OpenMediaVault cover every basic NAS needs on every relevant platform?

    1. Sorry but you lost me. What are you talking about regarding these supposed fast serial ports ? Or maybe you’re speaking about SATA here ? If so, it’s irrelevant. Sure, you could probably expect much higher performance with a better chip, like AQC107, but then others will complain that there’s another bottleneck. In fact having high storage performance depends on the technology involved and can still be useful for soft RAID, when doing compressed backups or other situations.

    2. Well, when thinking about the target audience 10GbE seems a good fit.

      Who will buy this E1 thing? Mostly clueless consumer (or ‘prosumers’ spending an insane amount of money for the whole setup)…

      Who ‘needs’ hot-swap? People who play RAID. Most probably RAID-5 and most probably with 5 SSDs all featuring same firmware and age (so they will fail all at the same time). Their (i)Mac Pros have 10 GbE.

      1. > 20% of the capacity of a single E1 module, or 35% of a single standard Nvme module

        I know what you mean but isn’t EDSFF only different wrt pinout (protruding power contacts) and otherwise plain NVMe? This box here ships with five E1.S <-> M.2 adapters.

        BTW: I remember times where bunches of SCSI server disks were behind a 10 MBit/sec port while the average file size I worked with was 40 MB.

      2. I’m quite interested in the intel version, only if it is possible to install a different OS thought.
        Would there be a recommendation from your side about better alternatives? Important is low power consumption and small form factor (itx). Not interested in the hot-swap at all.

        1. Nope, no idea about energy efficient small ‘all flash’ NAS boxes since our NAS needs now focus on ‘spinning rust’ based cold storage only and servers do virtualization + flash storage in a single unit.

          So there’s not much else than Mini PCs, some ARM thingies and 1U servers like this.
