Raspberry Pi Gets 5G Cellular Connectivity with Snapdragon X55 Powered HAT

The Raspberry Pi board has long been able to connect to cellular networks either via USB dongles or 3G or 4G LTE HATs that often include GPS as a bonus. But you can now connect your Raspberry Pi 4 or other RPI SBC with a 40-pin header to 5G networks thanks to Waveshare SIM8200EA-M2 5G HAT for Raspberry Pi powered by Qualcomm Snapdragon X55 multi-mode multi-band modem offering 5G/4G/3G cellular connectivity. As we can see from the photo, the 5G add-on comes as part of a cool-looking kit with bottom and top acrylic plates, spacers, a cooling fan plus five antennas for cellular and GNSS connectivity. But the HAT itself integrates a SimCOM SIM8200EA-M2 M.2 module and offers the following specifications: Compatibility – Works with Raspberry Pi boards with a 40-pin GPIO extension header Cellular Connectivity SIM8200EA-M2 core module based on Qualcomm Snapdragon X55 platform with multi-mode multi-band support 5G/4G/3G networks support SIM card slot compatible with 1.8V / 3V […]

Support CNX Software – Donate via PayPal, become a Patron on Patreon, or buy review samples

ESP32 Board Features mini PCIe & SIM Card Sockets for 4G LTE Connectivity

LilyGO has launched yet another ESP32 WiFi & Bluetooth IoT board. As its name implies, TTGO-T-PCIe board includes a mini PCIe socket that coupled with a SIM card socket allowing users to insert a 4G LTE mPCIe card to add cellular connectivity. The company also offers optional SIM7000 2G or SIM7600 4G LTE modems that come with LTE and GPS antennas. You should probably be able to add other cellular mini PCiE, as well as other wireless mPCIe modems for LoRa, Satellite communication, etc… (Finally most probably not) TTGO-T-PCIe board specifications: Wireless module – ESP32-WROVER-B with ESP32 dual-core wireless SoC with 520KB SRAM, WiFi and Bluetooth with on-board antenna, as well as 4MB flash, and 8MB PSRAM Connectivity 802.11 b/g/n WiFi 4 up to 150 Mbps (ESP32) Bluetooth 5.1 LE (ESP32) Optional wireless cards via mPCIe socket (I2C and UART), SIM card slot for 2G and 4G LTE cellular networking USB – 1x USB-C port, 1x 4-pin USB header Expansion […]

Support CNX Software – Donate via PayPal, become a Patron on Patreon, or buy review samples

$15 TTGO T-Call Board Combines ESP32 WiFi & Bluetooth SoC with SIM800 GPRS Module

TTGO T-call Pinout Diagram

LilyGo has launched several TTGO boards usually based on Espressif ESP8266 or ESP32 over the years. Here’s another that could be useful if 2G cellular networks have not sunset in your country: TTGO T-Call. The new board combines ESP32 WiFi & Bluetooth WiSoC with SIMCom SIM800L GPRS module, and also happens to rely on a USB-C port for power and programming instead of the more common micro USB port on this type of hardware. TTGO T-Call board (BLINK_V1.3) specifications: Wireless Module – ESP32-WROVER-B based on ESP32 dual core Xtensa processor @ 240MHz with 520kB SRAM on-chip, 4MB QSPI flash, 8MB PSRAM Connectivity – WiFi 4 802.11 b/g/n (2.4 GHz) up to 150 Mbps Bluetooth 4.2 Classic + LE Cellular  – 2G GSM/GPRS via SIMcom SIM800L module + Nano SIM card slot USB – 1x USB-C for power and programming (via CP2104) Expansion – 2x 21-pin headers with UART, SPI, SDIO, I2C, PWM, I2S, IRGPIO, capacitor touch sensor, ADC, DAC Misc […]

Support CNX Software – Donate via PayPal, become a Patron on Patreon, or buy review samples

SIM7020E 4G NB-IoT Mini Development Board Sells for Just $14

Cheap-NB-IoT-Board

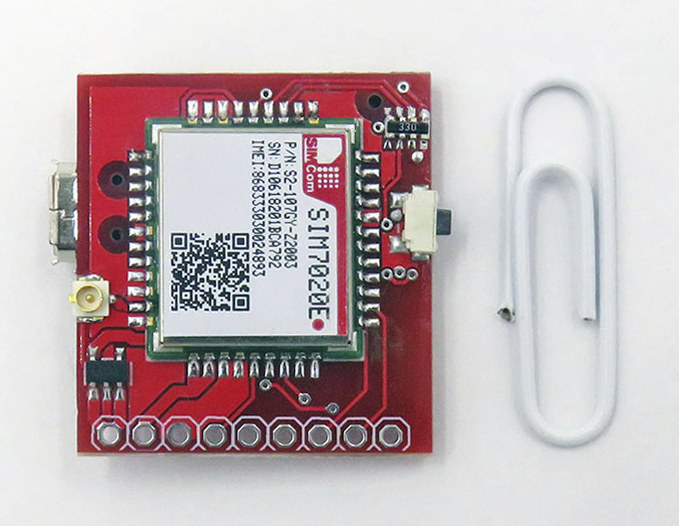

We now have plenty to choose from when it comes to NB-IoT development boards or shields, but so far pricing has not been very attractive, and the cheapest NB-IoT solution I found so far was probably Dragino NB-IoT Bee, a XBee compatible board going for $23. But this morning, I saw an even cheaper NB-IoT board with SIM7020E 4G NB-IOT Mini development board selling for $14.30 on Electrodragon. Not quite the price of 2G solutions, but we’re getting there. Board specifications: NB-IoT Module – SIMCom SIM7020E module working globally with B1/B3/B5/B8/B20/B28 bands supported Nano SIM card holder and u.FL connector for NB-IoT Expansion – 9-pin unpopulated 2.54mm pitch header with 2x UART (3.3V / 5V), ADC, Boot, 3.3V, 5V and GND USB – 1x micro USB port that can be recognized by PC, but as Electrodragon puts it: “not sure how to use it”. Misc – Net LED, power key Power Supply – 5V via header (or micro USB port?); […]

Support CNX Software – Donate via PayPal, become a Patron on Patreon, or buy review samples

LTE Cat M and NB-IoT Shield for Arduino Features SIMCom SIM7000-Series Module (Crowdfunding)

SIM7000-NB-IoT-Arduino-Shield

We’ve already covered several NB-IoT (and/or LTE Cat M1) Arduino shields with products like RAK Wireless WisLTE, Sixfab Arduino NB-IoT shield, or AIS NB-IoT shield, which all happen to come with Quectel modules. A young self-taught engineer has decided to make his own Arduino eMTC/NB-IoT shield, but based on a SIMCom SIM7000-series module instead of a Quectel one found in the other aforementioned products. Board specifications: Cellular Module (one of the list depending on your location) SIM7000A LTE Cat M1 & NB-IoT module certified for AT&T and Verizon in the US SIM7000C Cat M1/NB-IoT module with 2G/2.5G fallback for the Chinese market SIM7000E Cat M1/NB-IoT module with 2G/2.5G fallback for the European market Note: The developer is also looking into SIM7000G module which should work globally, but the option is not available for now Micro SIM card holder GNSS – GPS/GLONASS with 2.5m accuracy supported by SIMCom modules Antenna – 2x u.FL connectors for LTE and GPS USB – Micro […]

Support CNX Software – Donate via PayPal, become a Patron on Patreon, or buy review samples

NB-IoT Overview, Technical Presentation, and Getting Started (in Thailand)

Chiang-Mai-Maker-Party-Nb-IoT

As I mentioned in my post yesterday I attended a talk about NB-IoT at Chiang Mai Maker Party 4.0 (2017). It was presented by representatives from AIS, a large telco company in Thailand, and I’ll give a summary of what I learned beside that Xiaomi Mi A1 camera is not that good after all, and I should have taken my DSLR camera with me instead. So apologies for the poor quality of some of the photos… The talk started from a higher level, including marketing / business propositions, and has time passed it become more and more technical. The first part of talk was presented by Phuchong Charoensuk, IoT marketing specialist at AIS, and he provided some more details about the company, and their current B2B IoT/M2M market (400,000 subscribers), before providing an overview of IoT, and how NB-IoT will bring in not only larger businesses but also startups and makers. He also went through some of the benefits of […]

Support CNX Software – Donate via PayPal, become a Patron on Patreon, or buy review samples

MatchX LoRaWAN Solution Supports up to 65,535 Sensor Nodes per Gateway

MatchBox-LoRa

MatchX is a startup with offices in Chicago, Shenzhen, and Berlin, that provides a complete LoRaWAN solution with their MatchBox gateway based on SX1301 concentrator and Mediatek MT7628N processor, as well as MatchStick, MatchModule, and MatchCore sensors with up to 65,535 of those connecting to a single  gateway. MatchBox LoRaWAN/WiFi/GPRS/GPS Gateway MatchBox specifications: Processor – Mediatek MT7628AN MIPS WiSoC @ up to 580 MHz System Memory – 128MB DDR2 RAM Storage – 16MB FLASH Connectivity LoRa – Semtech SX1301 + 2x [email protected]+27dbm  Output Power; 470/868/915Mhz frequency range, -146dBm sensitivity 10/100M Ethernet 802.11n 2×2 WiFi @ 300 MHz Optional GPRS via SIM800H, 85.6 kbps (downlink/uplink) + micro SIM card slot GPS via UBlox Max 7C Antennas – 2x u.FL antennas for WiFi, u.FL or chip antenna for LoRa, GPS and GPRS modules USB – 1x USB 2.0 port, 1x USB type C exposing 4 or 6 GPIOs and UART Misc – RGB LED, 8x GPIO, on/off switch, reset button Power Supply […]
