SIM7020E 4G NB-IoT Mini Development Board Sells for Just $14

We now have plenty to choose from when it comes to NB-IoT development boards or shields, but so far pricing has not been very attractive, and the cheapest NB-IoT solution I found so far was probably Dragino NB-IoT Bee, a XBee compatible board going for $23.

But this morning, I saw an even cheaper NB-IoT board with SIM7020E 4G NB-IOT Mini development board selling for $14.30 on Electrodragon. Not quite the price of 2G solutions, but we’re getting there.

Cheap-NB-IoT-BoardBoard specifications:

  • NB-IoT Module – SIMCom SIM7020E module working globally with B1/B3/B5/B8/B20/B28 bands supported
  • Nano SIM card holder and u.FL connector for NB-IoT
  • Expansion – 9-pin unpopulated 2.54mm pitch header with 2x UART (3.3V / 5V), ADC, Boot, 3.3V, 5V and GND
  • USB – 1x micro USB port that can be recognized by PC, but as Electrodragon puts it: “not sure how to use it”.
  • Misc – Net LED, power key
  • Power Supply – 5V via header (or micro USB port?); on-board LDO up to 12V (max 16V) 500mA
  • Dimensions – 28x26mm

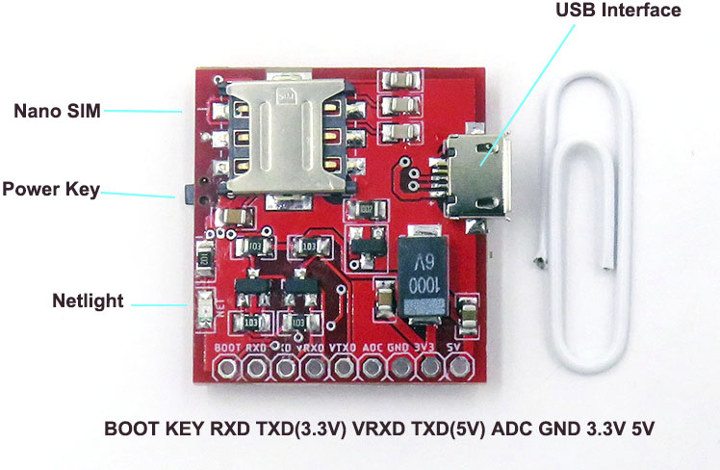

SIM7020E NB-IoT mini development boardBeside its price, the other good things about this module are its size and global support. While there’s a USB port, it looks nobody knows how to use it yet, and interface would be done through the 3.3V or 5.5V UART. You’ll need to add a micro-controller boar, and a u.FL antenna, as well as your own NB-IoT SIM card, and you should be good to go for less than $25.

I could not find any Wiki for SIM7020, but you’ll find some documentation – including AT commands set – on SIMCom website. There’s also a guide on Instructables showing how to use SIM7020 module with Arduino, and which should be relevant to this board too.

Share this:

Support CNX Software! Donate via PayPal or cryptocurrencies, become a Patron on Patreon, or buy review samples

Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
7 Comments
oldest
newest
Rogan Dawes
Rogan Dawes
3 years ago

I’d expect the USB interface to present one or more CDC-ACM interfaces, much like any other 3/4G modem.

Jon Smirl
3 years ago

AKAIK no US carrier is deploying NbIOT. All of the US carriers went LTE-M.

Mike
Mike
3 years ago

According to Fierce Wireless, AT&T is launching NB-IoT. Also, Dish is building out NB as well, although I’m not sure what bands they’re using.

Simon Ferner-Ortner
Simon Ferner-Ortner
2 years ago

I have the same module but I am not able to connect to an operator. Could you tell me where you got your Sim-Card from?
You can send me an e-mail.

Paul Carew
Paul Carew
2 years ago

SIM7020E is Europe only
