Raspberry Pi DIN Rail Enclosure
Posted on

Pi-oT MKR Module Enclosure Routes Raspberry Pi GPIO’s to Screw Terminals, includes a Breadboard (Crowdfunding)

Last summer Pi-oT introduced a Raspberry Pi add-on board of the same name targeting commercial & industrial IoT automation. The project was launched on Kickstarter and backers should have received their rewards. The DIN-rail enclosure included with the RPi HAT was popular, so they decided to work on a Pi-OT MKR module enclosure with a similar form factor but instead of using screw terminals for ADC input and relays, they routed some of Raspberry Pi GPIO pins to the terminal, added a breadboard to the case for prototyping, as well as a fan for cooling. Pi-oT MKR module key features: Features: Compatible with any Raspberry Pi board with 40-pin GPIO header Screw terminals – 21 GPIO’s including the I2C pins, 5V, 3.3V and GND from Raspberry Pi header routed to screw terminals Integrated Breadboard Integrated Cooling – 5V header for included fan Circuit Protection Port protection – 330 Ohm resistor […]

NanoVision and NanoBerry evaluation kits
Posted on

NanoVision & NanoBerry Miniature Computer Vision Evaluation Kits Released For Arduino & Raspberry Pi Platforms

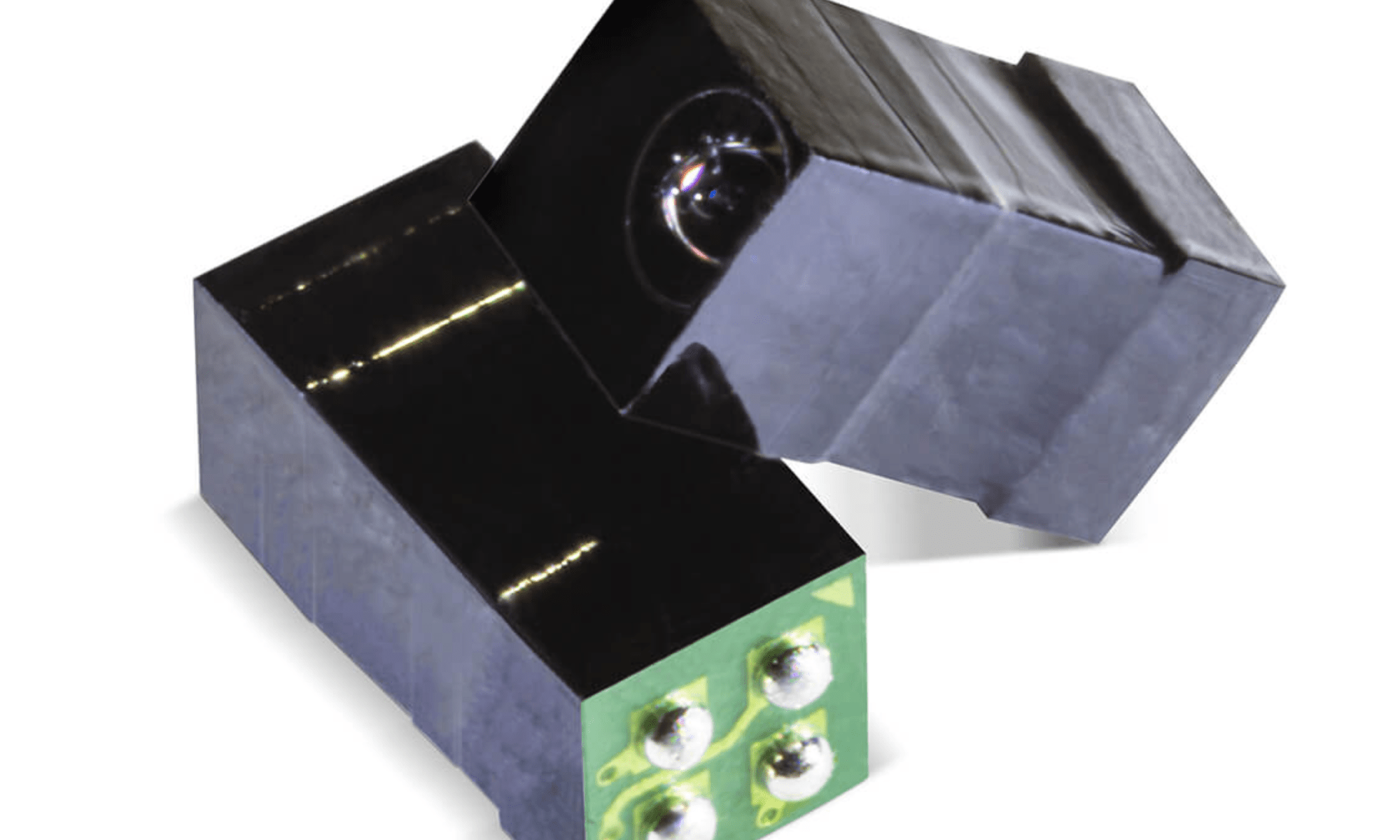

AMS (Austria Mikro Systeme) known for their array for micro sensing solutions and most importantly the NanEye, a Miniature CMOS image sensor which is designed for applications where size is a critical factor has also launched a set for evaluation kits called the NanoVision and the NanoBerry for the development of solution based on the AMS NanEyeC miniature image sensor. NanEyeC Camera Sensor The NanEyeC comes in a footprint of just 1mm x 1mm surface mount, and it can produce 100kpixel resolution up to 58 frames/s. It seems the NanEyeC is based on the NanEye series, which typical (NanEye) features a 249×250 resolution with a high sensitive 3um x 3um rolling shutter pixel and capable of a high frame rate of about 43fps to 62fps. The NanEyeC sensor is based on the high-speed LVDS data interface. The sensor is assembled with a unique lens and cover glass, which fits in […]

ArmSoM RK3588 AIModule7 NVIDIA Jetson Nano-compatible SOM
Posted on

BOKRA NXP LPC824 and Nordic nRF52832 powered MCU Modules Follow MikroBUS Form Factor

We first wrote about MikroElectronika MikroBUS socket in 2015 while covering an SBC which featured one MikroBUS socket supporting one of the 150 Click boards available at the time. There are now over 700 Click boards to choose from, with the tiny modules offering motor drivers, buttons, short-range connectivity,  UART and other interfaces, as well as various sensors. But BOKRA had another idea: developing MCU based systems-on-module following MikroBUS form factor. BOKRA LPC824 Lite module The first of those modules is BOKRA LPC824 Lite with the following specifications: MCU – NXP LPC824M201JHI33 Arm Cortex-M0+ microcontroller @ 30 MHz with 32KB Flash Memory, 8 KB RAM I/O MikroBUS headers with SPI, I2C, UART, PWM, GPIOs 10-pin “Serial” header 4-pin I2C Grove connector for Seeed Studio I2C Grove modules Debugging interface – SWD Misc – Reset button, power LED, 2x user LEDs Power Supply – 5V/500mA via MIC5528 regulator Dimensions – 28.6 […]

NanoPi M4B
Posted on

NanoPi M4B Rockchip RK3399 SBC Drops the USB 3.0 Hub, Adds Bluetooth 5.0, an ADB Switch

NanoPi M4 was launched last year (2018) as a Rockchip RK3399 SBC following Raspberry Pi 3B+ form factor with 2 or 4GB DDR3 RAM, and was followed by NanoPi M4V2 this September with 4GB LPDDR4 memory, and power & recovery buttons. FriendlyELEC has been working on yet another revision with NanoPi M4B mixing some of the features of M4 and M4V2 such as DDR3 memory and power & recovery buttons, but the biggest change is the removal of the USB 3.0 hub which allowed for four USB 3.0 port, and now the company is going native leveraging the two USB 2.0 interfaces and two USB 3.0 interfaces inside Rockchip RK3399 processor which should lower the BoM cost, and in some cases improve performance. NanoPi M4B specifications: SoC – Rockchip RK3399 big.LITTLE hexa-core processor with 2x Arm Cortex-A72 @ up to 2.0GHz, 4x Cortex-A53 @ up to 1.5GHz, a Mali-T864 GPU […]

rock pi 4 model C
Posted on

Rock Pi 4C SBC to Support Dual Display Setups via micro HDMI and mini DP Ports

Rockchip RK3399 powered Rock Pi 4 SBC was introduced at the end of 2018 and followed nearly exactly Raspberry Pi 3 Model B form factor just with a more powerful processor, GPU, as well as more memory depending on which model you purchase. But in June 2019, the Raspberry Pi foundation launched Raspberry Pi 4 SBC with a much faster processor and many of the same ports as its predecessor except for support for two HDMI displays via micro HDMI ports. Radxa has now followed suit with Rock Pi 4C which offers two modern video outputs, but with a twist as the upcoming SBC combines one micro HDMI port with one mini DP port. Rock Pi 4C was introduced at the XDC 2019 conference where open-source graphics developers meet, and Radxa was a “supporter”. The company explains Rock Pi 4B uses RK3399’s USB type-C controller for the two USB 3.0 […]

PICO-PI-IMX8M Evaluation Kit
Posted on

WandPi 8M SBC Comes Back as PICO-PI-IMX8M with SoM & Raspberry Pi Compatible Baseboard

Back in 2017, WandBoard announced the release of an upcoming Raspberry Pi like SBC based around the NXP i.MX8M Quad applications processor, ARM Cortex-A53 + M4 architecture and Vivante  GC7000 GPU called the WandPi 8M. The board was designed around the popular Pi (85 x 56 mm) form factor bringing 4K UltraHD with HDR video quality with pro audio fidelity. WandPi 8M was scheduled for the release in spring of 2018, but ever since WandPi 8M never came to life. It was suggested that the board must have gone to the SBC heaven. Back to 2019,  a similar board was discovered recently on Hacker boards called the PICO-PI-IMX8M with almost similar design and specification. The PICO-PI-IMX8M board shown also features the same NXP i.MX8M Quad-core processor and the Vivante  GC7000 GPU but relies on PICO-IMX8M system-on-module plus a baseboard inspired by Raspberry Pi form factor, and compatible with (most) HAT […]

Rockchip RK3568, RK3588 and Intel x86 SBCs and SoMs in 2025
Rock Pi X 1.0
Posted on

Rock Pi X Intel Cherry Trail Board to Sell for as low as $39

Most low cost (sub $100) single board computers are based on Arm processors because Intel processors are normally more expensive, but there are some exceptions with AAEON Up Board and Atomic Pi both powered by an Intel Atom x5-Z8350 processor and selling for $99 and $35 respectively. The former follows Raspberry Pi form factor and is easy to use, but the latter requires some more work to wire power supply unless you buy an extra baseboard. There should however soon be a third option for low-cost Intel SBCs with Radxa Rock Pi X board powered by an Intel Atom x5-Z8300 Cherry Trail processor and is expected to sell for as little as $39. Rock Pi X just showed up in Hackerboards database, and there will be two models, namely Rock Pi X model A and Rock Pi X model B with the following specifications: SoC – Intel Atom x5-Z8300 “Cherry […]

NanoPi M4V2
Posted on

$70 NanoPi M4V2 SBC Gets 4GB LPDDR4 RAM, Power & Recovery Buttons

FriendlyELEC NanoPi M4 is a Rockchip RK3399 single board computer that follows Raspberry Pi 3 form factor, and was launched in a year ago for $65 with 2GB RAM, and $95 with 4GB RAM. Raspberry Pi 4 introduction brought some more competition, and helped the prices drop to $50 and $75 respectively. But now the company has launched a revision 2 of the board, NanoPi M4V2 that replaces LPDDR3 memory with faster LPDDR4 memory, adds power & recovery buttons, and the audio jack now also support microphone input. It’s only available with 4GB LPDDR4 memory, and the price is lower at $70. The rest of the specifications are mostly identical: SoC – Rockchip RK3399 big.LITTLE hexa-core processor with 2x Arm Cortex-A72 @ up to 2.0GHz, 4x Cortex-A53 @ up to 1.5GHz, a Mali-T864 GPU with support OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11, and AFBC, and a VPU with 4K VP9 and […]
