Acer AerialCast Miracast Adapter Powered by Realtek RTD1185PA + RTL8192DV

Details about Acer AerialCast, a Miracast dongle have recently showed up on the FCC website. The device is an upcoming Miracast adapter features RTD1185PA media SoC and RTL8192DV Wi-Fi module, which specifications very similar to what is found in AX-01 Miracast/DLNA adapter.

Acer_AerialCastThe specifications have not been listed, but can be derived from FCC documents and pictures:

  • SoC – Realtech RTD1185PA MIPS24Kc processor @ 500MHz
  • System Memory – 128 MB DDR3 SDRAM – (Etrontech EM6GC16EWXA)
  • Storage – 128 MB NAND Flash – ESMT F59L1G81A
  • Video Codecs – H.264, VC1, RM/RMVB, AVS Decoder
  • USB – 1x micro USB  for power
  • WiFi – 802.11 b/g/n via Realtek RTL8192DV module
  • Video Output – HDMI
  • Misc -  1x LED
  • Power Supply – 5V/1A.

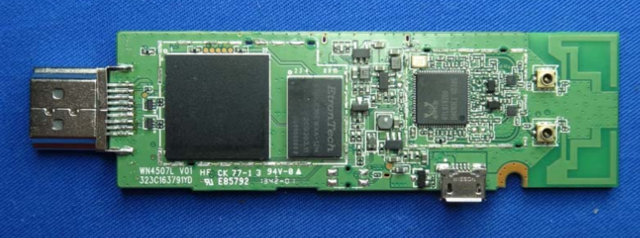

The device sent to the FCC came with a 5V/1A power adapter, a micro USB cable, an HDMI cable, and a technical documentation. The device will be sold under the name AerialCast, but the model name is WN4507L. There’s no specific as to what the device is for, but based on the hardware and picture, it’s quite clear it’s a Wi-Fi display adapter which should support Miracast, DLNA, and other media sharing protocol.WN4507LYou’ll notice two antenna connectors on the right of the PCB picture above, but there’s apparently nothing connected there according to internal pictures. These are two PCB antennas.

We’ll probably have to wait for an official announcement to find out details about availability and pricing.

Via Netbook Italia and Google+

Digg This
Reddit This
Stumble Now!
Buzz This
Vote on DZone
Share on Facebook
Bookmark this on Delicious
Kick It on DotNetKicks.com
Share on LinkedIn
Bookmark this on Technorati
Post on Twitter

Categories: Hardware, Linux Tags: acer, dlna, miracast
  1. Paul
    January 29th, 2014 at 17:43 | #1

    > but there’s apparently nothing connected there according to internal pictures.

    Well, one can clearly see 2 PCB antennas…

  2. January 29th, 2014 at 19:43 | #2

    @Paul
    Ah OK, It looked like connectors to me, but it makes sense. I had only seen three types of Wi-Fi antennas in the hardware I tested: External antenna via SMA? connectors, chip antennas, and some antenna boards connected via a wire (not sure how to call that).

  3. Ulfbert
    January 29th, 2014 at 21:56 | #3

    @cnxsoft
    These PCB antennas are also called trace antennas.

  4. Liu
    February 19th, 2014 at 15:26 | #4

    Well it looks like ACER not ASUS….

  5. February 19th, 2014 at 15:40 | #5

    @Liu
    Oops, removed reference to asus in the article’s body.

  6. Liu
    February 19th, 2014 at 15:45 | #6

    @cnxsoft

    Great! wish the product can release soon!

    BTW, WiFi – 802.11 b/g/n via Realtek RTL8192DV module => its an 2×2 abgn wifi module. :)
