Home > Android, Hardware, NVidia Tegra 4 > ADT-1 Google’s Android TV Developer’s Kit Details

ADT-1 Google’s Android TV Developer’s Kit Details

Google announced Android TV a few days ago, and distributed ADT-1 hardware development kit to application developers during Google I/O. I could not find much details at the time, except it was powered by Nvidia Tegra processors. I’ve now noticed some developers have posted a few pictures and the device, Phandroid has posted the specifications, and I’ve found some interesting hardware limitations for Android TV decided by Google that kill some potential applications for the TV.

ADT-1_ANdroid_TV_Reference_DesignHere are known hardware specifications for ADT-1 devkit:

  • SoC – Nvidia Tegra 4
  • System Memory – 2GB RAM
  • Storage – 16GB flash
  • Video Output – HDMI
  • Connectivity – Ethernet, 2×2 MIMO dual-channel WiFi, Bluetooth 4.0
  • USB – 1x USB host port, 1x micro (custom?) USB port for power and ADB (via an Y cable provided with the kit)
  • Dimensions – Small :)

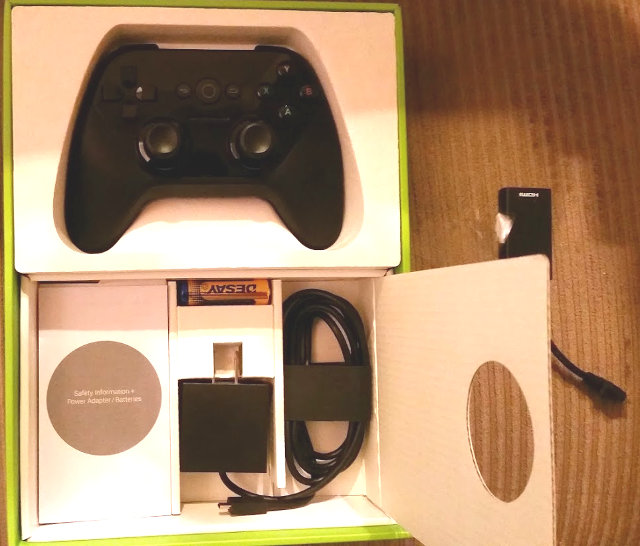

Google_Android_TV_Accesories

This Android L Android TV box looks tiny and comes with G1 Gamepad as demonstrated during Google I/O, that is powered by 2x AA rechargeable batteries, and well as a power adapter, and cables.

More pictures and short videos can be found on Zach Pfeffer G+ account, as well as on Reddit where you may want to go through the comments section for specifics. If you were not at Google I/O, and are an application developer, you can still apply for ADT-1 devkit online. There’s also an “ADT-1 FAQ” that’s mostly interesting / useful for people who already own the kit.

As I look for more details, I also went to Android TV developer’s page, especially the hardware features section, where the following features are said to be disabled in Android TV:

Hardware Android feature descriptor
Camera android.hardware.camera
GPS android.hardware.location.gps
Microphone android.hardware.microphone
Near Field Communications (NFC) android.hardware.nfc
Telephony android.hardware.telephony
Touchscreen android.hardware.touchscreen

If you planned to use your Android TV Box and connect a USB webcam to use Skype or Google Hangout, or expected some Android L TV boxes with a built-in camera that can be placed on top of the TV, sorry, this won’t be possible because camera and microphone support are not available. The other features make sense, although for digital signage applications GPS, telephony, touchscreen, and NFC may also be useful, but I understand that’s not what Android TV is all about, and it’s focusing on the consumer market.

Digg This
Reddit This
Stumble Now!
Buzz This
Vote on DZone
Share on Facebook
Bookmark this on Delicious
Kick It on DotNetKicks.com
Share on LinkedIn
Bookmark this on Technorati
Post on Twitter

  1. Harley
    June 30th, 2014 at 16:53 | #1

    It would be interesting to know if it supports HDMI 2.0 or not?

    I just assume that Android TV OS supports HDMI 2.0 and the Ultra HD specification?

    Btw, “Ultra HD” is now the official name for 4K http://www.engadget.com/2012/10/20/cea-officially-brands-4k-as-ultra-hd-gets-ready-for-a-flood-of/

  2. June 30th, 2014 at 17:08 | #2

    @Harley
    Not sure about the HDMI version in the devkit.

    Good to know about ultra HD, so we have
    * 720p – HD Ready
    * 1080p – Full HD
    * 4K – Ultra HD

    That’s useful when buying a TV. I did not know about HD Ready and Full HD when I bought a TV a few months ago, and that’s all the sellers were talking about :p

  3. Anand
    June 30th, 2014 at 17:45 | #3

    I guess Microphone support would be there…

    As in the I/O demo by Google employees, they were performing “Voice Search” in the Android TV using the Gamepad, mobile(?) …

    If in case camera is not supported, then I’ll have to choose the traditional Android Mini PCs we have had so far…

  4. June 30th, 2014 at 17:53 | #4

    @Anand
    They used the microphone of the smartphone, and sent the data via the network.

  5. July 1st, 2014 at 02:10 | #5

    I vé read that it s possible tout use the camera on art but you have tout détecté it manually. Check on Android dev website

  6. July 1st, 2014 at 11:20 | #6

    @ekimia
    Right, but Google specifically disabled camera support for Android TV, as mentioned in the dev site. I understand It’s possible to access the camera but only on mobile devices, and wearables.
