Performance Comparison of Amlogic S805 and S802 Processors

September 25th, 2014 Leave a comment Go to comments

Amlogic S805 is a quad core Cortex A5 processor for entry levels Android media players, S802 is a quad core processor with faster Cortex A9 cores clocked @ 2.0 GHz, and S812 is an upcoming upgrade of S802 with HEVC/H.265 hardware video decoding, and Gigabit Ethernet support. I’ve already written about the features differences between AML8726-MX, S802, S805, and S812, but since I now have some devices I can make direct comparison between S802 and S805. It’s quite clear on paper than S802 should be significantly faster than S805, so the only question to answer is by how much, but I’ve been asked to do it, and it could be a fun exercise.  Anlogic_S802_vs_Amlogic_S805The hardware devices used for the comparison are two Android media players: EM6Q-MXQ for S805 and Probox2 EX for S802, and I used the results from three Android benchmarks: Antutu 5.1, Vellamo 3.x, and 3Dmark Ice Storm Extreme. Let’s go straight to the results.

Amlogic S805 Amlogic S802 Delta
CPU Quad core Cortex A5 r0p1 @ 1.5 GHz Quad core Cortex A9 r4 @ 2.0 GHz
GPU Quad core Mali-450MP Octa core Mali-450MP6
Antutu 5.1
Overall (Both “non-verified” scores) 16647 38966 134.07%
Multitask 3066 6653 116.99%
Runtime 1047 2497 138.49%
RAM Ops 1405 3308 135.44%
RAM Speed 1420 2539 78.80%
CPU Integer (multi-thread) 1398 2952 111.16%
CPU float-point (multi-thread) 1442 3785 162.48%
CPU Integer (single thread) 882 1917 117.35%
CPU float-point (single thread) 931 2142 130.08%
2D Graphics(1920×1080) 936 1650 76.28%
3DGraphics (1920×1080) 3021 9713 221.52%
Vellamo 3.x
Metal 566 955 68.73%
Multicore 1139 2352 106.50%
Browser 1060 1423 34.25%
3DMark – Ice Storm Extreme 2325 6970 199.78%

Sources:

  • EM6Q-EMX Review for all S805 benchmarks
  • AndroidPC.es for Probox2 EX Vellamo and 3Dmark Ice Storm Extreme scores.

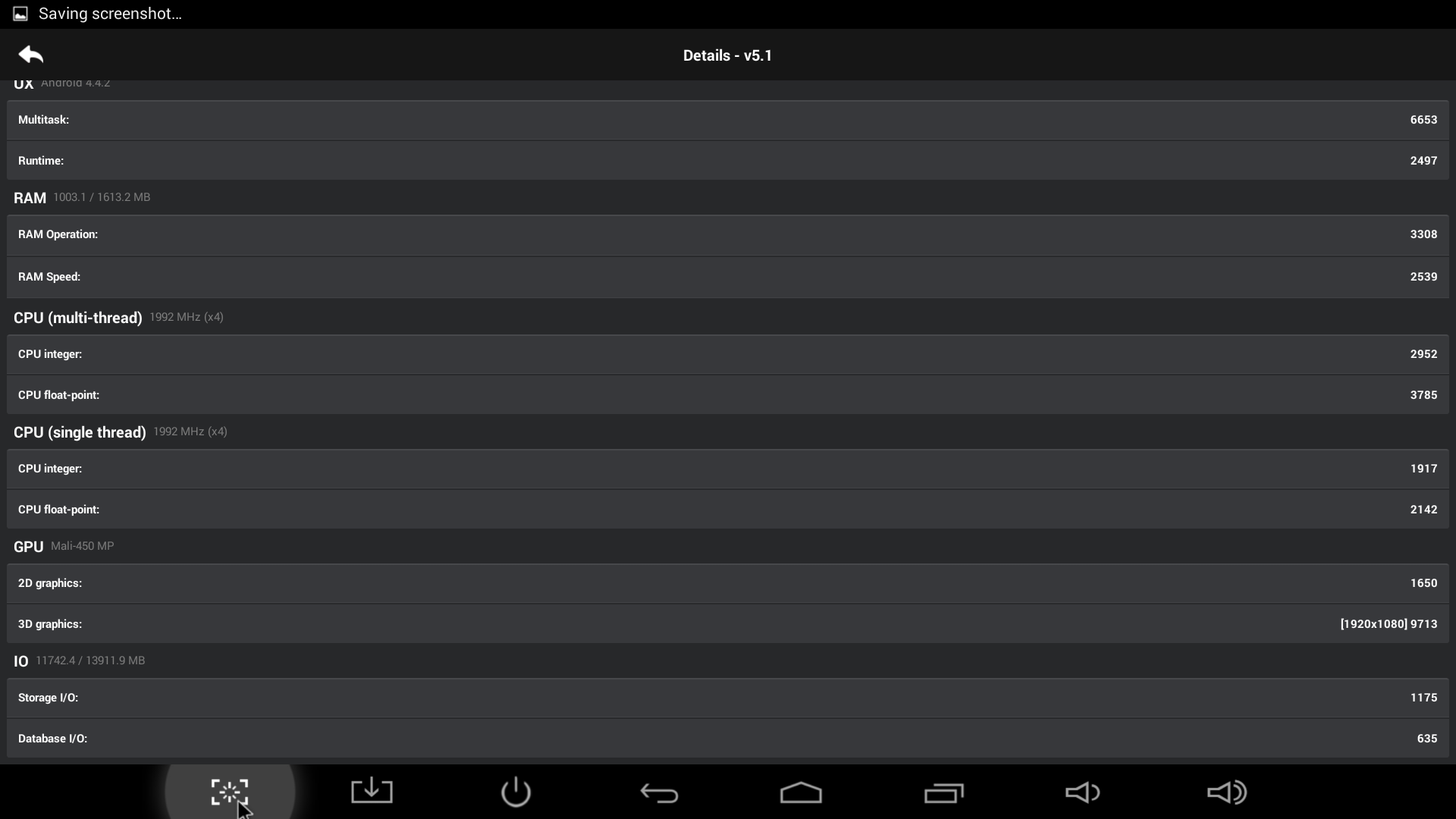

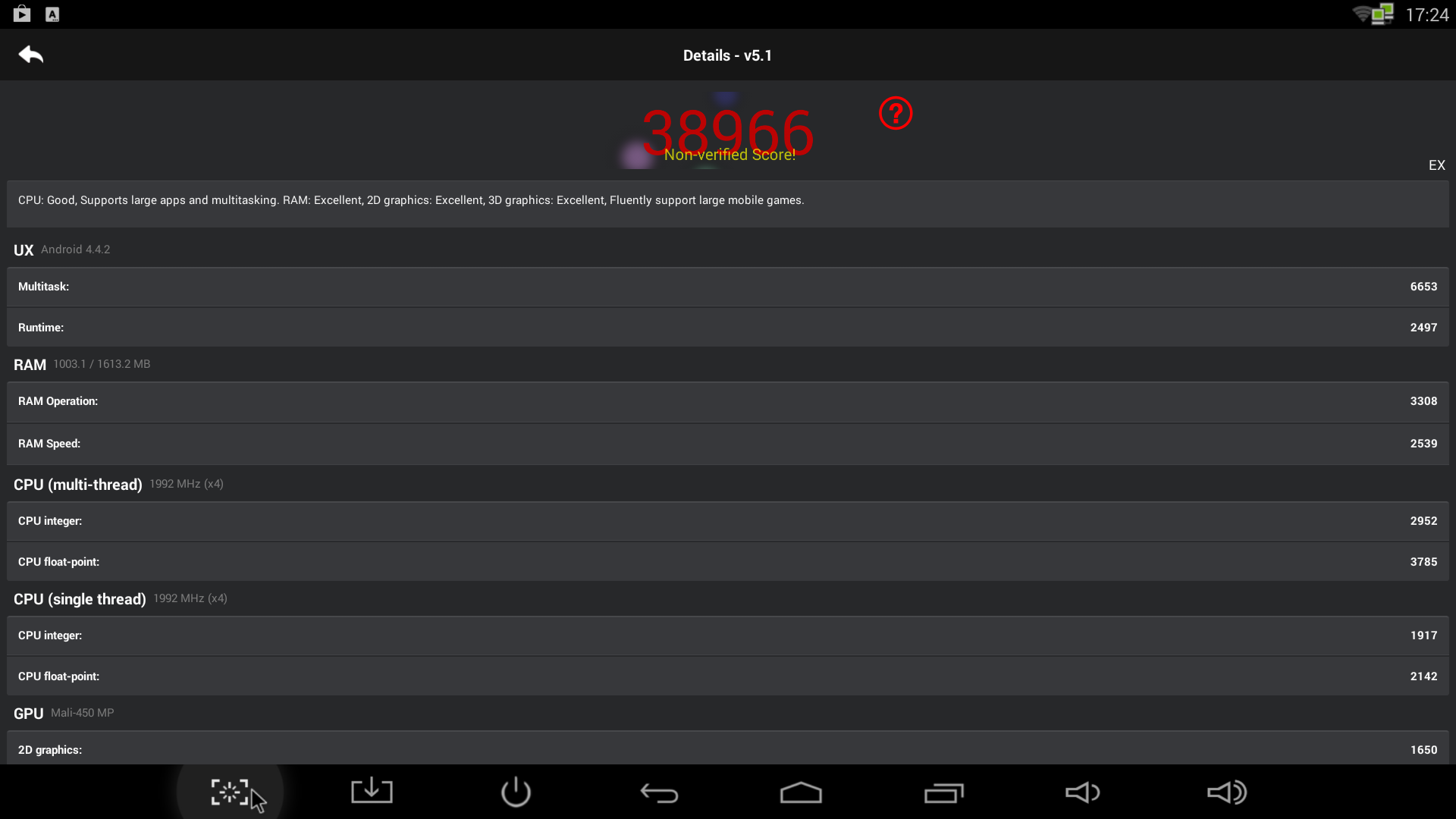

  • Probox2 EX Antutu 5.1 screenshots [1] and [2]

Without much surprise Amlogic S802 is faster than Amlogic S805 for all tests, most of the time well over twice as fast. In Antutu, RAM speed and 2D graphics are “only” about 75% faster with S802. The 2D graphics perfromance may also have impacted the Browser test in Vellamo which is only 34% faster. At first glance, the 3D GPU scores may be confusing. How can an octa core Mali-450 GPU can be three times faster then a quad core Mali-450 GPU in benchmarks. I think the difference may comes from the number of fragment cores rather than the total of GPU cores. I understand Mali-450MP6 used in S802 is comprised of 2 vertex cores and 6 fragment cores, whereas the quad core Mali-450 found in S805 may just have 2 vertex cores, and 2 fragment cores, and the benchmark may be more sensitive to fragment cores, so 6 cores outperform 2 cores by 3 times. At least. that’s my theory.

  1. Jibril
    September 25th, 2014 at 19:02 | #1

    nice comparison…IMHO also a temperature test (over the box and over the heatsink) could be interesting.

  2. twubir
    September 25th, 2014 at 20:12 | #2

    Any link to compare rk3188-s802-AML8726-MX?

  3. September 25th, 2014 at 20:25 | #3

    @Jibril
    I’ve already got some temperature data, but the problem is that it’s device specific, rather than SoC specific:
    After Antutu:
    Tronsmart Vega S89 Elite (S802): Top: 40 °C, bottom: 53 °C
    EM6Q-MXQ (S805): Top: 39°C, bottom: 51°C

    To measure, I just use an infrared thermometer, and I scan the case to find the highest temperature.
    I have not done any measurement directly on the heatsink (might be a problem due to bright color).
    Also bear in my that S805 only has a small heatsink, but S802 products have larger heatsinks.

    The CPU governor is set to performance in EM6Q-MXQ, and it is set to hotplug (ondemand) for S802 devices. I’m not sure how much this could affect power dissipation.

    @twubir
    Not yet, but maybe something I could do soon.

  4. Jibril
    September 25th, 2014 at 21:45 | #4

    @cnxsoft
    thanks

  5. onebir
    September 25th, 2014 at 23:13 | #5

    @cnxsoft
    Comparison (maybe less detailed) with RK3188/3288 would be handy too.

    @twubir
    Now we’re just waiting for Thribir!

  6. AMPC Derp
    September 25th, 2014 at 23:47 | #6

    Would love to see comparison between RK3288 and Amlogic S802. I am looking to get my first mini pc, been holding off to see if RK3288 is more powerful than S802.

  7. September 26th, 2014 at 10:05 | #7

    @AMPC Derp
    I’ve actually already done that, but you’d be forgotten not to have noticed it because it’s hidden in a long review.
    http://www.cnx-software.com/2014/08/27/review-of-uyesee-g1h-rockchip-rk3288-android-tv-box/

    Scroll down below the Antutu benchmark screenshot to see the comparison table.

    When you buy a device, you should not just think about CPU/GPU performance. The internal flash performance is also very important.

    Then there is firmware/software support. If you plan to use XBMC, it’s not quite ready for prime time in RK3288 yet (many issues), but Kodi 14 should fix that. Also note that although 3D GPU benchmarks have similar scores in S802 and RK3288, playing actual games are much better in RK3288, thanks to a higher frame rate.

  8. m][sko
    September 26th, 2014 at 13:37 | #8

    cnxsoft :
    @AMPC Derp
    I’ve actually already done that, but you’d be forgotten not to have noticed it because it’s hidden in a long review.
    http://www.cnx-software.com/2014/08/27/review-of-uyesee-g1h-rockchip-rk3288-android-tv-box/
    Scroll down below the Antutu benchmark screenshot to see the comparison table.
    When you buy a device, you should not just think about CPU/GPU performance. The internal flash performance is also very important.
    Then there is firmware/software support. If you plan to use XBMC, it’s not quite ready for prime time in RK3288 yet (many issues), but Kodi 14 should fix that. Also note that although 3D GPU benchmarks have similar scores in S802 and RK3288, playing actual games are much better in RK3288, thanks to a higher frame rate.

    RK3288 CPU has better architecture and GPU is also higher lever. But as always all depend on software implementation and RK3188 has really bad video pipeline(too much memcopy) so I hope they fix it in RK3288 sdk as there will be big problem for 4K 60fps

  9. m][sko
    September 26th, 2014 at 13:40 | #9

    this is really nice comparison
    If you have some time try som of phoronix benchmarks
    some wav to mp3/aac or video encoding 🙂

  10. twubir
    September 26th, 2014 at 13:53 | #10

    Can somebody explain why tv stick (CS868) has better wifi performance then tv boxes with antenna ??
    @cnxsoft
    it could be very useful
    @onebir
    yeap, today I’ll meet at the bar with him ))

  11. Lusitanv
    September 26th, 2014 at 17:55 | #11

    @cnxsoft I have to agree.

    One seems to forget that most of the s805 devices have hardware decoding for H.265/HEVC where the s802 devices don’t.

    In the real world the s805 with hw H.265 support would be a better choice, considering that this coding will be the future.

    Don’t get me wrong, if the main purpose is gaming or apps I agree with s802, but for XBMC and other video playerss, s805 its better for sure.

  12. Jibril
    September 26th, 2014 at 20:49 | #12

    ok…I’ll wait the s812-h

  13. George Kissoondath
    January 10th, 2017 at 03:49 | #13

    I own a My Gica Quad Core TV Box . The specs say that the CPU is Arm Cortex A9 Quad Core

    GPU Mali-450 Octa -Core Ram 1G DDR3 OS Android 4.4 ( Support OS Upgrade )

    Has an S 802 processor.

    My question : Is this unit 32 bit or 64 bit.

    Thank you for an early reply.

  14. January 10th, 2017 at 09:09 | #14

    @George Kissoondath
    ARM Cortex A9 is a 32-bit core.
    You can check the first chart @ http://www.cnx-software.com/2015/04/09/relative-performance-of-arm-cortex-a-32-bit-and-64-bit-cores/ to see which ARM cores are 32-bit and which ones are 64-bit

  15. Phil
    February 7th, 2017 at 22:07 | #15

    Do I need a wifi connection to use this

  16. February 8th, 2017 at 14:49 | #16

    @Phil
    You can use WiFi or Ethernet for Internet access.
    If you just want to play videos from USB storage, you don’t even any Internet access.
