Unboxing of Eny EM6Q-MXQ Android TV Box Powered by Amlogic S805 Processor

Orange Pi Development Boards

EM6Q-MXQ is an Android TV box based on Amlogic S805 quad core Cortex A5 processor, with a quad core Mali-450MP GPU, 1GB RAM, and 8GB flash. The company sent me a sample for review, so today I’ll start with some pictures, and follow up with a full review in a few days.

EM6Q-MXQ Unboxing Pictures

The box comes with a brand-less “OTT TV BOX” package.
EM6Q-MXQ_Package

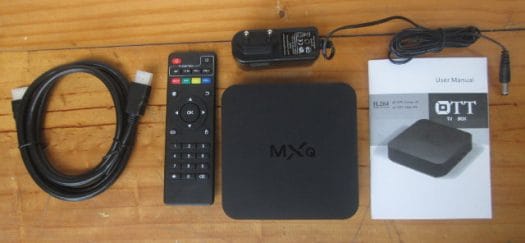

The media player comes with an HDMI cable (1.2m), a remote control requiring two AAA batteries, a 5V/2A power supply, and a user’s manual in English and Chinese.

EM6Q-MXQ and Accessories (Click to Enlarge)
EM6Q-MXQ and Accessories (Click to Enlarge)

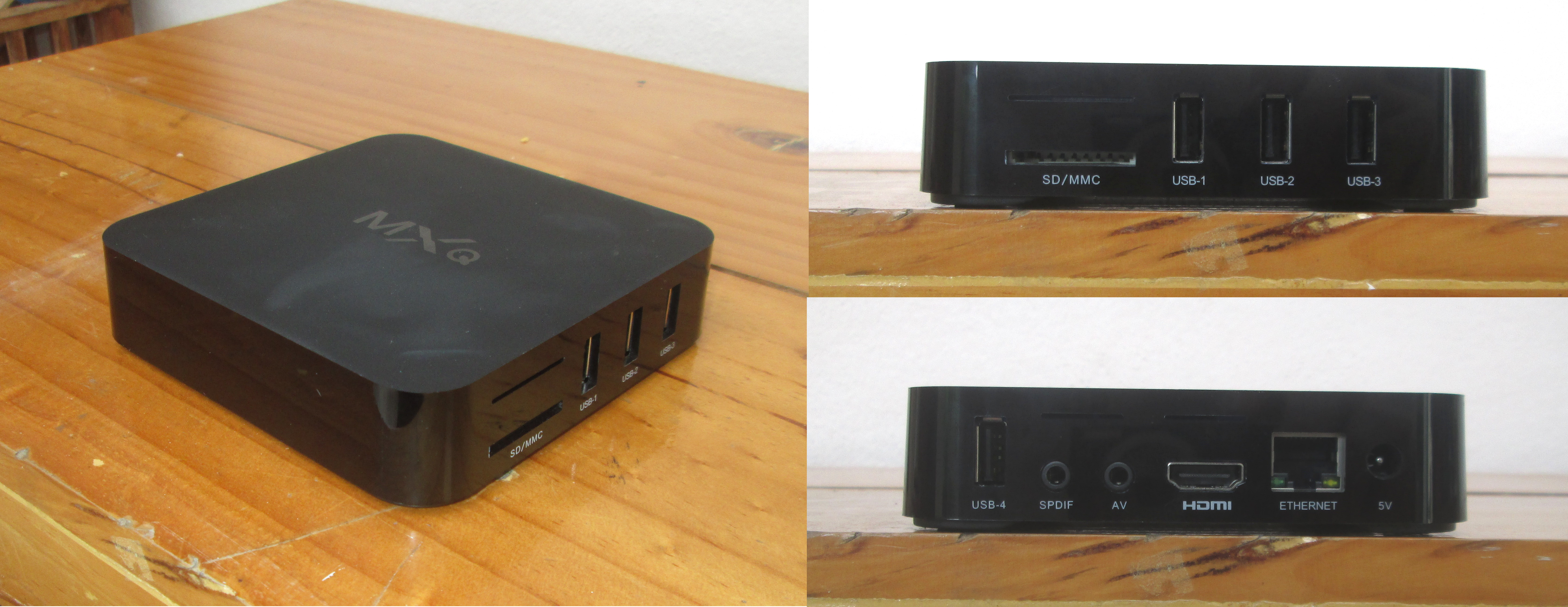

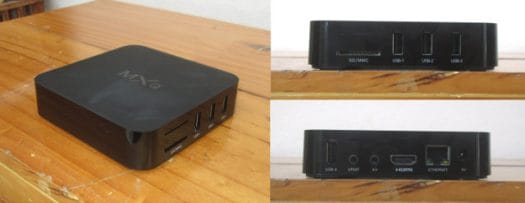

The box features an LED and an IR receiver at the front, 3 USB 2.0 ports and an SD card slot on the side, with most ports on the rear panel: another full size USB port (OTG), coaxial S/PDIF, AV output, HDMI output, 10/100M Ethernet, and DC in.

EM6Q-MXQ (Click to Enlarge)
EM6Q-MXQ (Click to Enlarge)

There’s also MAC address on the bottom of the casing starting with C44EAC that looks up to Shenzhen Shiningworth Technology Co., Ltd found in some other Amlogic products.

Unboxing Video:

EM6Q-MXQ Board / PCBA

Opening the device is fairly easy. You first need to stick out the four rubber pad on the bottom of the enclosure, then untighten the four screws, before pulling out the bottom of the case with a flat screw driver:

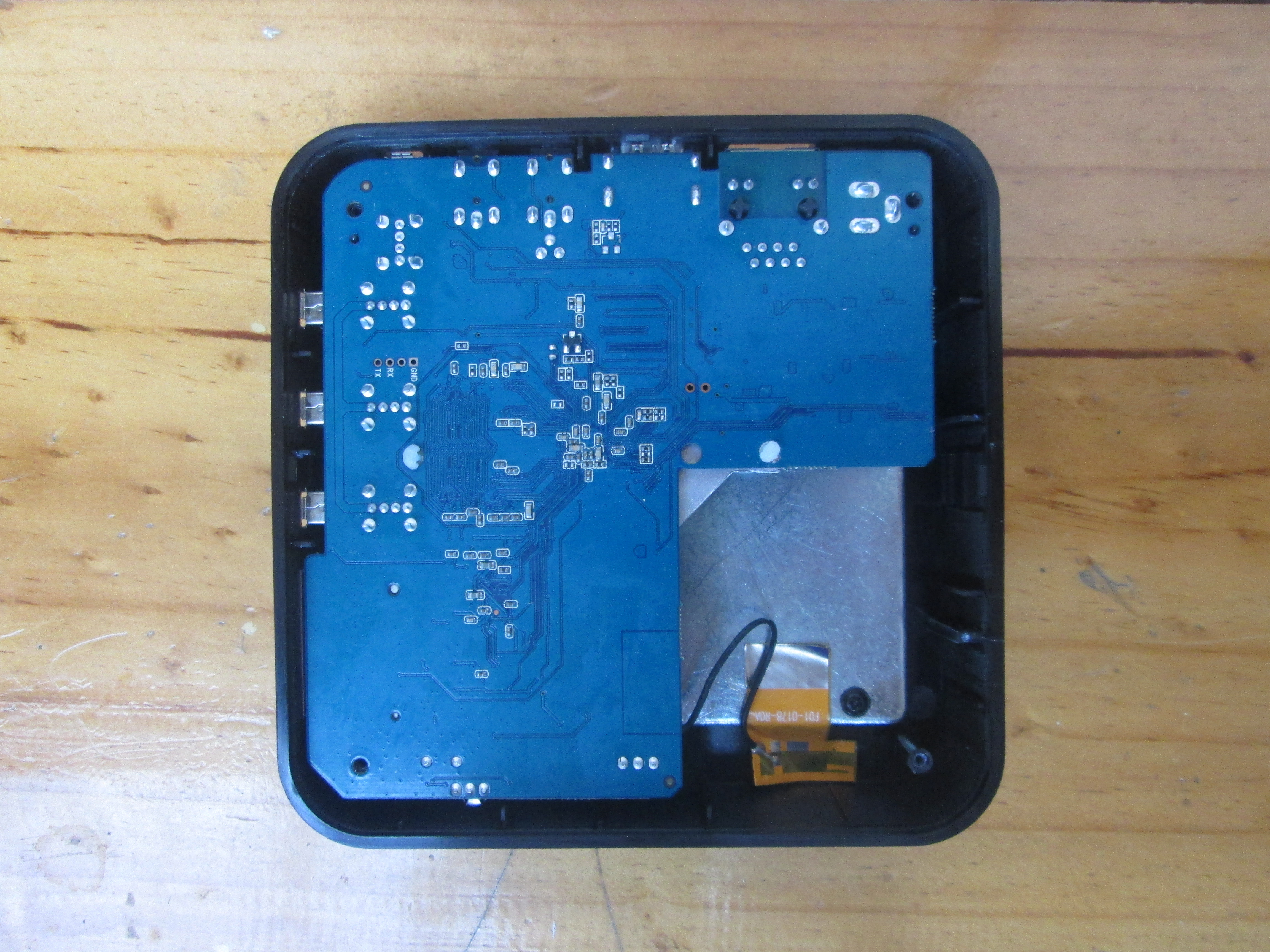

Bottom of EM6Q-MXQ Board (Click to Enlarge)
Bottom of EM6Q-MXQ Board (Click to Enlarge)

Nothing much to see on the bottom of the board, except the serial console pins close to the USB ports.

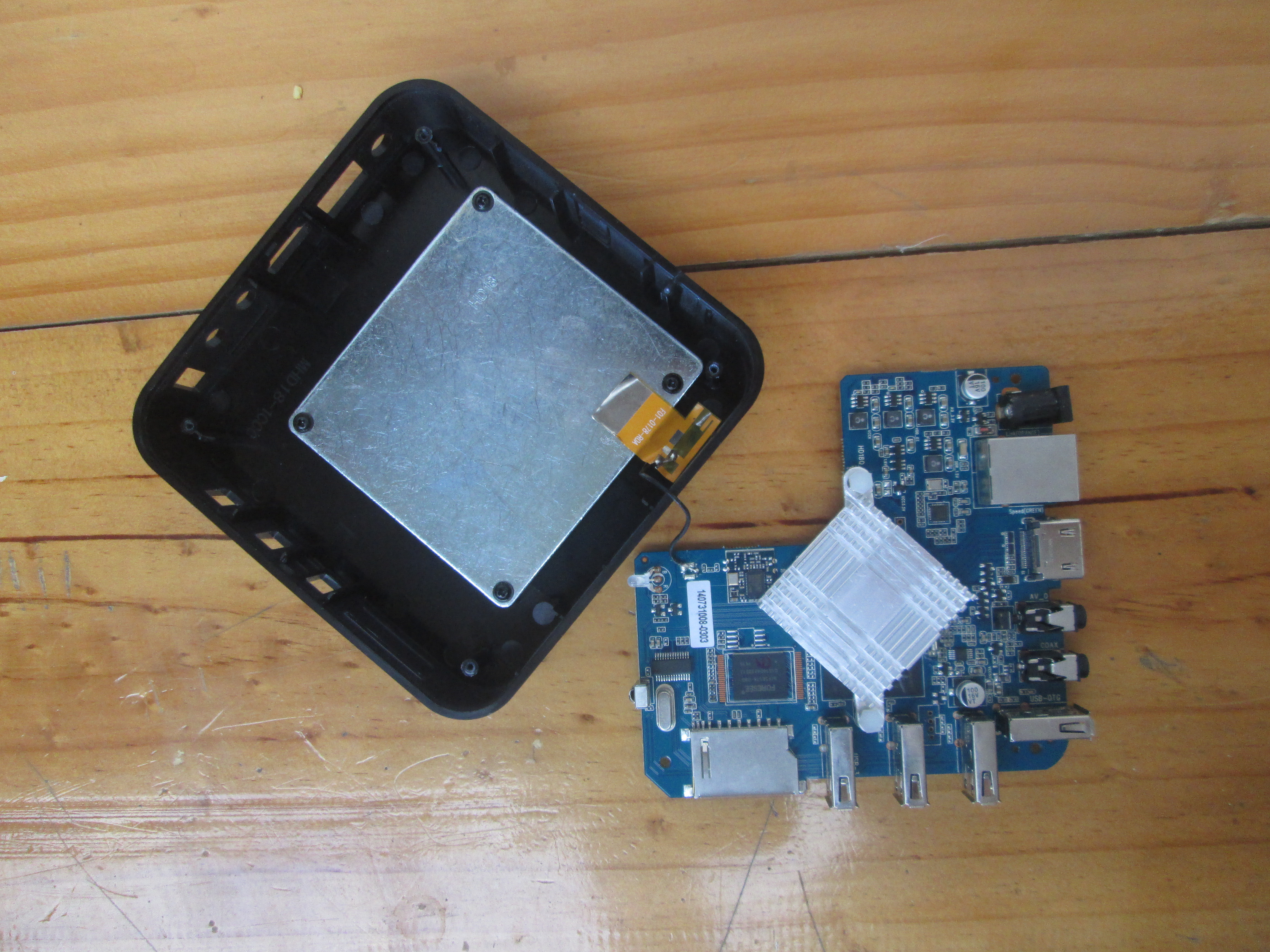

EM6Q-MXQ Board and Stainless Plate (Click to Enlarge)
EM6Q-MXQ Board and Stainless Plate (Click to Enlarge)

There are no other screws to remove, simply pull out the board from the enclosure to take it out. There’s a stainless plate attached to the top of the enclosure, but I’m not sure what its purpose exactly is, because it does not touch anything in the case. I’ve also remove the heatsink to get a real look at the board with marking HD18Q_V0.95.

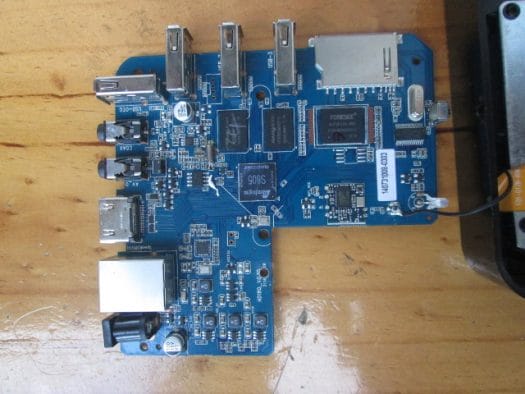

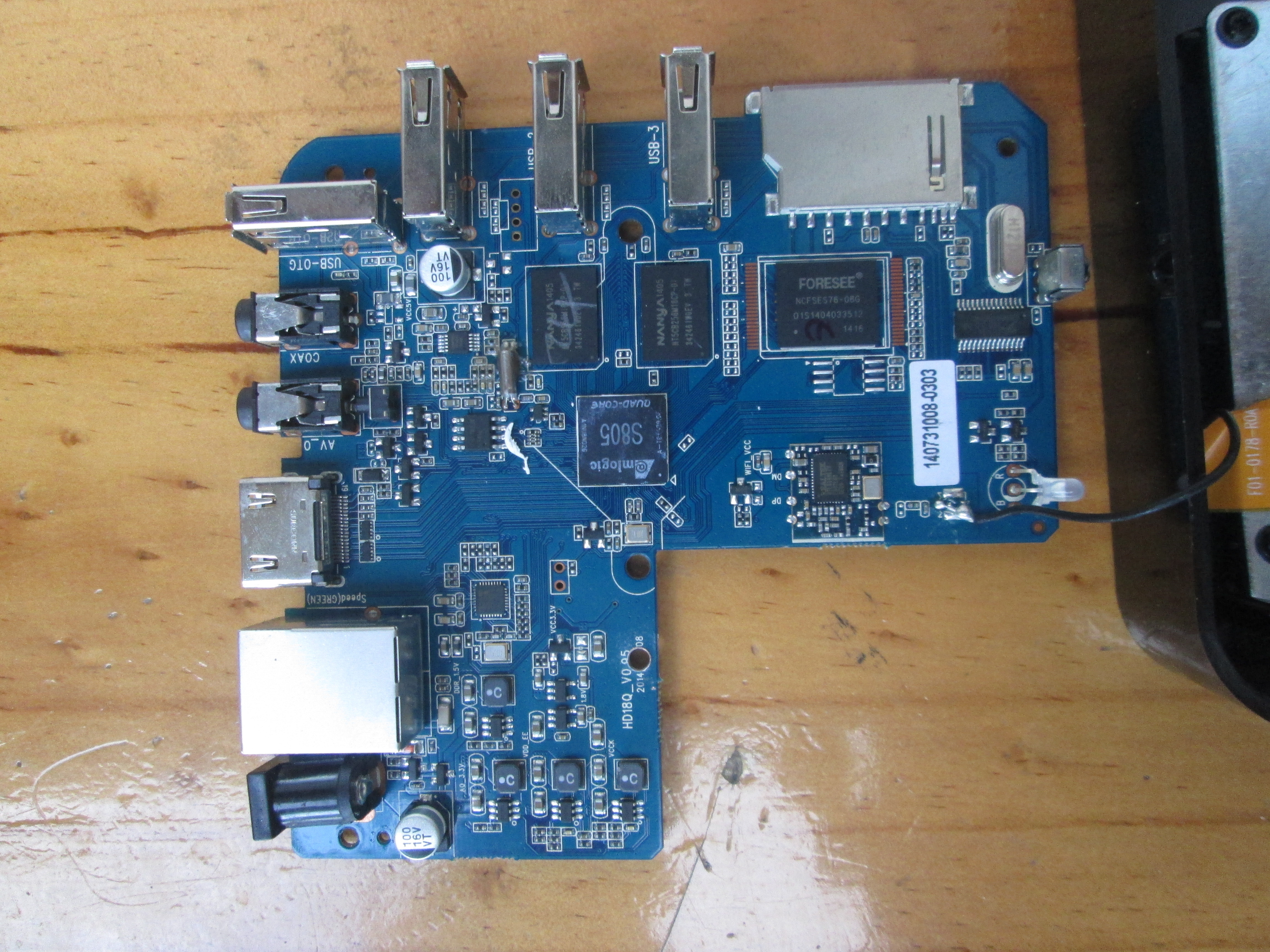

HD18Q Board (Click to Enlarge)
HD18Q Board (Click to Enlarge)

We can get confirmation that USB-4 is indeed a USB OTG port, the recovery button is located right behind the AV output port, and the USB Wi-Fi module is based on Realtek RTL8188ETV. The 8GB eMMC flash is FORESEE NCFSES76-08G, and two RAM chips (NANYA NT5CB256M16CP-01) are used to get 1GB RAM.

Despite the name and enclosure being similar to MXQ S85, both devices are different as one feature optical S/PDIF output, and the other coaxial S/PDIF, and the number of USB ports are different (2x USB + 1x micro USB vs 4x USB). Eny Technology EM6Q-MXQ  can be purchased on Aliexpress for about $70 including shipping (You’ll need to sort between EM6Q-MXQ and MXQ S85 manually by checking the USB port, and/or the Red MX stripe in S85 version). If you are interested in buying in quantities, you can visit EM6Q-MXQ product page to contact the company.
