Focuswill Coolship Board Picture and Main Components List

Tejinder has just sent me a picture of the internal boards of the CoolShip Android keyboard computer. It’s composed of a main board (Keyboard-V2.0) and a CPU module with RK3066, flash and SDRAM chipsets, PMIC, and video decoder..

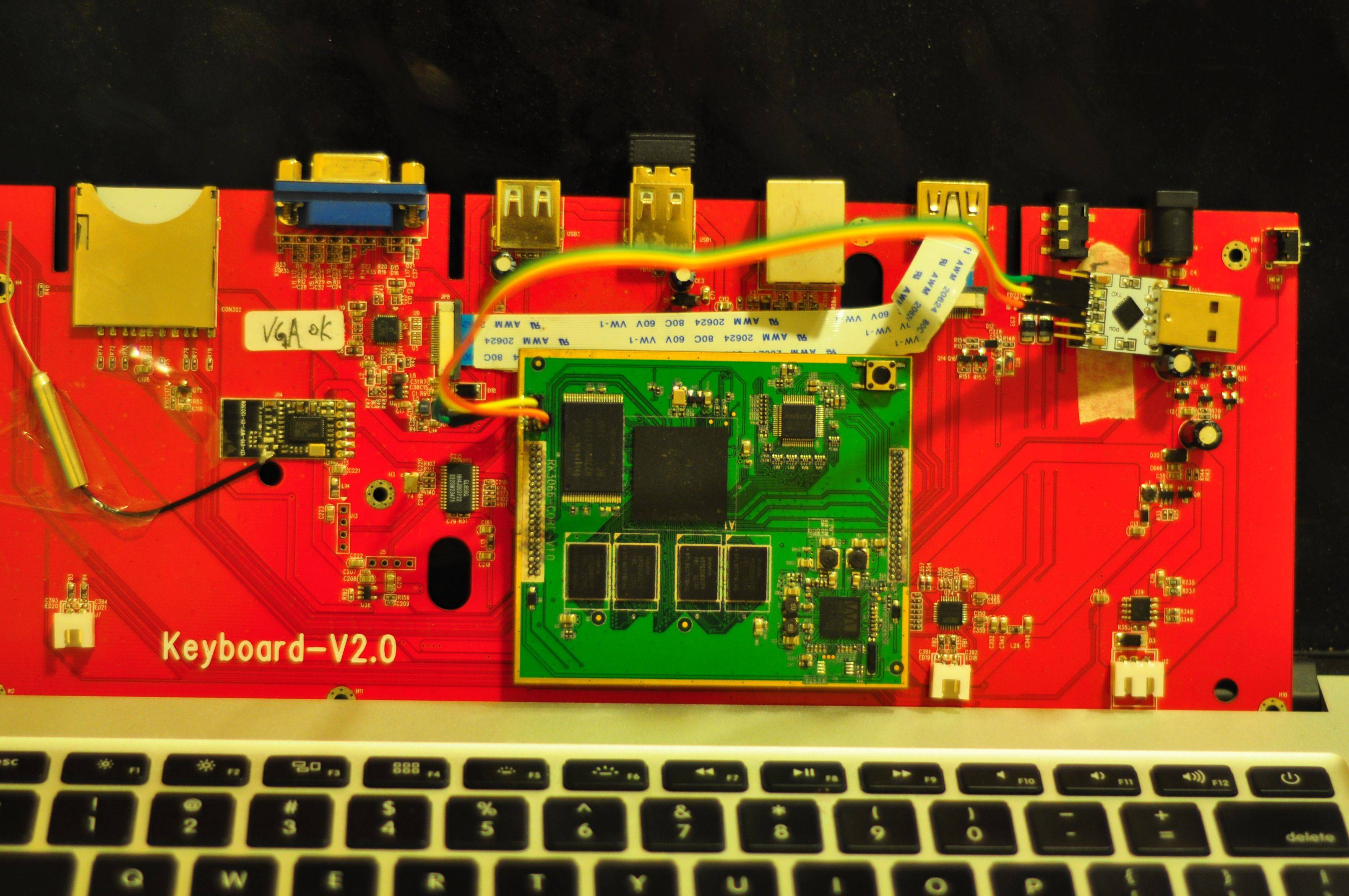

Coolship motherboard and CPU module

Coolship motherboard and CPU module (Click to Enlarge)

Tejinder found the following components on the boards:

  • Processor – Rockchip RK 3066
  • SDRAM – 4x Hynix H5TQ2G83BFR
  • Flash – Hynix h27ubg8t2btr
  • 1080p Video decoder – Rockchip RK1000S
  • PMIC – 1x Wolfson WM8326G
  • DAC – 1x Wolfson WM8960G
  • Wifi chip – RTL8188CTV
  • USB HUB – GL850G

The two 2-pin connector (one on the left, and the other under the DAC) should be for the speakers, and the 3-pin connector on the right goes to a 8-pin IC connected to the power, so it could be the connection to the 300 mAh battery used to handle unexpected power failure.

You’ll also notice he has connected an UART to TTL debug board to the Rockchip CPU module to access to the serial console, so goodness may come out of this 🙂

  1. onebir
    March 22nd, 2013 at 15:53 | #1

    The Coolship SOM design seems to have some advantages over existing standards (eg EDM; see comments in orignal Coolship post). I think Focuswill is quite an innovative company, wish them every success, and could understand if they didn’t want to open source this design – allowing competitors to produce similar products if this catches on.

    But could the SOM setup be reverse engineered to produce an open standard? (& would it be worth it? :s )

  2. March 22nd, 2013 at 16:05 | #2

    Focuswill SoM design may have some advantages for this particular product, but it probably doesn’t have the flexibility of other standards such as EDM or SMARC (previously ULP-COM).

  3. KiLLWarez
    March 23rd, 2013 at 13:35 | #3

    They made vga out but rk3066 doesn’t have it. Its interesting how they done it?

  4. renw0rp
    March 24th, 2013 at 08:20 | #4

    I don’t really understand this wide ribbon cable. I admit I didn’t check their website, anyways it looks strange connecting two points on the same PCB. Did they run out of space on the layers to route it properly? Or it has some deeper meaning which I missed?

  5. March 24th, 2013 at 09:26 | #5

    They must have used the LVDS interface, and used an LVDS to VGA chip for the conversion. There’s a chip on the right on the “VGA OK” sticker, but I can’t read what it is on the picture.
