Wi-Fi Sunglasses with Action Camera based on Ambarella A5 SoC

GoPro launched the action camera craze a few years ago, and many companies made lower cost products inspired my the popular action / sports camera. These can be great, but sometime mounting the camera can be an issue, and a company has decided to make some sort of GoPro sunglasses with a camera and Wi-Fi connectivity, in a style similar to Google glass but for shooting videos only. The OEM product is sold as TC62 on Tinydeals ($250), Iwearcam HD-S568 on Ebay ($210), or G200 on Aliexpress ($387). All these sunglasses look the same and are based on Ambarella A5 SoC, so if you look for ambarella A5 sunglasses on Google, you may find even more model names.

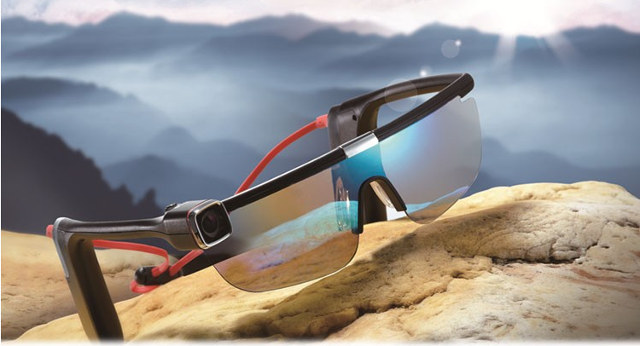

Gopro_SunglassesWi-Fi glasses action camera specifications:

  • SoC – Ambarella A5 SoC
  • System Memory – N/A
  • Storage – N/A GB internal storage + micro SD card slot for videos
  • Camera – 5 or 8MP camera (16MP extrapolated), 140° wide angle lens
  • Video – MP4 @ 1080p30, 720p60, 720p30, or VGA @ 120 fps
  • Audio – Built-in MIC
  • Connectivity – 802.11 b/g/n Wi-Fi
  • USB – mini USB 2.0 port for charging and file transfer
  • Misc – Battery, Wi-Fi and Power LEDs, reset button, mode switch, and vibrator.
  • Battery800mAh polymer lithium battery
  • Dimensions – 160 x 170 x 40 mm
  • Weight: 120 g

The sunglasses are sold with a USB cable, a power adapter, a user’s manual, four lenses with different colors, and an optional 2.4GHz wireless remote control (range up to 50 meters) with “inquiry key”,  “shutter key” and a “dual color indicator”. The remote control is included on the Ebay listing, but apparently not on Tinydeal.

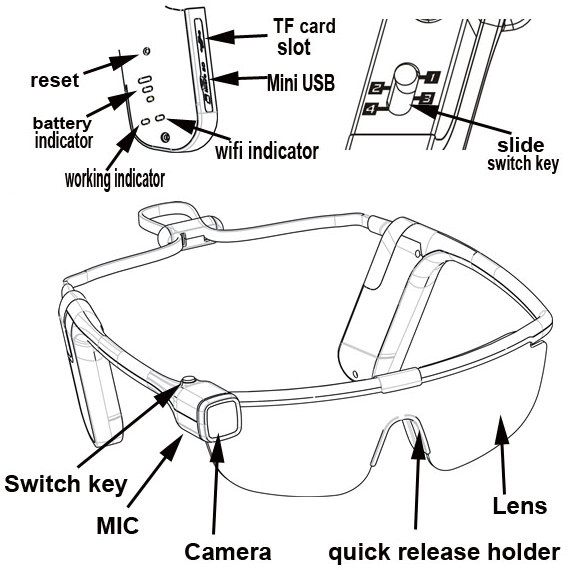

Sports_Action_Camera_Glasses_Description

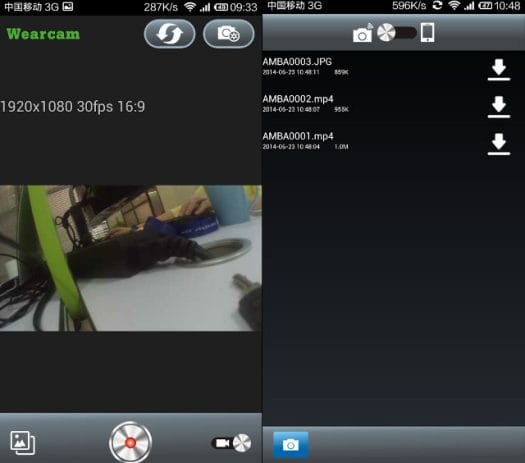

You can also watch the live output from the camera, and configure your glasses over Wi-Fi by installing Wearcam app for Android or iOS. Shenzhen ZSbrother Technology designed the apps, but they’re most probably not the manufacturer, as they seem to be a software development company.

Wearcam_Android
Wearcam_Android

The manufacturer is likely to be Shenzhen Lireder Industrial, which did not list the sunglasses on their website, but did so on Alibaba.

Thanks to onebir for the tip.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK Pi 4C Plus
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
1 Comment
oldest
newest
onebir
onebir
9 years ago

Amberella A5 has already been used in some car DVRs (high-end ones I think); there are some sample videos on youtube:
http://www.youtube.com/watch?v=6FFCF-Zwoi4

(I guess other factors – not least the camera – could affect quality from this implementation, but this gives some idea what it might be like.)
