Eny EVR01 Android All-in-One Virtual Reality Headset Features Rockchip RK3126 Processor

I keep reading that in order to offer a pleasant user experience, virtual reality will require high resolution displays (4K or greater), and SoCs fast enough to handle all the extra data processing requirements, but some Chinese manufacturers are instead trying to enter the low end of the market with products such as Allwinner H8vr or HA544 which are way too weak to handle 3D graphics for VR applications in a satisfying manner, but could be good enough for watching 3D and VR video. Eny Technology has gone one step further (down) with EVR01 VR headset based on Rockchip RK3126 quad core Cortex A7 processor combined with a 5″ 1280×720 display.

Click to Enlarge
Click to Enlarge

EVR01 AIO VR headset specifications:

  • SoC – Rockchip RK3126 quad core Cortex A7 processor @ 1.3 GHz with Mali-400MP2 GPU
  • System Memory – 1GB DDR3 (Optional 512 MB)
  • Storage – 8GB flash (Optional: 16GB) + micro SD slot up to 64GB
  • Display – 5″, 1280 x 720 resolution
  • Lenses
    • 2x aspherical lenses usable with myopia under 300 degrees
    • Diameter – 40mm
    • At least 90 degrees field of view (FOV)
    • material – highly transparent resin
  • Connectivity – 802.11 b/g/n WiFi and Bluetooth 4.0
  • Audio Output – 3.5 mm audio jack for headphones
  • USB – 1x micro USB 2.0 port
  • Sensors – Gravity and acceleration sensor

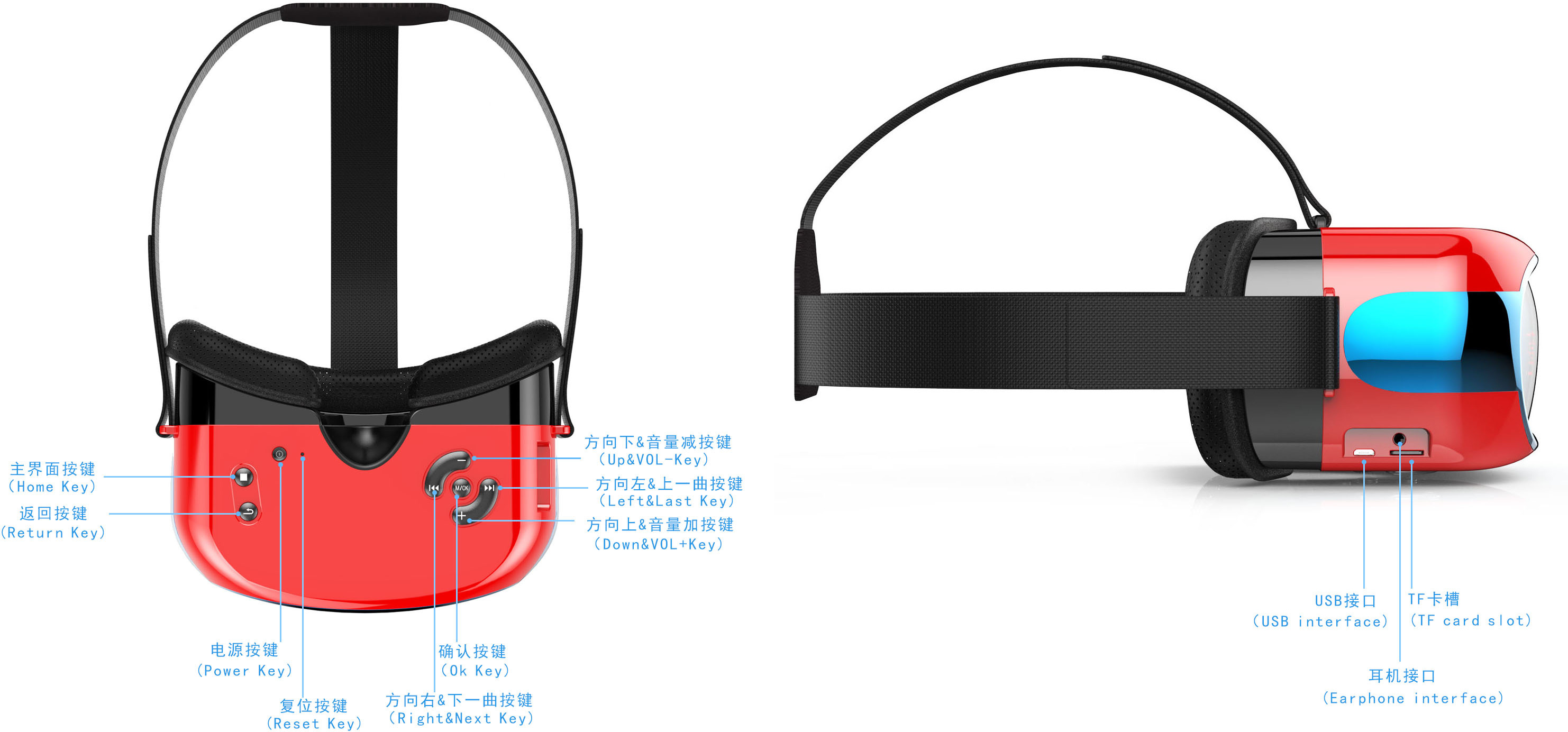

  • Misc – Adjustable headband; Home, return, volume, power, reset, OK, and arrow keys.
  • Power – 5V/2A via micro USB port
  • Battery – 2,200 mAh Lithium Ion polymer battery good for 3 hours and a half of continuous use
  • Dimensions – 271 x 193 x 150 mm
  • Weight – N/A

The headset runs Android 5.1.

Click to Enlarge
Click to Enlarge

I’ve been told the sample price is $80, and lower in higher quantity. A few more details may be available on the product page, where you can also enquire Eny if you are interested in purchasing in volume.

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard

6 Replies to “Eny EVR01 Android All-in-One Virtual Reality Headset Features Rockchip RK3126 Processor”

  1. Looks like a total waste of money to me. VR displays need to be at least 1080p quality or it’s just going to be horrible to watch using it. I tried on low resolutions with VR lenses (big display 720p) and could clearly see the lack of pixels. With that said I would say the refresh rate is what is important, as you will get nauseated when the brain reacts to what is happening on the screen.

    For a cheap VR experience we should probably stick with phones as they have gyroscopes too, but should be easy to do in a kit like this. It would be a 1080p screen with minimum 60 Hz playing back 60fps and it could be useable for watching/playing VR games for short periods of time. Preferably would be a solution where we could plug the screen to our computer GPU/CPU so that could take care of the processing. Like a screen with displayport input? Not doable? I guess I’m just a dreamer when it comes to the niche of VR.
