Linaro Home Group Releases “AOSP” Android TV for Hikey Board

The Linaro Home Group (LHG) was setup to work on “open source software for ARM-based set top boxes, smart TVs, media boxes, TV dongles and home gateway products”, and after having worked on OP-TEE (Open Portable Trusted Environment Execution) firmware as one of their first endeavors, they’ve now ported Android Open Source Project (AOSP) Android TV to 96Boards compliant Hikey board.

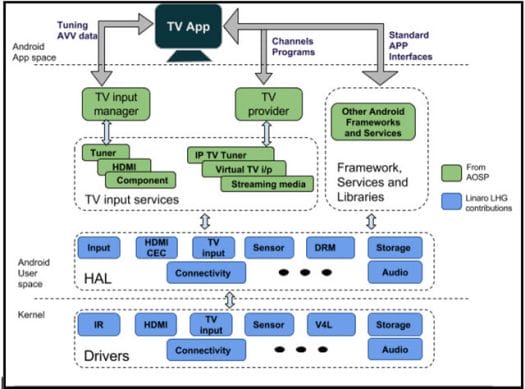

Click to Enlarge

Android TV is based on Android, but adds the TV Input Framework and the Lean Back APIs with the user interface designed for larger displays. LHG has not changed the apps and higher level software from AOSP, but they’ve made sure it could work on Hikey board by working on the Linux drivers and Android user space stack to make sure the Live TV App and Android TV Channel Service implemented in AOSP can work properly on the hardware.

If you want to try it on your own Hikey board, you can do so by building AOSP Android TV from sources.

Hikey Board – Click to Enlarge

Now that does not mean any random Chinese TV box manufacturer will be able to ship TV boxes running “Android TV” instead of Android for phone or tablet, as AOSP lacks Google Mobile Services (GMS), and Android TV solutions must be licensed and approved by Google, and must pass various tests such as the Android Compatibility Test Suite (CTS), the Compatibility Definition Document (CDD) and various audio & video performance criteria. But at least most of the low level software should be taken care of, so it would simplify and speed up development.

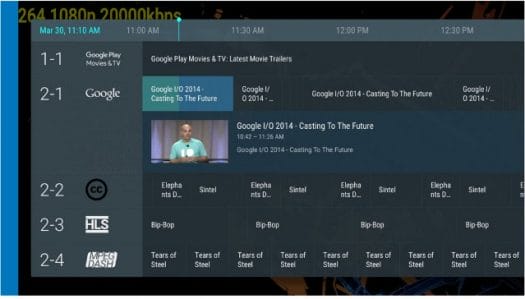

Android TV Sample App – Click to Enlarge

Hikey board hardware complies with 96Boards “Consumer Edition” specifications, but lacks typical TV box features such as an IR receiver, which is why 96Boards TV Platform specifications were published last year. LHG probably started with Hikey because development has been going on for a longer time, and the platform is more mature, but one of the next steps will be to work on 96Boards TV Platform compliant boards such as HiSilicon Poplar board.
