Beelink Gmini1 and S2 Gemini Lake Mini PCs Support 2.5″ SATA Drives

Beelink is now showcasing two upcoming Intel Gemini Lake based mini PC at the Hong Kong Electronics Fair 2018.

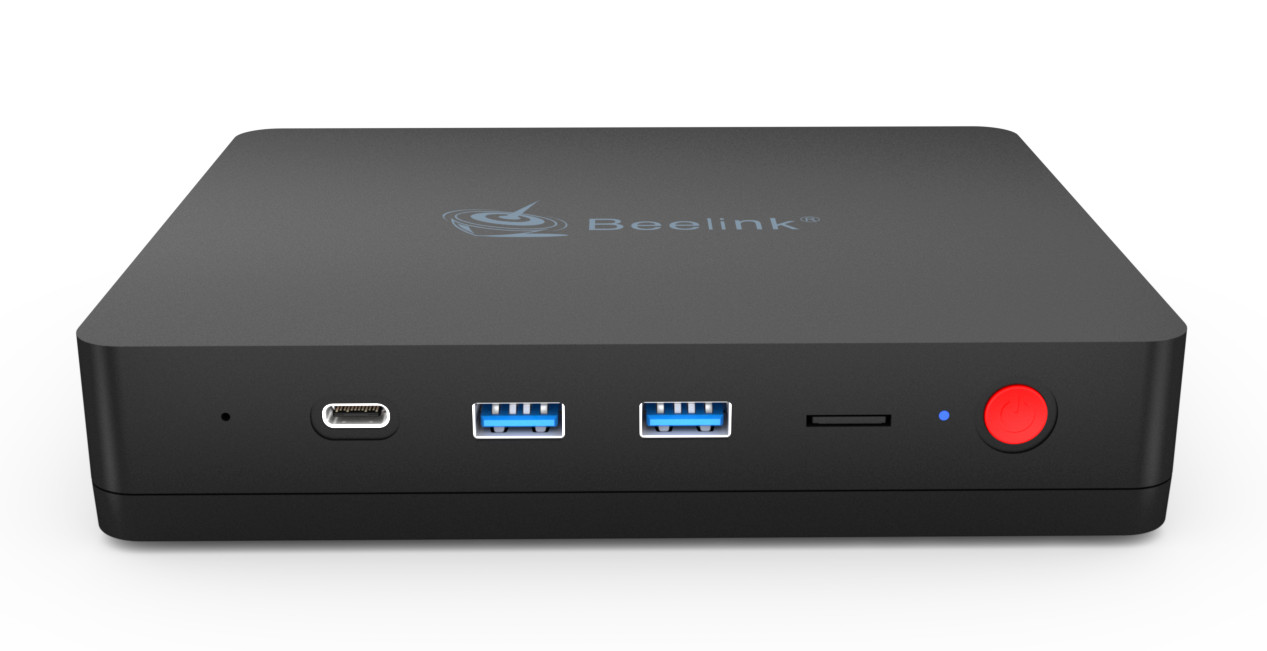

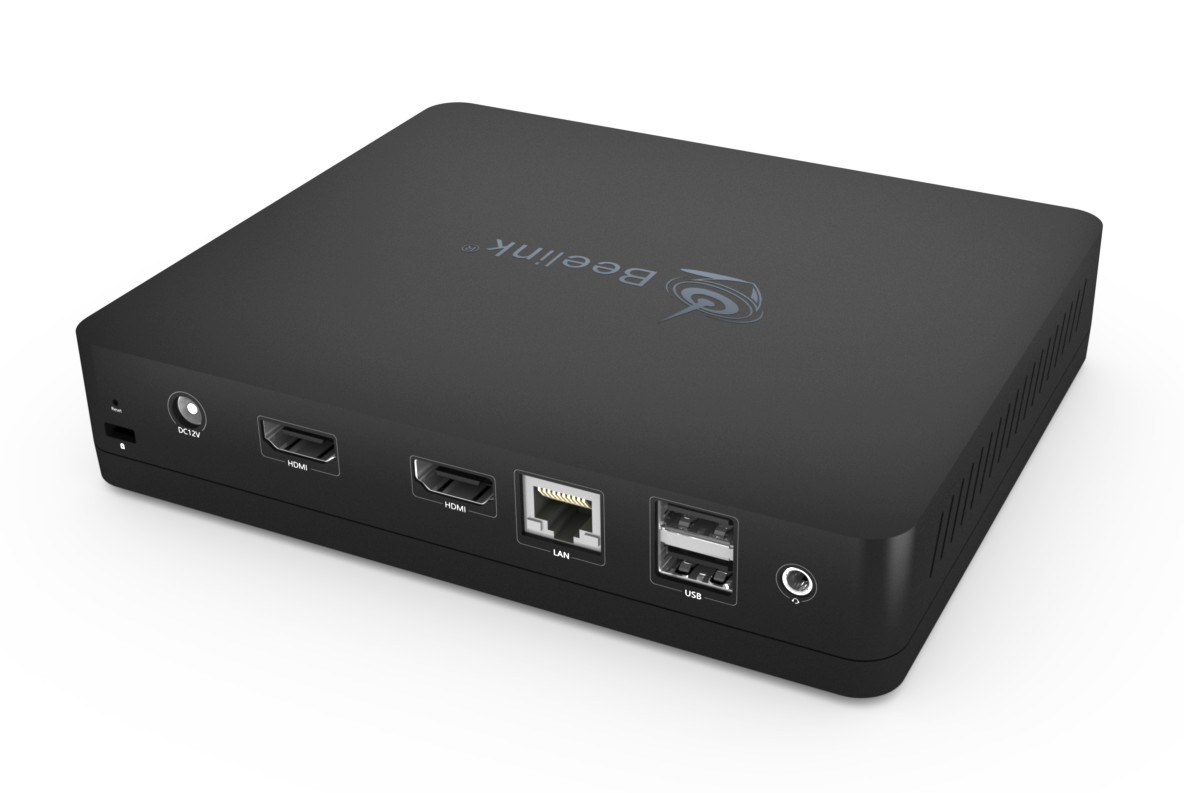

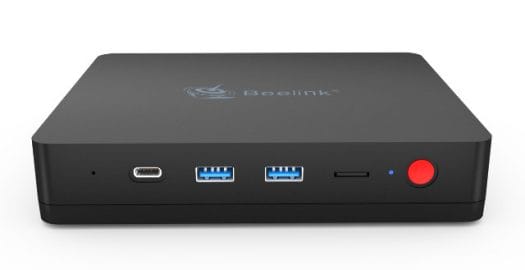

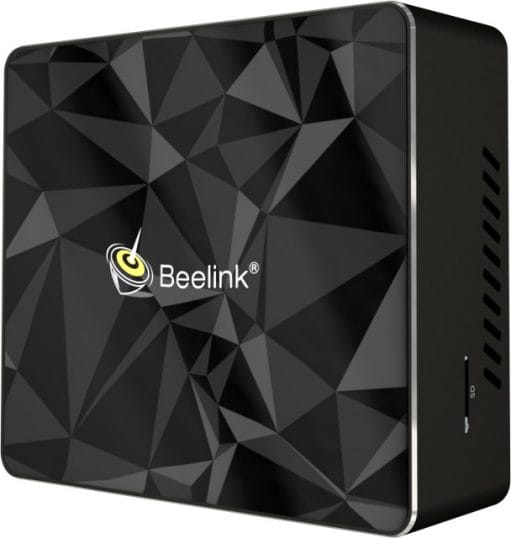

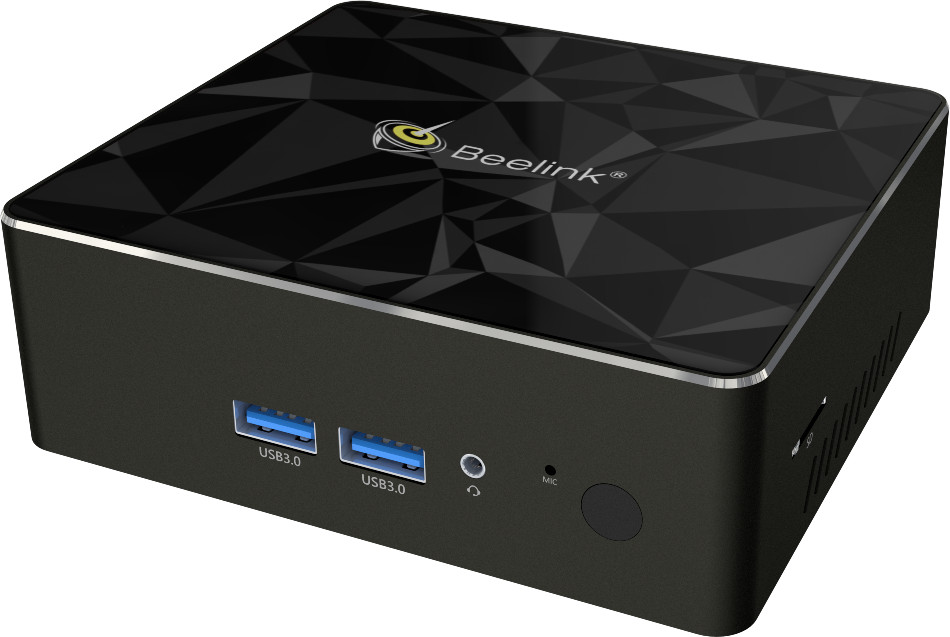

Beelink Gmini1 is a compact actively cooled mini PC powered by Intel Celeron J4105 processor with dual HDMI output, and a 2.5″ SATA bay, while Beelink S2 is a larger – yet thinner – fanless model based on Celeron N4100 processor, also equipped with SATA bay, but instead featuring HDMI and VGA video output ports.

Specifications:

  • SoC – Intel Celeron J4105 quad core processor up to 2.5 GHz with Intel UHD Graphics 600; 10W TDP
  • System Memory – 4GB DDR4
  • Storage – 32GB eMMC flash, 2.5″ SATA bay, micro SD card slot
  • Video Output – 2x HDMI ports
  • Audio – Via HDMI ports, built-in microphone, 3.5mm audio jack
  • Connectivity – Gigabit Ethernet, dual band 802.11a/b/g/n/ac WiFi, Bluetooth 4.0
  • USB – 4x USB 3.0 ports
  • Misc – Power button
  • Power Supply – 12V/3A DC

Click to Enlarge

Specifications:

Click to Enlarge
  • SoC – Intel Celeron N4100 quad core processor up to 2.4 GHz with Intel UHD Graphics 600; 6W TDP
  • System Memory – 4GB DDR4
  • Storage – 32 or 64GB eMMC flash, 2.5″ SATA bay, M.2 SSD slot, micro SD card
  • Video Output – 1x HDMI, 1x VGA
  • Audio – Via HDMI, built-in microphone, 3.5mm audio jack
  • Connectivity – Gigabit Ethernet, dual band 802.11a/b/g/n/ac WiFi, Bluetooth 4.0
  • USB – 2x USB 3.0 ports, 2x USB 2.0 ports, 1x USB type C port
  • Misc – Power button and LED
  • Power Supply – 12V/3A DC

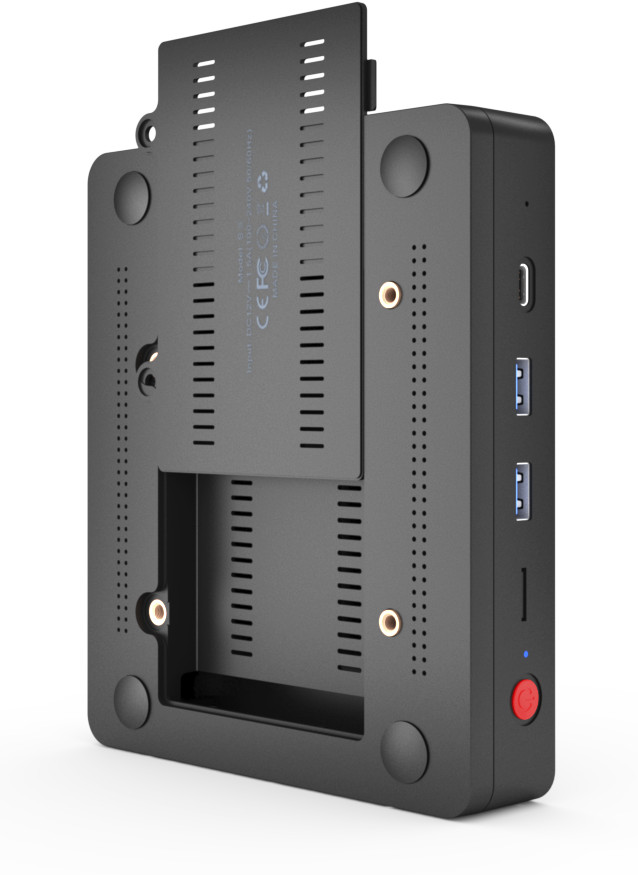

Two screws hole for VESA mount are also present on each side of the  cover for the hard drive.

Click to Enlarge

Both mini PCs will run Windows 10, and support Cortana with their built-in microphone.

Beelink S2 is basically ready, since they’ll start mass production in mid April, and Beelink Gmini1 is scheduled for the beginning of May. The company told me over Skype that pricing is yet to be confirmed.

Notebook Italia also uploaded a YouTube video about the new Beelink mini PCs introduced in Hong Kong.

Leave a Reply

3 Comments on "Beelink Gmini1 and S2 Gemini Lake Mini PCs Support 2.5″ SATA Drives"

avatar
  Subscribe
newest oldest most voted
Notify of
Ron
Guest

Previous Beelink models had an option for the user to add RAM – making it dual-channel (which increases the graphic performance quite a lot). So do these models have this option?

Is it HDMI 2.0? It should be (for Gemini lake).

Pity that a M2 slot is not available for the Gmini1 model.

It’s weird that the addition of USB-C (for the S2 model as opposed to the Gmini1 model) comes at the expense of USB 3.0 speed (for 2 ports) and the replacement of one HDMI port to a VGA port (but maybe the VGA situation didn’t result from a necessity, and they just thought that some people would prefer a VGA port for old projectors).

Paul M
Guest

Also, it would be nice to know if the HDMI supported CEC properly, and what surround-sound modes too (shame there’s no S/PDIF port)

Ron
Guest

So maybe all of the usb ports of the S2 model are ver 3.0 after all.

Because there is a very similar model – Alfawise T1 (is it just Beelink at a different name, for gearbest?), which states that it has 4 usb 3.0 ports:
https://www.gearbest.com/mini-pc/pp_1698829.html
