Want Long WiFi Range? This $10 Directional Antenna Should Help

A typical WiFi router range is limited to around 50 meters, and even less in a building with walls and competing WiFi routers. But it’s also possible to use WiFi for longer range communication, and for example, CNLohr managed to get an ESP8266 module answering ping requests over 4km away with a powerful antenna that is supposed to allow for up to 20km range and costs around $80 (NB-2G18 model).

But if you’re budget is more limited, Banggood has started to sell a “10dB directional antenna” for $9.84 shipped. It is said to be for TTGO ESP32 board, but I don’t see why if would not work with other WIFI boards with a u.FL or SMA connector.

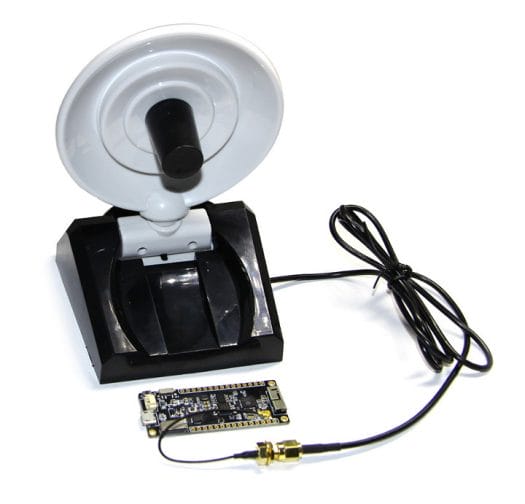

ESP32 WiFi Directional Antenna
Board not included

Specifications listed for the antenna:

  • Frequency – 2400~2500MHz
  • S.W.R.: <=1.5
  • Antenna Gain – 10dbi
  • Radiation – Directional antenna
  • Polarization – Linear
  • Impedance – 50 Ohm
  • Wire distance – 1m
  • Connector: IPEX

The main cable features an SMA connector, but if the photos are to be believed a shorter SMA to u.FL cable is also provided, so it should work out of the box with most WiFi boards supporting external antennas. It’s also designed to be wall-mounted. It should be interesting to find out what type of range people playing with this antenna can get.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard

Radxa ROCK 5C (Lite) SBC with Rockchip RK3588 / RK3582 SoC
Notify of
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
5 years ago

It should be interesting to find out what type of range CNX SOFT playing with this antenna can get….

5 years ago

Antenna design is a science and has nothing magic, this toy shoud have zero dBi gain or something like.

5 years ago

I remember a review of a identical model that turn out to be a scam…

5 years ago

I built a 2 foot yagi antenna, back when 2.4GHz was all the rage. I used it to connect to hotspots in cafes and restaurants…got free wifi at home for years. Even downtown in a city I was able to connect to hotspots as much as 15 blocks away and as much as 8 storeys up.
