Millitronic MG360 is a WiGig 802.11ad USB Adapter

Orange Pi Development Boards

802.11ad was announced in 2016 as a new WiFi standard supporting 60 GHz frequency and up to 7 Gbps throughput, but it has recently been superseded by the backward compatible but further improved 802.11ay allowing up to 100 Gbps bandwidth, and 300 to 500 meters range in theory. The new standard is supported by Qualcomm QCA64x8 and QCA64x1 WiFi chipsets that can handle up to 10 Gbps, and found in Snapdragon 855 mobile processor.

If you want your network to benefit from 802.11ad WiFi – 802.11ay is not quite available yet – , you’ll first new a compatible router such as NETGEAR Nighthawk X10 AD7200 router, and end nodes supporting 802.11ad WiFi as well as. But most device on the market don’t, and in theory you should be able to add 802.11ad WiFi to any device with a USB 3.0 port, but it turns out there aren’t that many 802.11ad USB adapters on the market, and this morning I came across Millitronic MG360 802.11ad USB dongle listed for $89.00 on Seeed Studio.

Millitronic 802.11ad USB adapter

Key features of Millitronic MG360 802.11ad USB adapter:

  • WiFi 802.11ad Compliance
  • Operates with channels 1/2/3
  • Single Carrier
  • Adaptive 360 Degree Beamforming
  • Up To 2Gbps bandwidth
  • WPA2 Personal Wireless Encryption
  • Internal Storage – 8GB
  • USB3.0 Type A port

The dongle is said to be compatible with the few 802.11ad router available on the market including the aforementioned NETGEAR R9000, as well as NETGEAR XR700 and TP-Link Talon AD7200. The product listing reports Windows 10 is supported, and while I can’t find specific Linux support for 802.11ad USB device, support was added for wil6210 802.11ad PCIe card based on Qualcomm chipset.

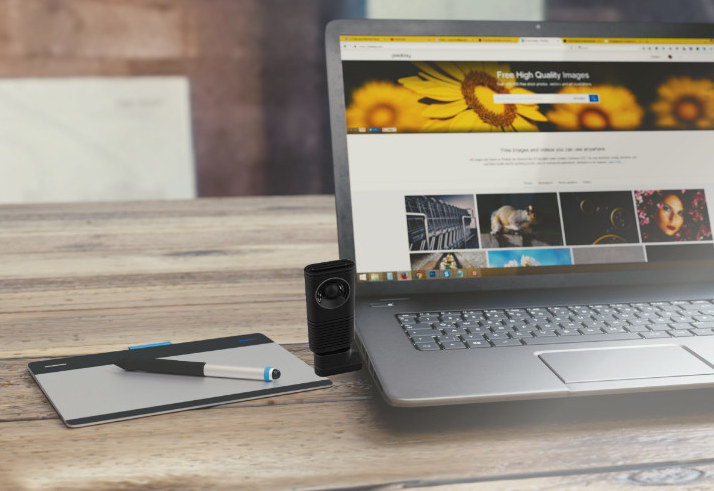

802.11ad usb dongle laptop

802.11ad does not go well through walls when operating at 60 GHz, so it’s suitable for same room high speed, low latency (<10 ms) WiFi connectivity for example to stream 4K videos, perform large backups, and play games.

If you are based in the US, an alternative way to purchase the dongle will be on Newegg, which sadly is currently out of stock.

Support CNX Software - Donate via PayPal or become a Patron on Patreon

4
Leave a Reply

avatar
2 Comment threads
2 Thread replies
0 Followers

Most reacted comment
Hottest comment thread
3 Comment authors
Frank Septiccnxsoftwilly Recent comment authors
  Subscribe
newest oldest most voted
Notify of
willy
Guest
willy

I find it fun that 10ms is noted as a low latency for a same room, it’s the time it takes to ping a 1000 km distant machine ūüôā A normal latency on a local network is mostly around 50-100 microseconds, mostly due to interrupt processing in the NICs and CPU wake-up from idle. You usually count 1 microsecond per switch port. Over WiFi it’s often higher but not that much, my outdated 802.11g supplied by an AR9311 based GLInet device at the other side of the house still allows me to ping it at 1.5-1.8 ms.

Frank Septic
Guest
Frank Septic

It is a great comfort and reassurance to read in the product description on the SeeedStudio web page that the Millitronic M360 is

“All in black”

(even thought the USB plug part is clearly silver in the photograph, and so the statement is a lie/mistruth/false statement/alternative fact)

and so is

“Calm and Restrained”

and

“Suitable everyone”

Were the product to have not been “all in black”, there may have been a potential for it to induce tension, trauma, hyperventilation, and/or panic attacks in some people.
