TTGO T-Camera ESP32 Camera Board Comes with OLED Display, Sensors

ESP32 is now being used for AI workloads such as face detection with camera boards like ESP32-CAM, or the upcoming ESP-EYE board from Espressif Systems themselves, combined with ESP-WHO face detection and recognition framework.

The two aforementioned board require you to use a phone to vizualize the results, unless you blink some LEDs or connect your own display. But the just released TTGO T-Camera board includes a 128×64 OLED display which should allow you to display face detection and/or recognition results, as well as a BME280 environmental sensor, a PIR sensor, and an optional fisheye lens.

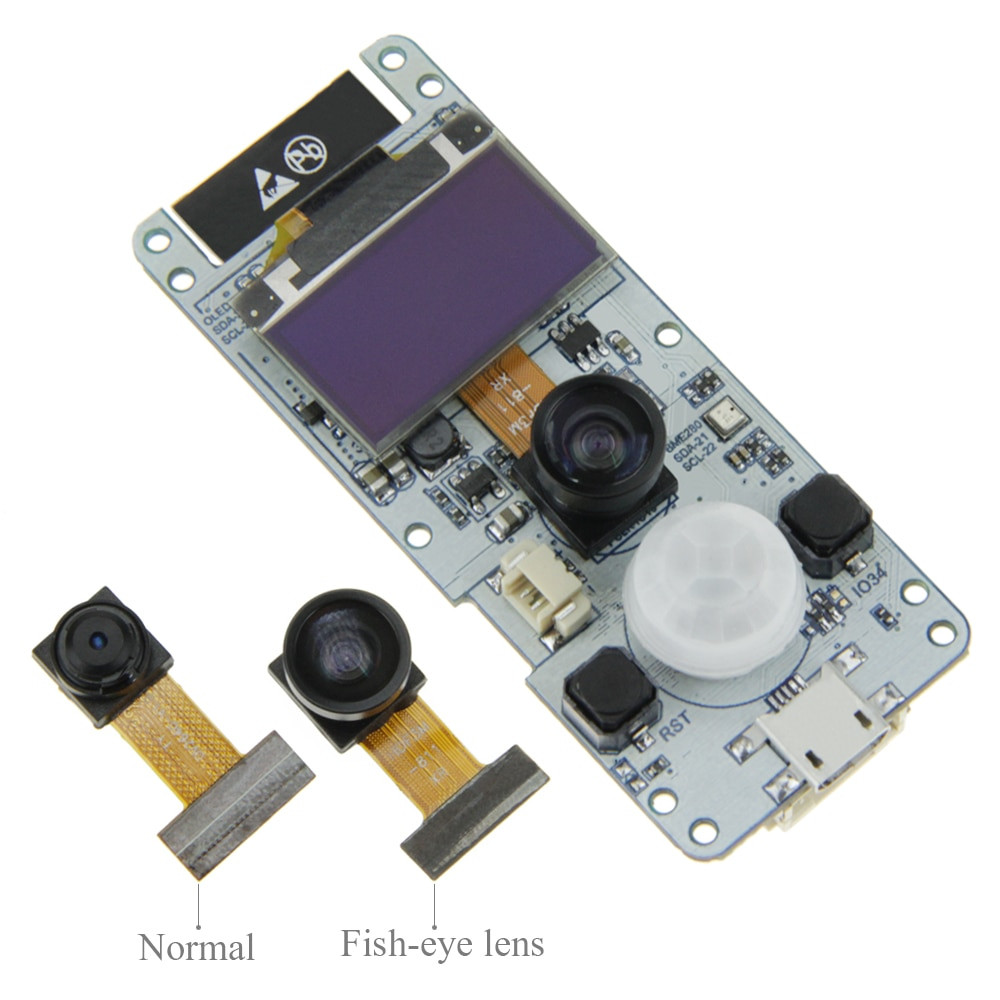

TTGO T-Camera ESP32 OLED Display
Click to Enlarge

TTGO T-Camera board specifications:

  • ESP32-WROVER-B Wireless Module
    • SoC –  ESP32 dual core Tensilica LX6 processor
    • Memory – 8MB PSRAM
    • Storage – 4MB SPI flash
    • Connectivity – 2.4 GHz 802.11n WiFI 5, Bluetooth 4.2 LE
  • Camera – 2MP OV2640 camera with normal or fisheye lens
  • Display – 0.96″ 128×64 OLED display connected via SSD1306 I2C display controller
  • Audio – Microphone
  • USB – 1x micro USB port for power and programming (CP2104)
  • Sensors – AS312 PIR, BME280 pressure, humidity and temperature I2C sensor
  • Expansion – 5-pin I2C header with 5V,3.3V, and GND
  • Misc – Reset and user (IO34) buttons, LED
  • Power Supply – 5V via micro USB port, support for LiPo battery via 2-pin header and IP5306 charging chip
  • Dimensions – 68 x 28 mm

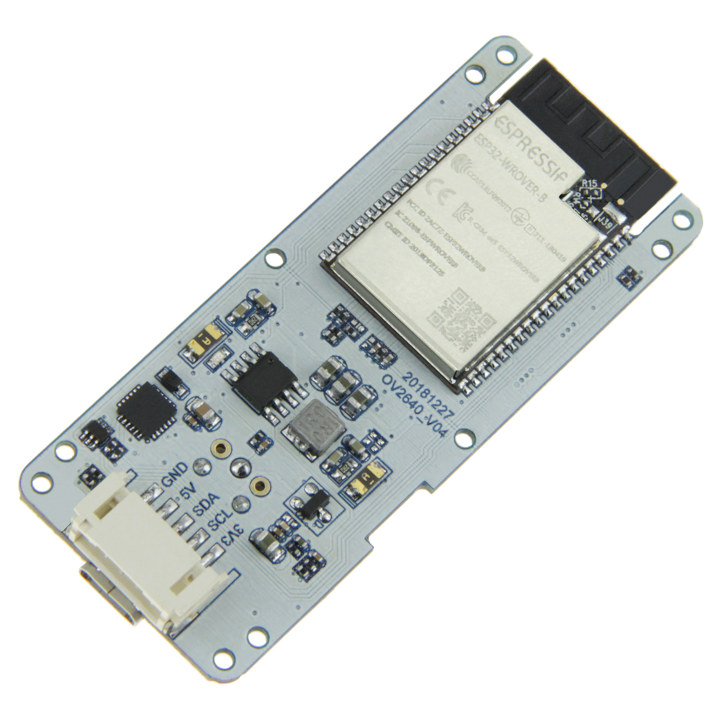

ESP32-WROVER-B Camera Board
The board is made by LilyGO, and the company just uploaded Arduino sample code to esp32-camera-bme280 Github repository.

TTGO T-Camera can be purchased on Aliexpress with a normal or fisheye lense for respectively $15.58 or $17.22 plus a small shipping fee.

Thanks to Robin for the tip.
