$6.90 Seeeduino Nano Board | Compatible With Arduino Nano

Seeeduino Nano board with Grove Shield
Seeeduino Nano board with Grove Shield

Seeed Studio has announced the release of yet another compact  board. The new board, Seeeduino Nano, is quite similar to the Arduino Nano board, and fully compatible.

Another thing about the new board is that it has some different features. Seeeduino Nano comes with only one on-board Grove connector, but it can be expanded with the optional Grove shield adding 8 Grove connectors.

More precisely, the shield has 3 Grove digital connectors and 3 Grove analog connectors, as well as 1 Grove I2C connector, and 1 Grove UART connector.



Program Code

Firstly, the Seeeduino Nano is built around Atmega328P 8-bit AVR microcontroller. This is the same as the Arduino Nano board, meaning you can use the same program code on both boards. There’s no specific Wiki for Seeeduino Nano, but it’s similar, albeit much smaller than the well-documented Seeeduino V4.2.

Price of the Seeeduino Nano Board

The board is available for just $6.90 and the Grove shield for the Arduino board is sold at $2.60 on the Seeeduino Studio online store. The price for the board is less than half of the price of the Arduino Nano board.

Performance and Functionality

Although it is cheaper, this board does not lack in performance and functionality. The small size makes it easier to use in projects with space constraints. And with the help of Grove system, you can leverage hundreds of sensors and actuators, simply by plugging one in.

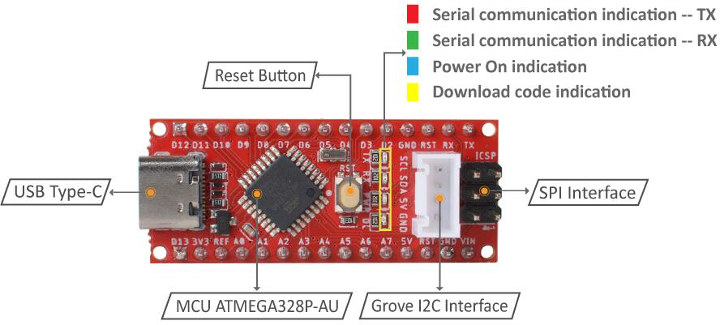

Features of the Seeeduino Nano Board

  • Dimensions – 43x18mm
  • MCU – Microchip ATmega328P
  • Fully compatible with Arduino Nano
  • USB Type-C for programming and power
  • On-board Grove I2C connector
  • Breadboard-friendly
