ACTAMID M8S – An Intel Pentium N6005 palm-sized PC with dual Gigabit Ethernet, 3x HDMI ports (Crowdfunding)

ACTAMID M8S is a palm-sized 3.4-inch mini PC powered by an Intel Pentium N6005 Jasper Lake processor with up to 16GB LPDDR4 memory, 1TB M.2 2242 SSD. The M8S is bigger than the recently announced 2.7-inch PIX NII mini PC based on the same processor, but that’s for a good reason since it offers more ports with three HDMI outputs, dual Gigabit Ethernet, and three USB 3.0 ports.

The mini PC also features WiFi 6 and Bluetooth 5.2 wireless connectivity, a quiet fan, and a 7-color LED backlight for good effects… Win Element Technology Co., Ltd, the Hong Kong company owning the ACTAMID brand, says the mini PC ships preinstalled with an activated version of Windows 11, but also supports Linux distributions such as Ubuntu 20.04.

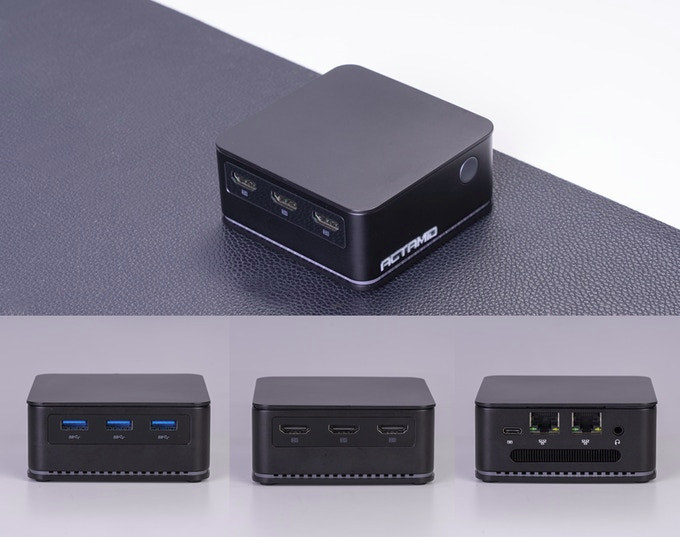

ACTAMID M8S

ACTAMID M8S specifications:

  • SoC – Intel Pentium N6005 quad-core processor @ 2.0GHz / 3.3GHz (Turbo) with Intel UHD graphics @ up to 900 MHz; 10W TDP
  • System Memory – 8GB or 16GB LPDDR4 RAM (single-channel)
  • Storage – NVMe SSD with 128GB to 1TB capacity
  • Video Output – 3x HDMI 2.0 ports up to 4Kp60
  • Audio – 3.5mm audio jack, digital audio via HDMI ports
  • Connectivity
    • 2x Gigabit Ethernet RJ45 ports
    • 802.11 a/b/g/n/ac/ax Wi-Fi 6 and Bluetooth 5.2 via Intel AX201 module
  • USB  – 3x USB 3.0 ports
  • Misc – Power button, 7-color RGB strip, quiet silent fan + heatsink
  • Power Supply – 12V/3A USB Type-C power supply (They also write PD30W, which I understand as “USB PD”, but that may not be the case as other similar mini PCs ship with a 12V (fixed voltage) power supply non-compliant with USB PD)
  • Dimensions – 8.6 x 8.6 x 3.8 cm (3.4 x 3.4 x 1.5 inch)
  • Weight – About 240 grams

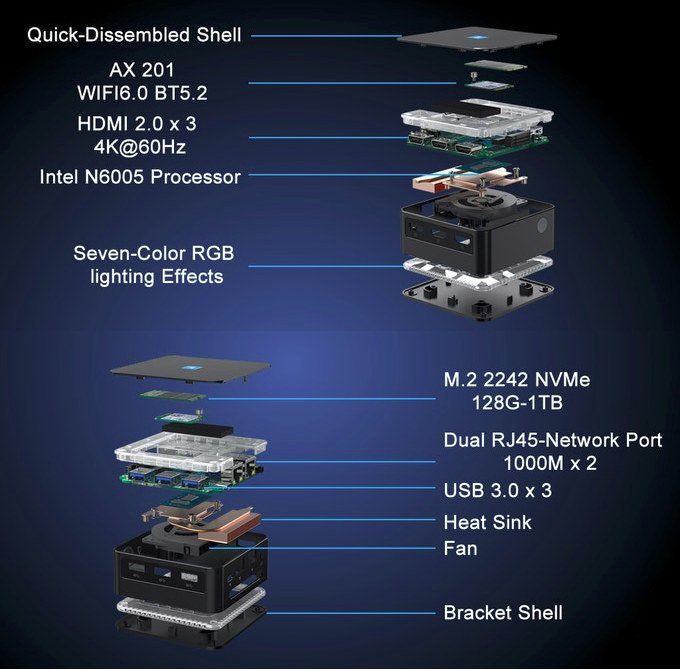

Intel Pentiun N6005 mini PC

The color of the LED can be adjusted in the BIOS, or if you’re not a fan of this feature it can also be disabled.  Single-channel memory means the system may not perform at its maximum for workload requiring a high memory bandwidth such as gaming, but it will not matter for most other tasks.

The ACTAMID M8S ships with a VESA mount and screws, an HDMI cable, a power supply with US, EU, UK, or AU plug, and a specification sheet. Three models are offered:

  • 8GB RAM/128GB SSD – $239
  • 16GB RAM/256GB SSD – $289
  • 16GB RAM/1TB SSD – $370

ACTAMID M8S has been on Kickstarter for a few weeks and raised about $23,000 so far with 15 days to go. Shipping adds $30 worldwide, and backers should expect their perk(s) to ship in September 2022 right after the crowdfunding campaign is over. Eventually, the mini PC should show up on the ACTAMID shop and they sell some earlier models there.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK Pi 4C Plus
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
5 Comments
oldest
newest
Ganesh
Ganesh
1 year ago

I wish these would come with PoE.

Are there any Jasper Lake pico-sized PCs that can be powered by PoE?

Ray Knight
Ray Knight
1 year ago

It would have to be at least PoE+ as PoE can only reliably deliver 13W of power. Even PoE+ could be an issue with reliable delivery at ~26W.

Dan
Dan
1 year ago

You can always add one of these. I run these on my PIs to make them POE without the annoying hat

https://amzn.to/3zDKGQk

qxsnap
qxsnap
1 year ago

Not a bad option, but having the extra brick removes some of the elegance of a single wire to the device.

Mark
Mark
1 year ago

Wonder which brand NIC they use for this tiny nice looking NUC. If it is Realtek, I need to skip, these are working on FreeBSD, but not really well. Of course on Windows no problem. Somebody that can tell by fact? Thx
