Add an ePaper display to Raspberry Pi Pico W with EnkPi 2.9-inch to 7.5-inch displays (Crowdfunding)

SB Components is running another crowdfunding campaign with the EnkPi ePaper display powered by a Raspberry Pi Pico W board and offered in four different sizes namely 2.9-inch, 4.2-inch 5.83-inch, and 7.5-inch.

Each mainboard also comes with a USB Type-C port, a microSD card socket, an RTC with a backup battery holder, a buzzer, six user buttons, and a JST connector for expansion with GPIO, I2C, UART, and ADC signals.

EnkPi Raspberry Pi Pico W ePaper Display

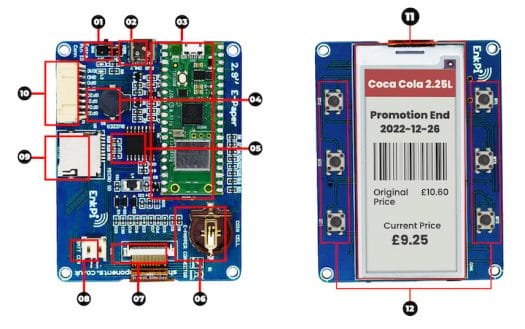

2.9-inch EnkPi ePaper display with Raspberry Pi Pico W

EnkPi specifications:

  • MCU board – Raspberry Pi Pico W with Raspberry Pi RP2040 dual-core Cortex-M0+ microcontroller, 2MB QSPI flash, WiFi 4 module.
  • Storage – MicroSD card socket
  • Display connected over SPI to the Pico W board
    • 2.9-inch tricolor ePaper display with 296×128 resolution
    • 4.2-inch tricolor ePaper display with 400×300 resolution
    • 5.83-inch tricolor ePaper display with 648×480 resolution
    • 7.5-inch tricolor ePaper display with 800×480 resolution
    • Partial refresh support with up to 170 degrees wide viewing angle
  • USB – 1x USB Type-C port, 1x Micro USB port (on Pico W board)
  • Expansion – 10-pin JST connector for GPIO, I2C, UART, and ADC
  • Misc
    • On/Off switch
    • Buzzer
    • DS3231 RTC + battery holder
    • 6x user buttons
  • Power Supply
    • 5V via USB Type-C or Micro USB port
    • 3.7V LiPo battery via 2-pin JST connector

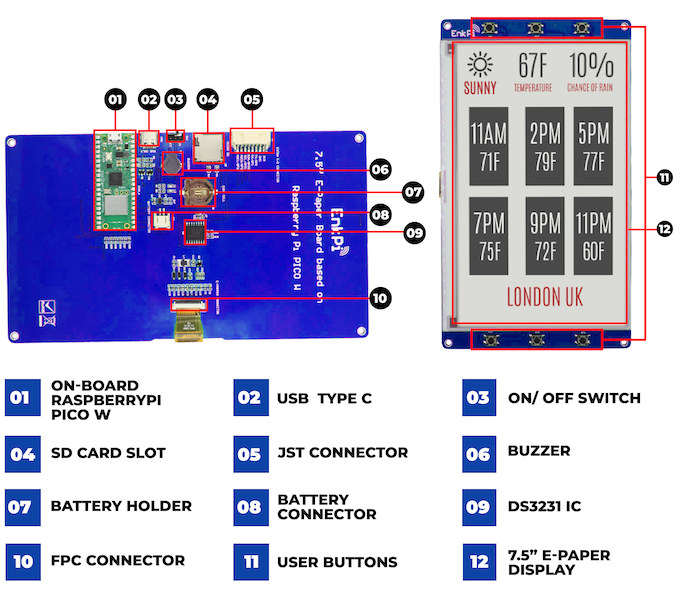

7.5-inch ePaper display with Raspberry Pi Pico W

The Raspberry Pi Pico W can be programmed with the usual C/C++ or MicroPython SDKs, and SB Components promises to release all board files and software at the end of the Kickstarter campaign on their GitHub account as they usually do. It’s not the first Raspberry Pi RP2040-based ePaper design we’ve seen as Pimoroni introduced the Badger 2040 programmable E-Ink display earlier this year.

The EnkPi has the advantage of providing WiFi connectivity and offering four sizes for their tricolor ePaper displays, but we’ve written about wireless ePaper displays based on ESP32 including the Inkplate 2 which we covered last week, and several ESP32 ePaperTTGO” displays by LilyGO introduced over the last few years.

YouTube video player

SB Components launched the EnkPi ePaper displays with a Raspberry Pi Pico W board on Kickstarter and raised a little over $4,000 so far. Rewards start at $49 for the 2.9-inch model and go up to $98 for the 7.5-inch display. I understand the Raspberry Pi Pico W board is soldered to the EnkPi board in all perks. There’s also a universal e-Paper HAT to connect a Pico board and an ePaper display of your choice that goes for $10. Shipping is scheduled to start in March 2023.
