Maker Feather AIoT S3 – An ESP32-S3 board programmable with CircuitPython or Arduino

Cytron Maker Feather AIoT S3 is an ESP32-S3 board compatible with the Adafruit Feather form factor and suitable for makers and STEM education with features like LEDs for GPIOs, a buzzer, expansion headers and connectors, and support for CircuitPython & Arduino.

The WiFi and Bluetooth LE IoT board also supports LiPo and Li-Ion batteries, includes a USB Type-C port for power/charging and programming, and a few buttons. It’s suitable for machine learning thanks to the vector extensions found in the ESP32-S3 microcontroller.

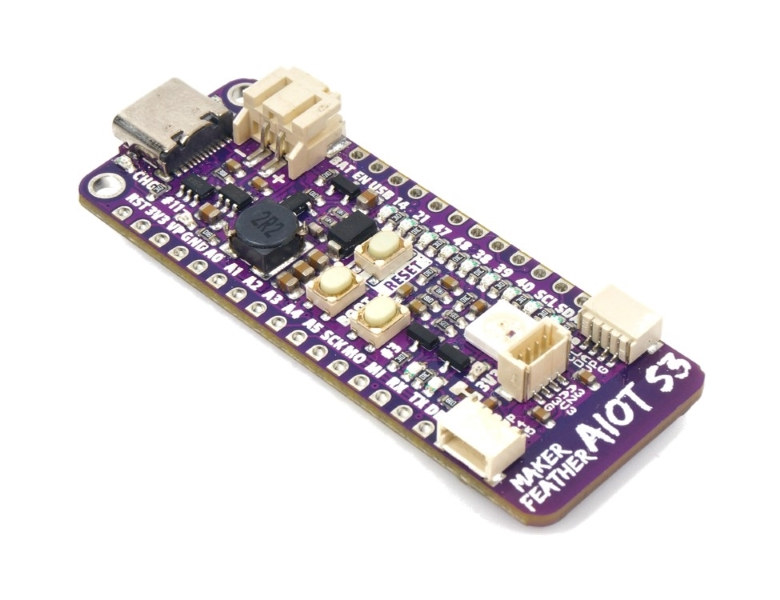

Maker Feather AIOT S3

Maker Feather AIoT S3 specifications:

  • Wireless module – Espressif ESP32-S3-WROOM-1-N8R8 module with ESP32-S3 dual-core LX7 microprocessor @ up to 240 MHz with Vector extension for machine learning, 8MB FLASH, 8MB PSRAM, WiFi 4 and Bluetooth 5 LE/Mesh
  • USB – 1x USB Type-C port power and programming
  • Expansion
    • 2x GPIO headers compatible with Adafruit Feather form factor and FeatherWing add-on boards
    • 3x Maker Ports compatible with Qwiic, STEMMA QT, and Grove (via a conversion cable); 2x connected to VPeripheral, the other to 3.3V
  • Misc
    • Reset, BOOT, and User buttons
    • Power LED (3.3V), Power LED (for VPeripheral, can be turned off if needed), charging LED, user LED, LEDs for some of the GPIOs
    • User RGB LED (WS2812B), also used as a status indicator for CircuitPython & UF2 Bootloader
    • Piezo buzzer and mute switch
  • Power Supply
    • 5V via USB-C port
    • 2-pin battery connector for single Cell LiPo / Li-Ion battery; charging via USB-C
    • Vperipheral output (3.3V) that can be turned off with GPIO D11
  • Dimensions – 58.4 x 22.9 mm

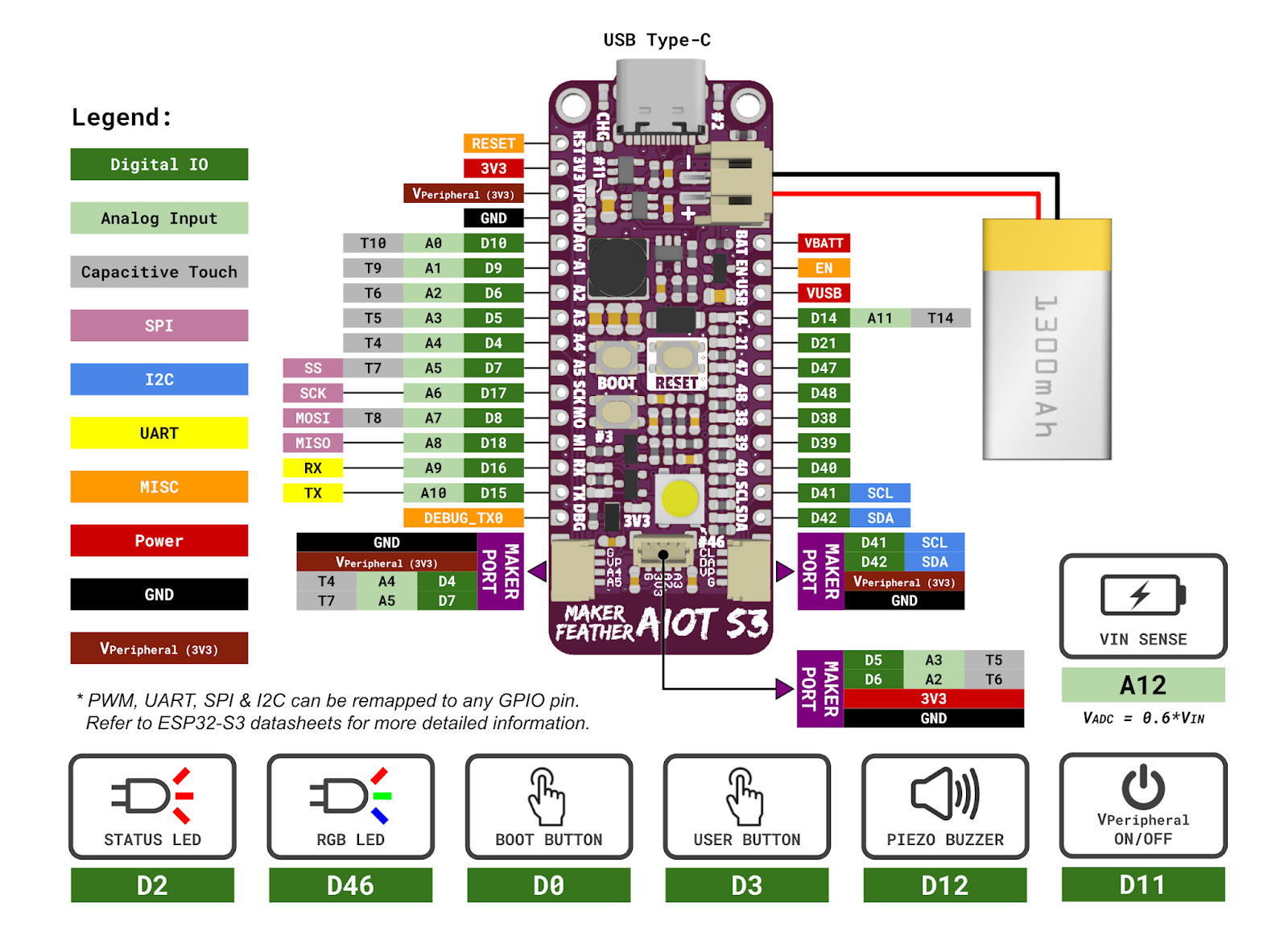

Maker Feather AIOT S3 pinout diagram

The Reset button can be used to reset the ESP32-S3 processor or enter UF2 Bootloader mode when pressing twice, while the BOOT button provides access to the ROM Bootloader to use with esptool. Cytron says the board supports Arduino, CircuitPython, MicroPython & the Espressif ESP-IDF framework, but CircuitPython looks to be the primary firmware with a detailed tutorial and a download link on the official website. The board was also added to the Arduino core for the ESP32 a few months ago, and a tutorial with a few Arduino sketches is also available.

The feather-compatible ESP32-S3 board ships with three Grove to JST-SH (Qwiic / STEMMA QT) cables, and is sold for $19.95 without headers and $21.20 with headers not including shipping and potential taxes.

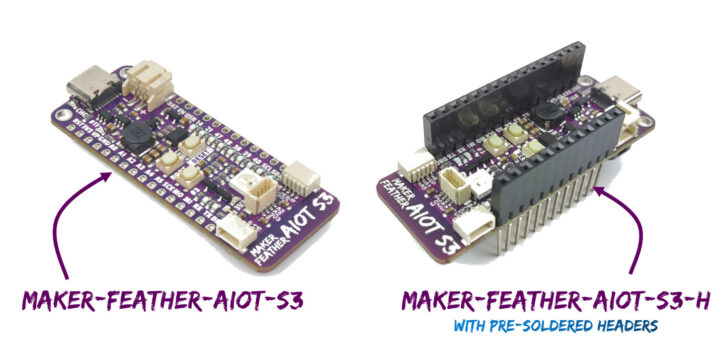

ESP32-S3 Feather board with headers
