WLKATA Robotics Haro380 is a high precision industrial 6-Axis mini robotic arm (Crowdfunding)

WLKATA Robotics’ Haro380 is a high-precision industrial 6-axis mini robotic arm that can carry a payload of up to 500 grams and designed for education, engineering projects, and light manufacturing.

We’ve covered some desktop robotic arms in the past such as the myCobot 280 Pi, but the HARO380 goes a step further with 0.05mm repeatability, a 6-axis harmonic reducer, and zero backlash. It is an upgraded version of the company’s entry-level Mirobot robotic arm introduced in 2019.

HARO380 high precision robotic arm

Haro380 specifications and key features:

  • Control board
    • Unnamed MCU
    • Base interface – RS485, DC power, expansion interface, USB interface
    • I/Os – 2x digital inputs, 2x digital outputs
    • Emergency switch
    • Supply voltage – 24V DC
    • Temperature Range – 5 to 40°C
    • Humidity – 20 to 75% RH non-condensing
  • 6-axis harmonic reducer
  • Magnetic end effectors
  • Repeatability – +/- 0.05 mm
  • Max payload – 500 grams
  • Reach – 380 mm
  • Control interfaces – USB to serial, UART, RS485 (ModBus), WiFi, Bluetooth Classic or LE
  • Control modes – Joint mode, coordinate mode
  • Installation – Vertical, ceiling, or side-mounted
  • Safety – Overload protection, high/low voltage detection, overheat protection, electrostatic protection
  • Dimensions – 38 x 25 x 22 cm (when folded?)
  • Weight – 3.5 kg
  • Material – CNC-machined aluminum alloy

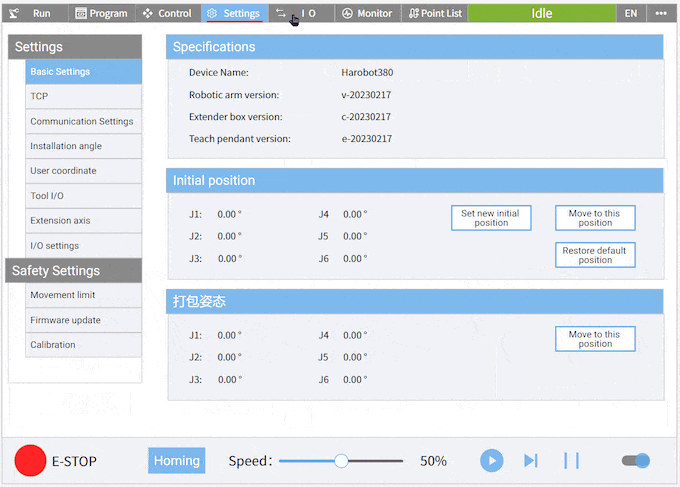

WLKATA LAB
WLKATA LAB

The Haro380 robotic arm will be programmable with Blockly visual programming, G-code, or Python using WLKATA Studio PC software for Windows or Ubuntu, WLKATA LAB mobile app for Android or iOS, and the company also provides WLKATA IOA Virtual Factory software tool that facilitates digital twin control of WLKATA robotic arms, including Haro380 and Mirobot, as well as over 100 robotic arms from other brands.

The high precision and repeatability of the robotic arm enable it to thread needles, perform “surgery”, solve jigsaw puzzles, and do racecar model assembly.  Other exciting features include magnetic end effectors that allow the robot to quickly change “heads” as needed, support for gesture control, and PLC programming through RS485 and ModBus.

WLKATA Robotics has launched the Haro380 on Kickstarter, as they did for the earlier Mirobot, with a $10,000 funding target that has already been easily surpassed. The higher precision, payload, and quality parts mean the price is also much higher with rewards starting at $3,599 for an early bird reward of the Haro380, and the retail price is expected to be $7,900. Optional add-ons include a $126 laser engraving head & protective cover case, a $360 conveyor belt set, a $592 sliding rail set, a $594 end effectors kit, $980 for the IOA Virtual Factory Software, and $2,275 for PLC Learning Station shown below.

PLC learning station
PLC learning station with Haro380 robotic arm

Shipping adds $80 to $190 depending on the destination country, and backers should expect the robotic arm to ship by January 2024. Additional information may also be found on the product page.

Via Hackster.io
