GEEKOM Mini IT11 (Core i7-11390H) mini PC review – Part 1: unboxing, teardown, and first boot

GEEKOM Mini IT11 is a mini PC based on the 11th Gen Intel Core i7-11390H quad-core Tiger Lake processor with up to 64GB RAM, and up to 2TB NVMe SSD storage. It comes with Windows 11 Pro operating system, supports WiFi 6E and Bluetooth 5.2 connectivity, and offers plenty of ports.

GEEKOM has sent us a Mini IT11 Mini PC with 32 GB RAM and a 1TB NVMe SSD for review. Today, we will look at the specifications of the mini PC, check out the package content, do a teardown, and boot it up to make sure it works as expected. We will test the performance on Windows 11 and Ubuntu 22.04 in subsequent parts.

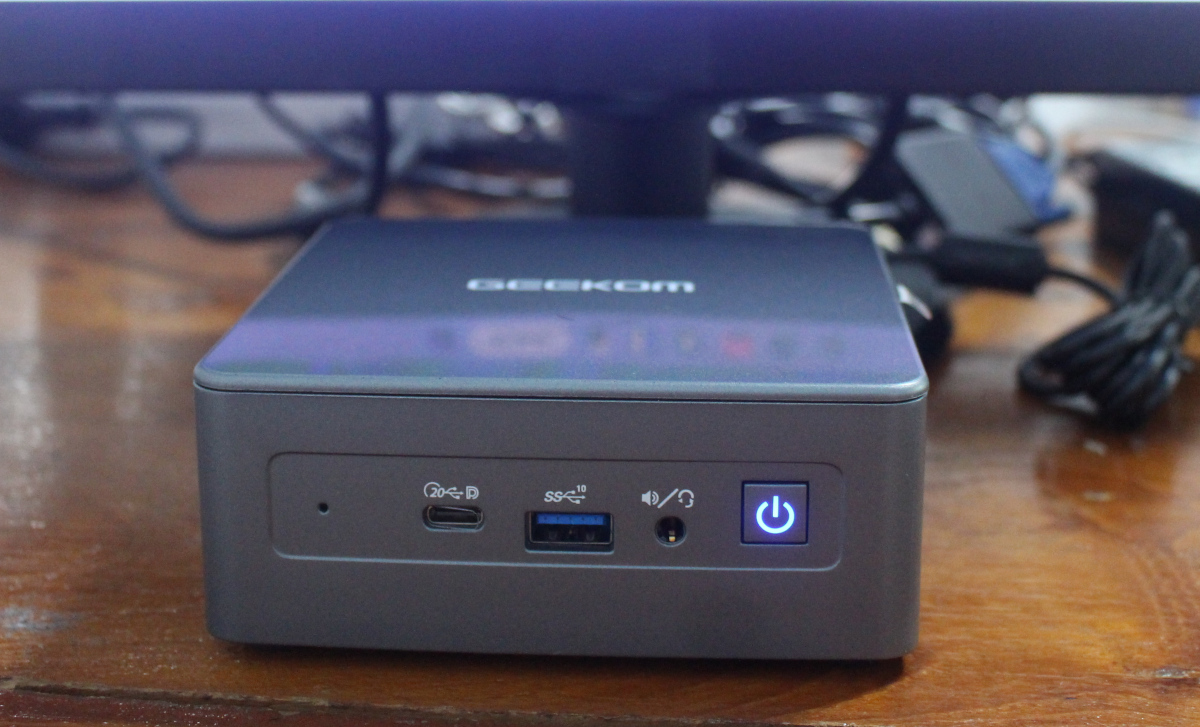

Geekom Mini IT11 Mini PC review

GEEKOM Mini IT11 (Core i7-11390H) specifications

We’ve written about the Mini IT11 a few times already, but for reference, here are the specifications again:

  • SoC – Intel Core i7-11390H quad-core/8-thread Tiger Lake processor @ up 2.9 GHz / 5.0 GHz (Turbo) with 12MB cache, 96EU Intel Iris Xe graphics @ 1.40 GHz; TDP: 28W/35W
  • System Memory – 16GB DDR4 SO-DIMM dual-channel memory, upgradeable up to 64GB
  • Storage
    • 512GB SSD (2280 M.2 PCIe), upgradeable up to 2TB
    • 2.5-inch SATA HDD bay (up to 7mm thick), expandable up to 2TB
    • Full-size SD card reader
  • Video Output
    • HDMI 2.0 port and Mini DisplayPort (miniDP)
    • 8K video output support via the USB4 ports
  • Audio – 3.5 mm headphone jack
  • Networking
    • Gigabit Ethernet
    • WiFi 6 and Bluetooth 5.2 via Intel AX201 CNVi module
  • USB –  3x USB 3.2 Gen 2 ports, 2x USB4 Type-C ports up to 20 Gbps
  • Misc – Power button, Kensington lock slot, cooling fan with less than 45 decibels of noise under full load
  • Power Supply – 19V/3.42A via DC jack
  • Dimensions – 117 x 112 x 45.6 mm
  • Weight – 564.9 grams

Unboxing

Let’s open the package and see what’s inside the box.

Mini IT11 unboxing

The Mini PC comes with a 65W power adapter (19V/3.42A), a 1.5m power cord, an HDMI Cable, a VESA mount plate, a screw kit, a user manual, and a Thank You card.

GEEKOM Mini IT11 unboxing

Let’s now take a closer look at the Mini PC itself. The front panel includes an IR receiver, a USB 4 Type-C port, a USB 3.2 Gen 2 port, a 3.5mm audio jack for headphones, and a power button.

GEEKOM Mini IT11 front panel

The rear panel comes with a 19V power jack, a Mini DisplayPort, an RJ45 Gigabit Ethernet port, two USB 3.2 Gen 2 ports, a USB4 Type-C port with DisplayPort Alt. mode, and an HDMI 2.0 port.

GEEKOM Mini IT11 rear panel

The right side has more air vents and a full-sized SD card reader.

Geekom Mini IT11 SD card reader

The other side of the machine comes with a Kensington lock slot.

Mini PC Kensington lock slot

GEEKOM Mini IT11 teardown

Now let’s open the case and look inside! The mini PC has been designed to be easily opened by the user in order to update/change memory and storage. Just loosen the four screws at the bottom.

GEEKOM Mini IT11 teardown

We’ll find two 16GB Lexar DDR4 SODIMM memory sticks and a 1TB Lexar NM6A1 M.2 2280 SSD PCIe Gen 3 x4 inside the mini PC.

GEEKOM Mini IT11 Memory SSD

If we remove the memory sticks and SSD, we can have a better look at the board and see the AX201 CNVi module for WiFi 6E and Bluetooth 5.2 connectivity, and the two internal antennas.

GEEKOM Mini IT11 motherboard

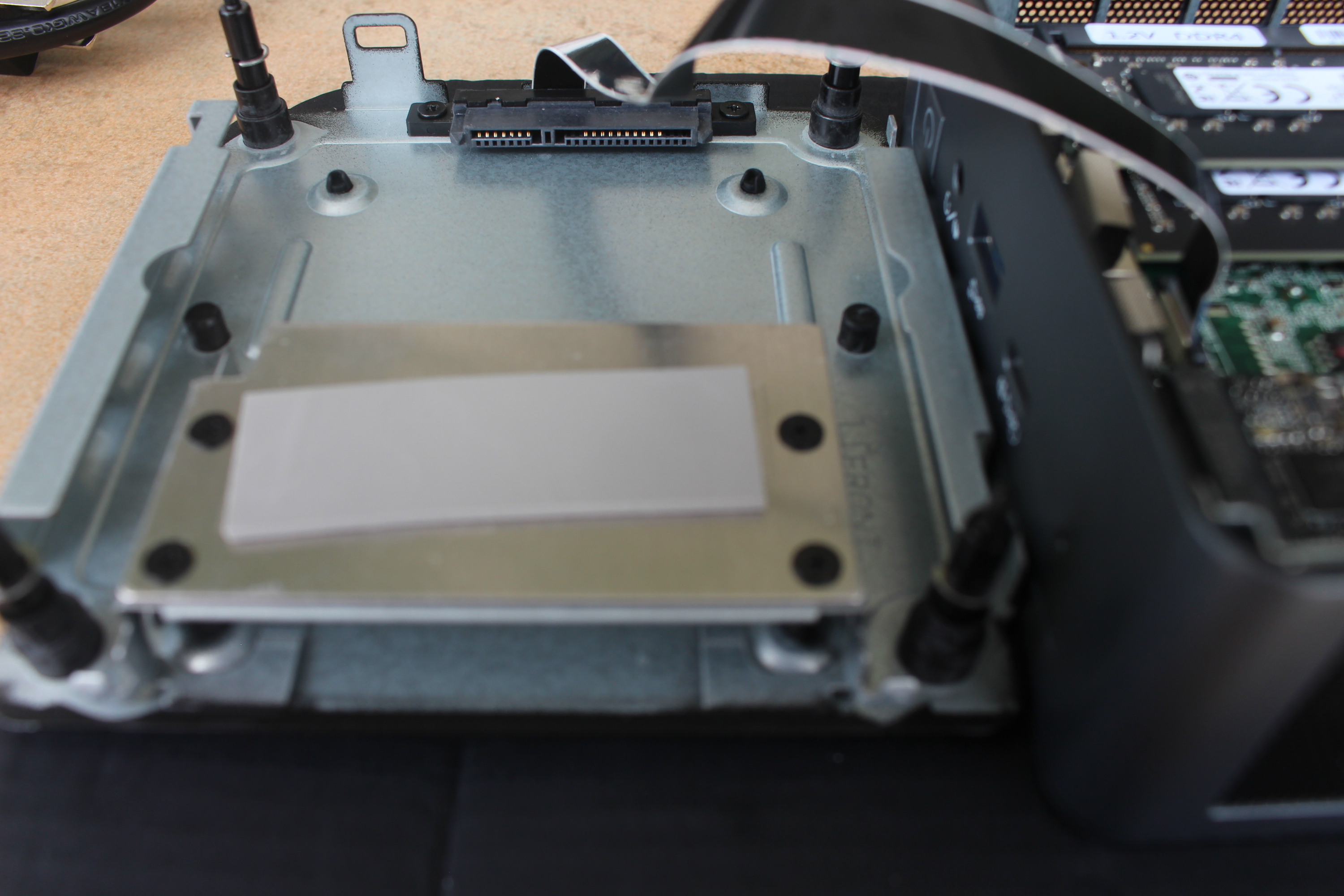

The mini PC also has a SATA connector for 2.5-inch drives up to 7mm thick.

MINI PC with SATA HDD slot

The top side of the mini PC has a heatsink and fan for cooling.

GEEKOM fan cooling

First boot

Upon powering on the device for the first time, we will go through the Windows 11 Pro configuration wizard to set up language selection, Ethernet or WiFi network connection, and we can then access the Windows 11 Pro desktop.



GEEKOM Mini IT11 Windows 11

if We go to System->About, we can confirm that we have a Mini IT11 Mini PC with a 3.42 GHz 11th Gen Intel Core i7-11390H CPU and 32GB of RAM running Windows 11 Pro 64-bit.

Intel Core i7 11390H mini PC Windows 11

We’d like the thank GEEKOM for sending me the Mini IT11 mini PC for review with 32GB RAM and a 1TB SSD. The model reviewed here sells for $599.00, but you may consider getting the 32GB/2TB model instead since GEEKOM has a promotion for $599 on their own site when using coupon summer50IT11 valid until September 10, and on Amazon with the discount code 37PDS4WZ valid until August 10.

Continue reading

  1. GEEKOM MINI IT11 Review – Part 2: Windows 11 Pro on an Intel Core i7-11390H mini PC“.
  2. GEEKOM Mini IT11 (Core i7-11390H) review with Ubuntu 22.04 Linux (Part 3)

CNXSoft: this review is a translation of the original article on CNX Software by Suthinee Kerdkaew.
