ArmSoM-p2 pro is a compact Rockchip RK3308B-S SBC for headless applications

ArmSoM-p2 pro is a compact Rockchip RK3308B-S SBC made by a company called ArmSoM and designed for headless applications with Ethernet, WiFi 5 and Bluetooth 5.0, a USB port, a headphone jack, as well as two GPIO headers for expansion.

The board also comes with 512MB RAM, 8GB eMMC flash and a microSD card slot for storage, extra audio interfaces through the GPIO header, and optional PoE support, all that in a compact 60×52.2mm form factor.

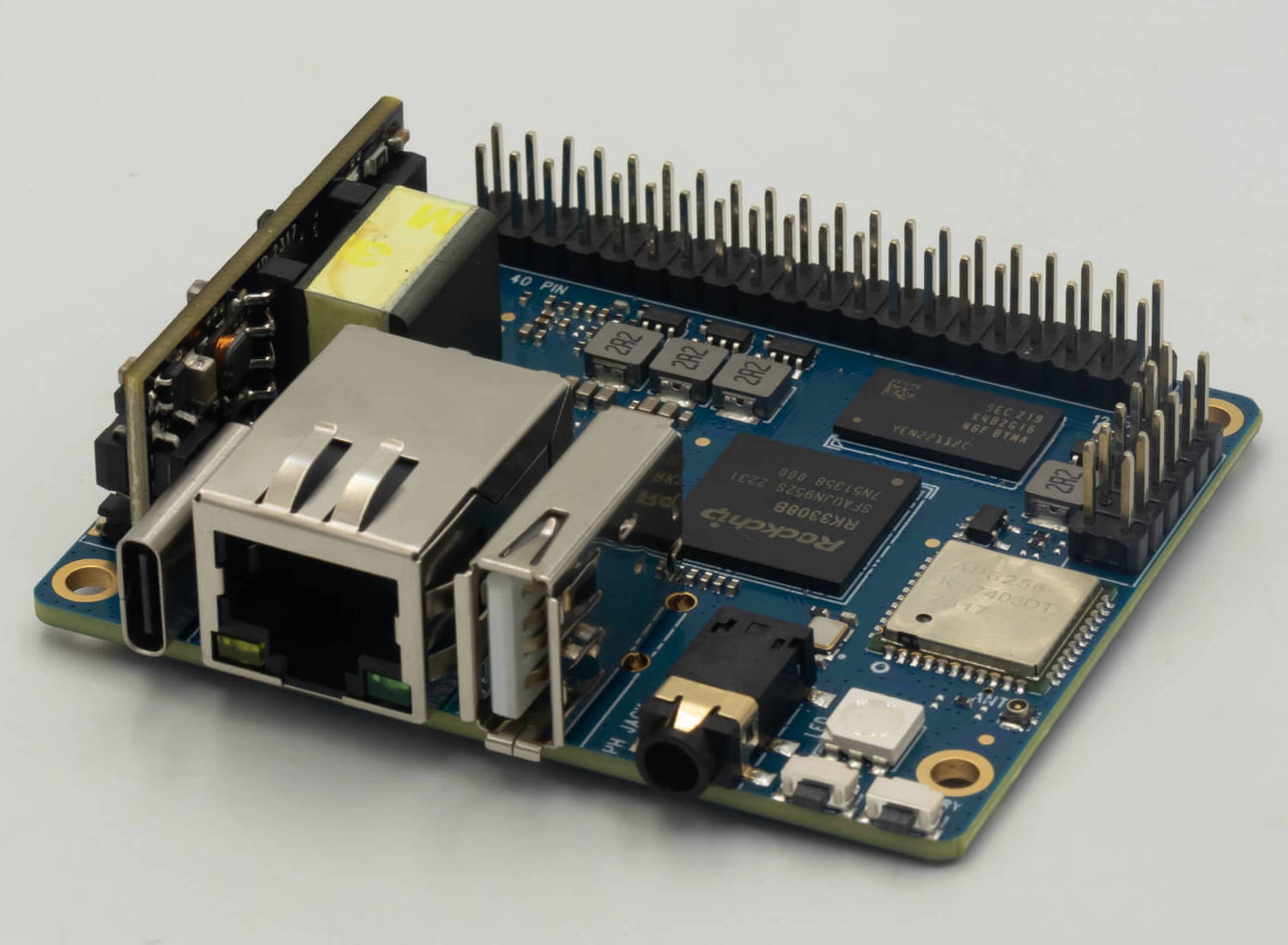

ArmSoM-p2pro SBC

ArmSoM-p2 pro specifications:

  • SoC – Rockchip RK3308B-S quad-core Arm Cortex-A35 processor @ up to 1.3 GHz with built-in VAD (Voice Activity Detector)
  • System Memory – 512 MB DDR3 SDRAM
  • Storage – 8GB eMMC flash, microSD card slot
  • Audio
    • 3.5mm headphone jack
    • Audio Output – 2x Line out and 1xSPDIF out on 40-pin GPIO header
    • Audio Input – 8x MIC and 1xPDM/I2S on 40-pin GPIO header
  • Connectivity
    • 10/100M Ethernet RJ45 port with optional 802.3af PoE support
    • Dual-band WiFi 5 & Bluetooth 5.0 via Ampak AP6256 module and external antenna
  • USB – 1x USB 2.0 OTG port, 1x USB Type-C port for power only
  • Expansion
    • 40-pin GPIO header with UART, SPI, I2C, ADC, etc…
    • 12-pin header  with 1x SPI/UART, 1x I2C, 1x UART, 2x PWM
  • Misc – Reset and recovery keys, Power & status LED s
  • Power Supply
    • 5V/2A via USB Type-C port
    • Power-over-Ethernet (PoE)
  • Dimensions – 65 x 52.5mm
  • Weight – 30 grams

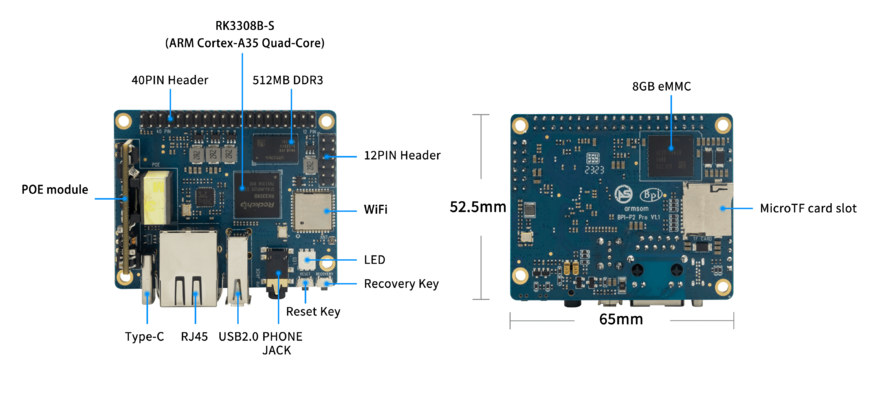

Rockchip RK3308B-S SBC specifications

ArmSoM claims Debian 11 and buildroot support with OS images and some documentation to get started provided in a Wiki. But there’s something odd on the bottom side of the board… I can see a “Bpi” (Banana Pi) logo, and the ArmSoM-p2 pro is actually the same board as the Banana BPI-P2 Pro introduced earlier this year.

Further to this, they point out to SinoVoip (Banana Pi) store on Aliexpress to purchase the ArmSoM-p2 pro board for $31.58 plus shipping., so I’d assume ArmSoM is either a subsidiary of Banana Pi or contracted by them to design some of their boards. Another interesting RK3308 board to point out, especially if you’d like an even smaller form factor, is the Radxa RockPi S SBC that was first unveiled in 2019 and is still sold today.

More details about the ArmSoM-p2 pro board can be found on the product page. The company also seems to have worked on the Banana Pi BPI-W3 board – which they call ArmSoM-W3 – and the corresponding RK3588 system-on-module.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
4 Comments
oldest
newest
Rolyan Trauts
11 months ago

The rk3308 should be a great budget SoC as a low energy A35 of an A53 but also with rockchip the way the memory is implemented makes it a touch slower.
Also from memory the rk3308bs limits you to up to 1.1 GHz cpu clock and it looks like the same mistake Radxa made of not having decoupling caps right at the socs inputs could render the 8 channel ADC useless due to noise.

The price even with the PoE module £25.65 probably still doesn’t make sense with products such as the 1gb Opi03-1gb coming in @ https://www.aliexpress.us/item/1005005789491913.html £12.33

David Willmore
David Willmore
11 months ago

Price seems a bit high, but maybe that’s just due to the inflated SBC prices these days.

lionnwang
11 months ago

ArmSoM is a subsidiary of Banana Pi

Sfinx
Sfinx
10 months ago

And again – no PMIC. Useless for battery powered applications
