Sony energy harvesting module generates power from electromagnetic wave noise

Sony Semiconductor Solutions Corporation (SSS) has developed an energy harvesting module that uses electromagnetic wave noise energy to power IoT devices.

The new module leverages Sony’s tuner development process to generate power from electromagnetic wave noise from robots inside factories, monitors and lighting in offices, monitors and TVs in stores and homes, etc. in order to provide a stable power supply needed to run low-power IoT sensors and communications equipment.

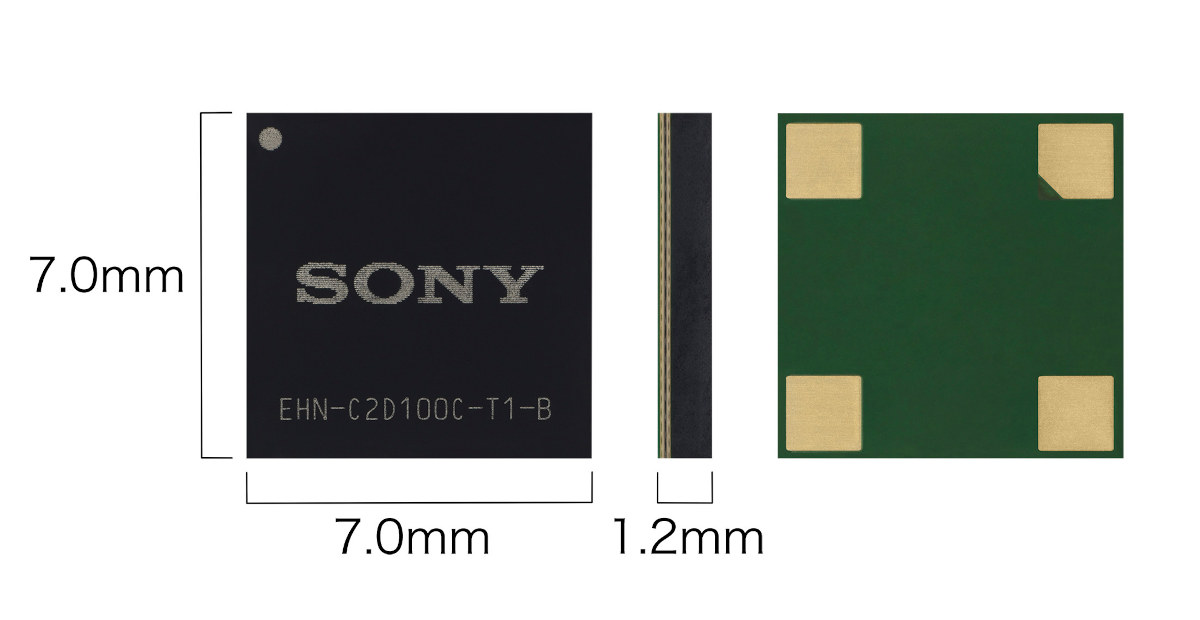

Sony energy harvesting module

The tiny 7×7 mm module uses the metal parts of electronic devices that serve as the source of electromagnetic wave noise as part of an antenna and employs a rectifier circuit in order to convert electromagnetic wave noise in a range of several Hz to 100 MHz into electrical energy and supply power to low-power consumption IoT sensors and communications equipment or to charge batteries.

The module harvests energy from electronic equipment that generates a significant amount of electromagnetic wave noise such as household appliances, computers, lighting equipment, vending machines, elevators, automobiles, and industrial equipment, and delivers several dozen μW to several dozen mW of power, just enough to power some IoT sensors.

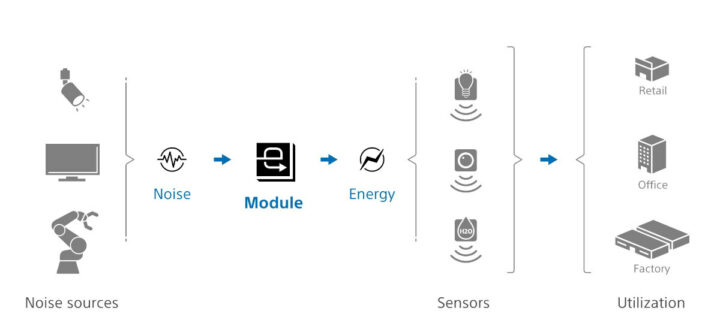

energy harvesting retail office factory

Sony says power can be harvested from this type of device as long as they are powered and even if they are not in active use, enabling continuous energy harvesting contrary to alternative solutions using sunlight, electrical waves, and temperature differences.

Continuous energy harvesting also enables other applications such as predictive maintenance to find out whether a light is working normally or a device is about to fail, for example in robots with built-in motors.

It seems great, but it looks like Sony’s energy harvesting module is not quite ready to be commercialized just yet, as the press release states that “SSS looks forward to working with partners from various industries to develop products based on this technology, which shows promise across a wide variety of applications”.

Thanks to TLS for the tip.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
8 Comments
oldest
newest
and.elf
and.elf
9 months ago

Seems ideal for connected e-Ink-based store labels, so prices can be updated without any batteries at all. A super cap should be enough

Jacques
9 months ago

Weird that they stop at 100 MHz and don’t capture energy related to most wireless transmissions. While this may be a lot more irregular than other forms of EM noise, on average I would guess this would be a significant part of the harvestable energy.

Priyank Patil
9 months ago

I guess that’s because higher frequencies don’t travel very far and the device would be very dependent on being close to a transmitter if tuned to higher frequencies. I really wonder how much energy there is to harvest from wireless transmission, would be interesting to see it in action. I always had this idea of wirelessly harvesting energy from electrical wires to power IoT devices. It opens up lot of possibilities ranging from ease of installation, safety, batteryless operation, etc. Example would be a device that simply clips on to a wire and draws its energy from it while being… Read more »

Adam
Adam
9 months ago

Isn’t it how transformers work, being galvanically isolated?

William Bond
9 months ago

This idea is far from new. I have 3 circuit diagrams I got from the 1980s and even then the circuit was several years old on how to harvest electrical energy to trickle charge a battery from radio waves that flow around us using a very long antenna.

Adam
Adam
9 months ago

The same principle was in the Great Seal Bug from 1945.

Homer10
Homer10
9 months ago

The amount of power generated would depend on the size of the antenna. The bigger the antenna, the more power generated. You can make a discrete version of this with 4 very fast schotkey diodes. There’s a lot of work going on with quantum materials that could make diodes with much lower turn on voltages. This would allow more efficient harvesting. Increasing the bandwidth of the diodes would also increase output power.

Haze
Haze
8 months ago

security nightmare. thanks sony
