Dockcase 7-in-1 USB-C dock features a color information display (Crowdfunding)

USB-C docks have become somewhat boring, but Dockcase 7-in-1 USB-C dock is a little different with a transparent top cover made of tempered glass and an integrated color display that looks neat and may end up being useful by providing relevant information.

The USB-C dock also comes with three 5Gbps USB 3.2 Gen 1 ports, a 4Kp60 capable HDMI 2.0 video output, SD card & microSD card slots, support for 100W USB PD, and a 10 Gbps USB Type-C port for connection to the host.

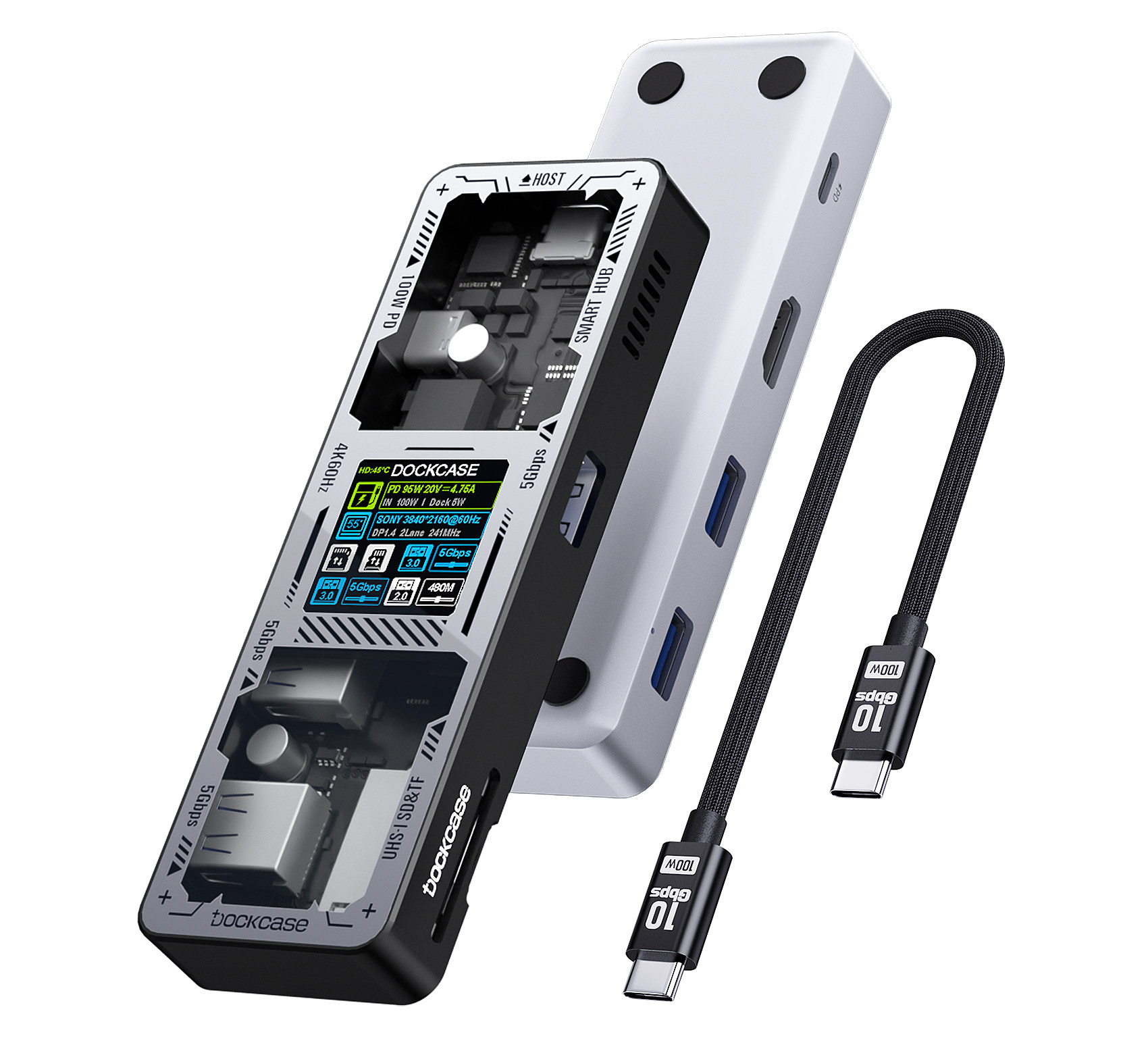

Dockcase USB-C dock with built-in information display

Dockcase 7-in-1 USB-C dock specifications:

  • Display – 1.33-inch color LCD display with 240 x 240 resolution
  • Storage – SD and microSD (UHS-I) card slots
  • HDMI output up to 4Kp60 (3840×2160)
  • USB
    • Input – 10Gbps USB-C port with cable
    • Output – 3x USB 3.2 Gen 1 (5 Gbps) ports
  • Misc – Control button
  • Power Input – 100W (20V/5A) USB PD
  • Dimensions – 122 x 40 x 15.5 grams
  • Weight – 91 grams
  • Materials – Aluminum alloy, tempered glass
  • Color – Matte black or glossy silver

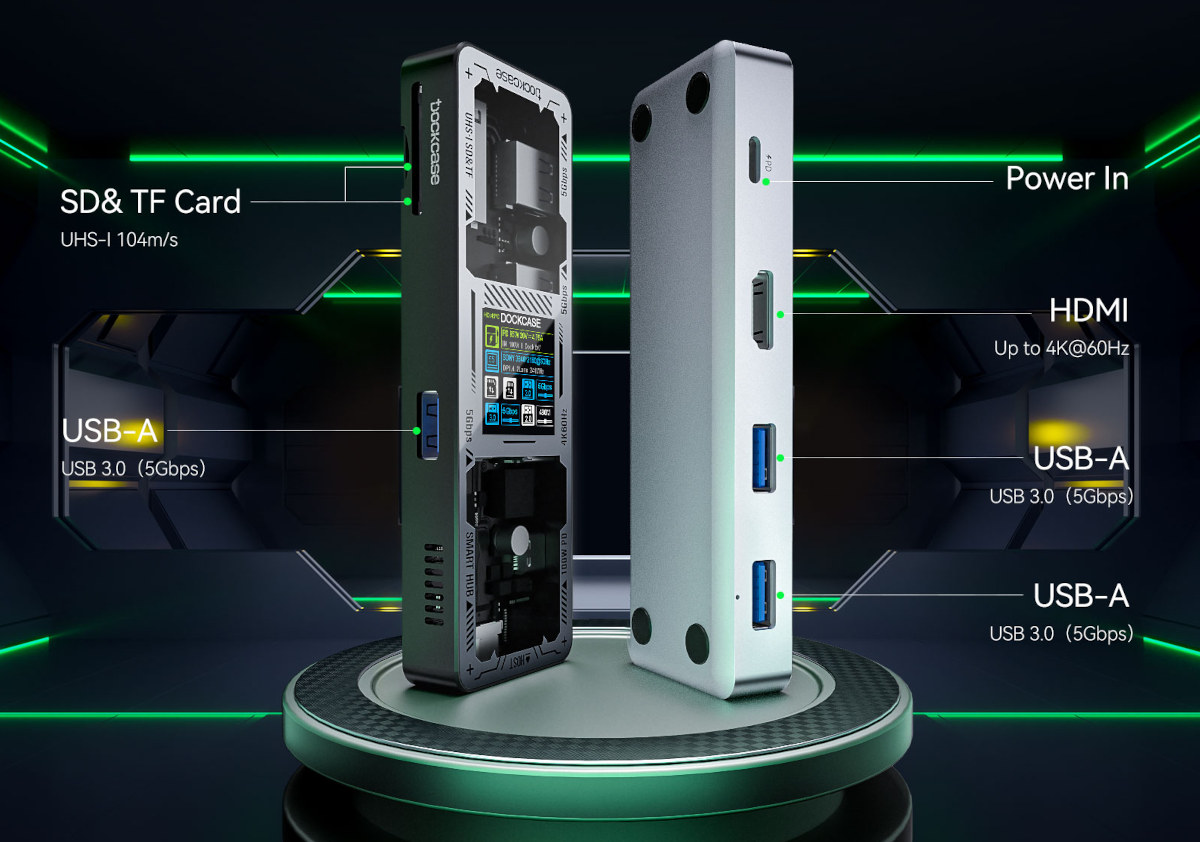

Dockcase USB-C dock specifications

The company says supported operating systems include Windows 7/8.1/10/11, macOS 10.14.6 or later, iPadOS 12.4 or greater, iOS 17 or later, Android, Linux, and Harmony OS, but since it should follow USB standards any OS with USB support should work.

But the highlight of the Dockcase USB-C dock is really its integrated information display. The illustration below gives us an overview of its main features with system temperature, USB PD information, USB-C and/or HDMI display resolution and framerate, which USB ports are connected and at what speed, and whether SD card slots are used.

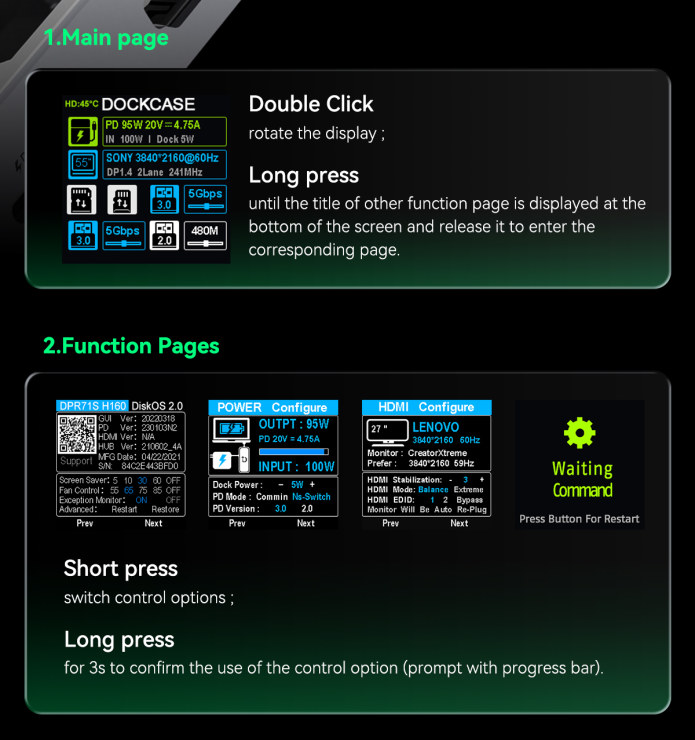

Dockcase display configuration

There’s also a function page for settings such as screen saver timing and fan speed, a power configuration window, and an HDMI configuration section with EDID and other information. It would be great to have a user manual showing the full details, but I could not find any.

Dockcase has been making this type of hardware for a little while and has various USB-C docks and external SSD drives with an integrated display. You can find more details on the company’s website or even purchase some of the devices, as well as in Charbax’s video below which first brought the Dockcase 7-in-1 USB-C dock to our attention.

The 7-in-1 Dockcase is not available on the company’s store just yet, but has recently launched on Indiegogo with a $1,000 flexible goal and so far close to $10,00 raised from about 120 backers. Rewards start at $69 for the “super early bird” and $79 for the “early bird”, and we’re told the retail price should be $109. Shipping adds $19 here (to Thailand) and backers should expect their perks to ship by January 2024.
