Yocto Project Overview and Update – ELCE 2012

Last post about ELCE 2012 videos… David Stewart, manager of the Yocto Project team within the Open Source Technology Center at Intel, gives an introduction to the Yocto Project, as well as a status update at ELCE 2012. Abstract: The Yocto Project is a joint project to unify the world’s efforts around embedded Linux and to make Linux the best choice for embedded designs. The Yocto Project is an open source starting point for embedded Linux development which contains tools, templates, methods and actual working code to get started with an embedded device project. In addition, the Yocto Project includes Eclipse plug-ins to assist the developer. This talk gives a walk-through of the key parts of the Yocto Project for developing embedded Linux projects. In addition, features will be described from the latest release of the Yocto Project, v1.3. The talk will include demos of some of the key new […]

Near Field Communication with Linux – ELCE 2012

Samuel Otiz, software engineer at the Intel Open Source Technology Center, talks about NFC support for Linux at the Embedded Linux Conference Europe in , on November 5, 2012. Abstract: Linux recently gained support for NFC (Neard Field Communication), and this presentation will describe the status of the current NFC stack in terms of actual features, hardware support and also distribution availability.After showing how this stack is architectured, we will also explain what our long and short term plans are. NFC hardware is typically found on mobile devices, many of them running Linux or Android. Up until recently, only Android provided a real and viable software support for those chipsets. During this presentation I will show how the Linux NFC stack is now getting on par with the Android stack features and API wise and how its design allows for an already broader range of supported chipsets. The presentation is divided into  […]

Intel Unveils Atom Z2420 Processor for Entry Level Android Smartphones

Today was Intel & Qualcomm turns to have their keynotes. One of Intel announcements is the Atom Z2420 1.2 GHz processor (codenamed Lexington) that comes with PowerVR SGX540 GPU, 1080p video decoder & encoder, and features hyper-threading technology. This processor manufactured with 32nm process technology targets low cost smartphones for emerging markets. Here are the key specifications of Intel Atom Z2420: Process technology – 32nm HKMG Co-Pop Package – 12x12mm, 617 balls, 0.4mm pitch, LPDDR2 PoP package Intel Atom Architecture – 512KN Intel Smart Cache, Enhanced Deeper Sleep, C6/Low Power Audio State, Smart Idle Technology and Digital Thermal Sensor (DTS) 3D Graphics Engine – PowerVR Sgx540 with 2000 MPPS peak fil rate, 40 MTSm with support for Open VG 1.1, OpenGL ES 1.1 and 2.0 Hardware Accelerated Video – 1080p30 video encode and decode Display Controller – Supports up to 4 DSI lanes at 800 Mbps per lane Memory Interface […]

Ramos W32 Android Tablet Powered by Intel Atom Z2460

One of my reader, Alex, pointed me to Ramos W32 Tablet, which appears to be the first Android tablet built around Intel Atom Z2460 (Medfield), although the processor has been unveiled in January 2011, and smartphones such as Lenovo K800  have been available for nearly half a year. I suppose the delay between tablets and smartphones releases is because whereas the first smartphones could be based on Android 2.3.x (gingerbread), tablets would have to use Android 4.0.x (ICS) or greater to have a proper large screen interface. Here are Ramos W32 Tablet PC specifications: SoC – Intel Atom Z2460 @ 1.6GHz with PowerVR SGX540 GPU System Memory – 1GB RAM Storage – 16GB Nand Flash, microSD card socket (Up to 32GB) Display – 10.1″ Capacitive Screen IPS Display (1280×800) Connectivity: Bluetooth WIFI 802.11 b/g/n 3G via external 3G dongles such as E1916, ZTE AC2736, HUAWEI E1750, HUAWEI EC122, HUAWEI EM770W […]

Intel Announces 3 Atom S1200 Low Power Server SoCs: S1220, S1240 and S1260

Intel has recently introduced the Intel Atom S1200 product family (Codename: Centerton) targeting high-density microservers (1000+ nodes per rack), and energy-efficient storage and networking systems. These new processors includes features such as error code correction, 64-bit support, and virtualization technologies required for use inside data centers, and consume as low as 6.1 watts. Three models are currently available: Intel Atom S1220 @ 1.6 GHz  – TDP 8.1 Watts Intel Atom S1240 @ 1.6 GHz – TDP 6.1Watts Intel Atom S1260 @2.0 GHz – TDP 8.5Watts The SoCs include 2 physical cores and 4 threads enabled with Hyper-Threading Technology. The SoCs also include 64-bit support, a memory controller supporting up to 8GB of DDR3 memory, Intel Virtualization Technologies (Intel VT), 8 lanes of PCI Express 2.0, Error-Correcting Code (ECC) support, and other I/O interfaces integrated from Intel chipsets. Atom S1200 processors are manufactured using 32nm process technology. Intel also announced that […]

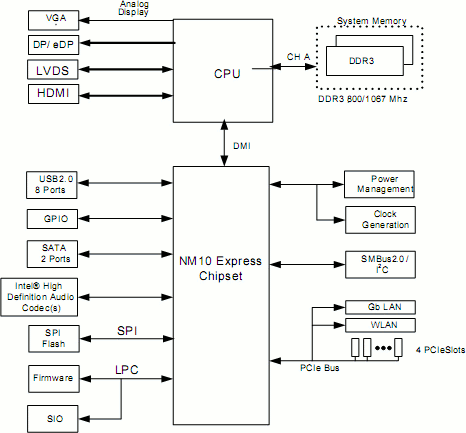

Intel to Give Away 5 Atom D2700 Development Kits to Selected Engineers

As part of its “Eureka! Design Challenges“, Intel is asking hardware engineers to submit ideas about what they’ll do with an Intel Atom D2700 development kit with 2Gb RAM, a 40 GB SSD drive & lots of ports and expansions, and will give one to the 5 candidates with the best project ideas. Here are the key features of this development kit: Development board with the Intel Atom Processor D2700, and IntelNM10 Express Chipset Board Support package from the Linux Foundation’s Yocto Project 2GB DDR21066 MT/s non-ECC memory 40GB SSD, installed, with SATA extension cable Power supply The Intel Software Development Tool Suite (GNU tool compatible) Documentation and software Comes in a mini-ITX chassis with dual independent display capabilities. I’m not sure why Intel is focusing on hardware engineer for this type of project, and I suppose if you have some embedded systems development ideas that interface with external hardware, […]

LinuxCon North America 2012 Schedule

LinuxCon (North America) 2012 will take place on August 29 – 31, 2012 at Sheraton Hotel & Marina, in San Diego, California. The event will be co-located with the Linux Kernel Summit, the Linux Plumbers Conference, and CloudOpen 2012. LinuxCon consists of 3 days of keynotes, business and developers related sessions as well as tutorials. There will be over 80 sessions and keynotes during those 3 days. I’ll highlight a few sessions that I find particularly interesting and related to embedded Linux, software development and ARM. August 29 10:45 – 11:30 – Life After BerkeleyDB: OpenLDAP’s Memory-Mapped Database by Howard Chu, Symas Abstract: OpenLDAP’s new MDB library is a highly optimized B+tree implementation that is orders of magnitude faster and more efficient than everything else in the software world. Reads scale perfectly linearly across arbitrarily many CPUs with no bottlenecks, and data is returned with zero memcpy’s. Writes are on […]

ARM vs x86 Servers Benchmark – Calxeda EnergyCore ECX-1000 vs Intel Xeon E3-1240

Calxeda has released the results of ApacheBench benchmark comparing their ARM-based EnergyCore solution to an Intel Xeon server in order to showcase the performance and the much lower power consumption of their servers. Here’s the setup: Hardware: Single Calxeda EnergyCore ECX-1000 @ 1.1 GHz, 4 GB of DDR3L-1066 memory, 1Gb Ethernet network port and 250 GB SATA 7200rpm HDD Intel Xeon E3-1240 @ 3.3 GHz, 16 GB memory and 1Gb Ethernet network port. No info on hard drive provided Software: Ubuntu Server v12.04 Apache Server v2.4.2 ApacheBench v2.3 (16k request size) They performed power measurements every 2 seconds and averaged the results. Power supply overhead and hard drive power consumption were not excluded in the measurement, but the entire SoC and DDR memory power consumption were included together. For the Intel server however, they could not measure directly, so they used published TDP values for the CPU (80 W) and I/O […]
