UGOOS SK2 is a 4K Google TV (Android TV 12) box powered by a Realtek RTD1325 quad-core Cortex-A55 SoC with 4GB LPDDR4 RAM, 32GB eMMC flash, 100 Mbps Ethernet, and WiFi 6 connectivity.

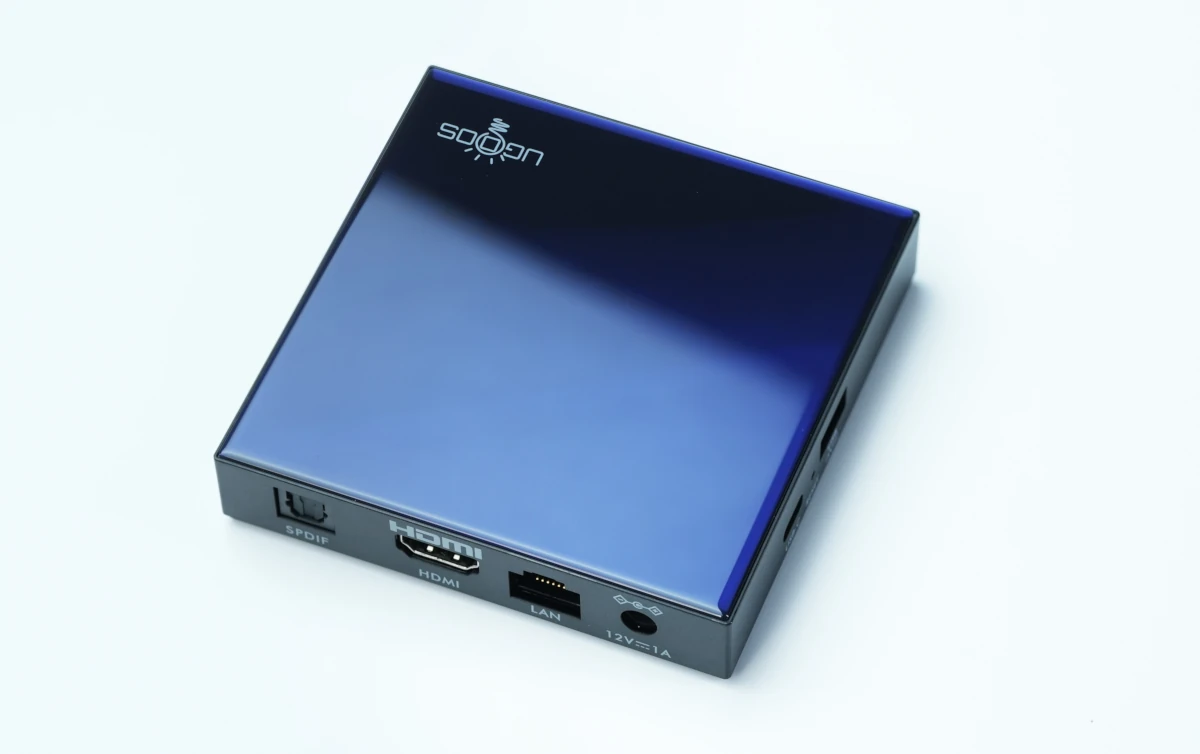

The TV box features an HDMI 2.1a port that outputs up to 4Kp60 with HDR, an optical S/PDIF audio output, and two USB ports. As a certified device, it ships with a Widevine L1 license for video streaming, as well as Dolby Vision and Atmos audio support.
UGOOS SK2 specifications:
- SoC – Realtek RTD1325
- CPU – Quad-core Arm Cortex-A55 @ 1.7GHz with 512KB L3 cache; 20,000 DMIPS
- GPU – Arm Mali-G57 MC1 with OpenGL ES 3.2 and Vulkan 1.3 API support
- VPU – 4Kp60 10-bit AV1, VP9, H.265, AVS2 video decoder
- System Memory – 4GB LPDDR4
- Storage – 32GB eMMC flash
- Video & Audio Output
- HDMI 2.1a up to 4K resolution (3840 x 2160) with 4K HDR (HDR10+, HLG), Auto Frame Rate support
- Optical S/PDIF
- Dolby Audio, Dolby Vision, DTS Audio
- Networking
- 10/100Mbps Ethernet RJ45 jack
- WiFi 6 2×2 MIMO and Bluetooth 5.2 LE
- USB – 1x USB 2.0 port, 1x USB 2.0 Type-C port
- DRM – Widevine L1, L3 to support for 4K Netflix, Disney/Diney+, Hulu, HBO, Paramount, Amazon Prime Video
- Misc – Power LED
- Power Supply – 12V/1A via power barrel jack
- Dimensions – 96 x 96 x 19mm
- Weight – 600 grams (it must be the package weight…)

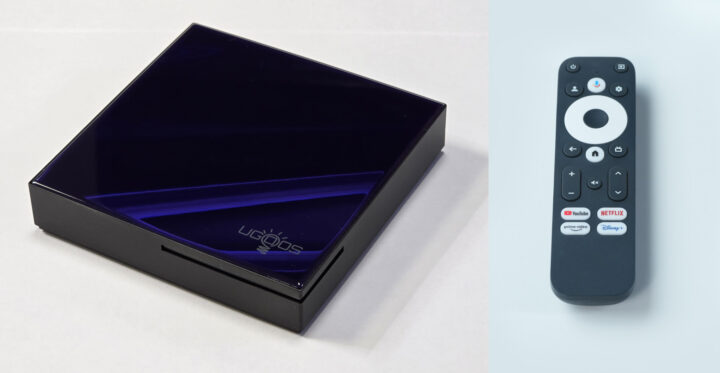

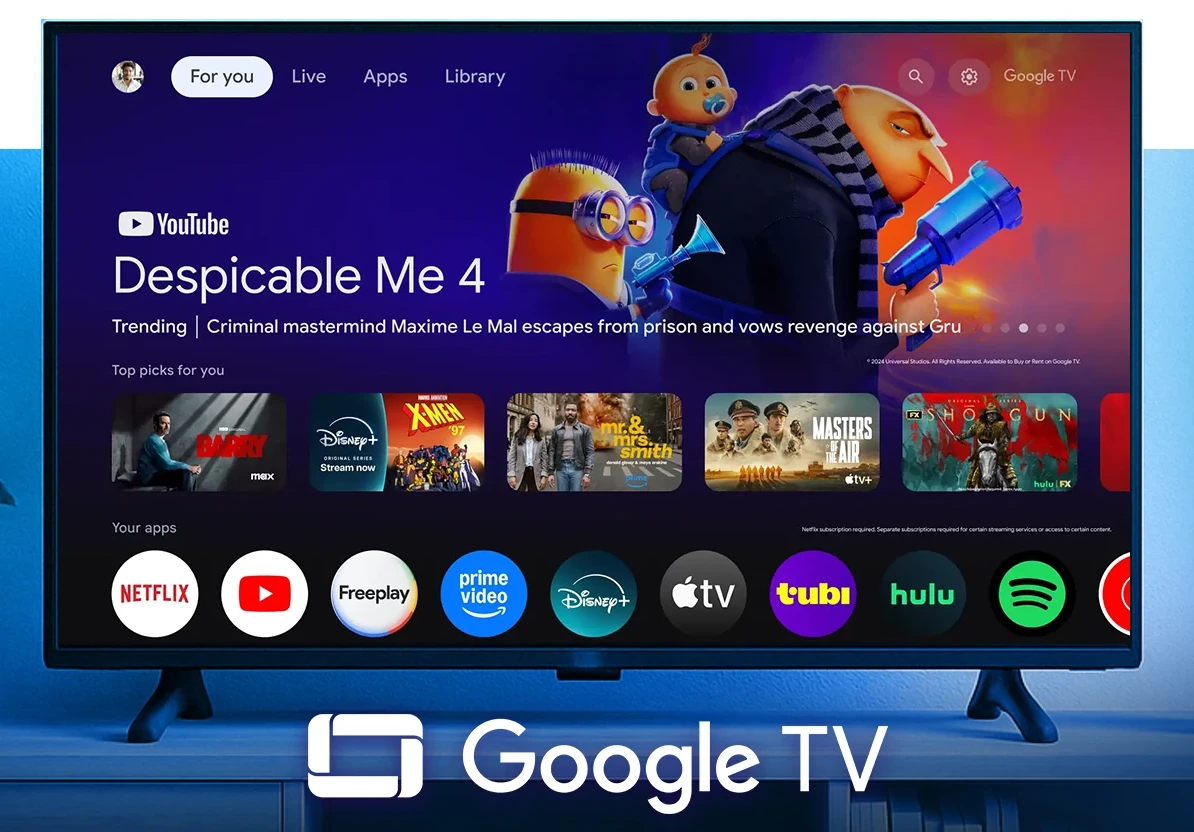

The UGOOS SK2 runs the usual Google TV interfaces found on all other certified media devices and ships with an Android TV-supported remote with app buttons and Voice search. Previously, Amlogic S905X4 was one of the preferred SoCs for certified TV boxes, and UGOOS says the RTD1325 SoC is quite more powerful, with a 60 percent boost in Antutu where it gets around 210,000 points.
It’s not quite the first Google TV box powered by a Realtek RTD1325 SoC, as we previously covered the Formuler Z mini dongle and MECOOL KM9Pro Max TV box. However, the UGOOS SK2 offers twice as much RAM with 4GB LPDDR4, plus WiFi 6 connectivity against WiFi 5 on the other devices.

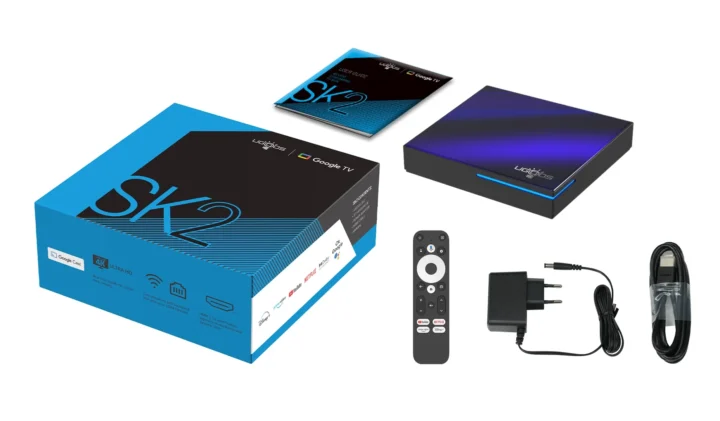

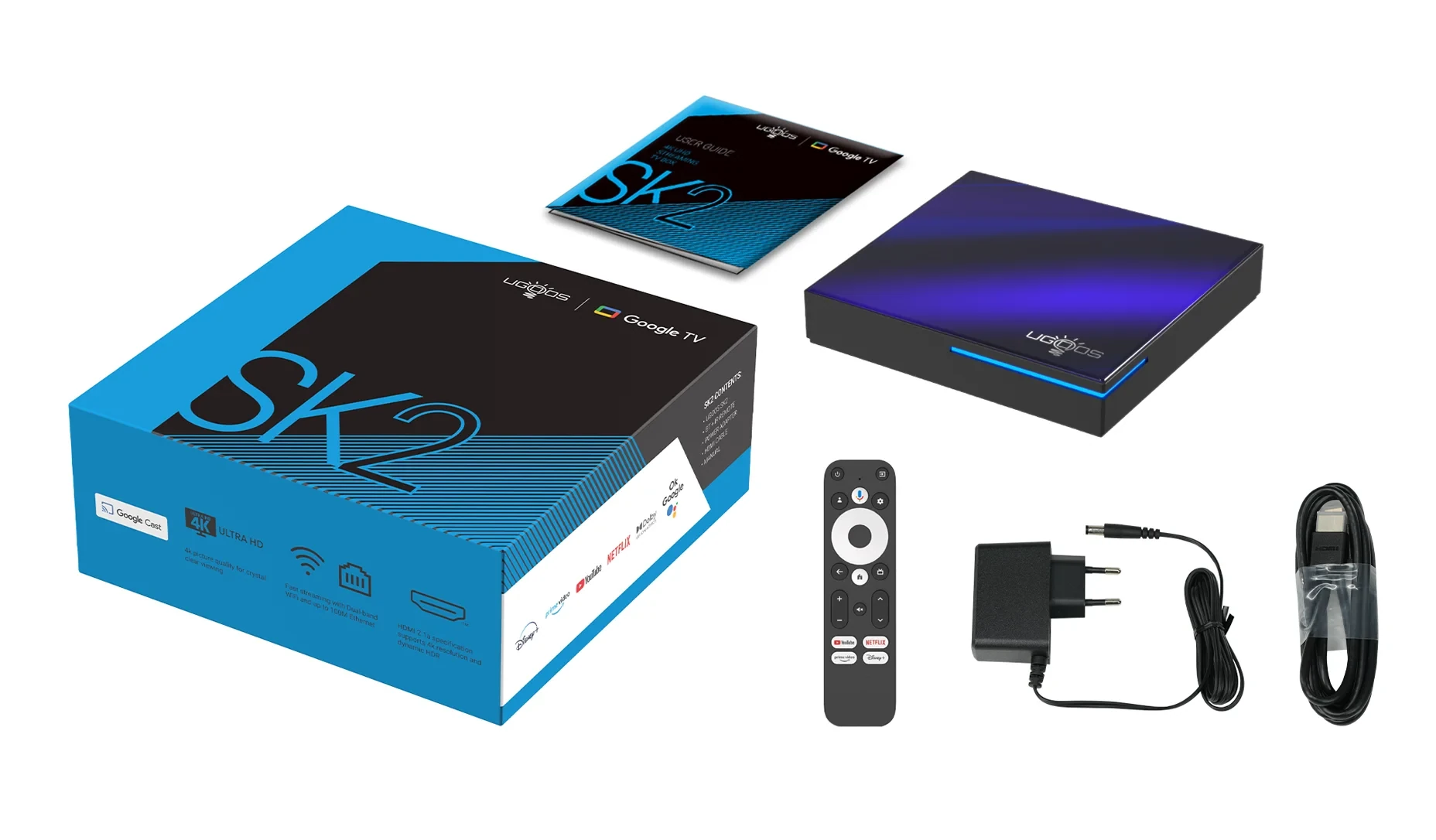

The UGOOS SK2 Google TV box ships with a voice remote control, a 12V/1A power supply, an HDMI cable, and a user manual. You’ll find it on various AliExpress shops for just $89.90. A few more details may be found on the product page.
Via AndroidTVBox.eu
Jean-Luc started CNX Software in 2010 as a part-time endeavor, before quitting his job as a software engineering manager, and starting to write daily news, and reviews full time later in 2011.
Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress
I doubt its 60% faster, the soc seems to be on par or just a little faster then the S905X4, and seems to have less codex support.
I haven’t used Antutu for several years, but the score may be heavily impacted by the GPU and storage performance. You’re right about the CPU (integer) performance though.
Looks exactly the same as the Rocktek GX1. Will probably have the same problem with adaptive DV.
Sadly, Realtek has the more feature packed and performant SoCs,
but no software support, like Allwinner, Rockchip, Mediatek, Amlogic, ActionSemi….
Oh, they have software support, but only for customers that order large quantities of chips, like 70k plus. Anyone else, most likely get the chips from the grey market in xina.
