UyeSee T1H 4K Android TV Box Features USB 3.0, Gigabit Ethernet, and HDMI In

Shenzhen UyeSee Technology, a company specializing in audio / video products, has announced UyeSee T1H Android TV box powered by Mstar MSO9810 quad core processor, with 1 to 2GB RAM, 8 to 32GB eMMC flash, and featuring high speed ports such as Gigabit Ethernet and USB 3.0, as well as HDMI In supporting PiP (Picture-in-Picture) thanks to the dual decoder found in the processor. T1H is not the first Mstar 9810 STB I mention here, as Kaiboer already has a few models with Q5, Q6, and F5, but the latter focuses on the Chinese market, whereas Uyesee plans to expand to oversea markets, and the firmware is available in English, and other languages supported by Android, too.
Uyesee_T1H
UyeSee T1H specifications:

  • SoC – Mstar MSO9180 quad core ARM Cortex A9 @ 1.5GHz with a quad-core ARM Mali-450 MP2 GPU @ 500MHz.
  • System Memory – 1GB to 2GB DDR3 @ 1866MHz?
  • Storage – 8 , 16 or 32 GB eMMC flash + microSD card slot
  • Video I/O – HDMI 1.4 out up to 4K30, HDMI in, AV (CVBS)
  • Audio I/O – HDMI in/out, optical S/PDIF, AV port
  • Video Playback
    • MPEG-1/2, MPEG-4, DivX, H.264, H.265/HVC, VC-1, H.263, Real Media, MVC…
    • Up to 4K, 60Mbps (H.264)
    • 3D H.264 MVC Decoder/H.264 Encoder (720P)
  • Audio Formats and Codecs – MPEG, WMA, WAV, APE, OGG, FLAC, ACC, MPEG1,MPEG2(Layer I/II), MP3, AC-3, E-AC-3, AAC-LC, WMA, HE-AAC
  • Connectivity – Gigabit Ethernet, single or (optional) dual band Wi-Fi 802 b/g/n with external antenna
  • USB – 1x USB2.0 host ports, 1x USB 3.0 port
  • Misc – IR receiver
  • Power Supply – 12V/2A
  • Dimensions - 190 x 127 x 27 mm
  • Weight – 600 grams (package?)
T1H PCBA (Click to Enlarge)

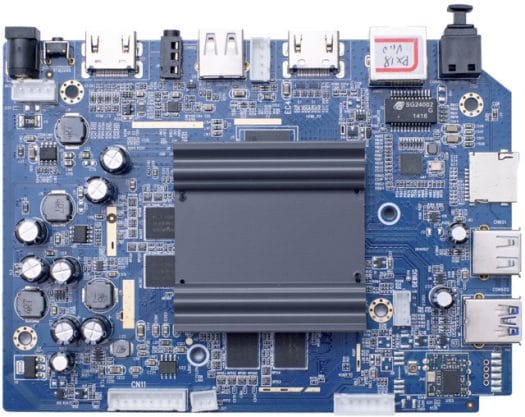

UT1 PCBA (Click to Enlarge)

The box runs Android 4.4.2. That’s about all the information I have now, and this media player is not available for purchase online yet. You can check out Uyesee T1H product page for a few more details. Charbax interviewed the company about their Wi-Fi audio box, and Android TV boxes based on Rockchip RK3288, HiSilicon 3798m, and more.., The part specific to T1H box starts at the 7:00 mark.

Digg This
Reddit This
Stumble Now!
Buzz This
Vote on DZone
Share on Facebook
Bookmark this on Delicious
Kick It on DotNetKicks.com
Share on LinkedIn
Bookmark this on Technorati
Post on Twitter

  1. Jibril
    August 19th, 2014 at 04:20 | #1

    board very interesting … wireless with Ufl connector … a lot of on-board connector … TTL serial Debug connector (bottom right of heatsink) …

  2. onebir
    August 19th, 2014 at 15:08 | #2

    But does anyone know anything about the SOC??

  3. August 19th, 2014 at 16:05 | #3

    @onebir
    I tried to look for info previously, but there’s nothing at all, even on the company website.
