Portwell AMDY-7000 Series Mini-ITX Boards Based on AMD Embedded Processors

American Portwell Technology has announced the AMDY-7000 Series Mini-ITX embedded system boards targeting applications that require high quality graphics output with low power consumption such as digital signage, surveillance security monitoring, point of sales (PoS) and more.

AMD G-Series T56N mini-ITX Board

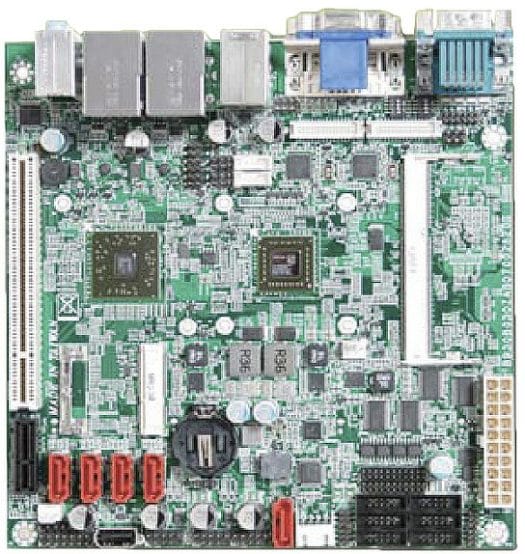

Portwell AMDY-7002 mini-ITX Embedded Board

The company provides 3 families of AMDY-7000 series mini-ITX boards:

  • AMDY-7000 – Single-core AMD Athlon II Neo R44L processor.
  • AMDY-7001 –  Dual-core AMD Turion II Neo N54H,  AMD Athlon II Neo N36L or single-core AMD Athlon II Neo R44L processor.
  • AMDY-7002 – Dual-core AMD Fusion G T56N processor.

The AMDY-7000/7001/7002 Series models are powered by AMD Fusion processors featuring ATI HD 6320 and HD 4200 GPU. Depending upon the model, the power consumption ranges from a 12W to 25W. All boards can support up to 8GB DDR3 SO-DIMM memory, dual display via VGA/DVI/HDMI/LVDS and dual LVDS (AMDY-7002 only),  PCIe x1, PCIe x16 or half-size mini-PCIe depending on the model and dual Gbit Ethernet.

Here are AMDY-7002 Model specifications:

  • CPU – AMD Fusion G T56N dual core Processor with AMD HD6320 discrete GPU @ 500MHz.
  • Chipset – AMD Fusion A55E FCH
  • System Memory – Support 1x SO-DIMM DDR3 1066/1333 MHz and up to 4GB system memory
  • Video Output:
    • 1 x DP to 24 bit LVDS connector onboard
    • 1 x DP to 24 bit LVDS connector onboard or DVI-D connector on rear I/O
    • 1 x VGA connector on rear I/O.
    • Support for dual independent video output
  • Resolution:
    • DVI up to 1600*1200(UXGA)
    • LVDS up to 1920*1080 (WSXGA+)
    • VGA up to 2048*1536(QXGA).
  • BIOS – Phoenix
  • Storage Devices:
    • 1 x CF Slot
    • 1 x CFast socket
    • 5 x SATA connector
  • I/O Chip – 1 x ITE® IT8721F & 1 x IT8760
  • Expansion interface – 1 x PCIe x1, 1 x PCI and 1 x Half sized Mini-PCIe socket
  • LAN – Realtek® RTL8111D-VB-GR Gigabit Ethernet controllers with 2 x RJ45 on rear I/O. Support Boot from LAN (PXE) and WOL (Wake On LAN)
  • Audio – Realtek ALC886, One audio jack support Line-in/Mic-in/Line-out on rear I/O
  • USB:
    • 6 x USB1.1/2.0 ports onboard pin headers
    • 6 x USB1.1/2.0 ports on rear I/O
    • 1 x USB 1.1/2.0 port onboard vertical USB connector
  • Serial Port:
    • 2 x RS232 ports
    • 2 x RS232 port & 4 x RS232/422/485 ports onboard pin headers
  • PS/2 – 1x PS/2 keyboard & mouse on rear I/O
  • Power Requirement – Standard ATX
  • Dimension – 170(L) x 170(W) mm
  • Environment – Operation temperature: 0~60oC,  Storage temperature: -20~80oC,  Operation humidity: 5~95%, non-condensing

Portwell AMDY-7000 Series Mini-ITX embedded system boards are available now.
