NSZ-GU1, Sony’s Next Google TV Box will be an HDMI TV Stick

Since 2010, Sony has been working on Google TV device, and last year they announced Sony NSZ-GS7, a Google TV 2.0 set-top box. This year, nothing have been announced yet, but a few pictures of a new device have shown up in the FCC site. Sony NSZ-GU1 will be some sort of HDMI TV stick that you insert into your TV, except it looks more like a small set-top box has been glued onto an HDMI TV dongle.

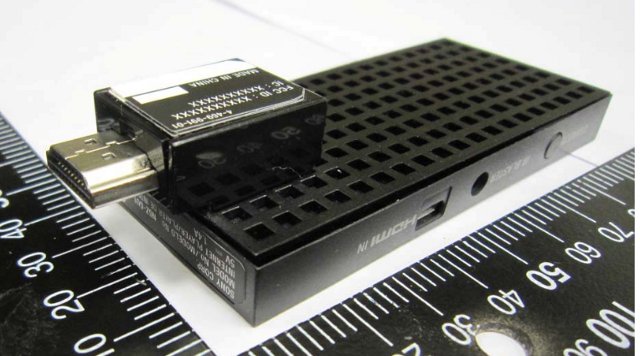

Sony_NSZ-GU1

Here are the specifications derived from the FCC fillings and pictures:

  • SoC- Marvel 88DE3108-A1 dual core processor (Marvell Armada 1500).
  • System Memory – 1GB RAM
  • Storage – 4GB NAND Flash (Toshiba THGBM5G5, If I’ve read correctly)
  • Video I/O – HDMI output (MHL) 720p/60, micro HDMI input  720p/60
  • Connectivity – 802.11b/g/n WiFi (AzureWave AW-NH390), Bluetooth 3.0
  • USB – 1x micro USB port (for power only?)
  • Misc – IR Blaster
  • Power – 5V via MHL or USB port
  • Dimensions – 109 mm × 42 mm × 22.5 mm
  • Weight – 70 grams

The device will come with NSG-MR9U remote control, 2 AA batteries, a Micro HDMI cable, a Micro USB cable, an IR Blaster cable, a quick start guide, a reference guide (PDF), and a warranty card. This appears to be based on an heavily modified and simplified reference design from Marvell.

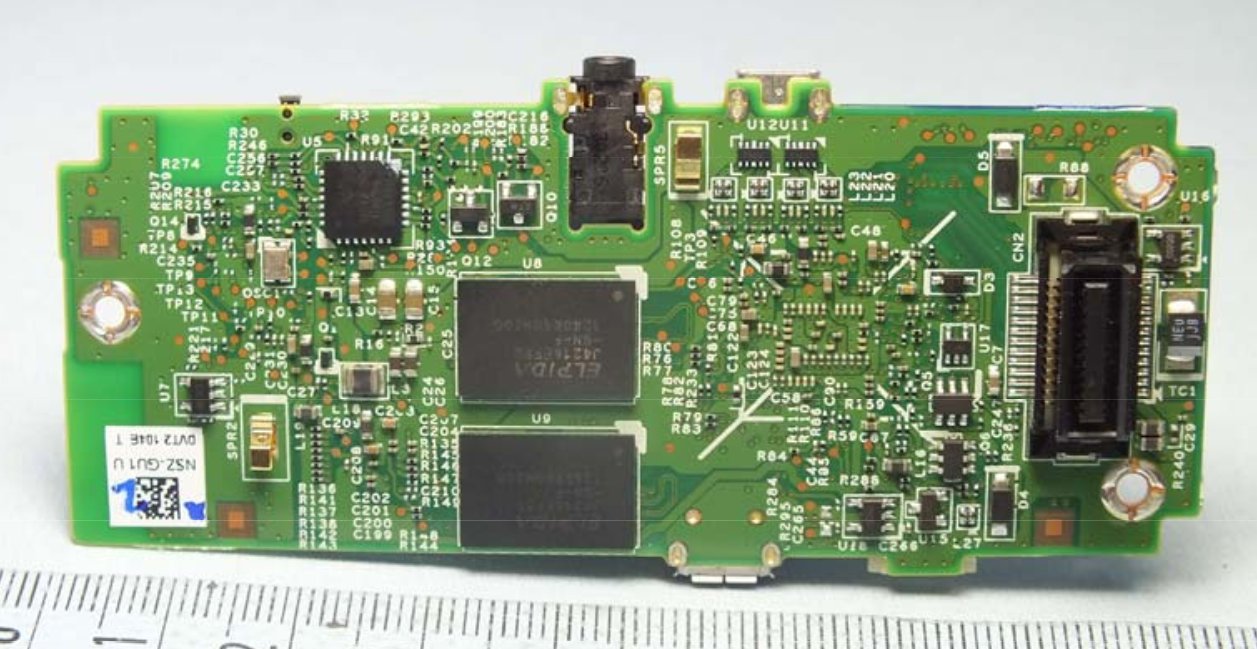

Sony_NSZ-GU1_Board_Bottom_640px
Sony NSZ-GU1 PCB (Bottom) – Click to Enlarge
Sony NSZ-GU1 PCB (Top) - Click to Enlarge
Sony NSZ-GU1 PCB (Top) – Click to Enlarge

One the software side, the box is expect to run Google TV, and provides access to and search your EPG, watch Internet video, or run TV apps from the Google Play Store. The HDMI input and IR blaster can be used to watch the video from, and control your cable or satellite box from Google TV.

Via Liliputing

Personal note: I’ll be on the road for a while, so the number of posts will slow down considerably during that time (maybe 1 or 2 per week if I have Internet access). Tips are more than ever welcome with the Contact Us page or Facebook.
