Eweat EW802 Android TV Box (Amlogic S802) Supports External SATA Drives, Features Dual Wi-Fi Antennas

Amlogic S802 does not support SATA natively, so few Android media players based on this quad core SoC comes with SATA hard drive or SSD support. Zoomtak T8 is one of them, but there’s now another options with Eweat EW802, except than having an internal bay for 2.5″ hard drives, it just features an external SATA connector capable of handling both 2.5″ and 3.5″ drives, and comes with better specs including dual Wi-Fi antennas, 2GB RAM, and 16GB flash.

Egreat_EW802Eweat EW802 specifications:

  • SoC – Amlogic S802  quad core cortex A9r4 @ 2 GHz with Mali-450MP6 GPU (N.B: It could also be S802-H due to Dolby abd DTS hardware decoding claim).
  • System Memory – 2GB DDR3
  • Storage – 16GB NAND flash + micro SD slot + SATA connector
  • Connectivity – 10/100M Ethernet, dual band 802.11 b/g/n Wi-Fi with two external antennas, and Bluetooth 4.0
  • Video Output – HDMI 1.4a and AV (3.5mm jack)
  • Audio Output – HDMI, AV, and optical S/PDIF
  • USB – 4x USB 2.0 host ports, 1x micro USB OTG
  • Misc – IR receiver, Power LED,  power button (at the back),  and recovery/reset pin hole
  • Power Supply – 12V/2A
  • Dimensions –  161x100x27.5 mm
  • Weight – 850 grams

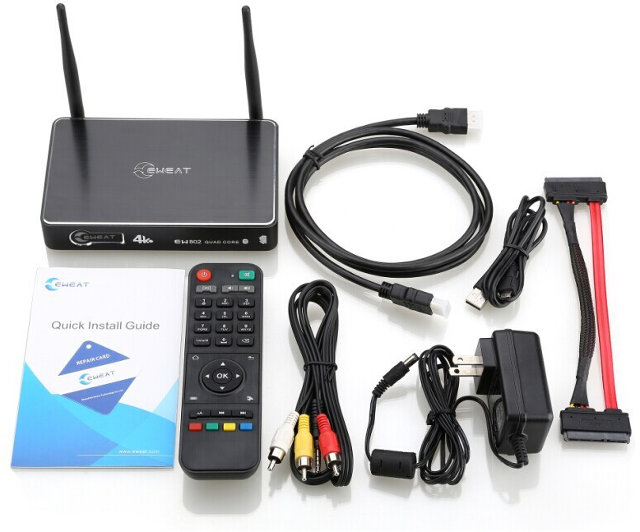

The device runs Android 4.4 using the same user interface as other S802 boxes, is preloaded with XBMC, and is said to support FAT16, FAT32, exFAT, NTFS, HFS+, and Ext-2/3 file systems. The box comes with an IR remote control, HDMI and AV cables, a SATA cable, a micro USB cable, a 12V/2A power adapter, a Quick Installation Guide, and a warranty card.

Eweat_EW802Eweat EW802 is now available for $118.50 including shipping on Aliexpress. You can also check out Eweat EW802 product page on the company website, where you’ll find a “firmware zone”, but nothing for EW802 just yet.

Via AndroidPC.es

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX Rockchip RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
5 Comments
oldest
newest
natsu
natsu
10 years ago

better be at a good price, because they are many boxes with RK3288 and under 100 $
I don’t know but with the RK3288 much more powerful and support H.265, who would go with the S802 unless the price is attractive wich is not for the moment
I’ve really been surprised with the performance of the RK3288 on smartbox, very very snapy
https://www.youtube.com/watch?v=WprD_BCKyEM&noredirect=1

Jibril
Jibril
10 years ago

it seems a copy of Zoomtak T8 … without LCD …

Mark
Mark
10 years ago

The optical out on the Eweat EW 802 does not work.

Bosca Dan
Bosca Dan
5 years ago

neither does it go to me. did you solve the problem?
if, yes please send me a message on [email protected]
thank you
