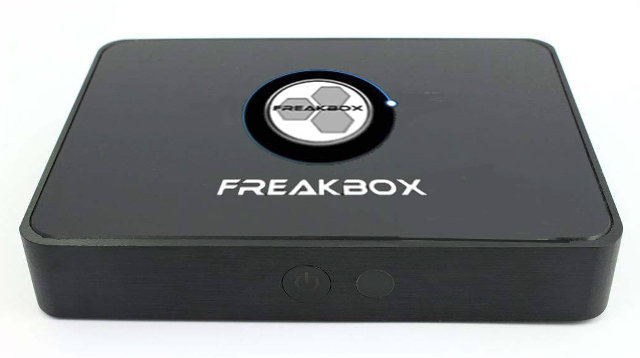

FreakTab is a community of developers and users focusing on Android tablets, smartphones and especially mini PCs. Users will get answer to their technical problems, and developers such as Finless or Neonode, will release improved custom “ROMs” for more popular devices. But instead of simply working on other product’s firmware, the main contributors on Freaktab have apaprently decided to work together on the Freakbox Project, an Android TV Box powered by Rockchip RK3188 quad core SoC.
Freakbox Project hardware specifications:
- SoC – Rockchip RK3188 Quad core ARM Cortex A9 processor @ 1.6GHz with Mali-400MP4 GPU
- System Memory – 2GB DDR3
- Storage – 8GB to 16 GB NAND Flash + SD slot up to 32GB

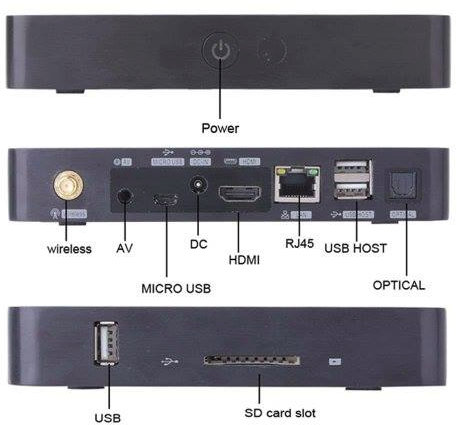

- Video Output – HDMI 1.4, AV output (3.5mm jack)
- Audio I/O – HDMI, AV, and S/PDIF
- Connectivity – 10/100M Ethernet, dual band WiFi 802.11 b/g/n with external antenna, and Bluetooth 4.0
- USB – 3x USB 2.0 host port, 1x micro USB OTG
- Misc – Power buttons, IR receiver.
- Power Supply – 5V/2A
- Power Consumption – 3 to 4W while active, 3W while idle, 1W in standby
- Dimensions – 160x117x26 mm
The hardware appears to be pretty standard, and it’s far from being the latest and greatest in terms of specifications, but of course, the whole selling point of this box is support by Freaktab community, which will provide an Android 4.4 firmware with kernel and system customized from source, and supported by the community.
The team has managed to keep the project pretty secret, but development appears to be nearly complete, and they’ve even announced the box will start pre-selling today on Freakbox Project’s Facebook page (Price still unknown at the time of writing). You can find more information on freakbox-project.com.
Via Ian on G+ mini PCs community.
Jean-Luc started CNX Software in 2010 as a part-time endeavor, before quitting his job as a software engineering manager, and starting to write daily news, and reviews full time later in 2011.
16 Replies to “FreakTab Community Introduces Freakbox Android TV Box Powered by Rockchip RK3188”
I wonder if its the same box as the xunity box or maybe the as the miinix x7
No, it is not the same a XUnity or the X7.
It is our own Box we have built with Custom Firmware and Kernel Build from Source.
The Special thing is the Support we will Provide and regular Firmware Updates.
Hmmm… sad, that the community always comes up with such medicore devices. Maybe it’s development costs / NDAs, I can’t judge. The only thing, that points at a community development seems to be the external WiFi antenna and the SD-Card reader. Maybe there is more on the firmware side.
Beautiful design 🙂
Ignoring Linux is unfortunately its greatest omission.
Now the price will be its greatest negative … $149 … https://www.facebook.com/freakboxproject/posts/681863101891494
It’s a version with 32GB flash, maybe that explains the price. It still seems pretty high though…
Question is, will that firmware include prporietary, closed source enhancements, just like the rest of the tv box/tv stick hustlers, or will it be open source and remain true to the collaborative spirit of the Freaktab forums, which is the foundation of this venture?
If it does abandon its original, collaborative spirit, this project is doomed to fail and also will be quite hypocritical. I hope it doesn’t go that route.
I think between 8 and 32GB there is a 40RMB ( USD6.50 ) difference in cost price for a NAND Flash memory.
I guess this price is because they plan good support users, or because production is small…
They are using Rockchip, lots of things will be closed. Closed because Rockchip is closed.
Thanks I had no idea the price difference was so small. I’ve seen well known companies charge between $50 to $100 more for the 32GB version of their hardware compared to the 16GB version…
This seems just the UGOOS UT2 rebranded. No kernel 3.10? No Linux? I don’t see the difference with miniX x7 or cr11S for instance. Support? Other boxes also have firmware and kernels built from RKSDK.
Honestly, I see radxa rock more interesting, and more now seeing that a radxa rock 2 is coming….
Radxa & Hummingbird are good boards.
Yes, it is.
Radxa, Hummingbird and so on are thought for development, if they want a massive product they must choose a model from the market with case (or invest in hardware and moulding, but we’re not talking about few money). Just I don’t understand why they choose RK3188 now when RK3288 is here and even probably they even already can get a motherboard before launching (like me, I have for testing).
I also expected more from freaktab, but anyway I hope a good firmware work.
…that’s beyond obvious. There’s a larger point there you’ve obviously missed or don’t care to indulge. I guess it’s instructive (the fact they’re going RK3188) as to what this is going to turn into.
Today I bought a 4K TV and take the Beelink M8 to the shop to test the TV before buy, later I’ll use a RK3288 board product (ZERO Devices).
I think final users follow the market, so freaktab (forum) will also follow the market. Even Finless said he’s using a S802 box mainly.
If finally this project is instructive I will feel happy to learn with them, but also, if just want to make something instructive skelton is right by saying “radxa is more interesting”
That’s the presell link for Freakbox -> http://www.usellisell.com/freakbox-v1-rk3188-8-32-gb-rooted-android-4-4.html
